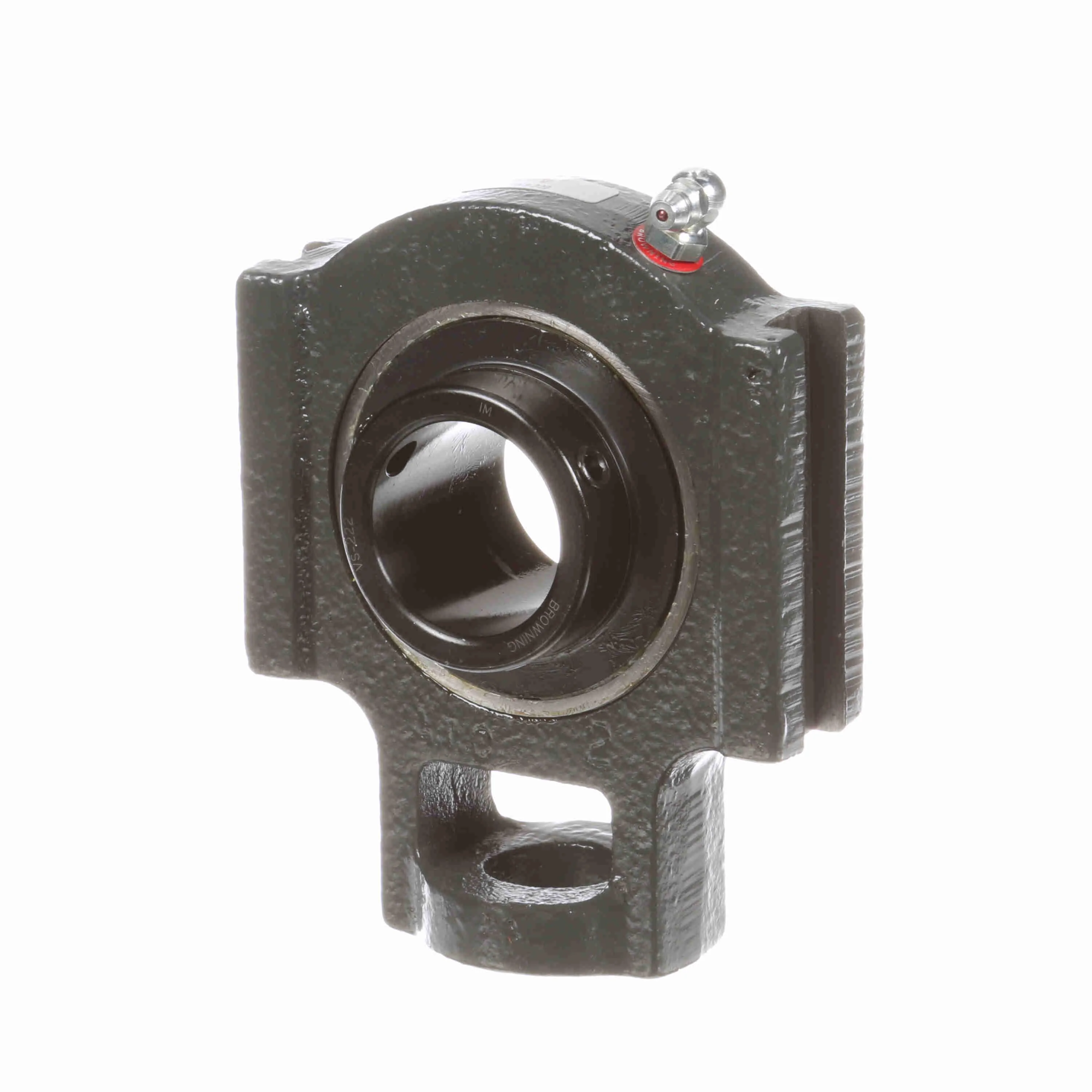

BROWNING VTWS-222 767470 Ball Bearing Unit - Side Mount, 1.3750 Inch Bore, Normal Duty, 0.5313 Inch Slot
Get it by Tuesday, Aug 18
€159.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Take Up |
| Bore Shape | Straight |
| Centerline To Front Face | 1" |
| Compatible Frame Number | 9SF39, 12SF39, 18SF39, 9SF39, 12SF39, 18SF39 |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Expansion | No |
| Expansion Type | Non-Expansion |
| Family Series | Browning Bearings |
| Finish, Coating | Gray |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 1 3/4" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 1.859" |
| Load Capacity | 5782 Lbs. Dynamic, 3493 Lbs. Static |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 4000 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact With Flinger |
| Series | VTWS Series |
| Slot Spacing | 3.5 |
| Suitable For Use With | 3SF23, 6SF23, 9SF23, 12SF23 Frames |
| Type Of Bearing | Ball Bearing |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 12.7 |
Product Variants
| Product | Model | Bearing Material | Bore Dia. | Housing Width | Slot Spacing | Dynamic Radial Load Capacity | Inside Ring Outside Dia. | Centerline To Front Face | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VTWS-231 | Black Oxided Bearing Steel | 25 mm | 2 1/8" | 4 | 7889 lbs. | 2.469" | 1.281" | 1 15/16" | €211.82 | |
 |
VTWS-223 | Black Oxided Bearing Steel | 1 7/16" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | 1 7/16" | €159.77 | |
 |
VTWS-220 | Black Oxided Bearing Steel | 1 1/4" | 1 3/4" | 3.5 | 5782 lbs. | 1.859" | 1" | - | €159.77 | |
 |
VTWS-335 | Steel | - | 2 1/2" | 5.125 | 11789 lbs. | 2.984" | 1.563" | 2 3/16" | €319.57 | |
 |
VTWS-224 | Black Oxided Bearing Steel | 1 1/2" | 2 1/8" | 4 | 7340 lbs. | 2.063" | 1.188" | - | €180.89 | |
 |
VTWS-227 | Black Oxided Bearing Steel | 1 11/16" | 2 1/8" | 4 | 7901 lbs. | 2.297" | 1.188" | 1 11/16" | €216.95 | |
 |
VTWS-323 | - | 1 7/16" | 2 1/8" | 40" | - | - | - | 1 7/16" | €197.27 |
