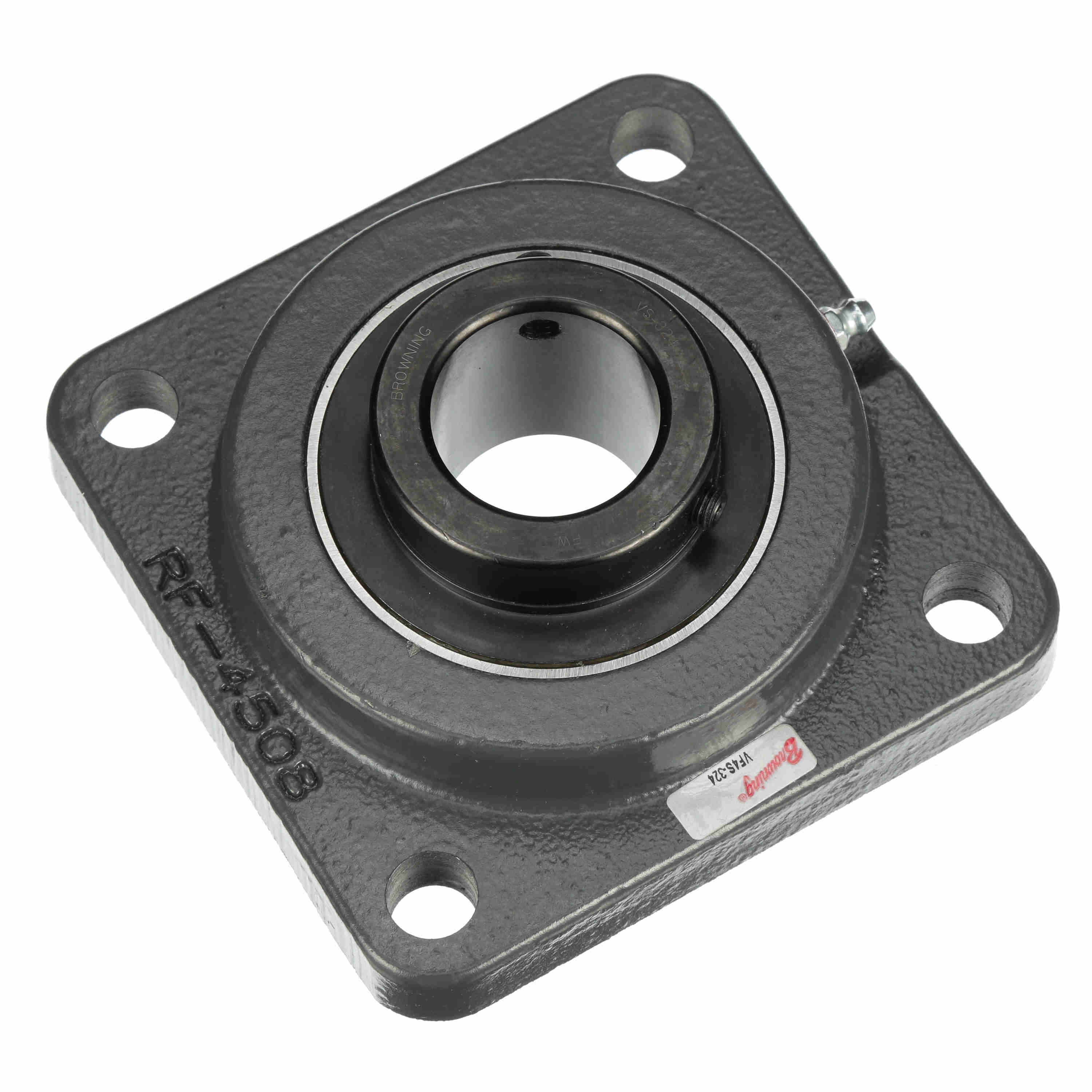

BROWNING VF4S-324 767498 Ball Bearing Unit, 5-3/8 in OAL/Dia, 1-1/2 in Bore Dia, 4-Bolt, 3000 rpm Max Speed, Non-Expansion Medium Duty Round/Straight Bore
Get it by Monday, Aug 17
€175.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Material | Steel |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 4 1/8" |
| Centerline To Front Face | 1.188" |
| Duty Series | Medium |
| Duty Type | Medium Duty |
| Dynamic Radial Load Capacity | 7901 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Finish | Gray Painted |
| Flange Mounting Type | 4 Bolt |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.63" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 5 3/8" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Dia. | 1 1/2" |
| Inside Ring Outside Dia. | 3/4" |
| Length Through Bore | 1.938" |
| Load Capacity | 7901 Lbs. Dynamic, 5139 Lbs. Static |
| Locking Device | Set Screw |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Depth | 2.04688" |
| Overall Height | 5 3/8" |
| Overall Width | 5 3/8" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 5139 lbs. |
| T Core | 0.75 |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.6 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 13.67 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Overall Width | Duty Type | Bolt Center To Center Length | Dynamic Radial Load Capacity | Length Through Bore | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF4S-224 | 1 1/2" | 4467 lbf. | 5 1/8" | Standard Duty | - | 7340 lbf. | - | 2.016" | €141.83 | |
 |
VF4S-223 | 1 7/16" | 3493 lbs. | 4.63" | Standard Duty | - | 5782 lbs. | 1.688" | - | €124.01 | |
 |
VF4S-235 | 2 3/16" | 6601 lbs. | 6.38" | - | 5 1/8" | 9752 lbs. | 2.188" | - | €224.85 | |
 |
VF4S-220 | 1 1/4" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1.69" | - | €124.01 | |
 |
VF4S-231 | 1 15/16" | 5216 lbs. | 5 5/8" | Standard Duty | 4 3/8" | 7889 lbs. | 2.031" | - | €189.33 | |
 |
VF4S-222 | 1 3/8" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1 11/16" | - | €124.01 | |
 |
VF4S-239 | 2 7/16" | 8150 lbs. | 6 7/8" | - | 5 5/8" | 11789 lbs. | 2 14/25" | - | €273.20 |
