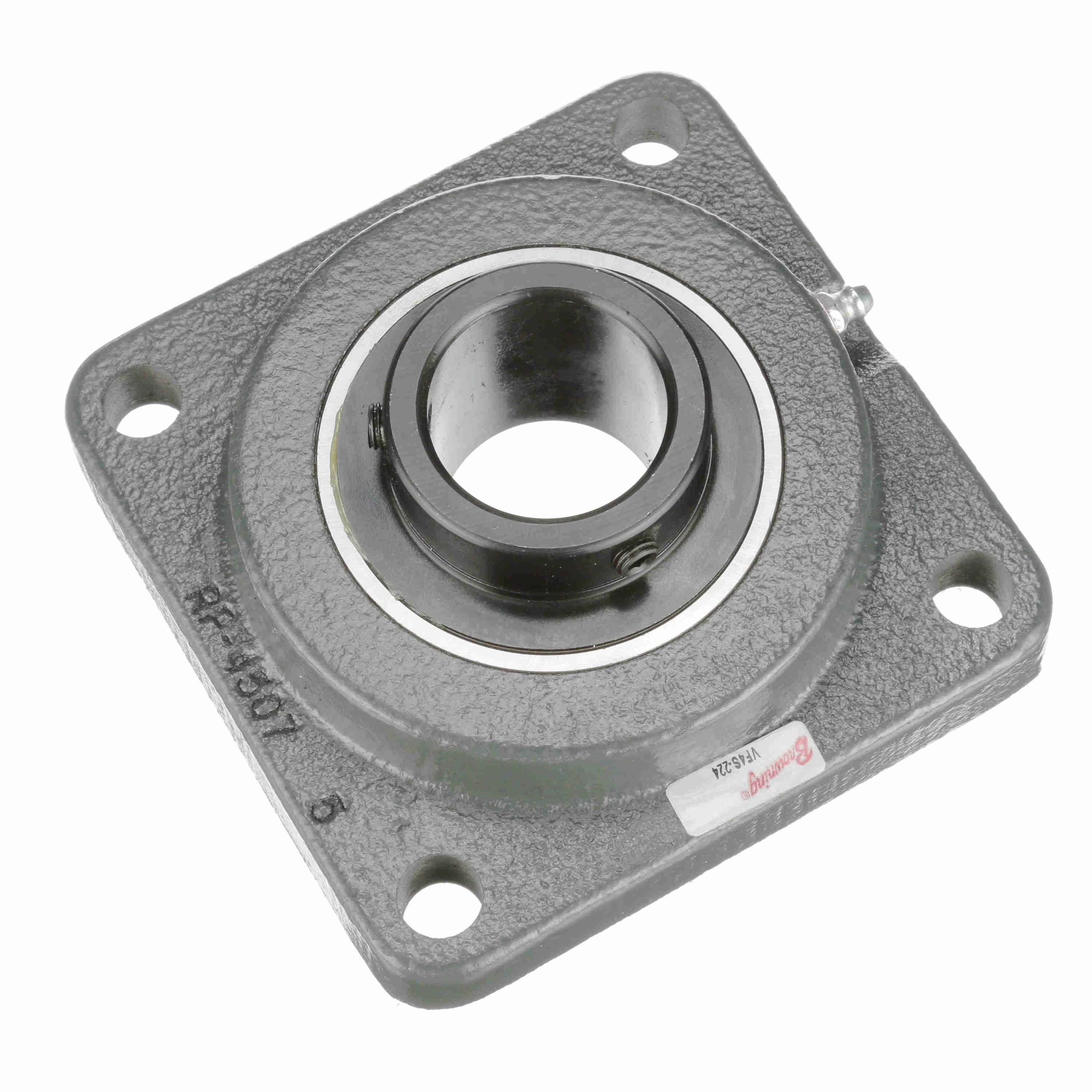

BROWNING VF4S-224 767895 Ball Bearing Unit, 5-1/8 in OAL/Dia, 1-1/2 in Bore Dia, 4-Bolt, 3500 rpm Max Speed, Normal Duty Non-Expansion Round/Straight Bore, Setscrew
Get it by Friday, Aug 14
€141.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Type | Four Bolt Flange |
| Bore Dia. | 1 1/2" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7340 lbf. |
| Family Series | Browning Bearings |
| Housing Material | Cast Iron |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Max. Speed | 3500 RPM |
| Operating Temp. Range | -20°F to +200°F |
| Overall Height | 2.016" |
| Overall Width | 5 1/8" |
| Replacement Bearing | VS-224 |
| Seal Type | Single Lip Contact Seal With Flinger |
| Shaft Dia. | 1 1/2" |
| Static Radial Load Capacity | 4467 lbf. |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 14.73 |
| Ship width (cm) | 14.22 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Overall Width | Duty Type | Bolt Center To Center Length | Dynamic Radial Load Capacity | Length Through Bore | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF4S-223 | 1 7/16" | 3493 lbs. | 4.63" | Standard Duty | - | 5782 lbs. | 1.688" | - | €124.01 | |
 |
VF4S-235 | 2 3/16" | 6601 lbs. | 6.38" | - | 5 1/8" | 9752 lbs. | 2.188" | - | €224.85 | |
 |
VF4S-220 | 1 1/4" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1.69" | - | €124.01 | |
 |
VF4S-231 | 1 15/16" | 5216 lbs. | 5 5/8" | Standard Duty | 4 3/8" | 7889 lbs. | 2.031" | - | €189.33 | |
 |
VF4S-222 | 1 3/8" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1 11/16" | - | €124.01 | |
 |
VF4S-239 | 2 7/16" | 8150 lbs. | 6 7/8" | - | 5 5/8" | 11789 lbs. | 2 14/25" | - | €273.20 | |
 |
VF4S-228 | 1 3/4" | 5139 lbs. | 5.38" | - | 4 1/8" | 7901 lbs. | 1.94" | - | €167.96 |
