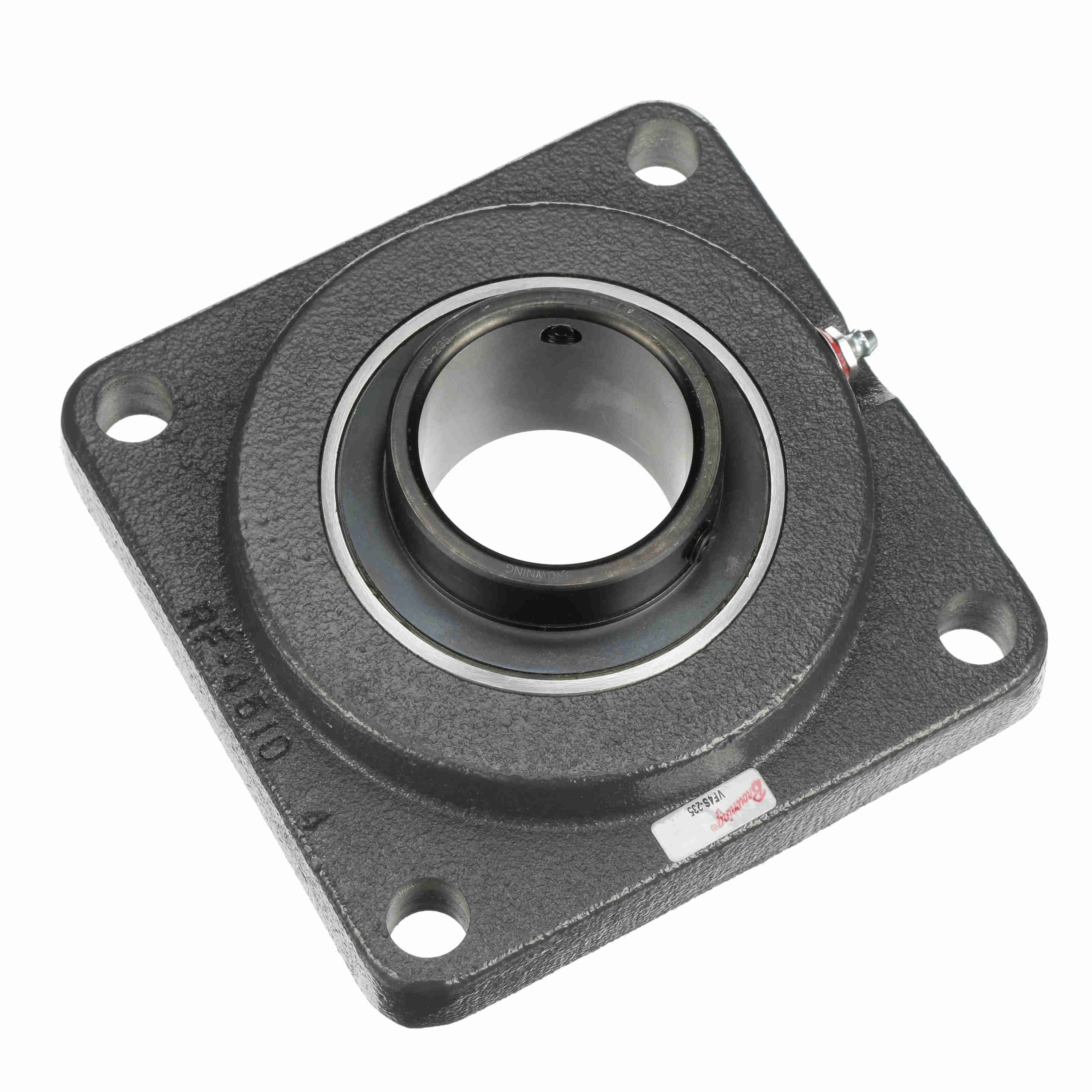

BROWNING VF4S-235 767482 Ball Bearing, 6-3/8 in OAL/Dia, 2-3/16 in Bore Dia, Gray Painted, Steel, Setscrew, Normal Duty Non-Expansion Round/Straight Bore
Get it by Monday, Aug 17
€224.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Four Bolt Flange |
| Bolt Center To Center Length | 5 1/8" |
| Bore Dia. | 2 3/16" |
| Centerline To Front Face | 1.313" |
| Duty Series | Normal |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Expansion | No |
| Family Series | Browning Bearings |
| Flange Type | 4 Bolt Flange |
| Foot Height | 0.813" |
| Housing Base | Semi Solid |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Width | 6 3/8" |
| Insert Material | Bearing Steel, Black Oxided Inner |
| Insert Material | 52100 Bearing Steel, Black Oxided Inner |
| Inside Ring Outside Dia. | 2.719" |
| Length Through Bore | 2.188" |
| Locking Device | Set Screw |
| Max. Speed | 2500 RPM |
| Misalignment Type | Static Only |
| Nsn Number | 3130-01-383-8724 |
| Operating Temp. Range | -20°F to +200°F |
| Outer Ring Land Profile | Standard |
| Overall Width | 6.38" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Retainer Type | Ball Riding Retainer |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 6601 lbs. |
| T Core | 4.25 |
| Type Of Bearing | Ball |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 5.87 |
| Ship length (cm) | 16.21 |
| Ship width (cm) | 16.21 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Static Radial Load Capacity | Overall Width | Duty Type | Bolt Center To Center Length | Dynamic Radial Load Capacity | Length Through Bore | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VF4S-224 | 1 1/2" | 4467 lbf. | 5 1/8" | Standard Duty | - | 7340 lbf. | - | 2.016" | €141.83 | |
 |
VF4S-223 | 1 7/16" | 3493 lbs. | 4.63" | Standard Duty | - | 5782 lbs. | 1.688" | - | €124.01 | |
 |
VF4S-220 | 1 1/4" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1.69" | - | €124.01 | |
 |
VF4S-231 | 1 15/16" | 5216 lbs. | 5 5/8" | Standard Duty | 4 3/8" | 7889 lbs. | 2.031" | - | €189.33 | |
 |
VF4S-222 | 1 3/8" | 3493 lbs. | 4 5/8" | - | - | 5782 lbs. | 1 11/16" | - | €124.01 | |
 |
VF4S-239 | 2 7/16" | 8150 lbs. | 6 7/8" | - | 5 5/8" | 11789 lbs. | 2 14/25" | - | €273.20 | |
 |
VF4S-228 | 1 3/4" | 5139 lbs. | 5.38" | - | 4 1/8" | 7901 lbs. | 1.94" | - | €167.96 |
