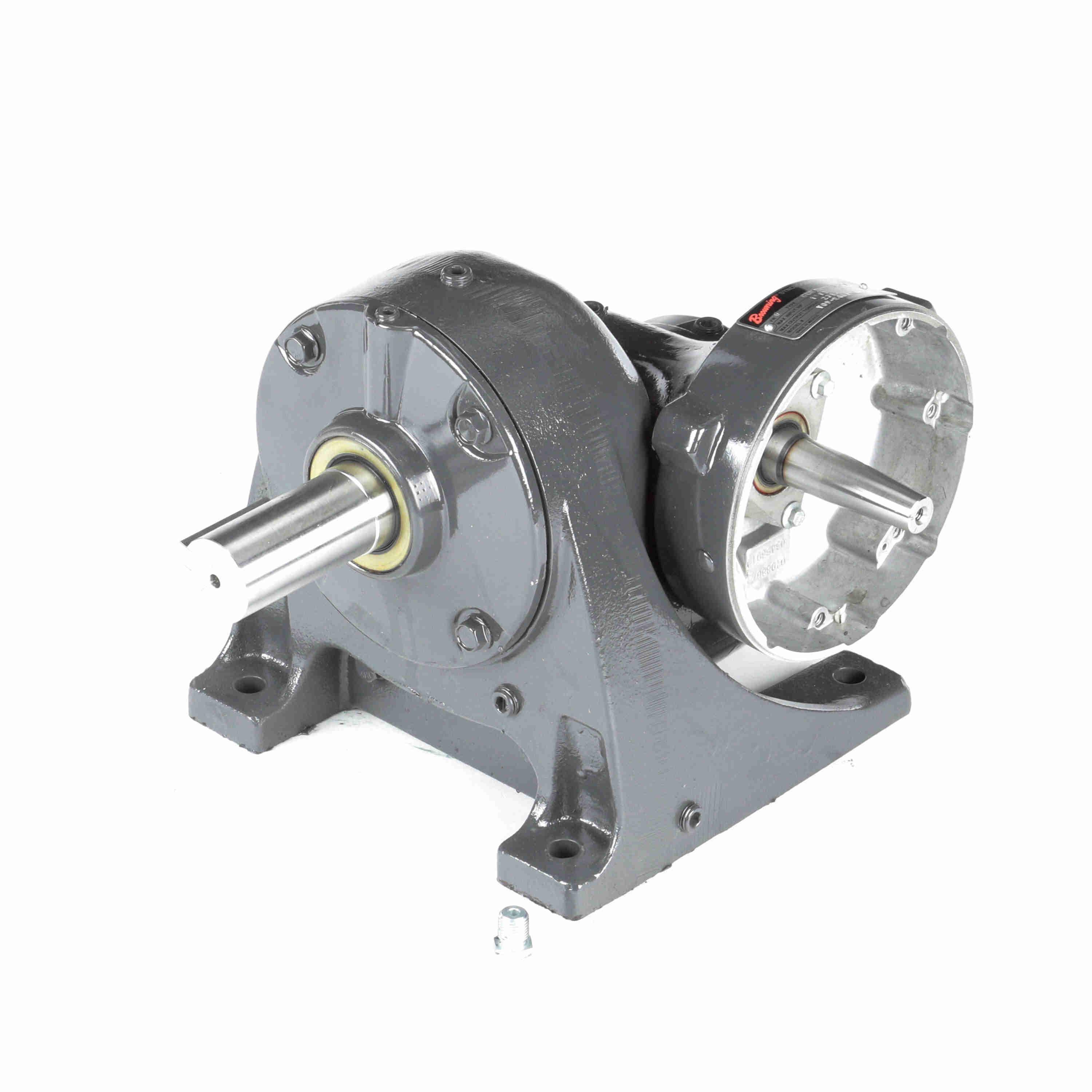

BROWNING E461 6GWBPF1 71.9 Worm Helical Reducer, Right Angle, Double Reduction
Get it by Wednesday, Dec 24
€2,060.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Base Included | Yes |
| Base To Center Of Input Shaft | 5 7/8" |
| Base To Center Of Output Shaft | 6.313" |
| Bolt Hole Dia. | 0.563" |
| Center Distance | 0.438" |
| Fan Cooled | No |
| Gear Type | Helical Worm |
| Height | 9.69" |
| Housing Material | Cast Iron |
| Input Rating Value Plus Um | 1 7/50 hp |
| Input Style | C Face Quill |
| Max. Nominal Input Rating | 1 hp |
| Max. Overhung Load Value And Um | 1097 lbs. |
| Motor Included | No |
| Mounting Bolt Pattern Footprint | Rectangular |
| Mounting Frame | 145T |
| Mounting Method | Direct Mounted |
| Mounting Position | Floor |
| Nominal Ratio | 71.9:1 |
| Output Rpm | 25 RPM |
| Output Shaft Dia. | 1 1/2" |
| Output Shaft Length | 3" |
| Output Type | Right Hand |
| Overall Length | 12.81" |
| Overall Width | 13.344" |
| Product Series | GWB Series |
| Reducer Type | Right Angle |
| System Of Measurement | Imperial |
| Torque Rating | 2316 lbs.-in. |
| Weight | 28.148 Kg |
Shipping Info:
| Ship weight (kg) | 27.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Gear Ratio | Max. Input Hp | Output Shaft Dia. | Mounting Type | Type | Input Rpm | Hp | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E455 | 20.3:1 | - | 1 22/25" | - | 4 Pole Continuous Duty | 1750 RPM | 3 hp | Helical Worm | €2,347.17 | RFQ
|
 |
E467 | - | - | 1 1/2" | - | - | - | - | Helical Worm | €2,347.17 | RFQ
|
 |
E469 | 354:1 | - | 1 1/2" | Footed, Floor, Direct | Double Reduction | 1750/5 RPM | 0.33 hp | Helical Worm | €2,347.17 | RFQ
|
 |
F334 | - | - | 1 1/2" | Conventional | - | - | - | Helical Worm | €2,445.38 | RFQ
|
 |
G471 | 17:1 | - | 1 1/2" | Footed, Floor, Direct | Double Reduction | 1750/100 RPM | 3 hp | Helical Worm | €2,445.38 | RFQ
|
 |
G474 | 3:1 | - | 1 1/2" | Footed, Floor, Direct | Double Reduction | 1750/56 RPM | 2 hp | Helical Worm | €2,445.38 | RFQ
|
|
G477 | 57:1 | - | - | Footed, Floor, Direct | Double Reduction | 1750/30 RPM | 1 hp | Helical Worm | €2,445.38 | RFQ
|
