BROWNING GWB Series Double-Reduction Worm-Helical Reducers

Filter

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

Style	Model	Output Speed	Max. Input Hp	Height	Nominal Ratio	Torque	Max. Nominal Input Rating	Input Rating Value Plus Um	Output Shaft Dia.	Price
A	G484	5 RPM	-	9.69"	354:1	2416 lbs.-in.	0.33 hp	0.41 hp	1 1/2"	€2,146.87
B	E469	5 RPM	-	9.69"	354:1	2416 lbs.-in.	0.33 hp	0.41 hp	1 1/2"	€2,347.17
A	G483	6 RPM	-	-	-	-	-	-	-	€2,146.87
C	E468	6 RPM	-	9.69"	285:1	2684 lbs.-in.	1/2 hp	1/2 hp	1 1/2"	€2,060.67
D	E467	7.5 RPM	-	9.69"	236:1	2378 lbs.-in.	1/2 hp	1/2 hp	1 1/2"	€2,347.17
E	E466	9 RPM	-	9.69"	191:1	2407 lbs.-in.	1/2 hp	0.57 hp	1 1/2"	€2,060.67
A	G481	9 RPM	-	9.69"	191:1	2407 lbs.-in.	1/2 hp	0.57 hp	1 1/2"	€2,445.38
F	F334	11 RPM	-	9.69"	159:1	2342 lbs.-in.	1/2 hp	16/25 hp	1 1/2"	€2,445.38
G	E465	11 RPM	-	9.69"	159:1	2342 lbs.-in.	1/2 hp	16/25 hp	1 1/2"	€2,060.67
A	G480	13.5 RPM	-	9.69"	126:1	2358 lbs.-in.	1/2 hp	37/50 hp	1 1/2"	€2,146.87
H	E464	13.5 RPM	-	9.69"	126:1	2358 lbs.-in.	1/2 hp	37/50 hp	1 1/2"	€2,060.67
I	E463	16.5 RPM	-	9.69"	106:1	2360 lbs.-in.	3/4 hp	21/25 hp	1 1/2"	€2,060.67
A	G479	16.5 RPM	-	9.69"	106:1	2360 lbs.-in.	3/4 hp	21/25 hp	1 1/2"	€2,146.87

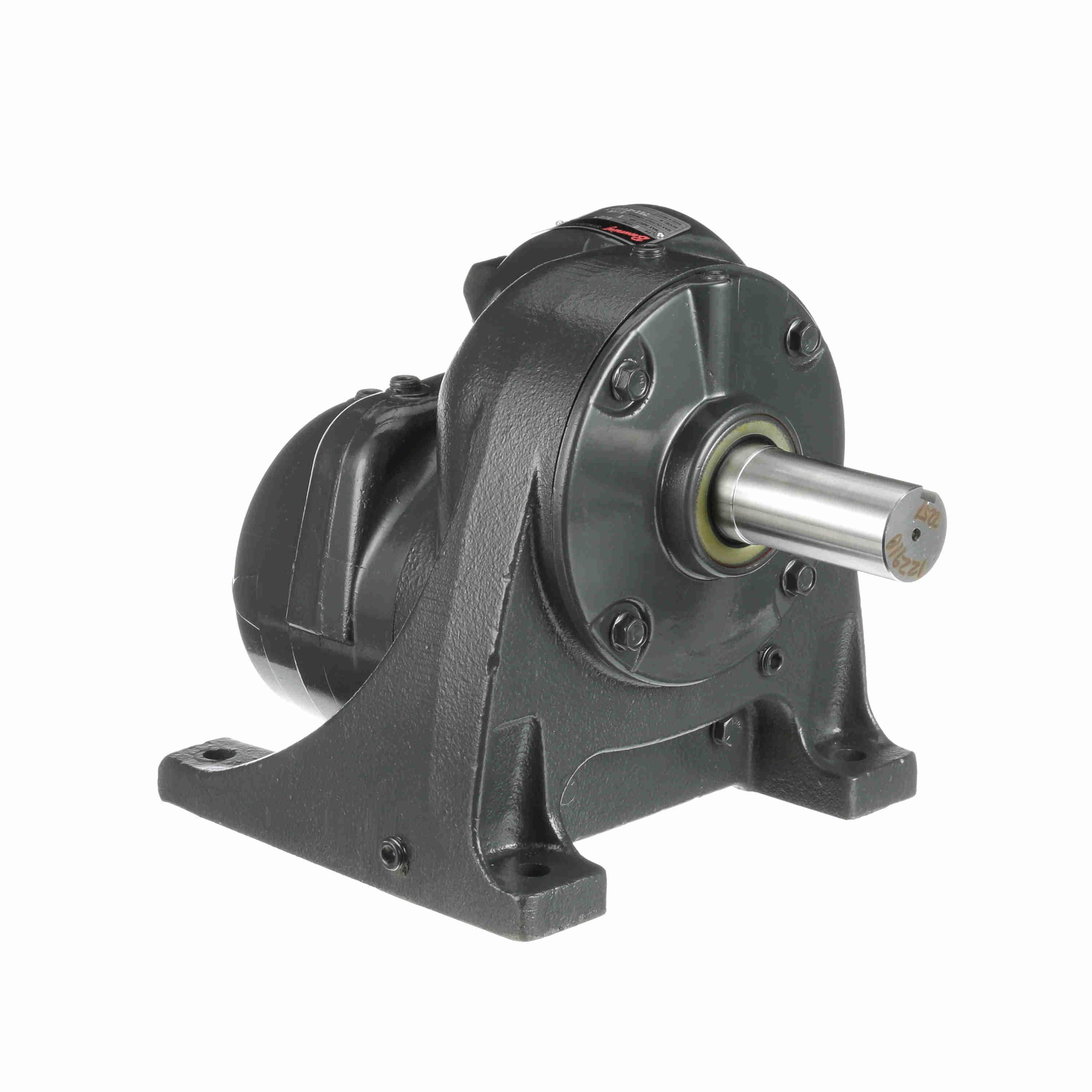

J	E462	20 RPM	-	9.69"	85.5:1	2365 lbs.-in.	1 hp	1 hp	1 1/2"	€2,060.67
F	F333GWB	20 RPM	-	9.69"	85.5:1	2365 lbs.-in.	1 hp	1 hp	1 1/2"	€2,146.87
K	E461	25 RPM	-	9.69"	71.9:1	2316 lbs.-in.	1 hp	1 7/50 hp	1 1/2"	€2,060.67
A	G478	25 RPM	-	9.69"	71.9:1	2316 lbs.-in.	1 hp	1 7/50 hp	1 1/2"	€2,146.87
L	E460	30 RPM	-	9.69"	57:1	2307 lbs.-in.	1 hp	1 19/50 hp	1 1/2"	€2,060.67
F	G477	30 RPM	-	9.69"	57:1	2307 lbs.-in.	1 hp	1 19/50 hp	-	€2,445.38
M	G476	37 RPM	-	9.69"	45.8:1	2297 lbs.-in.	1 1/2 hp	1 13/20 hp	1 1/2"	€2,146.87
N	E459	37 RPM	1 13/20 hp	9.69"	45.8:1	2297 lbs.-in.	1 1/2 hp	1 13/20 hp	1 1/2"	€2,060.67
O	E458	45 RPM	-	9.69"	36.6:1	2332 lbs.-in.	2 hp	2.01 hp	1 1/2"	€2,060.67

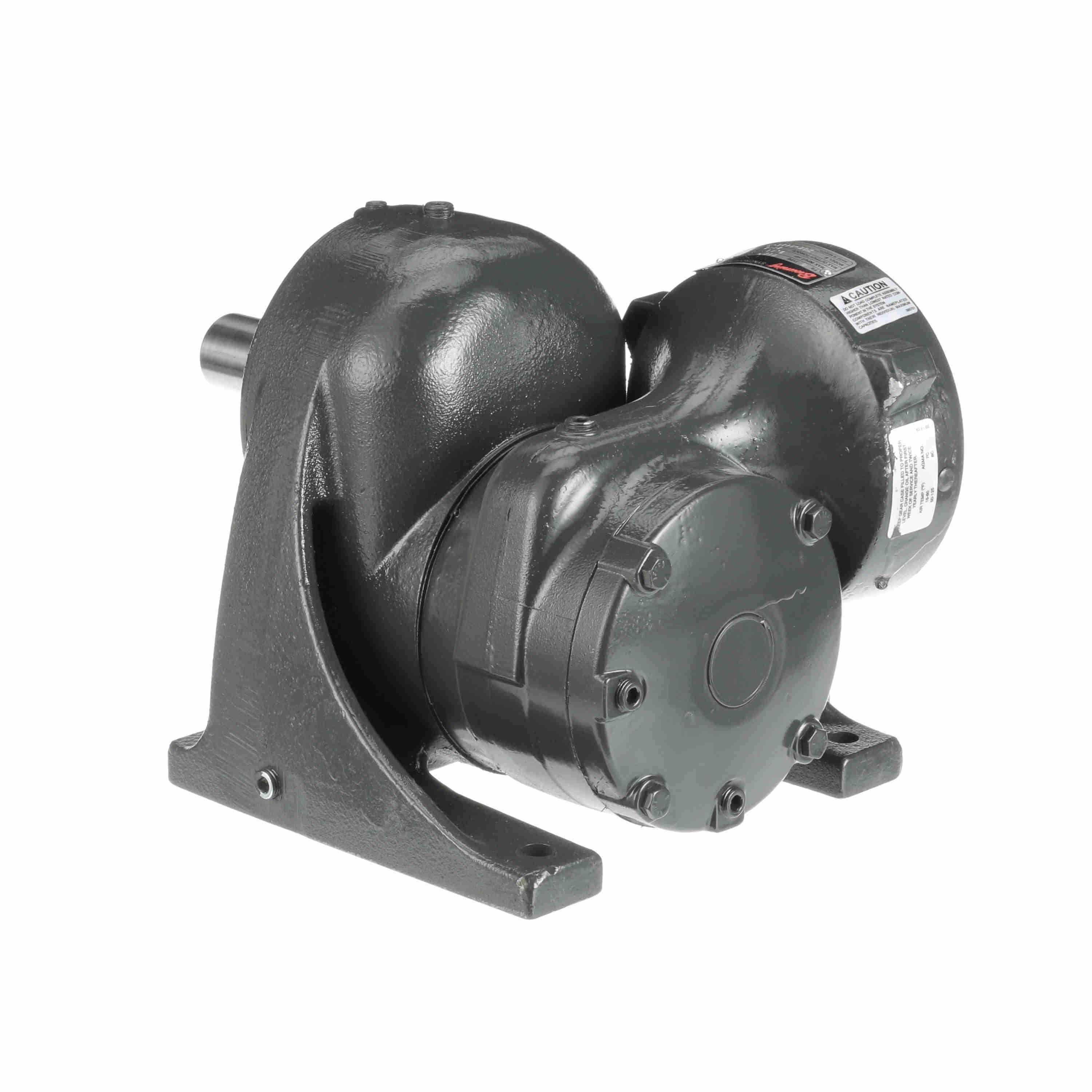

P	G475	45 RPM	-	9.69"	36.6:1	2332 lbs.-in.	2 hp	2.01 hp	1 1/2"	€2,146.87
Q	G474	56 RPM	-	9.69"	31:1	2317 lbs.-in.	2 hp	2 9/25 hp	1 1/2"	€2,445.38
R	E457	56 RPM	2 9/25 hp	9.69"	31:1	2317 lbs.-in.	2 hp	2 9/25 hp	1 1/2"	€2,060.67
S	E456	68 RPM	-	9.69"	25.4:1	2199 lbs.-in.	2 hp	2.79 hp	1 1/2"	€2,060.67
A	G473	68 RPM	-	11 1/4"	-	-	-	-	-	€2,146.87
A	G472	84 RPM	-	9.69"	20.3:1	2212 lbs.-in.	3 hp	3 21/50 hp	1 1/2"	€2,146.87
T	E454	100 RPM	-	9.69"	17:1	1969 lbs.-in.	3 hp	3.63 hp	1 1/2"	€2,060.67
U	G471	100 RPM	-	9.69"	17:1	1969 lbs.-in.	3 hp	3.63 hp	1 1/2"	€2,445.38
V	E455	1780 RPM	-	9.69"	20.3:1	2212 lbs.-in.	3 hp	3 21/50 hp	1 22/25"	€2,347.17
