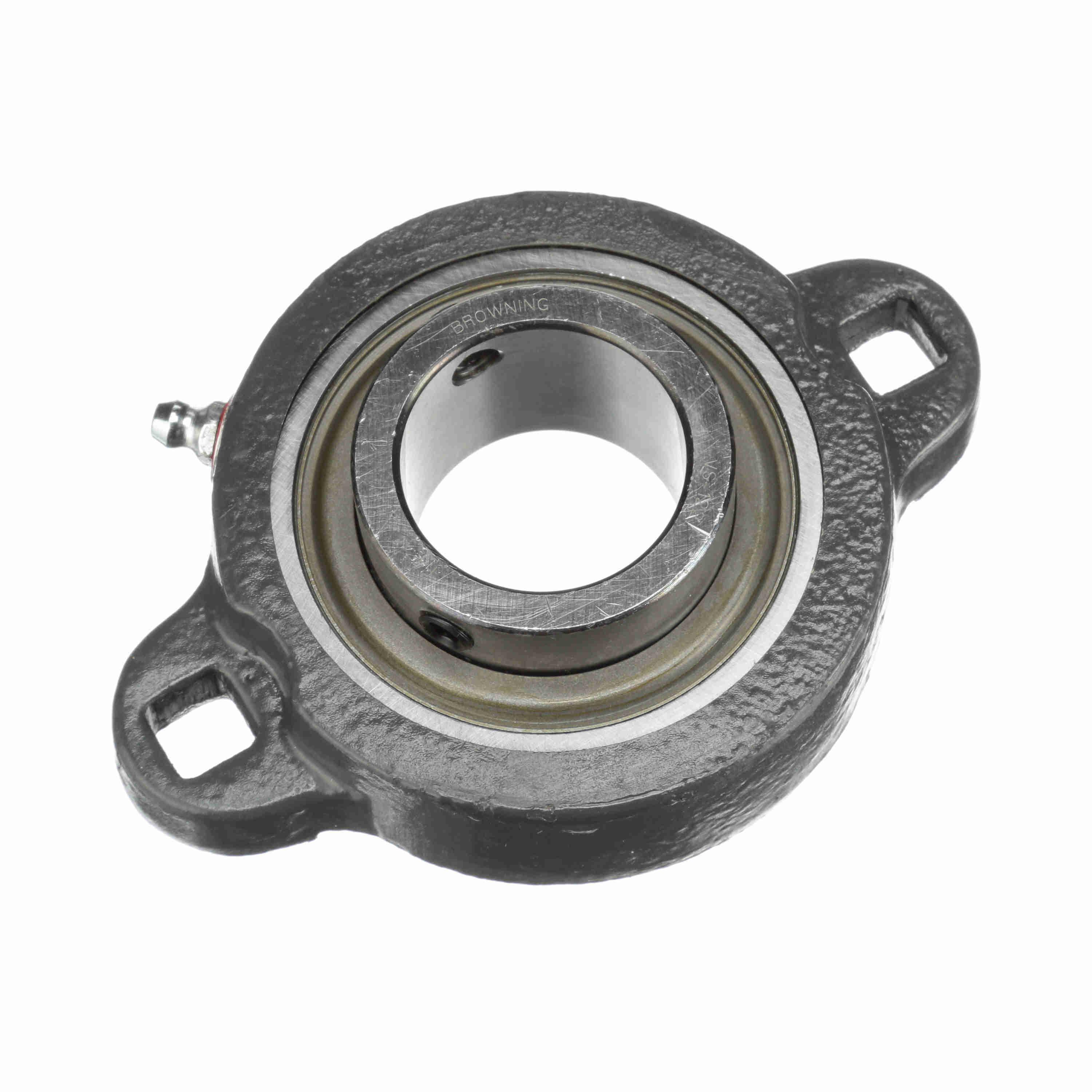

BROWNING 767593 VF2S-122M Ball Bearing, 3-3/8 in OAL/Dia, 1-3/8 in Bore Dia, Gray Painted, Steel, Setscrew, Intermediate Duty Non-Expansion
Item: BD8TREModel: 767593Cross Ref: VF2S-122M
7 In Stock
1 3/8"
3 3/8"
Ships within 2 days via
€148.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 3 15/16" |
| Bolt Spacing | 3.938" |
| Bore Dia. | 1 3/8" |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VS-122 |
| Inside Dia. | 1 3/8" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 2500 RPM |
| Mounting | Yes |
| Mounting Bolts | 27/64" |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Circle Dia. | 3.9" |
| Overall Depth | 1 25/64" |
| Overall Dia. | 3 3/8" |
| Overall Height | 4 13/16" |
| Overall Length | 3 3/8" |
| Pilot Configuration | No Pilot |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Intermediate Duty Non-Expansion |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2S 100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 0.75 |
| Ship height (cm) | 12.22 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 3.53 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Temp. | Bolt Center To Center Length | Overall Depth | Overall Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
765885 | 1" | 2 1/2" | 2801 lbs. | 1651 lbs. | 200°F | 3" | 1 3/16" | 3 3/4" | €96.62 | |
 |
767592 | 1 1/4" | 4 7/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 2 15/16" | €115.75 | |
 |
767432 | 3/4" | 4 13/32" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 3 17/32" | 1 9/32" | 2 1/2" | €110.96 | |
 |
767352 | 3/4" | 3 9/16" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 2 13/16" | 1 7/64" | 2 1/4" | €91.56 | |
 |
767439 | 1" | 4 7/8" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3 57/64" | 1 7/16" | 2 3/4" | €120.40 | |
 |
767586 | 1" | 3 3/4" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3" | 1 3/16" | 2 1/2" | €96.62 | |
 |
767569 | 1/2" | 3 7/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 3" | 1 5/64" | 2 1/8" | €89.42 |
