BROWNING VF2S 200 Series Standard Duty Two Bolt Flange Mounted Ball Bearings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1| Style | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Temp. | Bolt Center To Center Length | Overall Depth | Overall Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 767343 | 1 1/2" | 6 3/4" | 7340 lbs. | 4467 lbs. | -20°F to +200°F | 5 21/32" | 1 49/64" | 4 1/8" | €175.58 | |
| B | 767591 | 1 1/4" | 5 9/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 4 19/32" | 1 15/32" | 3 1/8" | €119.99 | |
| C | 767849 | 1 1/4" | 5 9/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 4 19/32" | 1 9/16" | 3 1/8" | €142.38 | |
| D | 767562 | 1 1/4" | 4 13/16" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 3 15/16" | 1 25/64" | 3 3/8" | €124.13 | |
| E | 767564 | 1 1/4" | 6 1/8" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 5 1/8" | 1 39/64" | 3 5/8" | €118.62 | |
| F | 767592 | 1 1/4" | 4 7/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 2 15/16" | €115.75 | |
| G | 765804 | 1 1/4" | 3 5/8" | 4381 lbs. | 2567 lbs. | 200°F | 5 1/8" | 1 3/4" | 6 1/8" | €126.50 | |
| H | 767588 | 1 1/8" | 4 7/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 2 15/16" | €138.40 | |
| I | 767631 | 1 1/8" | 5 9/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 4 19/32" | 1 9/16" | 3 1/8" | €170.26 | |
| J | 767617 | 1 3/8" | 6 1/8" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 5 1/8" | 1 39/64" | 3 5/8" | €141.85 | |
| K | 767593 | 1 3/8" | 4 13/16" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 3 15/16" | 1 25/64" | 3 3/8" | €148.43 | |
| L | 765660 | 1 3/16" | 3 1/8" | 4381 lbs. | 2567 lbs. | 200°F | 4 19/32" | 1 9/16" | 5 9/16" | €170.26 | |

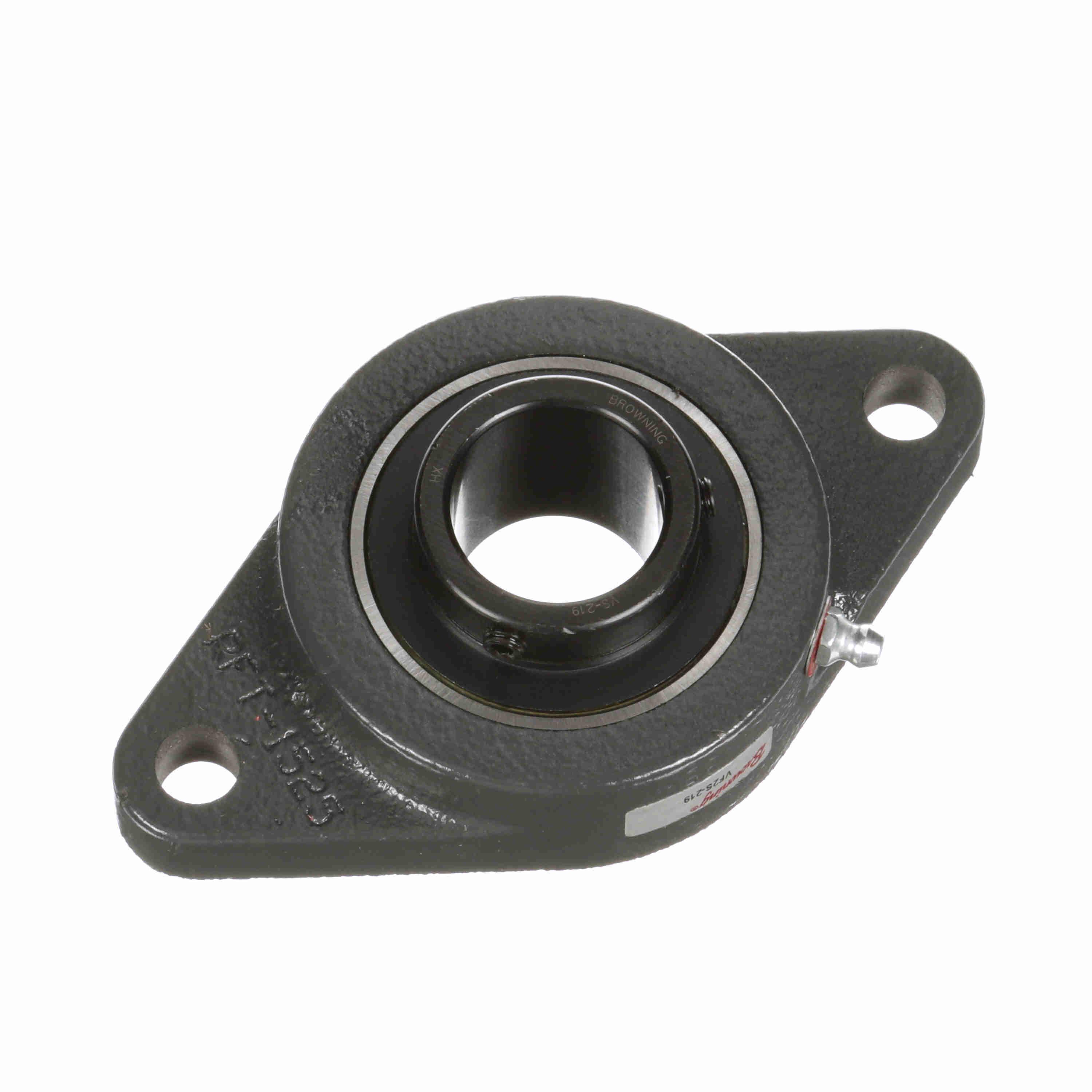

| M | 767445 | 1 3/16" | 5 9/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 4 19/32" | 1 9/16" | 3 1/8" | €142.38 | |
| N | 767590 | 1 3/16" | 4 7/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 3 9/16" | 1 17/64" | 2 15/16" | €115.75 | |
| O | 767589 | 1 3/16" | 5 9/16" | 4381 lbs. | 2567 lbs. | -20°F to +200°F | 4 19/32" | 1 15/32" | 3 1/8" | €124.52 | |
| P | 767757 | 1 7/16" | 4 13/16" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 3 15/16" | 1 25/64" | 3 3/8" | €148.43 | |
| Q | 767754 | 1 7/16" | 6 1/8" | 5782 lbs. | 3493 lbs. | -20°F to +200°F | 5 1/8" | 1 39/64" | 3 5/8" | €118.62 | |
| R | 765805 | 1 7/16" | 3 5/8" | 5782 lbs. | 3493 lbs. | 200°F | 5 1/8" | 1 3/4" | 6 1/8" | €200.64 | |
| S | 767864 | 1 11/16" | 7 1/16" | 7901 lbs. | 5139 lbs. | -20°F to +200°F | 5 27/32" | 1 13/16" | 4 3/8" | €428.72 | |
| T | 765807 | 1 15/16" | 4 9/16" | 7889 lbs. | 5216 lbs. | 200°F | 6 3/16" | 2 5/32" | 7 7/16" | €246.69 | |
| U | 767865 | 1 15/16" | 7 7/16" | 7889 lbs. | 5216 lbs. | -20°F to +200°F | 6 3/16" | 1 59/64" | 4 9/16" | €248.69 | |
| V | 765885 | 1" | 2 1/2" | 2801 lbs. | 1651 lbs. | 200°F | 3" | 1 3/16" | 3 3/4" | €96.62 | |
| W | 765876 | 1" | 2 3/4" | 2801 lbs. | 1651 lbs. | 200°F | 3 57/64" | 1 25/64" | 4 7/8" | €118.21 | |
| X | 767586 | 1" | 3 3/4" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3" | 1 3/16" | 2 1/2" | €96.62 | |
| Y | 765626 | 1" | 2 3/4" | 2801 lbs. | 1651 lbs. | 200°F | 3 57/64" | 1 7/16" | 4 7/8" | €90.78 | |
| Z | 767439 | 1" | 4 7/8" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3 57/64" | 1 7/16" | 2 3/4" | €120.40 | |
| A1 | 764572 | 1.438" | - | - | - | -20°F to +200°F | - | - | - | €254.65 | |
| B1 | 767630 | 1/2" | 3 7/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 3" | 1 5/64" | 2 1/8" | €121.39 | |
| C1 | 767569 | 1/2" | 3 7/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 3" | 1 5/64" | 2 1/8" | €89.42 | |
| D1 | 767570 | 1/2" | 3 3/16" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 2 1/2" | 31/32" | 1 15/16" | €105.27 | |
| E1 | 767867 | 2" | 8 1/2" | 9752 lbs. | 6601 lbs. | -20°F to +200°F | 7 1/4" | 2 7/64" | 5 1/4" | €294.28 | |
| F1 | 767432 | 3/4" | 4 13/32" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 3 17/32" | 1 9/32" | 2 1/2" | €110.96 | |
| G1 | 767352 | 3/4" | 3 9/16" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 2 13/16" | 1 7/64" | 2 1/4" | €91.56 | |
| H1 | 765616 | 3/4" | 2 1/2" | 2611 lbs. | 1444 lbs. | 200°F | 3 17/32" | 1 9/32" | 4 13/32" | €110.96 | |

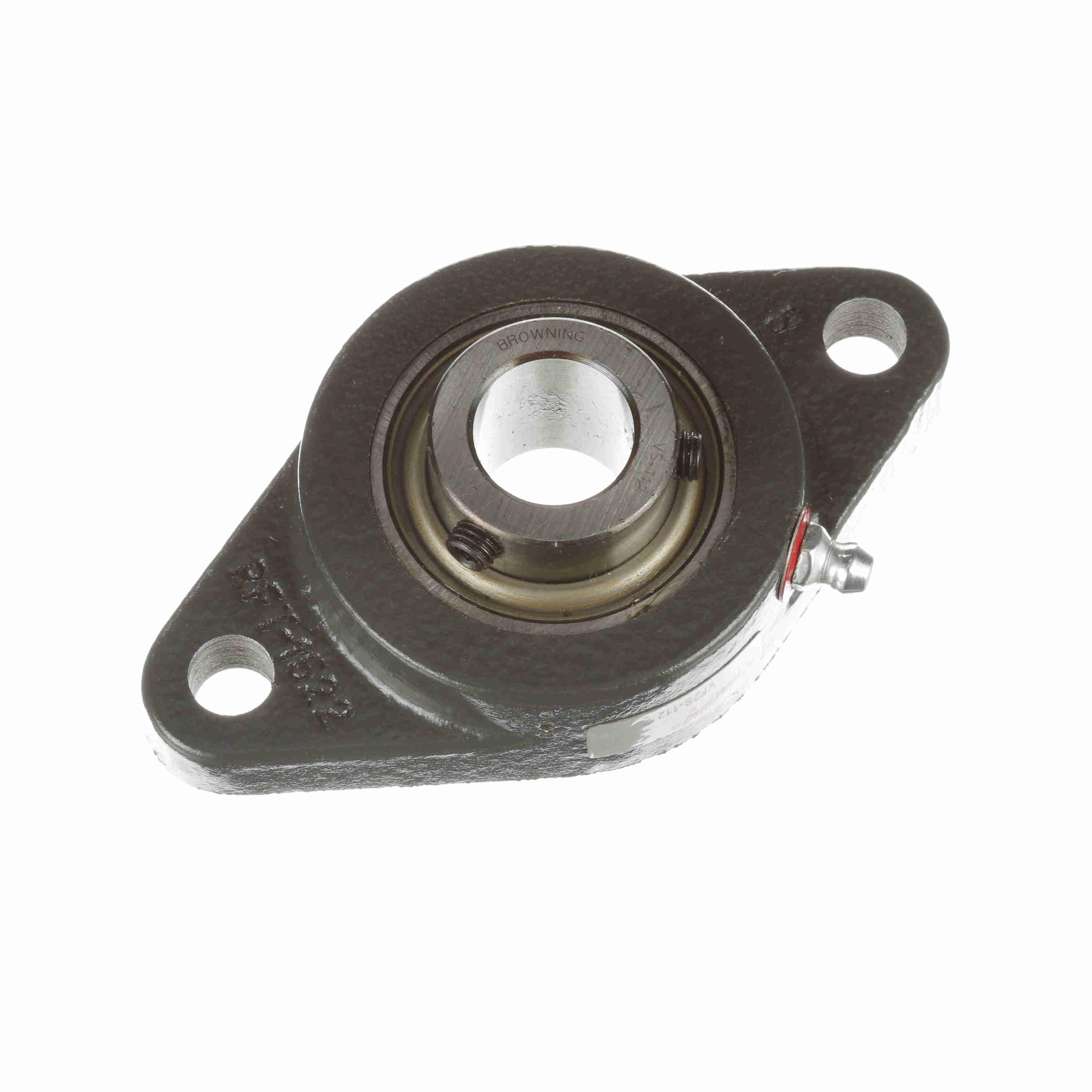

| I1 | 767605 | 3/4" | 4 13/32" | 2611 lbs. | 1444 lbs. | -20°F to +200°F | 3 17/32" | 1 9/32" | 2 1/2" | €87.52 | |
| J1 | 765827 | 3/4" | 2 1/4" | 2611 lbs. | 1444 lbs. | 200°F | 2 13/16" | 1 7/64" | 3 9/16" | €109.49 | |
| K1 | 767400 | 5/8" | 3 7/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 3" | 1 5/64" | 2 1/8" | €114.27 | |
| L1 | 767837 | 5/8" | 3 7/8" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 3" | 1 5/64" | 2 1/8" | €84.15 | |

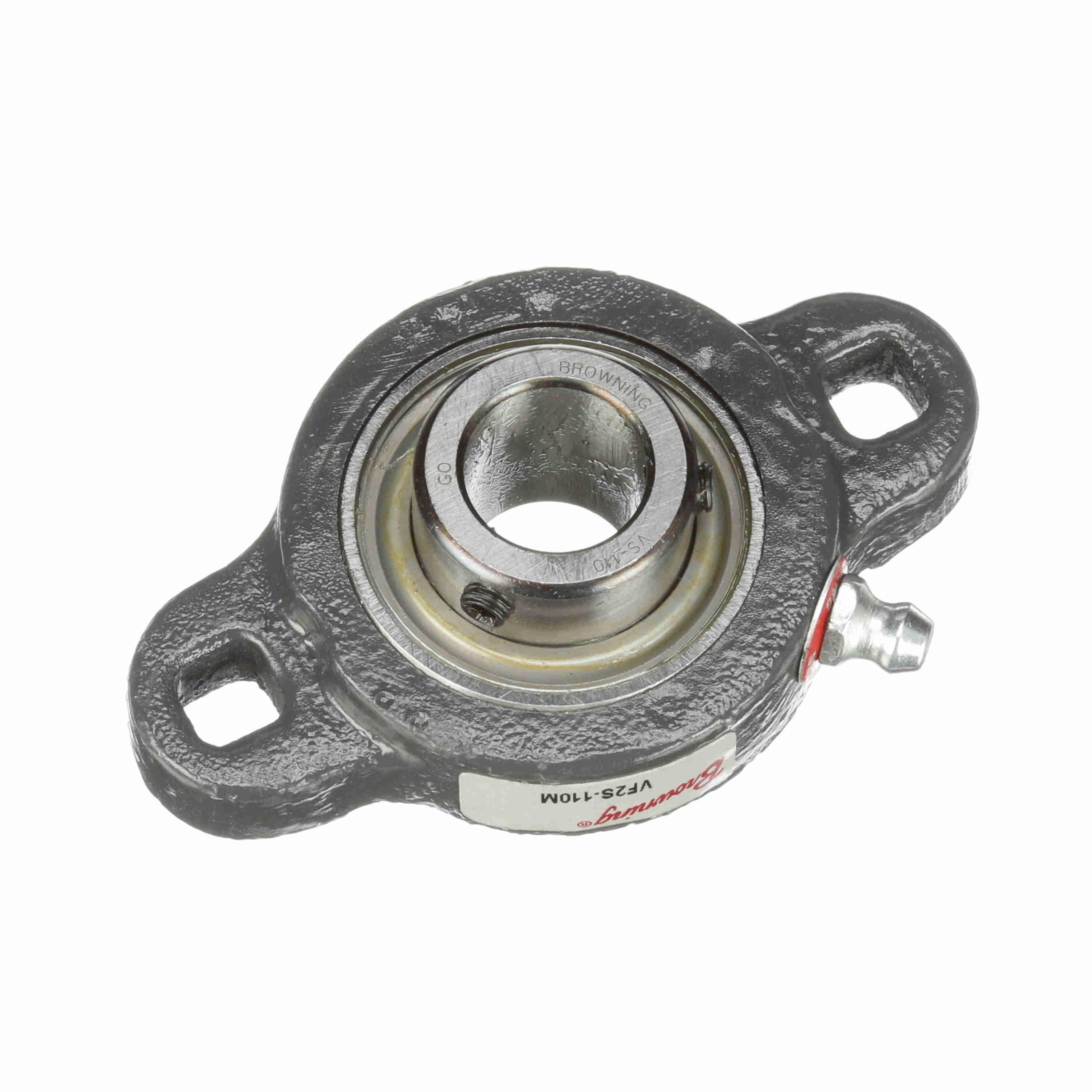

| M1 | 767840 | 5/8" | 3 3/16" | 2108 lbs. | 1117 lbs. | -20°F to +200°F | 2 1/2" | 31/32" | 1 15/16" | €88.03 | |
| N1 | 764075 | 5/8" | 2 1/8" | 2108 lbs. | 1117 lbs. | 200°F | 3" | 1 5/64" | 3 7/8" | €79.12 | |
| O1 | 767650 | 7/8" | 4 7/8" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3 57/64" | 1 7/16" | 2 3/4" | €254.05 | |
| P1 | 767737 | 7/8" | 3 3/4" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3" | 1 3/16" | 2 1/2" | €115.55 | |
| Q1 | 767729 | 15/16" | 3 3/4" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3" | 1 3/16" | 2 1/2" | €88.36 | |
| R1 | 767726 | 15/16" | 4 7/8" | 2801 lbs. | 1651 lbs. | -20°F to +200°F | 3 57/64" | 1 25/64" | 2 3/4" | €93.80 | |
| S1 | 732666 | 30 mm | 79.4 mm | 19488N | 11419N | 121°C | 116.5 mm | 39.7 mm | 141.3 mm | €310.73 | |
| T1 | 732668 | 40 mm | 104.8 mm | 32650N | 19870N | 121°C | 143.5 mm | 51.2 mm | 171.5 mm | €697.06 | |
| T1 | 732670 | 50 mm | 115.9 mm | 35092N | 23202N | 121°C | 157 mm | 54.8 mm | 188.9 mm | €262.83 |
