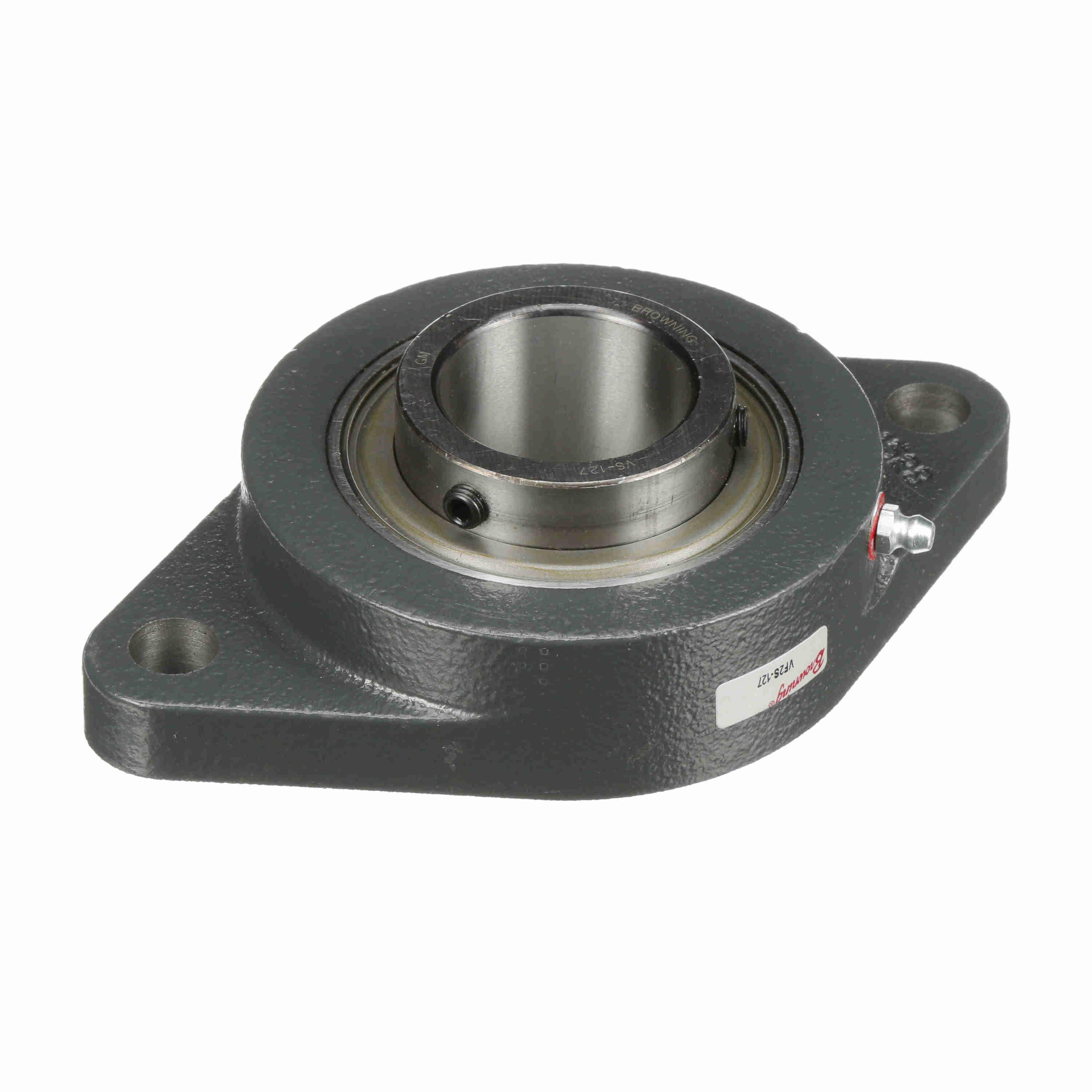

BROWNING 767867 VF2S-132 Two Bolt Flange Ball Bearing, Mounted, Cast Iron, Setscrew Lock
Item: BE2APVModel: 767867Cross Ref: VF2S-132
7 In Stock
2"
5 1/4"
Ships within 2 days via
€294.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Center To Center Length | 7 1/4" |
| Bolt Spacing | 7 1/4" |
| Bore Dia. | 2" |
| Color | Gray |
| Dynamic Load Capacity | 9752 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Flange Mounting Type | 2 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Insert Part Number | VS-132 |
| Length Through Bore | 1.656" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 1750 RPM |
| Mounting | Yes |
| Mounting Bolts | 5/8" |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Circle Dia | 7 1/5" |
| Number Of Rows | 1 |
| Other Features | Intermediate Duty |
| Overall Depth | 2 7/64" |
| Overall Dia. | 5 1/4" |
| Overall Height | 8 1/2" |
| Overall Length | 5 1/4" |
| Pilot Configuration | No Pilot |
| Product Type | Intermediate Duty Non-Expansion |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VF2S 100 Series |
| Static Load Capacity | 6601 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 3.124 Kg |
Shipping Info:
| Ship weight (kg) | 3.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 13.34 |
| Ship width (cm) | 5.36 |
Product Variants
| Product | Model | Bore Dia. | Overall Length | Overall Height | Bolt Center To Center Length | Max. Speed | Inside Dia. | Housing Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
765885 | 1" | 3 3/4" | 2 1/2" | 3" | 3500 RPM | - | Cast Iron | Nitrile Rubber | €96.62 | |
 |
767592 | 1 1/4" | 2 15/16" | 4 7/16" | 3 9/16" | 3000 RPM | 1 1/4" | Cast Iron | Nitrile Rubber | €115.75 | |
 |
767432 | 3/4" | 2 1/2" | 4 13/32" | 3 17/32" | 6500 RPM | - | Cast Iron | Nitrile Rubber | €110.96 | |
 |
767352 | 3/4" | 2 1/4" | 3 9/16" | 2 13/16" | 4000 RPM | 3/4" | Cast Iron | Nitrile Rubber | €91.56 | |
 |
767439 | 1" | 2 3/4" | 4 7/8" | 3 57/64" | 5500 RPM | 1" | Cast Iron | Nitrile Rubber | €120.40 | |
 |
767586 | 1" | 2 1/2" | 3 3/4" | 3" | 3500 RPM | 1" | Cast Iron | Nitrile Rubber | €96.62 | |
 |
767569 | 1/2" | 2 1/8" | 3 7/8" | 3" | 5000 RPM | - | Cast Iron | Nitrile Rubber | €89.42 |
