Carbonator Pump Motors

Filter

Carbonator or jet pump motors are used in conjunction with continuous-duty hydraulic and centrifugal pumps in manufacturing facilities, processing plants and wastewater management...Read more

LEESON -

Carbonator Pump Motors, Split Phase, Dripproof

LEESON 5KH37PNA479XA
LEESON 5KH32GNB811XB
LEESON 5KH33GNA444XC
LEESON 5KH36MNA445XD
LEESON 5KH36MNB637XE
LEESON 5KH32FN5586XF
LEESON 5KH32DN5587XG
LEESON 5KH32ENA443XH
LEESON 5KH32GNB813XI
LEESON 5KH32GNB812XJ
StyleModelVoltageHpShaft Dia.Service FactorMotor Thermal ProtectionFull Load AmpsRotationOverall LengthPrice
A5KH37PNA479X115/230V AC3/4 hp5/8"1Automatic10.4/5.2ACounter Clockwise9 1/8"€1,051.00
B5KH32GNB811X115/230V AC1/3 hp5/8"1Automatic5.5-5.6/2.7-2.8ACounter Clockwise7 11/16"€321.76
C5KH33GNA444X115/230V AC1/3 hp5/8"1Automatic2.7-2.8/5.5-5.6AClockwise/Counter Clockwise7 15/16"€324.74
RFQ
D5KH36MNA445X115/230V AC1/2 hp5/8"1Automatic3.4-3.6/7.1-7.2AClockwise/Counter Clockwise8 3/4"€375.47
E5KH36MNB637X115V AC1/2 hp5/8"1.2Automatic7.2AClockwise/Counter Clockwise8 3/4"€395.71
F5KH32FN5586X115V AC1/3 hp1/2"1.15Automatic5.6AClockwise/Counter Clockwise7 11/16"€288.03
G5KH32DN5587X115V AC1/4 hp1/2"1Automatic5AClockwise/Counter Clockwise7 11/16"€280.63
H5KH32ENA443X115V AC1/3 hp5/8"1Automatic6.1ACounter Clockwise7 11/16"€329.82
I5KH32GNB813X208-240V AC1/4 hp5/8"1Auto2.3-2.4ACW/CCW7 11/16"€293.24
J5KH32GNB812X230V AC1/3 hp5/8"1Automatic2.7AClockwise/Counter Clockwise7 11/16"€308.67
LEESON -

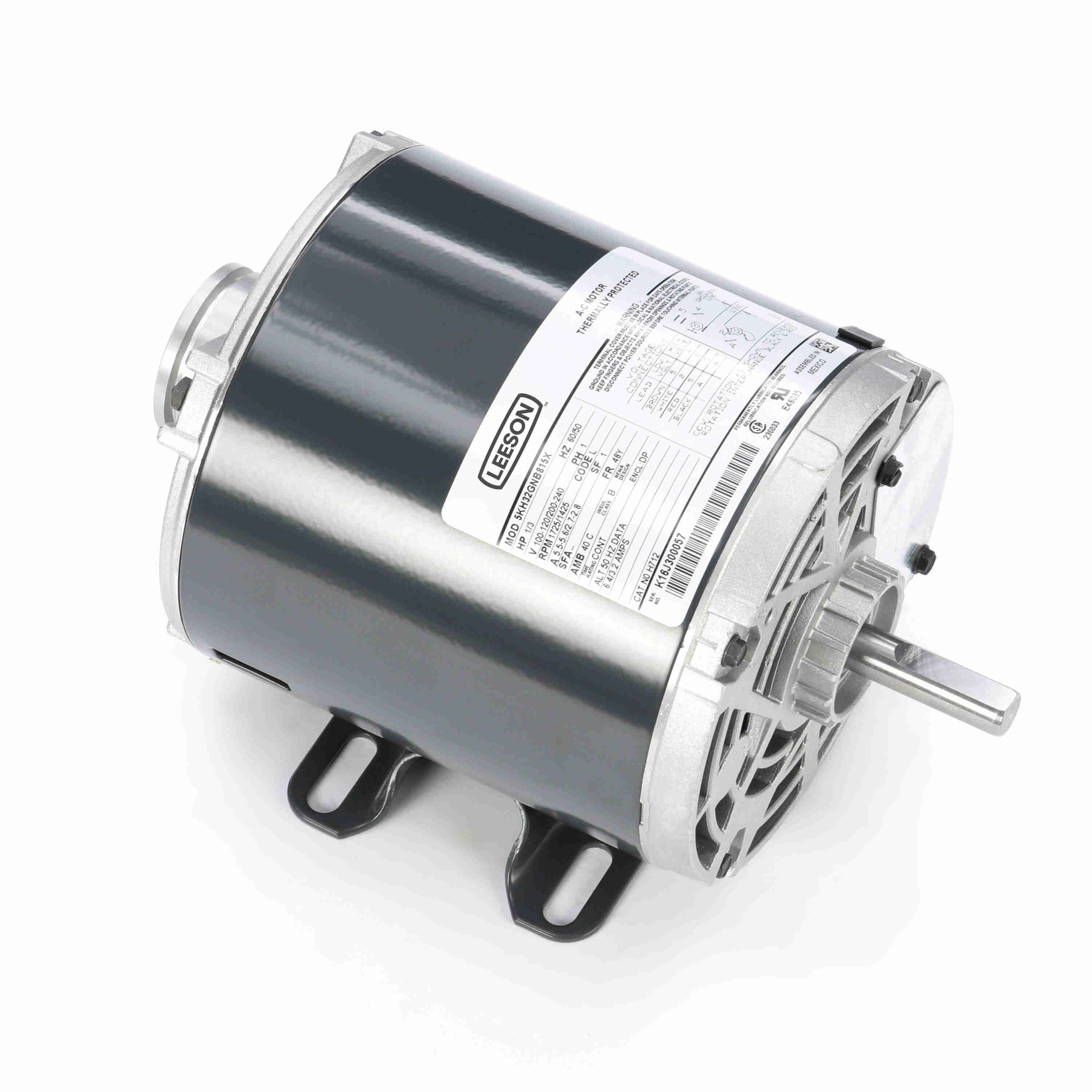

Carbonator Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 100-120/200-240V, 1800 RPM

Carbonator Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 100-120/200-240V, 1800 RPM
ModelItemPrice (ex. VAT)
5KH32GNB815XAD2WLE€357.19

Carbonator Pump Motors

Carbonator or jet pump motors are best suited for continuous-duty hydraulic & centrifugal pump powering applications in manufacturing facilities, processing plants and wastewater management industries. Raptor Supplies offers a wide array of Century & Marathon jet pump motors featuring an open drip-proof / totally enclosed fan cooled enclosure for providing optimum heat dissipation rates and ball bearings for reducing the frictional losses & preventing the ingress of contaminants into the casing. Selected UL-listed, split-phase carbonator pump motors from Century come equipped with an extended hub for facilitating direct pump mounting on the motor, an auto thermal protection facility for minimising the heat generation and a cradle base design for ensuring secure installation. Choose from an extensive range of these motors available in horsepower ratings ranging from 1/4 to 3 hp, on Raptor Supplies.

Working Mechanism

  • Carbonator pump motors work by converting electrical energy into mechanical energy that drives the pump mechanism.
  • When power is supplied to the motor, an electromagnetic field is created around the motor windings.
  • This electromagnetic field interacts with the magnetic field of the rotor, causing it to spin.
  • The spinning rotor drives the shaft, which is connected to the pump mechanism.
  • The pump mechanism consists of a series of impellers or vanes that are arranged in a way that creates a pressure differential to move the fluid being pumped.
  • As the rotor spins, it rotates the impellers or vanes, creating a suction that draws the fluid into the pump and then pushes it through the outlet.

Frequently Asked Questions

What is the difference between TEFC and ODP enclosures?

  • TEFC (totally enclosed fan-cooled) enclosures have a sealed housing that prevents the ingress of foreign materials and liquids. They have a fan mounted on the motor shaft to circulate air through the interior of the motor to dissipate heat dissipated during the operation.
  • Conversely, ODP (open drip-proof) enclosures are designed to circulate air through the motor but are not sealed to protect against the ingress of foreign materials or liquids.

What is the advantage of sleeve bearings?

Sleeve bearings, also known as plain bearings, use a cylindrical sleeve to support and reduce friction between a rotating shaft and a stationary component.

What is the benefit of the auto thermal protection feature?

The auto thermal protection feature in carbonator pump motors protects from overheating and potentially causing damage to the motor or surrounding components. It includes a temperature sensor that monitors the temperature of the motor's windings. If the temperature exceeds the threshold, the protection system will activate and interrupt the power supply to the motor, thereby shutting it off until the motor cools down to a safe temperature.
