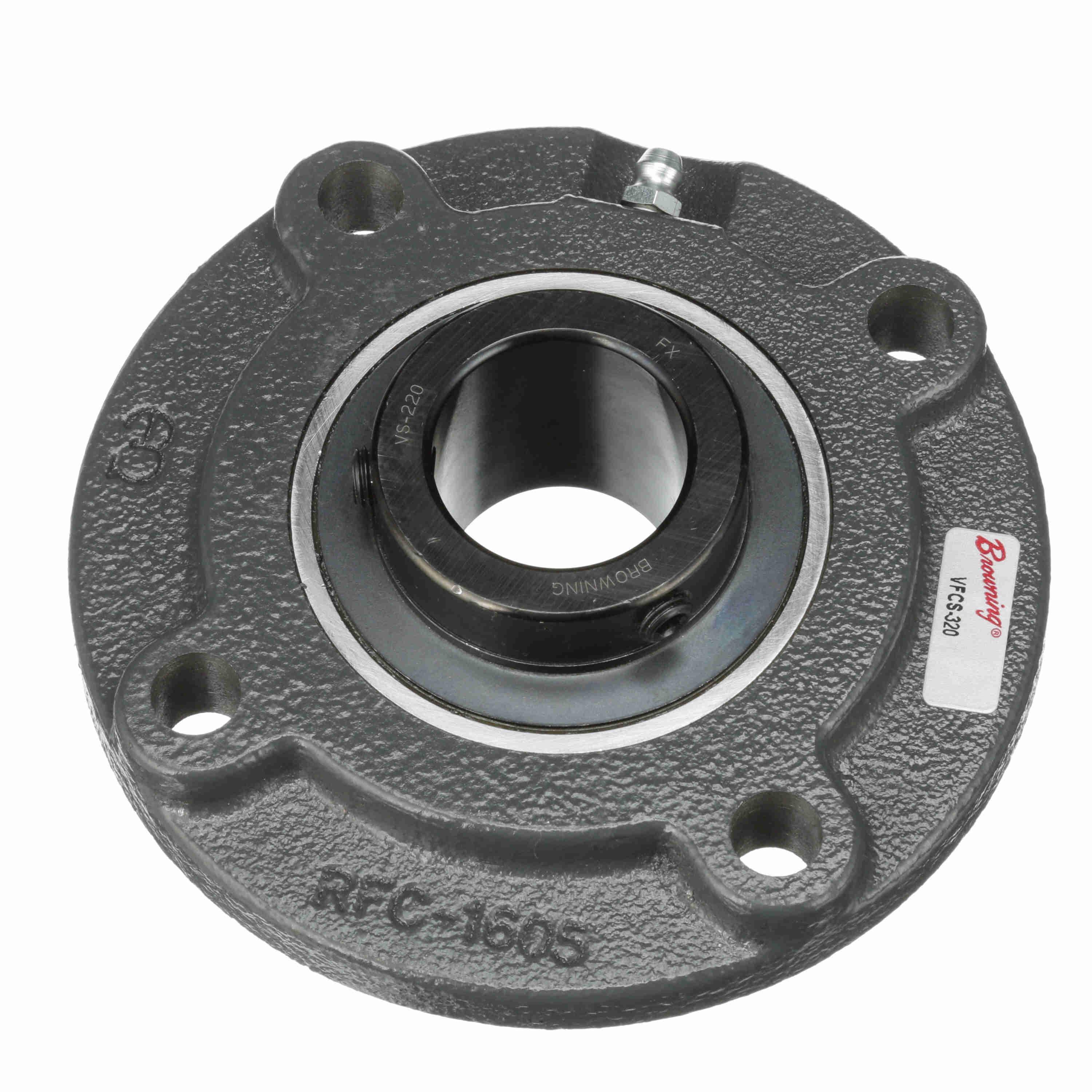

BROWNING 767492 VFCS-320 Flange Cartridge Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Setscrew Lock
Get it by Tuesday, Dec 23
€157.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bolt Circle Dia. | 4 1/8" |
| Bolt Spacing | 2.9" |
| Bore Dia. | 1 1/4" |
| Cartridge Pilot Depth | 3/8" |
| Cartridge Pilot Dia. | 3 3/8" |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Composite |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Insert Part Number | VS-220 |
| Inside Dia. | 1 1/4" |
| Length Through Bore | 1.688" |
| Locking Device | Set Screw |
| Material | Steel |
| Max. Speed | 4000 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 4.1" |
| Number Of Rows | 1 |
| Other Features | Medium Duty, Has Flinger |
| Overall Depth | 1 5/16" |
| Overall Dia. | 5" |
| Overall Length | 5" |
| Pilot Configuration | With Pilot |
| Product Type | Medium Duty Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Material | Nitrile Rubber |
| Seal Type | Single Lip Contact |
| Series | VFCS 300 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.42 Kg |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Finish | Housing Style | Housing Material | Overall Length | Material | Max. Speed | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
764298 | 1 7/16" | Black Oxide | Unit Only | Cast Iron | - | Steel | - | - | €163.79 |
