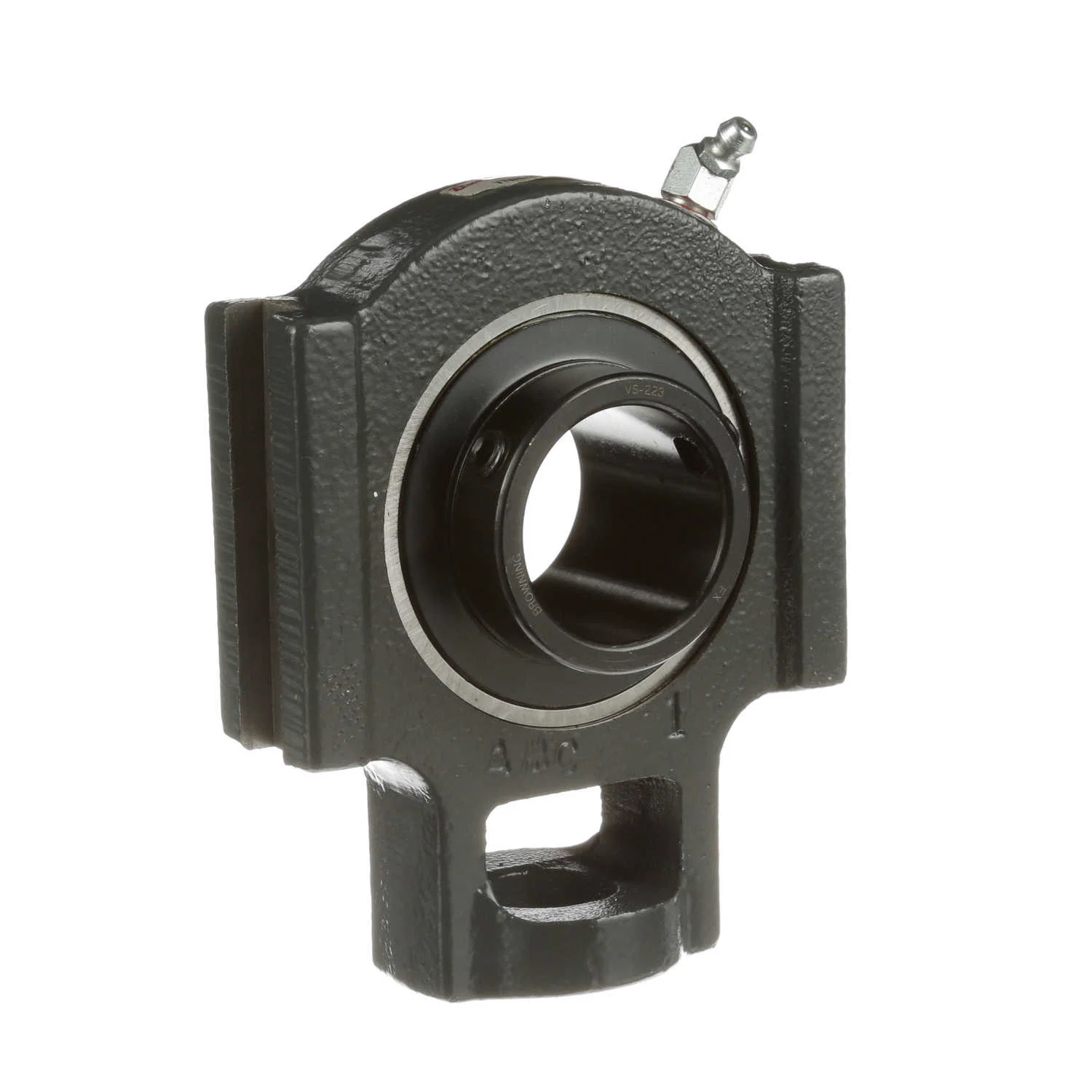

BROWNING 764298 VTWS-223 CSJ Wide Slot Take Up Ball Bearing, Mounted, Cast Iron, Black Oxided Inner, Eccentric Lock
Get it by Tuesday, Dec 23
€163.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Mounted Ball Bearing |
| Bore Dia. | 1 7/16" |
| Compatible Take Up Frame | SF23 |
| Component Description | Take Up Bearing Only |
| Dynamic Load Capacity | 5782 lbs. |
| Finish | Black Oxide |
| For Use With | 3SF23, 6SF23, 9SF23, 12SF23 Frames |
| Height | 4" |
| Housing Material | Cast Iron |
| Housing Style | Unit Only |
| Insert Part Number | VS-223 |
| Length | 5" |
| Material | Steel |
| Mounting Method | Set Screw |
| Number Of Rows | 1 |
| Other Features | Normal Duty, Wide Slot, Single Lip Contact Seal, Temperature Range From -20 To 200 Degree F |
| Product Type | Standard Duty |
| Rolling Element | Ball Bearing |
| Series | VTWS Series |
| Slot To Slot Distance | 3 1/2" |
| Slot Width | 0.531" |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 1.411 Kg |
| Width | 1 3/4" |
Shipping Info:
| Ship weight (kg) | 1.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Finish | Housing Style | Housing Material | Overall Length | Material | Max. Speed | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767492 | 1 1/4" | Composite | 4 Bolt Round Flange Cartridge | Cast Iron | 5" | Steel | 4000 RPM | -20°F to +200°F | €157.05 |
