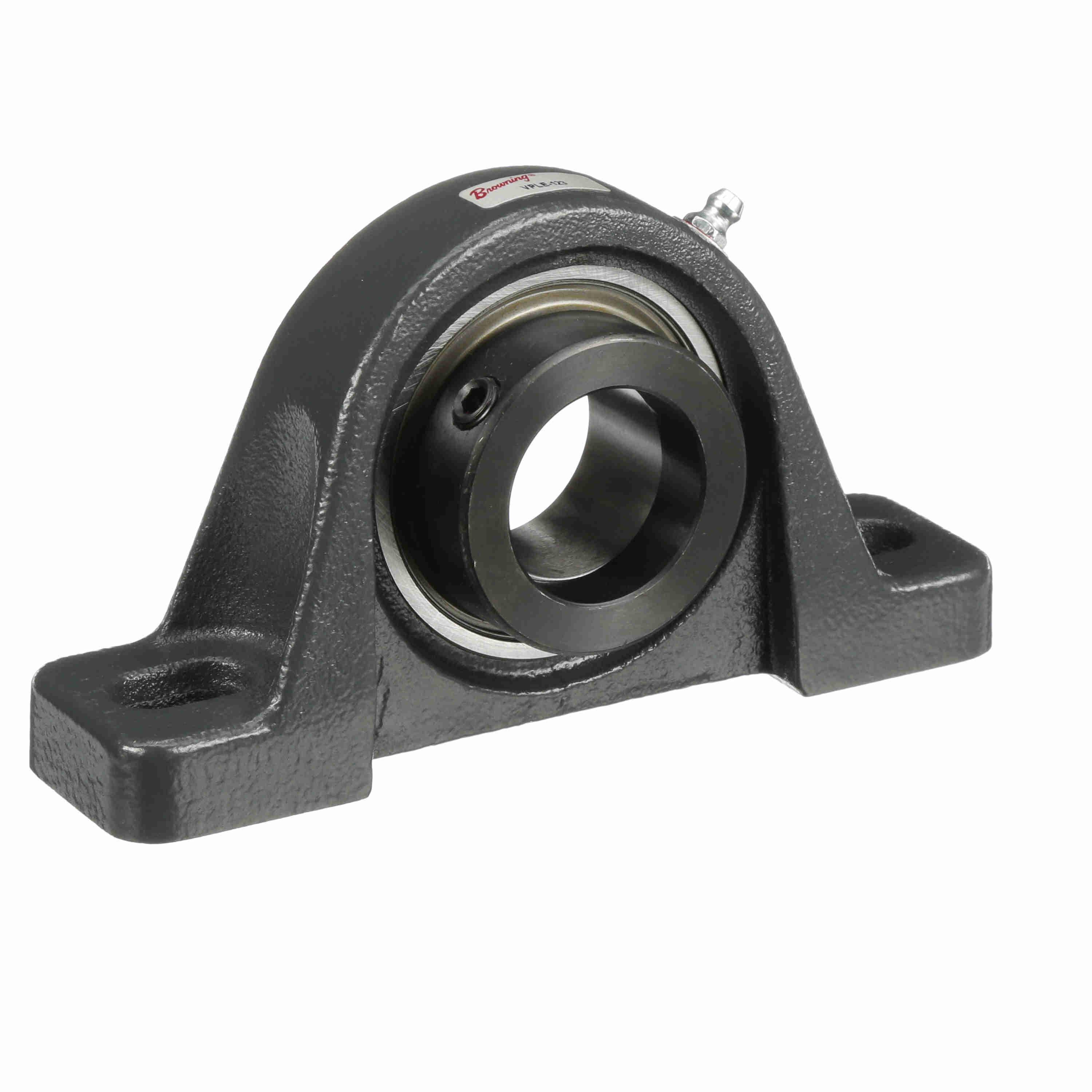

BROWNING 767337 VPLE-123 Two Bolt Low Base Pillow Block Ball Bearing, Mounted, Cast Iron, Eccentric Lock, 1 7/16 in Bore Dia, 2500 rpm Max Speed
Item: BE3XRKModel: 767337Cross Ref: VPLE-123
7 In Stock
Ships within 2 days via
€151.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 5" |
| Base To Bore Centerline | 1 13/16" |
| Base To Center Height | 1.811" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 9/16" to 5 7/16" |
| Bore Dia. | 1 7/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VE-123 |
| Inside Dia. | 1 7/16" |
| Length Through Bore | 1.578" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 2500 RPM |
| Mounting | Yes |
| Mounting Bolts | 1/2" |
| Mounting Method | Eccentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| No. Of Rows | 1 |
| Nominal Bolt Center To Center | 5.1" |
| Overall Height | 3 5/8" |
| Overall Length | 6 3/4" |
| Product Datasheet | browning-vfbs-212-cty.pdf |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Series | VPLE 100 Series |
| Static Load Capacity | 3493 lbs. |
| System Of Measurement | Imperial |
| Temp. | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 9.22 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Static Load Capacity | Base Width | Base To Center Height | Series | Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767660 | 1 1/2" | - | - | - | - | 1.938" | VPLE 100 Series | - | €197.72 | |
 |
767363 | 1" | 2 11/16" | 2801 lbs. | 1651 lbs. | 1 13/32" | 1.311" | VPLE 200 Series | -20°F to +200°F | €120.40 | |
 |
767641 | 1 3/16" | 3 5/32" | 4381 lbs. | 2567 lbs. | 1 3/4" | - | VPLE 100 Series | -20°F to +200°F | €140.23 | |
 |
767539 | 1 3/16" | 3 5/32" | 4381 lbs. | 2567 lbs. | 1 3/4" | 1.563" | VPLE 200 Series | -20°F to +200°F | €168.37 | |
 |
767761 | 3/4" | 2 15/32" | 2611 lbs. | 1444 lbs. | 1 11/32" | 1 1/4" | VPLE 100 Series | +200°F to +250°F | €201.10 | |
 |
767322 | 1 15/16" | 4 1/2" | 7889 lbs. | 5216 lbs. | 2 3/16" | 2.188" | VPLE 100 Series | +200°F to +250°F | €254.05 | |
 |
767311 | 1 1/4" | 3 5/32" | 4381 lbs. | 2567 lbs. | 1 3/4" | 1.563" | VPLE 100 Series | +200°F to +250°F | €141.25 |
