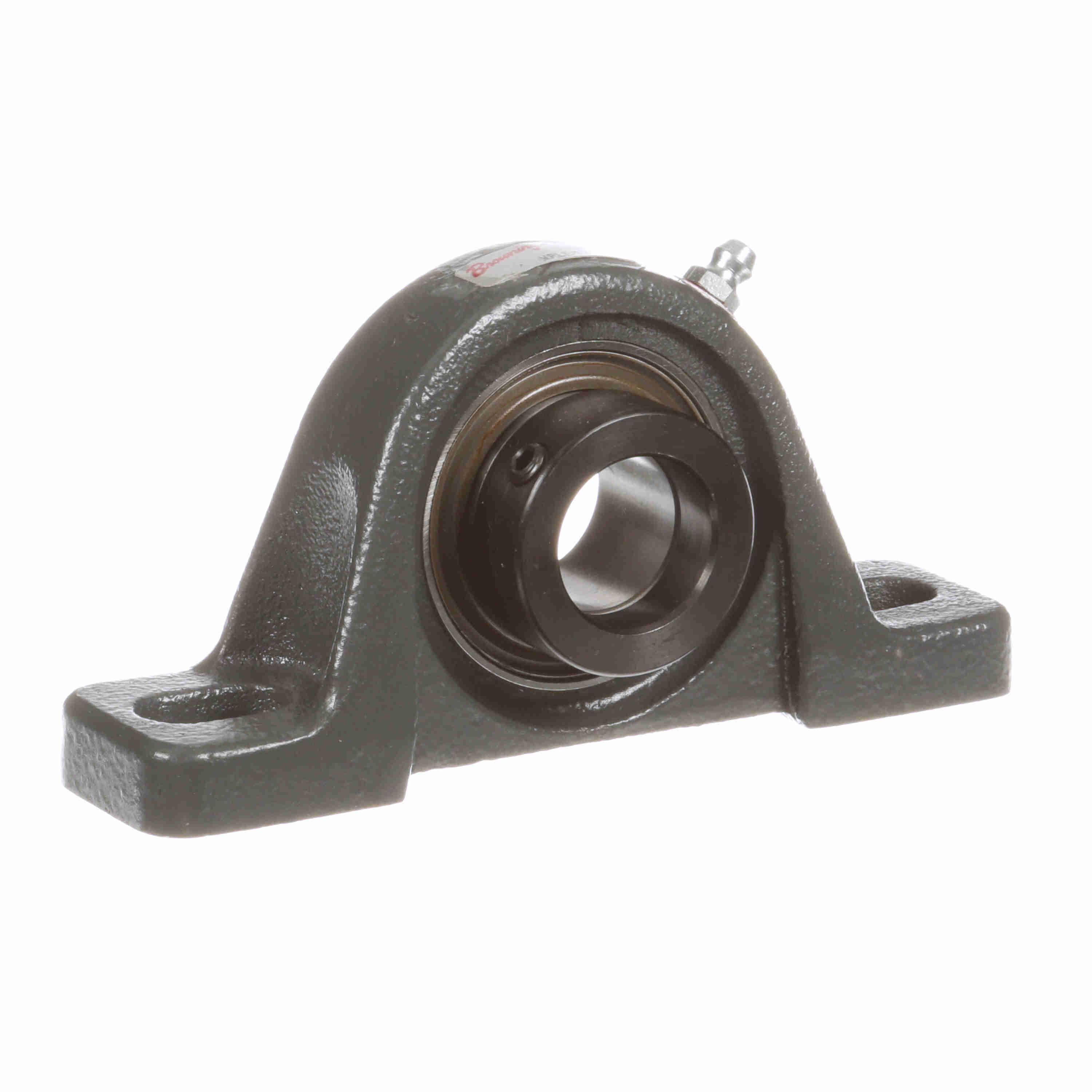

BROWNING 767769 VPLE-115 Two Bolt Low Base Pillow Block Ball Bearing, Mounted, Cast Iron, Eccentric Lock
Item: BE2LVKModel: 767769Cross Ref: VPLE-115
7 In Stock
Ships within 2 days via
€104.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Actual Bolt Center To Center | 4.1" |
| Base To Bore Centerline | 1 5/16" |
| Base To Center Height | 1.311" |
| Base Width | 1 13/32" |
| Bolt Center To Center Length | 3 23/32" to 4 17/32" |
| Bore Dia. | 15/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 2801 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VE-115 |
| Length Through Bore | 1.266" |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 3500 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/8" |
| Mounting Method | Eccentric Collar |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 4" |
| Number Of Rows | 1 |
| Other Features | Light Duty, Low Base |
| Overall Height | 2 11/16" |
| Overall Length | 5 1/2" |
| Product Type | Intermediate Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact |
| Series | VPLE 100 Series |
| Static Load Capacity | 1651 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
| Weight | 0.772 Kg |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 14.61 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 4.29 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767660 | 1 1/2" | - | - | - | - | - | - | - | €197.72 | |
 |
767330 | 2" | 4 1/2" | 8" | 2000 RPM | 2 Bolt Low Base | 2 3/16" | 5 23/32" to 6 21/32" | 2 3/16" | €263.81 | |
 |
767363 | 1" | 2 11/16" | 5 1/2" | 5500 RPM | 2 Bolt Base | 1 13/32" | 3 11/16" to 4 9/16" | 1 5/16" | €120.40 | |
 |
767641 | 1 3/16" | 3 5/32" | 6 3/16" | 3000 RPM | 2 Bolt Base | 1 3/4" | 3 3/8" to 5 7/8" | 1 9/16" | €140.23 | |
 |
767539 | 1 3/16" | 3 5/32" | 6 3/16" | 4500 RPM | 2 Bolt Base | 1 3/4" | 4 3/16" to 5 1/16" | 1 9/16" | €168.37 | |
 |
767761 | 3/4" | 2 15/32" | 5" | 4000 RPM | 2 Bolt Low Base | 1 11/32" | 3 31/64" to 4 17/64" | 1 1/4" | €201.10 | |
 |
767322 | 1 15/16" | 4 1/2" | 8" | 2000 RPM | 2 Bolt Low Base | 2 3/16" | 5 23/32" to 6 21/32" | 2 3/16" | €254.05 |
