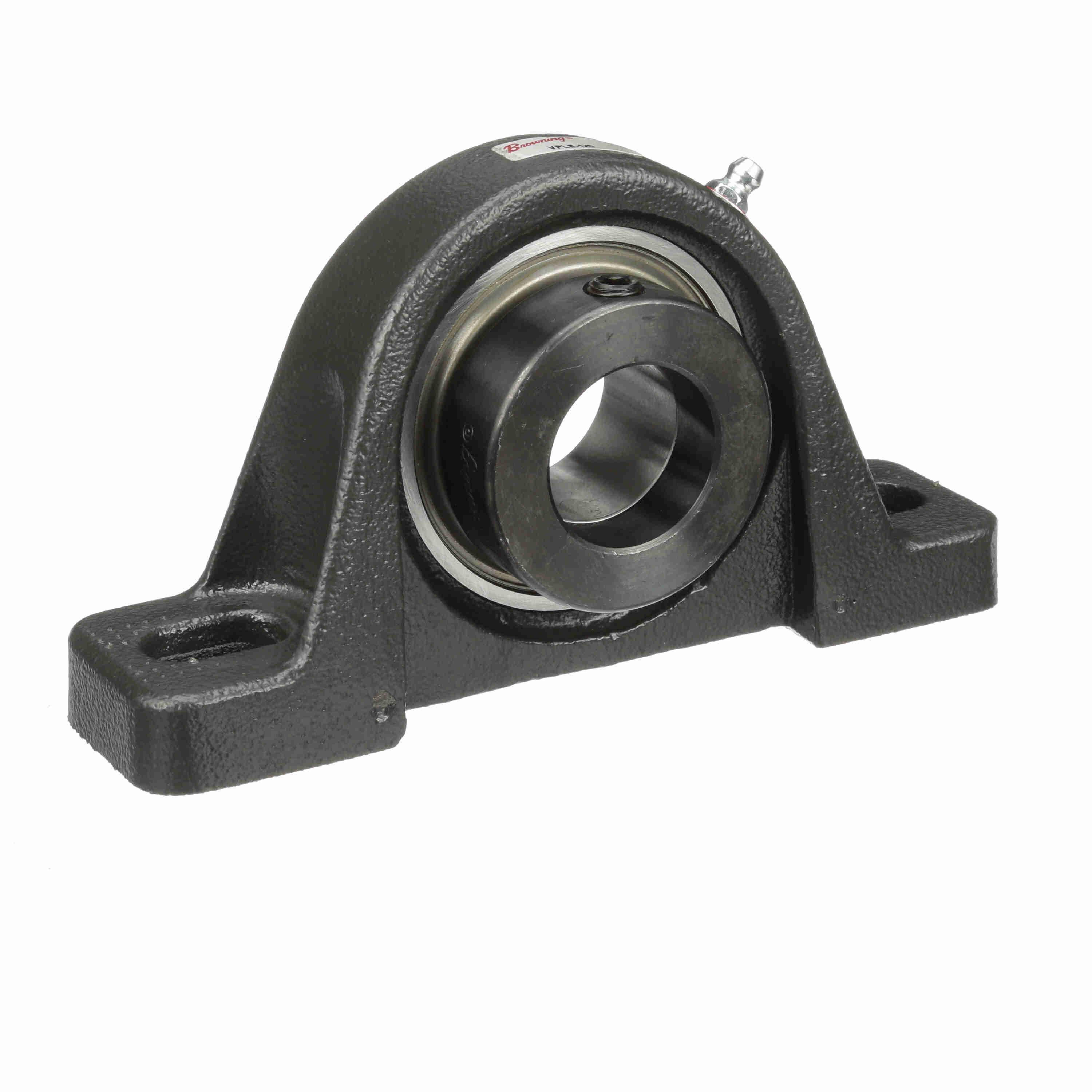

BROWNING 767306 VPLE-120 Two Bolt Low Base Pillow Block Ball Bearing, Mounted, Cast Iron, Eccentric Lock
Item: BE2LVLModel: 767306Cross Ref: VPLE-120
7 In Stock
Ships within 2 days via
€150.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Mounted Ball Bearing |
| Base To Bore Centerline | 1 13/16" |
| Base Width | 1 3/4" |
| Bolt Center To Center Length | 4 9/16" to 5 7/16" |
| Bore Dia. | 1 1/4" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 5782 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Locking Device | Eccentric |
| Material | Cast Iron |
| Max. Speed | 3000 RPM |
| Mounting Type | 2 Bolt Low Base |
| Overall Height | 3 5/8" |
| Overall Length | 6 3/4" |
| Product Type | Intermediate Duty |
| Seal Type | Single Lip Contact |
| Series | VPLE 100 Series |
| Static Load Capacity | 3493 lbs. |
| Temp. Rating | +200°F to +250°F |
Shipping Info:
| Ship weight (kg) | 1.68 |
| Ship height (cm) | 9.22 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Max. Speed | Mounting Type | Base Width | Bolt Center To Center Length | Base To Bore Centerline | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
767660 | 1 1/2" | - | - | - | - | - | - | - | €197.72 | |
 |
767330 | 2" | 4 1/2" | 8" | 2000 RPM | 2 Bolt Low Base | 2 3/16" | 5 23/32" to 6 21/32" | 2 3/16" | €263.81 | |
 |
767363 | 1" | 2 11/16" | 5 1/2" | 5500 RPM | 2 Bolt Base | 1 13/32" | 3 11/16" to 4 9/16" | 1 5/16" | €120.40 | |
 |
767641 | 1 3/16" | 3 5/32" | 6 3/16" | 3000 RPM | 2 Bolt Base | 1 3/4" | 3 3/8" to 5 7/8" | 1 9/16" | €140.23 | |
 |
767539 | 1 3/16" | 3 5/32" | 6 3/16" | 4500 RPM | 2 Bolt Base | 1 3/4" | 4 3/16" to 5 1/16" | 1 9/16" | €168.37 | |
 |
767761 | 3/4" | 2 15/32" | 5" | 4000 RPM | 2 Bolt Low Base | 1 11/32" | 3 31/64" to 4 17/64" | 1 1/4" | €201.10 | |
 |
767322 | 1 15/16" | 4 1/2" | 8" | 2000 RPM | 2 Bolt Low Base | 2 3/16" | 5 23/32" to 6 21/32" | 2 3/16" | €254.05 |
