Dial Indicators

Filter

MITUTOYO -

523 Series Digimatic/Mechanical Micrometers

Style	Model	Range	Flatness	Measuring Spindle	Mass	Repeatability	Accuracy Dial Comparator	Indicating	Inch-metric	Price
A	523-141	0 mm to 25 mm	0.3 ?m	10 mm, 8 mm	710g	0.4 ?m	-	-	-	€686.39	RFQ
A	523-121	0 mm to 25 mm	0.3 µm	10.8 mm	-	0.4 µm	1 Î¼M	-0.06 mm to +0.06 mm	Metric	€983.39	RFQ
A	523-131	0" to 1"	0.00001"	10 mm, 8 mm	740g	-	1.25m	-0.0023" to +0.0023"	-	€1,124.63	RFQ
A	523-152	1" to 2"	0.00001"	10 mm, 8 mm	810g	-	-	-	-	€661.31	RFQ
B	523-132	1" to 2"	0.000012"	10.8 mm	-	0.00002"	1 Î¼M	-0.0023" to +0.0023"	Inch	€1,128.59
A	523-153	2" to 3"	0.00001"	10 mm, 8 mm	920g	-	-	-	-	€902.87	RFQ
A	523-133	2" to 3"	0.00001"	10 mm, 8 mm	950g	-	1.25m	-0.002" to +0.002"	-	€1,411.07	RFQ
A	523-134	3" to 4"	0.00001"	10 mm, 8 mm	1080g	-	1.25m	-0.002" to +0.002"	-	€1,450.67	RFQ
A	523-142	25 mm to 50 mm	0.3 ?m	10 mm, 8 mm	810g	0.4 ?m	-	-	-	€782.74	RFQ
A	523-122	25 mm to 50 mm	0.3 µm	10.8 mm	-	0.4 µm	1 Î¼M	-0.06 mm to +0.06 mm	Metric	€1,053.35	RFQ
A	523-143	50 mm to 75 mm	0.3 ?m	10 mm, 8 mm	920g	0.4 ?m	-	-	-	€823.67	RFQ
A	523-123	50 mm to 75 mm	0.3 ?m	10 mm, 8 mm	950g	0.4 ?m	1.25m	-	-	€1,411.07	RFQ
A	523-144	75 mm to 100 mm	0.3 ?m	10 mm, 8 mm	1050g	0.4 ?m	-	-	-	€826.30	RFQ

TESA BROWN SHARPE -

Style	Model	Range	Dial Reading	Dial Color	Dial Size	Range Per Revolution	Accuracy	Operation Type	Graduations	Price

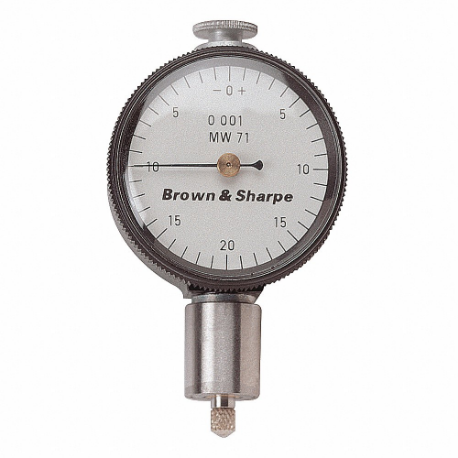

A	14.83018	0" to 0.035"	0 to 50	White	2 1/4"	0.35"	-0.002" to +0.002"	Back Plunger	0.001"	€265.59
A	14.83012	0" to 0.035"	0-20-0	White	2 1/4"	0.35"	-0.003" to +0.003"	Plunger	0.0005"	€222.35
A	14.83004	0" to 0.05"	0 to 5	White	1.69"	0.05"	-0.0005" to +0.0005"	Back Plunger	0.001"	€361.16
B	14.82011	0" to 0.2"	0-5-0	Black	2 1/4"	1/5"	-0.004" to +0.004"	Back Plunger	0.0005"	€291.05
A	14.83006	0" to 0.25"	0 to 25	White	1.69"	1/4"	-0.003" to +0.003"	Back Plunger	0.0005"	€244.72
A	14.83008	0" to 0.25"	0 to 50	White	1.69"	1/4"	-0.001" to +0.001"	Back Plunger	0.001"	€242.97
B	14.82017	0" to 1"	0-100	Black	2 1/4"	1"	-0.002" to +0.002"	Back Plunger	0.0005"	€198.63
A	14.82028	0" to 1"	0-100	White	2 1/4"	1"	-0.002" to +0.002"	Plunger	0.001"	€217.20
A	14.82016	0" to 1"	0-100	White	2 1/4"	1"	-0.002" to +0.002"	Back Plunger	0.0005"	€195.02

3808/3809/3908/3909 Dial Test Indicators

Style	Model	Range	Dial Reading	Dial Color	Dial Size	Range Per Revolution	Contact Point Dia.	Graduations	Contact Point Length	Price

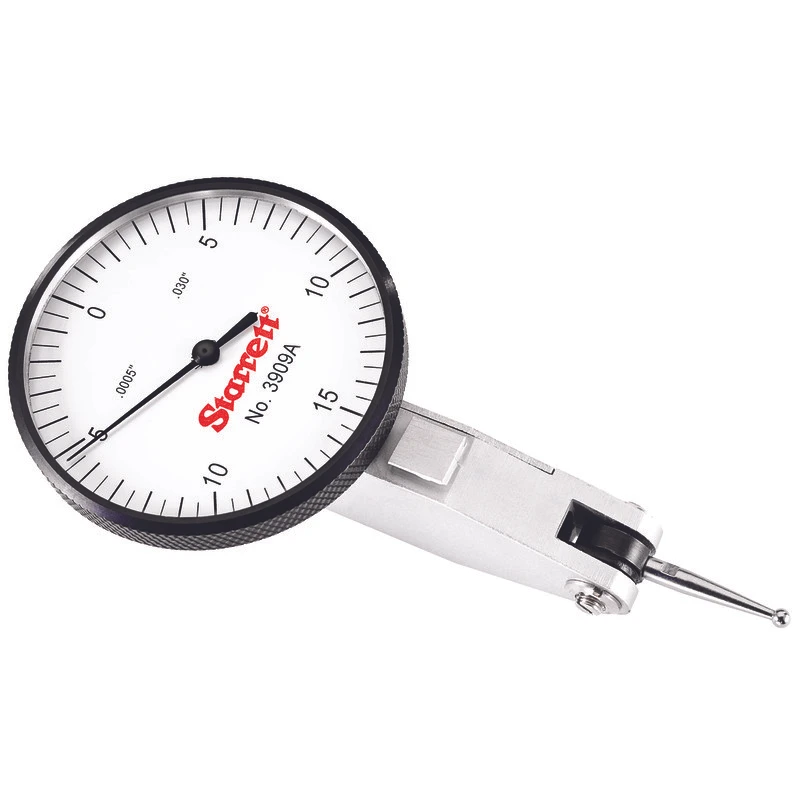

A	3909a	-	-	-	-	-	-	-	-	-	RFQ
B	3908MAC	0 mm to 0.2 mm	0 to 100	Yellow	1 14/25"	1/5"	2 mm, 4 mm	0.002 mm	1/2"	€623.69
C	3808MAC	0 mm to 0.2 mm	0 to 100	Yellow	1 1/4"	1/5"	2 mm, 4 mm	0.002 mm	1/2"	€592.38
D	3908MA	0 mm to 0.2 mm	0 to 100	Yellow	1 14/25"	1/5"	4 mm	0.002 mm	1/2"	€461.84
C	3808MA	0 mm to 0.2 mm	-	Yellow	1 1/4"	1/5"	4 mm	0.002 mm	1/2"	€426.25
E	3809MA	0 mm to 0.8 mm	0 to 40	Yellow	1 1/4"	4/5"	4 mm	0.01 mm	1/2"	€269.12
F	3909MA	0 mm to 0.8 mm	0 to 40	Yellow	40 mm	4/5"	5/64"	0.01 mm	1/2"	€307.11
E	3809MAC	0 mm to 0.8 mm	0 to 40	Yellow	1 1/4"	4/5"	2 mm, 4 mm	0.01 mm	1/2"	€395.81
G	3808A	0" to 0.008"	0-4-0	White	1 1/4"	0.008"	5/32"	0.0001"	1/2"	€386.26
H	3908A	0" to 0.008"	0-4-0	White	1 14/25"	0.008"	5/32"	0.0001"	1/2"	€434.28
G	3808AC	0" to 0.008"	0-4-0	White	1 1/4"	0.008"	0.078125", 0.15625"	0.0001"	1/2"	€569.94
I	3809AC	0" to 0.03"	0 to 15	White	1 1/4"	0.03"	0.078125", 0.15625"	0.0005"	1/2"	€384.23
I	3809A	0" to 0.03"	0 to 15	White	1 1/4"	0.03"	5/32"	0.0005"	1/2"	€263.53

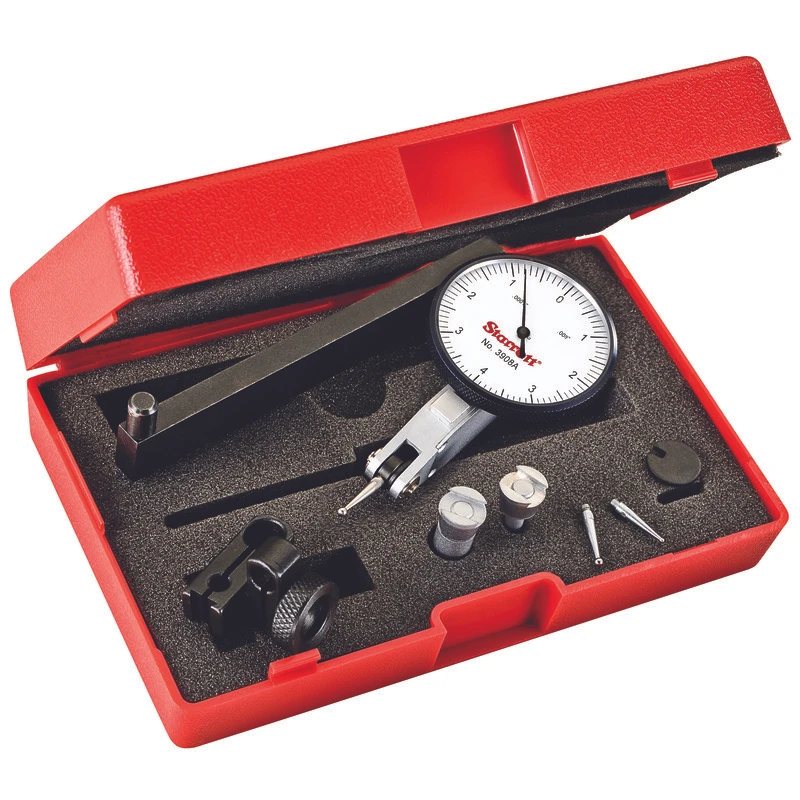

J	3908ac	0.008"	0-4-0	White	-	-	-	0.0001"	5/32"	-	RFQ
K	3909ac	0.03"	0-15-0	-	-	-	-	0.0005"	-	-	RFQ

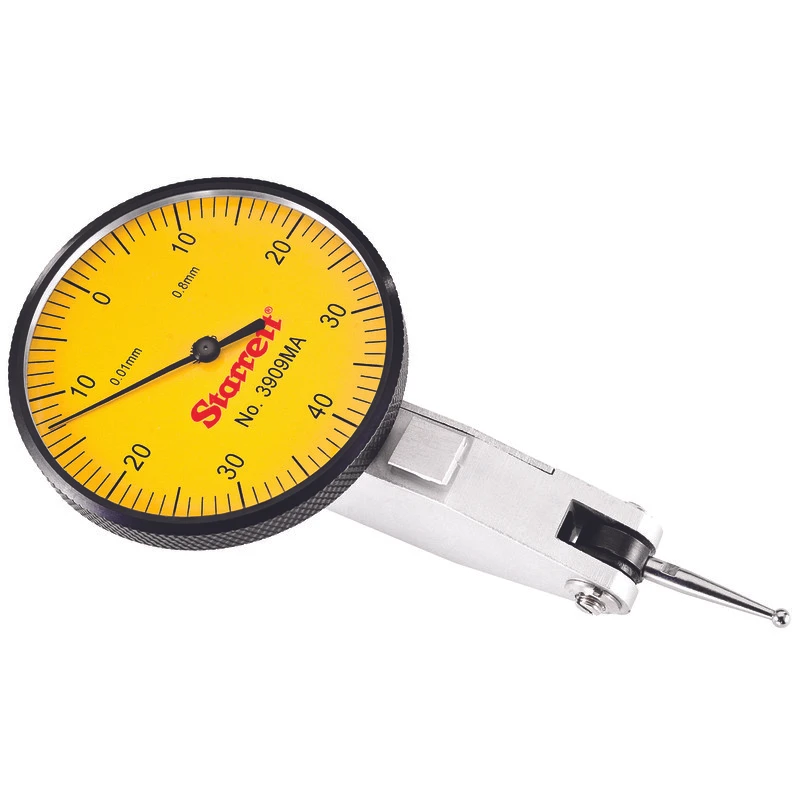

L	3909mac	0.8 mm	0-40-0	Yellow	-	-	-	0.002 mm	5/32"	-	RFQ

STARRETT -

25 Series Dial Indicators With Jewel Bearings

Style	Model	Dial Reading	Dial Color	Bearing Type	Stem Dia.	Dial Size	Range Per Revolution	Stem Thread Size	Range	Price
A	25-109J	-	-	-	-	-	-	-	-	-	RFQ

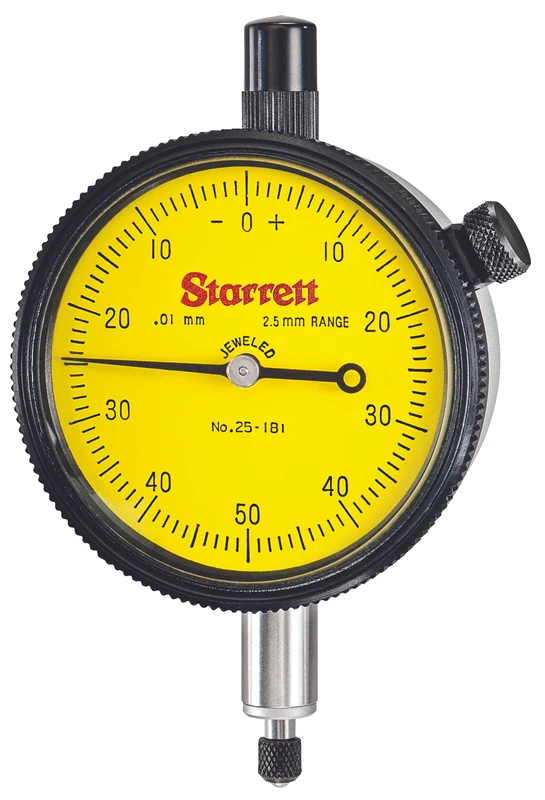

B	25-181J	-	-	-	-	-	-	-	-	-	RFQ

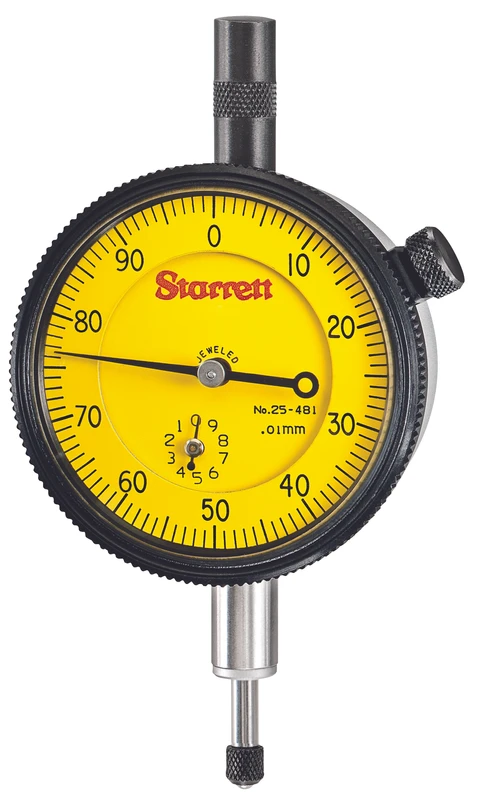

C	25-481J WCSC	-	-	-	-	-	-	-	-	-	RFQ

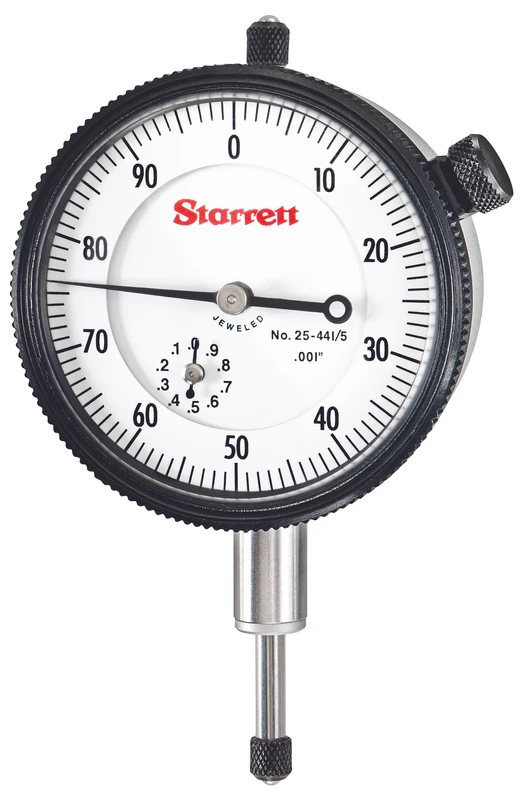

D	25-441/5J W/SLC	-	-	-	-	-	-	-	-	-	RFQ

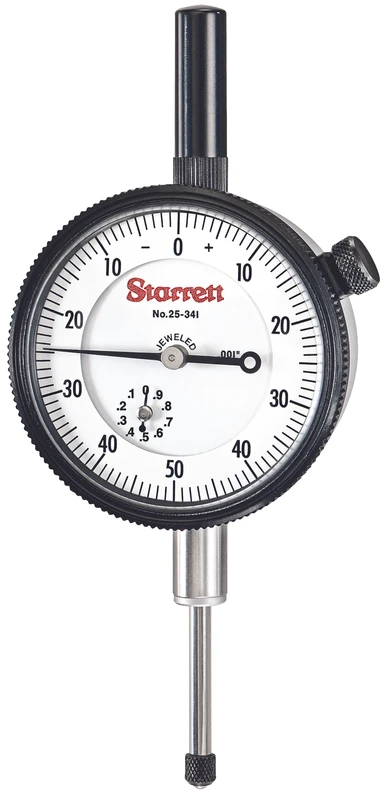

E	25-341J WCSC	-	-	-	-	-	-	-	-	-	RFQ

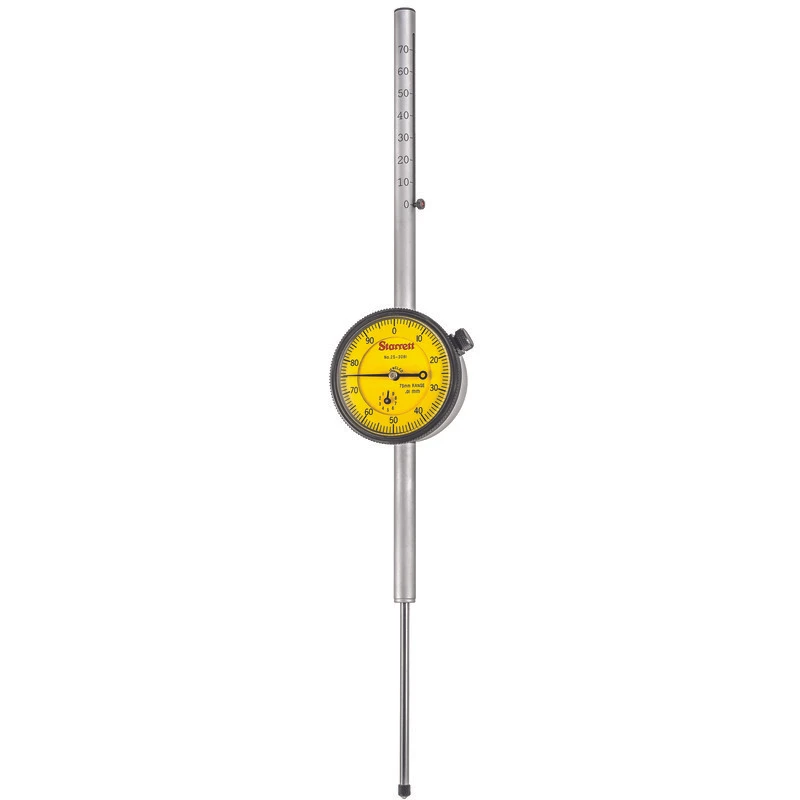

F	25-3081J	-	-	-	-	-	-	-	-	-	RFQ

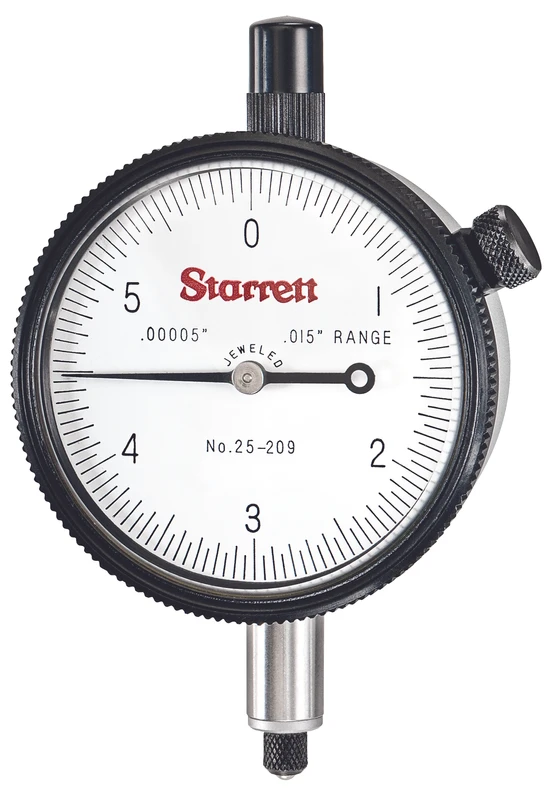

G	25-209J	-	-	-	-	-	-	-	-	-	RFQ

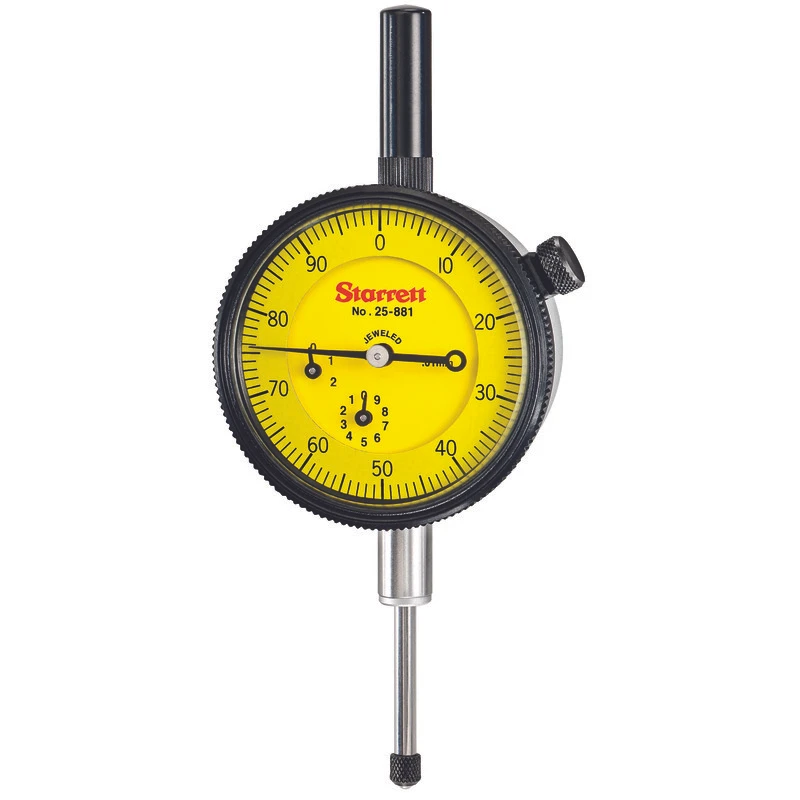

H	25-881J WCSC	-	-	-	-	-	-	-	-	-	RFQ

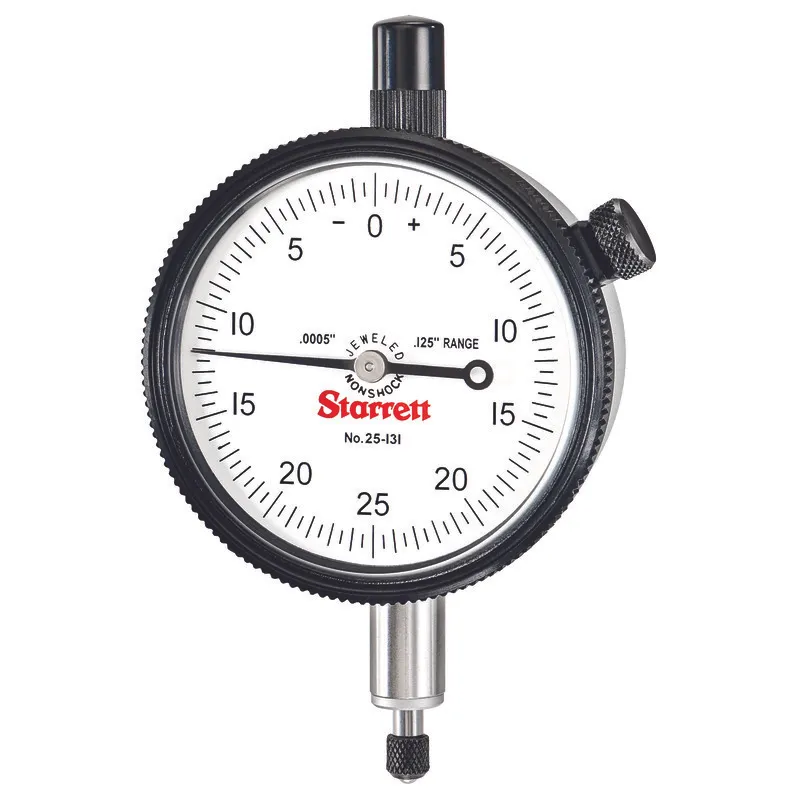

I	25-131J	0 to 25	White	Jeweled	3/8"	2 1/4"	0.05"	#4-48	0" to 1/8"	€431.47
J	25-381J	0 to 50	Yellow	Jeweled	3/8"	2 1/4"	1 mm	#4-48	0 mm to 10 mm	€586.35

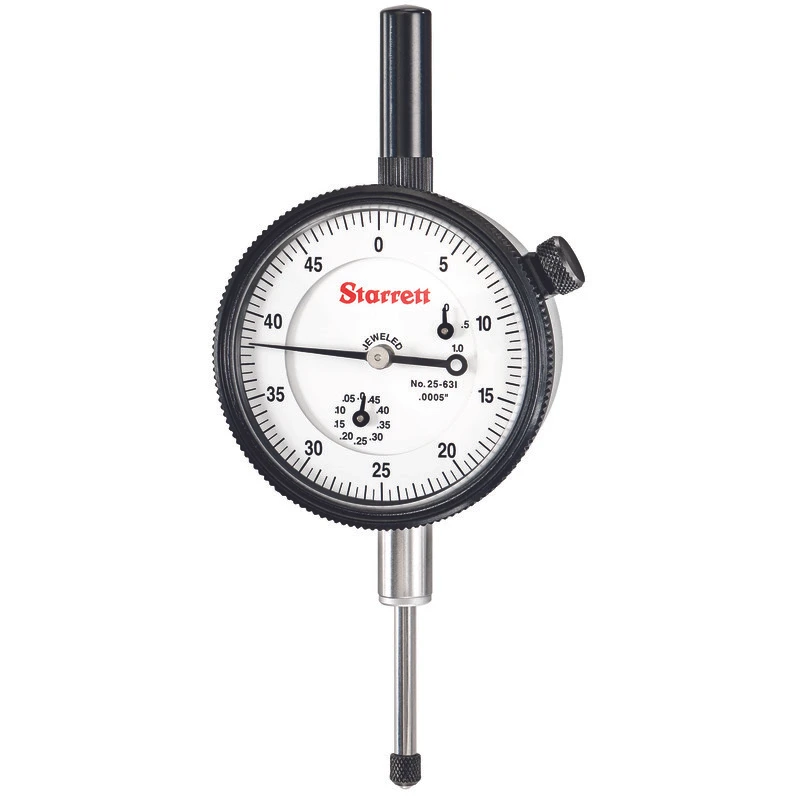

K	25-631J WCSC	0 to 50	White	Jeweled	3/8"	2 1/4"	0.05"	#4-48	-	-	RFQ
L	25-511J	0-5-0	White	Jeweled	0.375"	2 1/4"	0.01"	#4-48	0" to 0.2"	€734.81

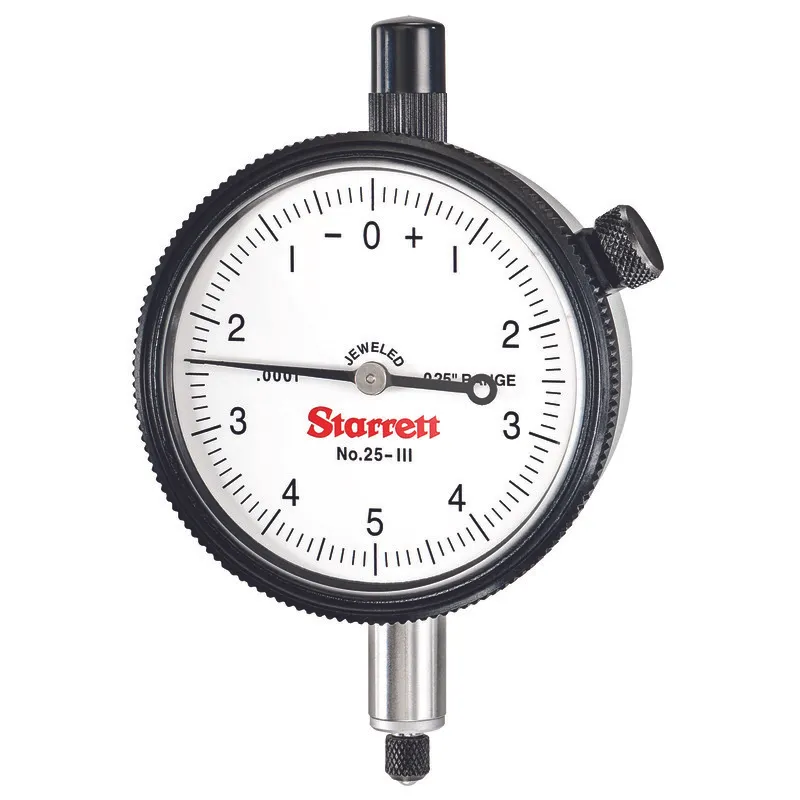

M	25-111J	0-5-0	White	Jeweled	3/8"	2 1/4"	0.01"	#4-48	0" to 0.025"	€672.54
N	25-211J	0-10	White	Jeweled	0.375"	2.25"	0.01"	#4-48	0" to 0.025"	€576.02
O	25-611J	0-10	White	Jeweled	0.375"	-	0.01"	#4-48	0" to 0.2"	€776.45

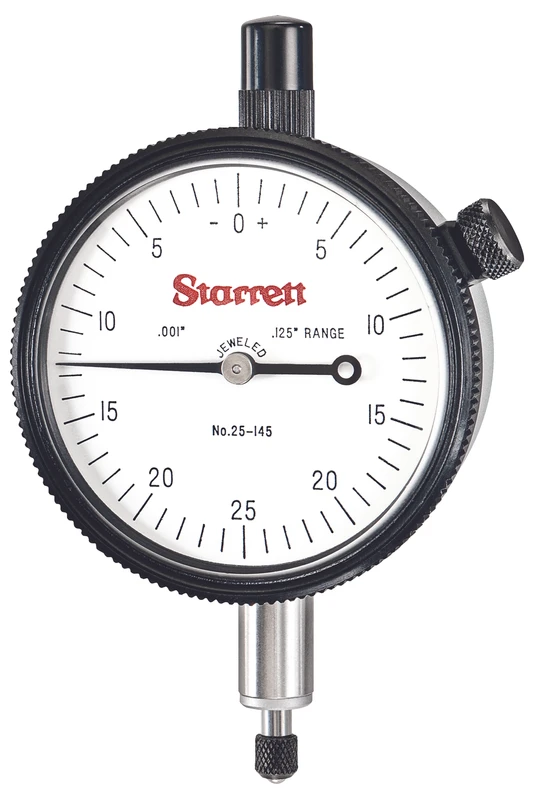

P	25-145j	0-25-0	White	Jeweled	3/8"	2 1/4"	0.05"	-	-	-	RFQ
Q	25-631J	0-50	White	Jeweled	3/8"	2 1/4"	0.05"	#4-48	0" to 1"	€454.42

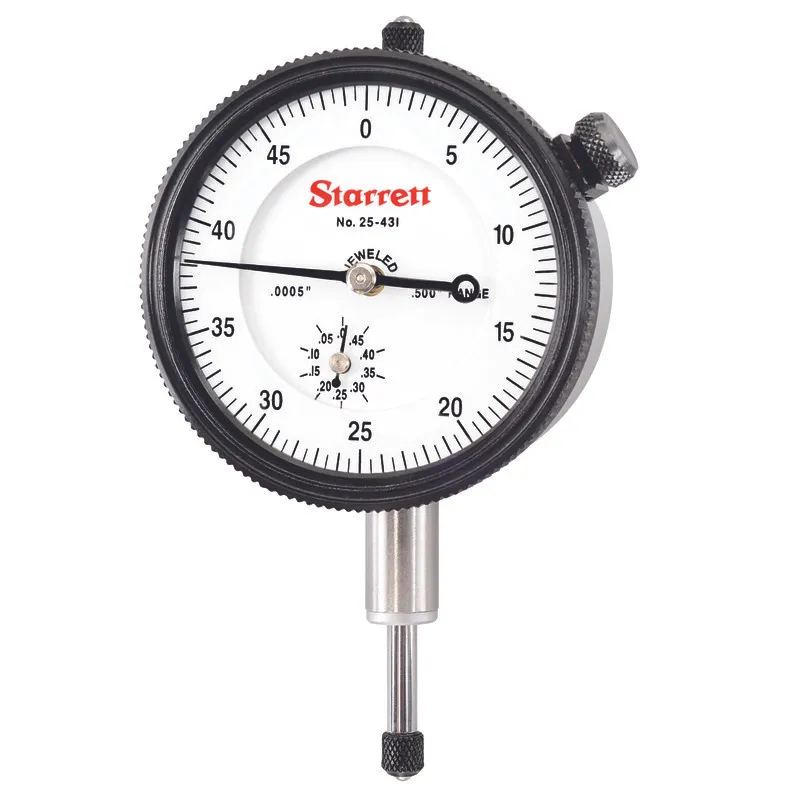

R	25-431J	0-50	White	Jeweled	3/8"	2 1/4"	0.05"	#4-48	0" to 1/2"	€461.03
S	25-781J	0-50	Yellow	Jeweled	3/8"	2 1/4"	1 mm	#4-48	0 mm to 25 mm	€585.20
T	25-341J	0-50-0	White	Jeweled	3/8"	2 1/4"	0.1"	#4-48	0" to 1"	€422.03
U	25-341/5J	0-50-0	White	Jeweled	0.375"	2 1/4"	0.1"	#4-48	0" to 0.5"	€414.80
V	25-141J	0-50-0	White	Jeweled	0.375"	2 1/4"	0.1"	#4-48	0" to 0.25"	€418.22

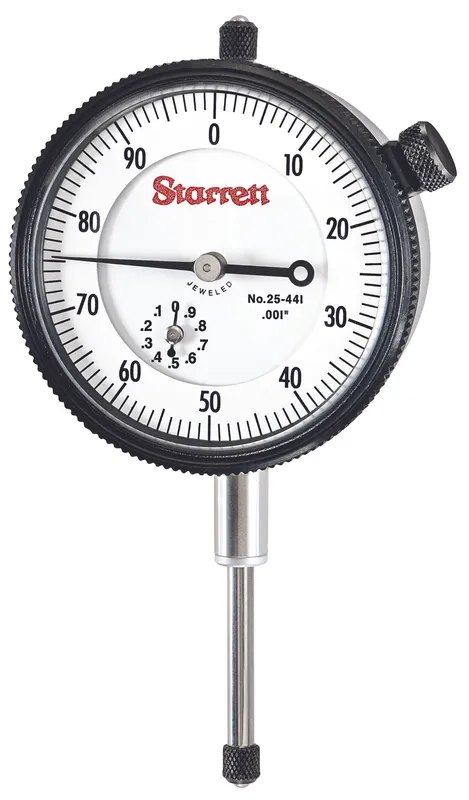

W	25-441J	0-100	White	Jeweled	3/8"	2 1/4"	-	#4-48	0" to 1"	€355.68
X	25-481J	0-100	Yellow	Jeweled	3/8"	2 1/4"	1 mm	#4-48	0 mm to 10 mm	€485.21

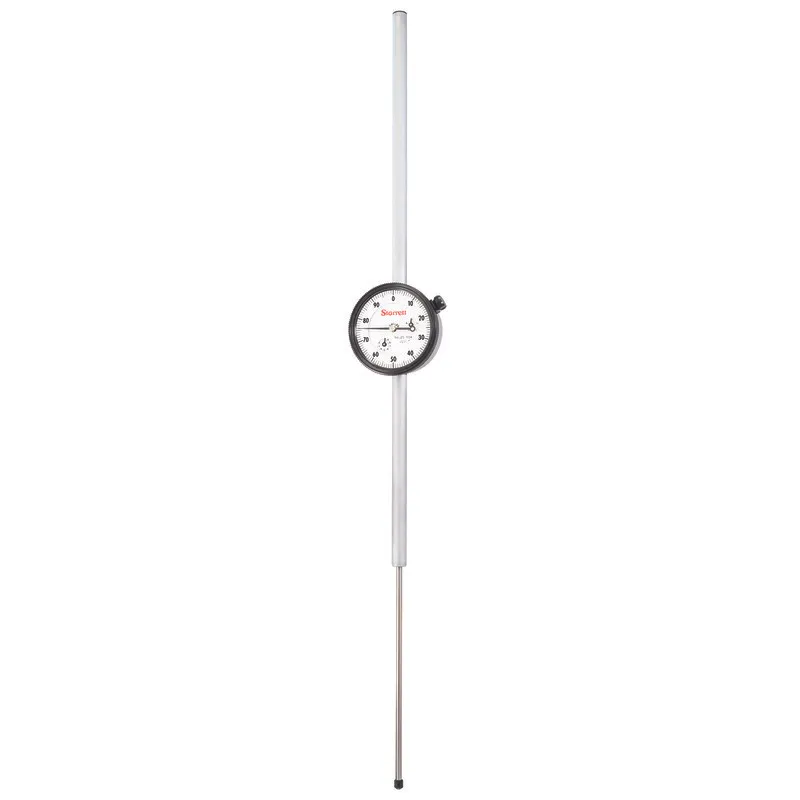

Y	25-5041J	0-100	White	Jeweled	3/8"	2 1/4"	0.1"	#4-48	0" to 5"	€1,352.27

STARRETT -

3670 Series Dial Indicator Stands

Style	Model	Base Size	Finish	Base Width	Base Length	Compatible Indicator Mounts	Rod Dia.	Magnetic Pull	Vertical Travel

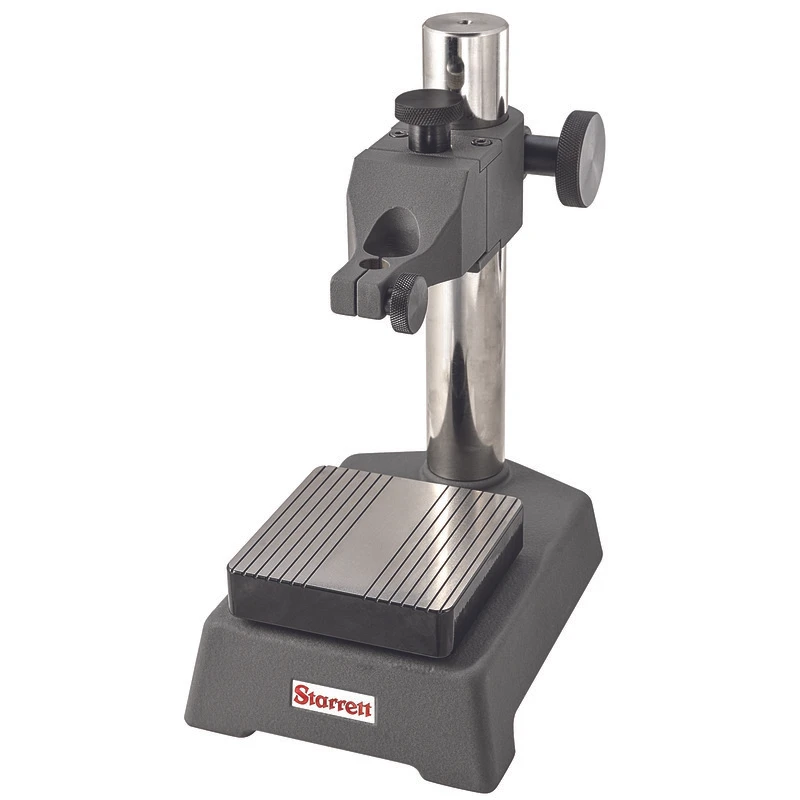

A	3673	3"	Unfinished	6"	12"	3/8"	1"	165 lbs.	5 1/4"	RFQ

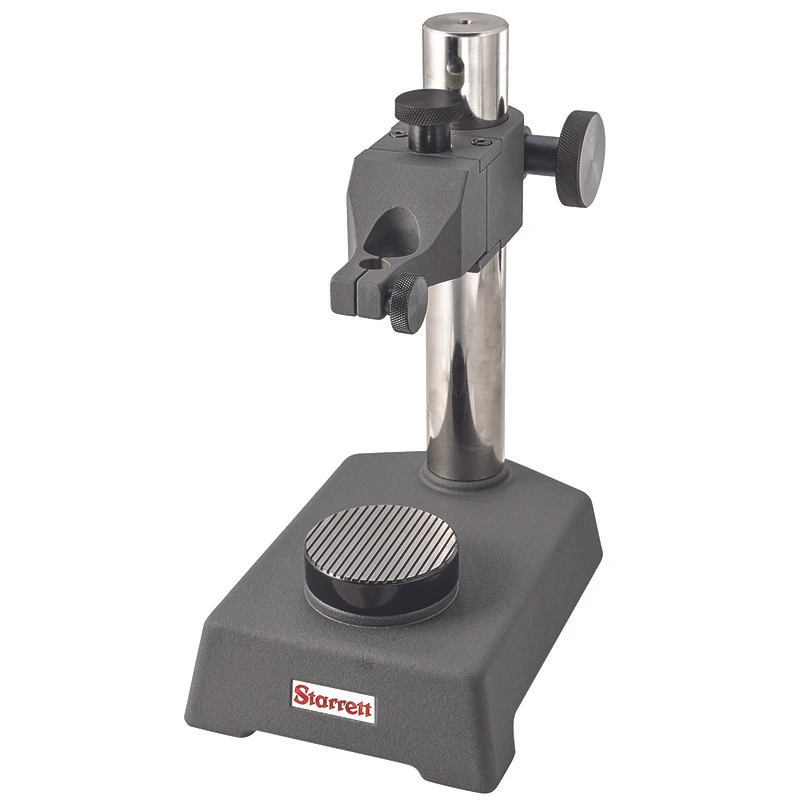

B	3672	3"	Unfinished	6"	12"	3/8"	1"	165 lbs.	5 1/4"	RFQ

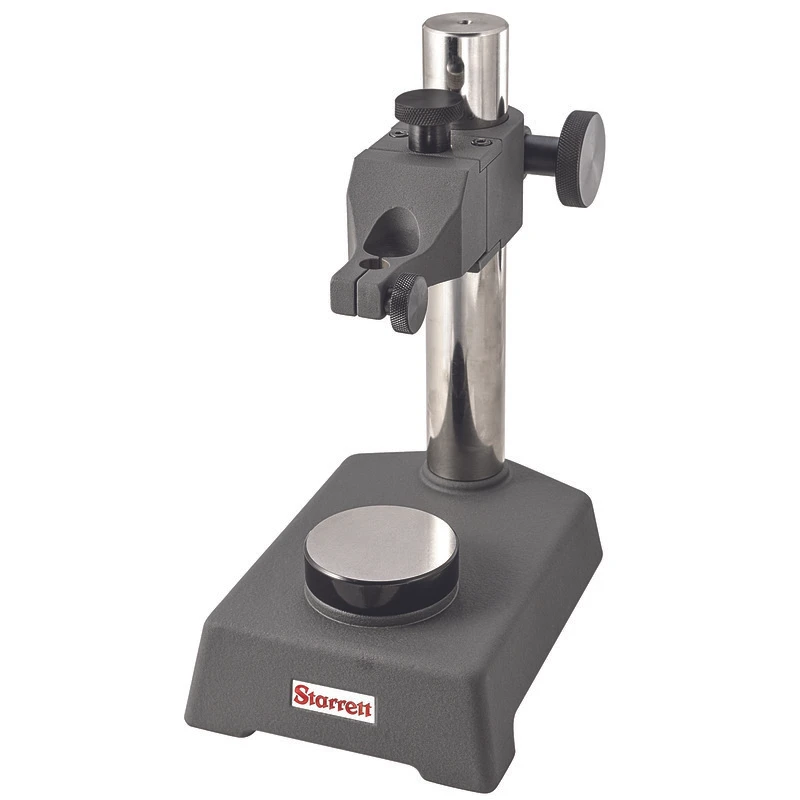

C	3671	4"	Unfinished	6"	12"	3/8"	1"	165 lbs.	5 1/4"	RFQ

STARRETT -

1101-24 Series Dial Indicator Diameter Gages

Style	Model	Range	Dial Indicator Dia. Gage Type	Graduations

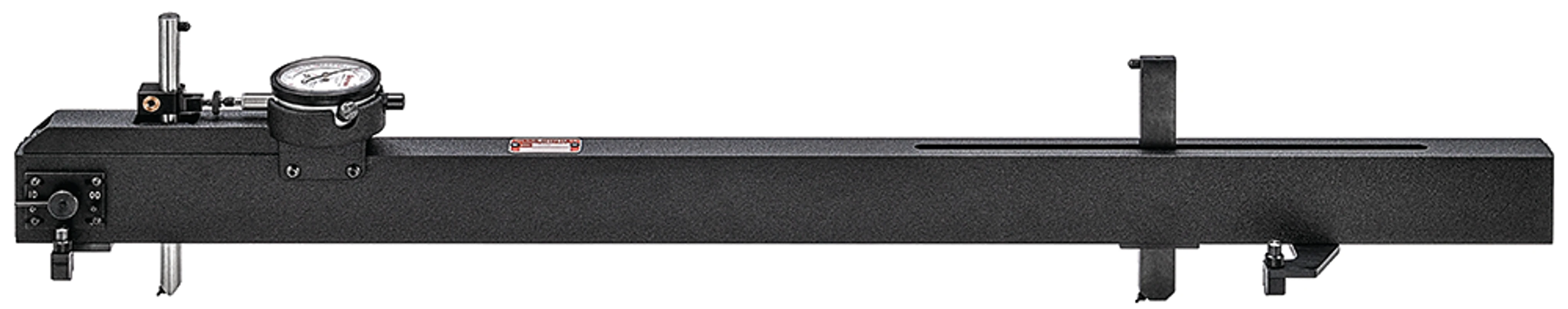

A	1101-24	-	-	-	RFQ

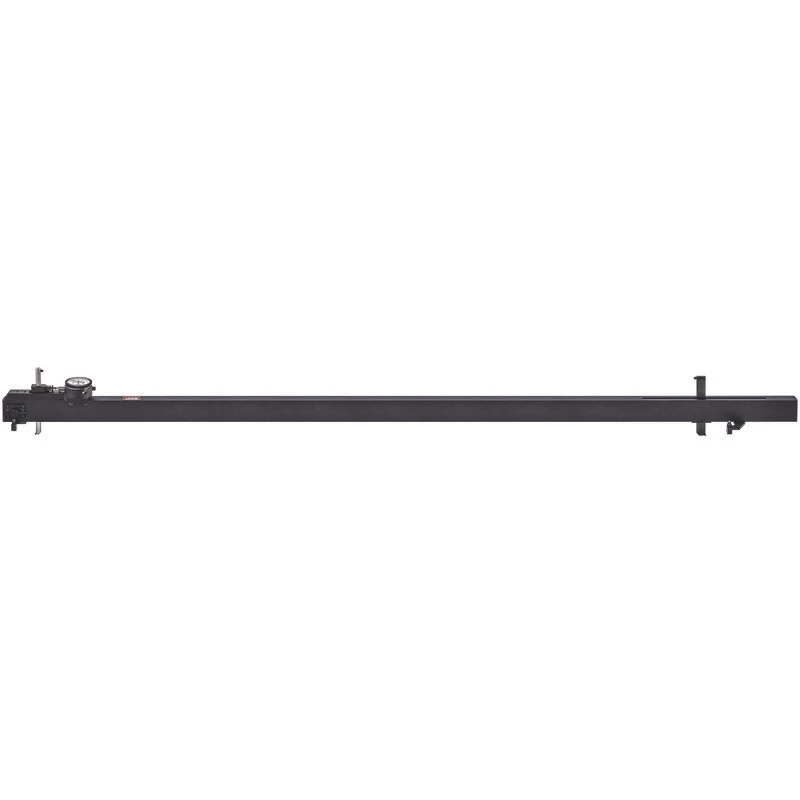

B	1101-60-1LR	54" to 60"	Standard	0.0001"	RFQ

MITUTOYO -

2 Series Dial Indicators, Metric

Style	Model	Range	Bearing Type	Range Per Revolution	Stem Dia.	Dial Reading	Dial Color	Stem Thread Size	Operation Type	Price

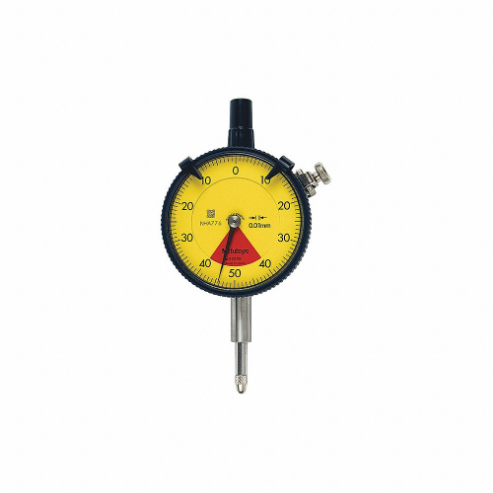

A	2929AB-62	0 mm to 0.8 mm	Plain	1 mm	8 mm	40-0-40	-	M2.5 x 0.45	Plunger	€179.97
B	2109AB-10	0 mm to 1 mm	Jeweled	0.2 mm	8 mm	0-100-0	Yellow	M2.5 x 0.45	Plunger	€283.25
B	2109A-10	0 mm to 1 mm	Jeweled	0.2 mm	8 mm	0-100-0	White	M2.5 x 0.45	Plunger	€296.72
C	2046A-11	0 mm to 10 mm	Jeweled	1 mm	0.375"	0-100	Yellow	#4-48	Plunger	€161.58
D	2047A	0 mm to 10 mm	Plain	1 mm	8 mm	0-50-0	White	M2.5 x 0.45	Plunger	€171.12
E	2046A-01	0 mm to 10 mm	Plain	1 mm	0.38"	1-100	Yellow	#4-48	Vertical	€139.94
F	2050A	0 mm to 10 mm	Plain	1 mm	8 mm	0-100	White	M2.5 x 0.45	Plunger	€197.85
G	2050A-01	0 mm to 20 mm	Plain	1 mm	0.38"	-	Yellow	-	Lug Back	€198.47
H	2050AB	0 mm to 20 mm	Plain	1 mm	8 mm	0-100	White	M2.5 x 0.45	Vertical	€205.85

MITUTOYO -

2 Series Dial Indicators, Inch

Style	Model	Range	Dial Color	Dial Size	Bearing Type	Dial Reading	Stem Thread Size	Stem Dia.	Contact Point Dia.	Price
A	2802A-10	0" to 0.025"	White	57 mm	Jeweled	0-10	M2.5 x 0.45	3/8"	3 mm	€229.03
B	2803A-10	0" to 0.025"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€218.54
C	2805A-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	3/8"	3 mm	€260.79
D	2923A-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€279.29
D	2923AB-10	0" to 0.05"	White	57 mm	Jeweled	0-5-0	#4-48	0.375"	3 mm	€262.69
E	2804A-10	0" to 0.05"	White	57 mm	Jeweled	0-10	M2.5 x 0.45	0.375"	3 mm	€234.55
F	2358A-10	0" to 0.5"	White	57 mm	Jeweled	0-10	#4-48	0.38"	3 mm	€311.87
G	2416S-10CERT	0" to 1"	White	57 mm	Jeweled	0-100	M2.5 x 0.45	0.375"	3 mm	€255.28
H	2776A	0" to 1"	White	57 mm	Plain	0-50	#4-48	0.375"	3 mm	€213.68
G	2416SCERT	0" to 1"	White	57 mm	Plain	0-100	M2.5 x 0.45	0.375"	3 mm	€225.85
H	2416A	0" to 1"	White	57 mm	Plain	0-100	#4-48	0.375"	3 mm	€167.04
I	2417A	0" to 1"	White	57 mm	Plain	0-50-0	M2.5 x 0.45	0.375"	3 mm	€184.38
J	2416A-10	0" to 1"	White	57 mm	Jeweled	0-100	#4-48	0.38"	-	€214.68
K	2904A	0" to 1"	Black	57 mm	Jeweled	0-100	1/4"	3/8"	3/8"	€193.93
H	2776SCERT	0" to 1"	White	57 mm	Plain	0-50	#4-48	0.375"	3 mm	€256.47
L	2414A	0" to 1/2"	White	57 mm	Plain	0-100	#4-48	0.38"	0.12 mm	€165.67
M	2514AB	0" to 1/2"	White	57 mm	Plain	0-50	#4-48	3/8"	3 mm	€206.42
F	2358A-10W/CERT	0" to 5"	White	57 mm	Jeweled	0-10	#4-48	0.38"	-	€356.49
N	2424A-19	2"	White	2.19"	Jeweled	-	-	-	1/8"	€359.90

TESA BROWN SHARPE -

Style	Model	Range	Dial Color	Bearing Type	Range Per Revolution	Stylus Length	Dial Reading	Contact Point Dia.	Stem Thread Size	Price

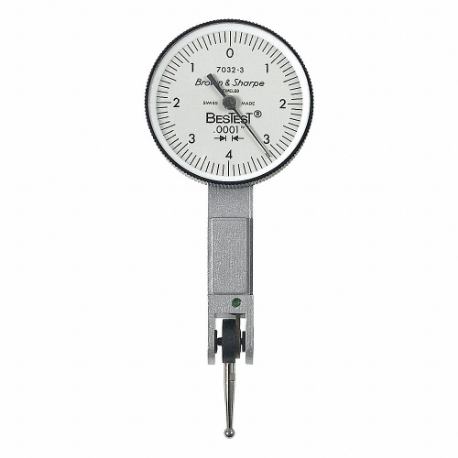

A	599-7030-6	-	-	-	-	-	-	-	-	€463.52

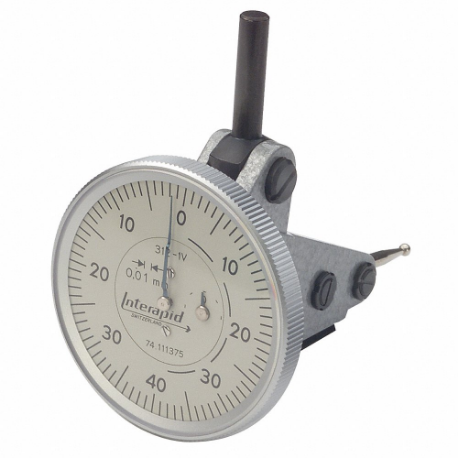

B	74.111375	-	-	-	-	-	-	-	-	€593.64

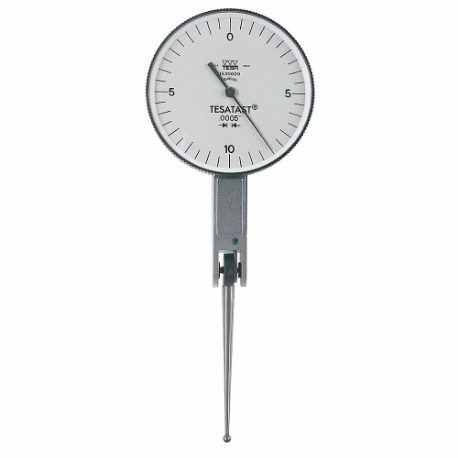

C	599-7034-3	-	-	-	-	-	-	-	-	€551.93

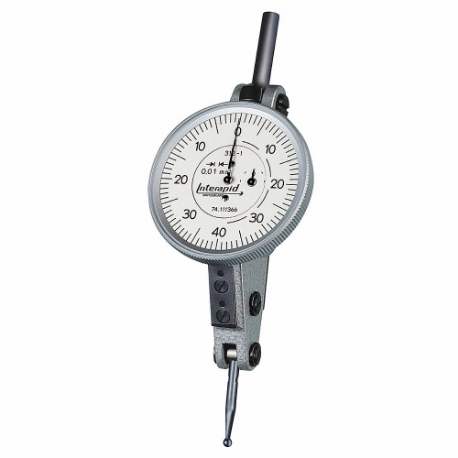

D	74.111374	-	-	-	-	-	-	-	-	€633.53

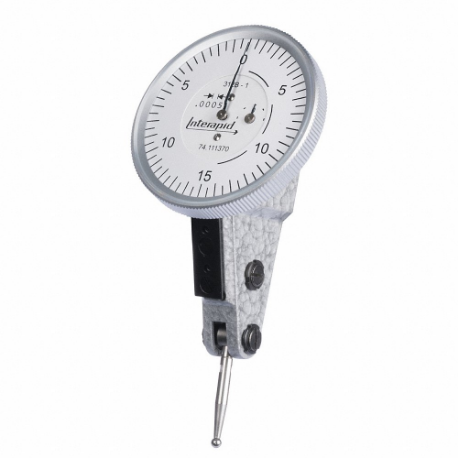

E	74.111965	-	-	-	-	-	-	-	-	€696.96

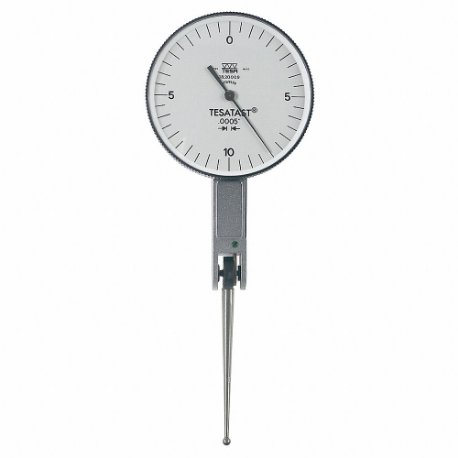

F	599-7035-3	-	-	-	-	-	-	-	-	€570.74

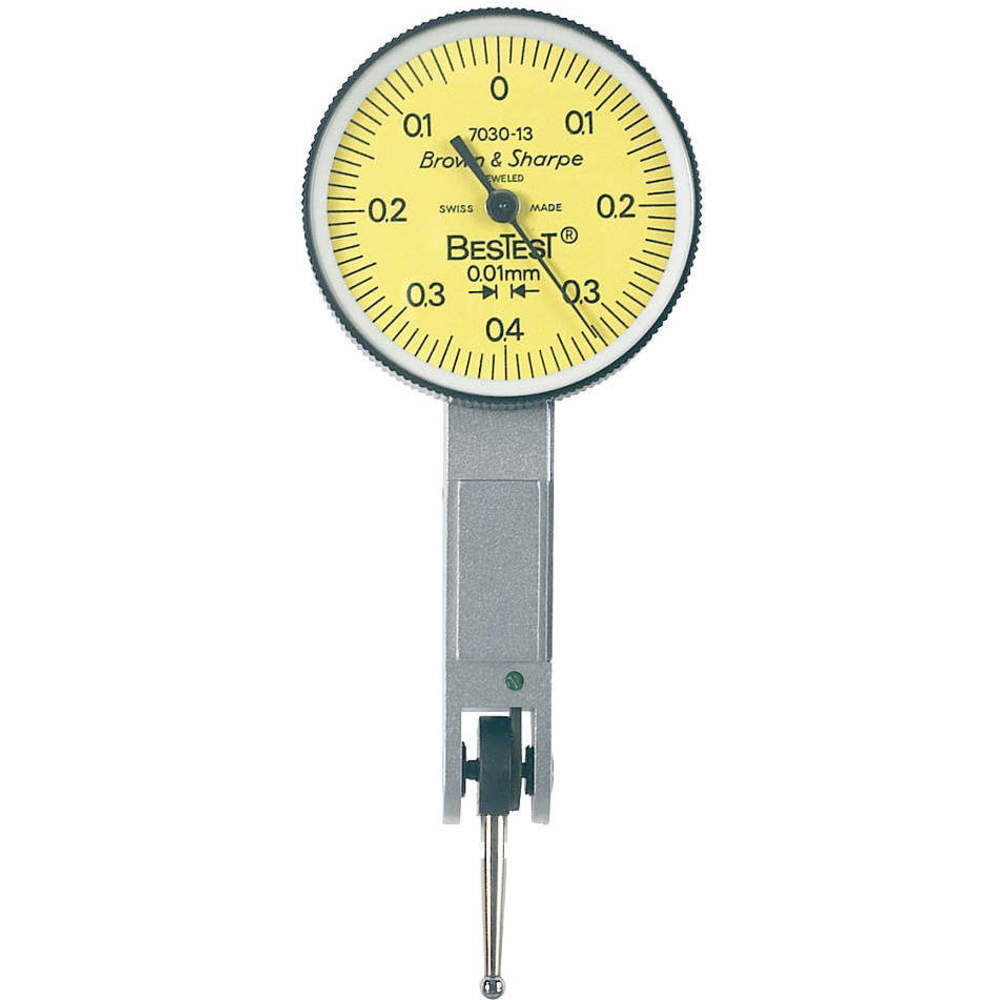

G	599-7032-13	0 mm to 0.2 mm	Yellow	Plain	0.002 mm	-	-	2/25"	-	€415.20
H	599-7031-14	0 mm to 0.8 mm	Yellow	Jeweled	0.01 mm	0.04", 0.08", 0.12", 0.5"	0-4-0	0.04", 0.08", 0.12"	M1.4	€396.70

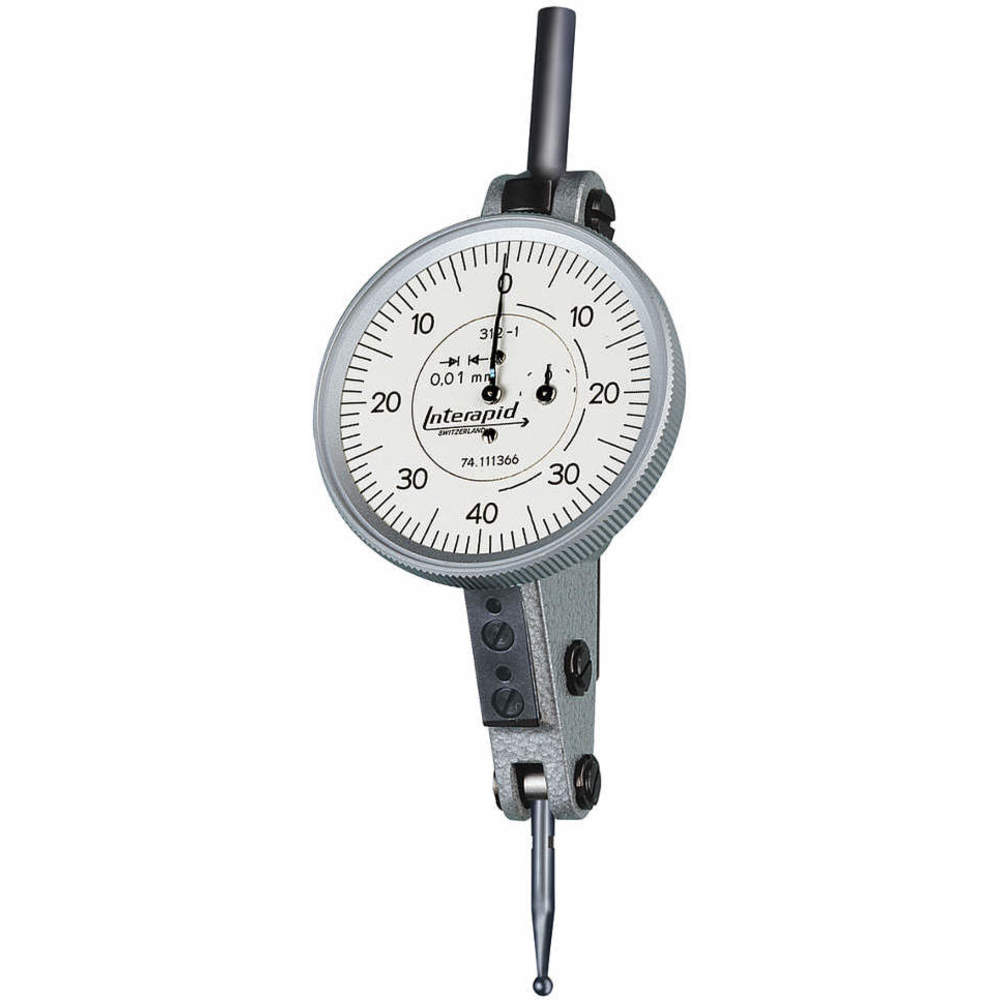

I	74.111366	0 mm to 1.6 mm	White	Jeweled	0.8 mm	16.5 mm	0-40-0	2 mm	M1.7	€565.19
J	599-7023-3	0" to 0.008"	White	Plain	0.008"	0.5"	0-100	2/25"	M1.4	€450.01
K	599-7033-5	0" to 0.008"	Black	Jeweled	0.008"	0.5"	0-4-0	2/25"	M1.4	€396.98
L	599-7032-5	0" to 0.008"	Black	Jeweled	0.008"	0.5"	0-4-0	2/25"	M1.4	€370.83
M	599-7023-6	0" to 0.008"	White	Jeweled	0.0"	0.04", 0.08", 0.12", 0.5"	0-4-0	0.04", 0.08", 0.12"	M1.4	€466.56

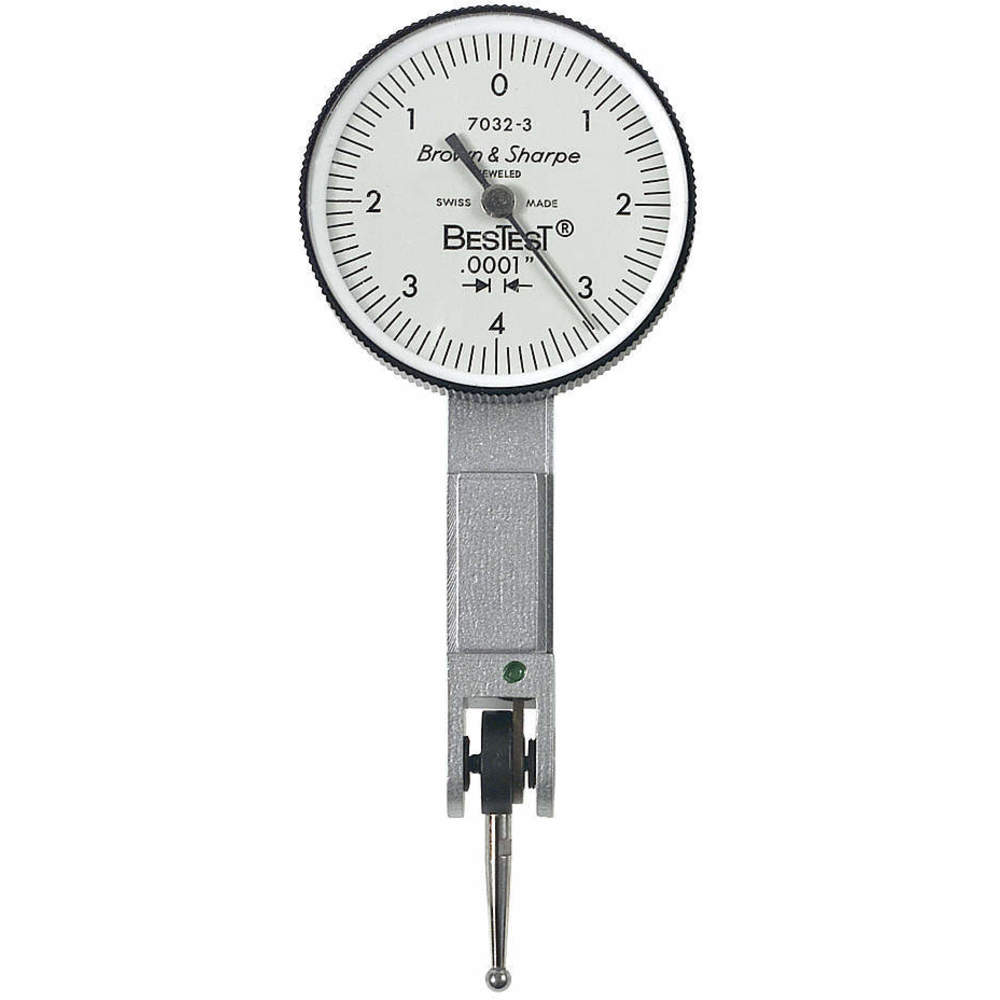

N	599-7033-3	0" to 0.008"	White	Jeweled	0.00005"	0.5"	0-4-0	2/25"	M1.4	€457.44
M	599-7032-6	0" to 0.008"	White	Jeweled	0.0"	0.5"	0-4-0	0.04", 0.08", 0.12"	M1.4	€406.91
O	599-7032-3	0" to 0.008"	White	Jeweled	0.008"	0.5"	0-4-0	2/25"	M1.4	€410.72

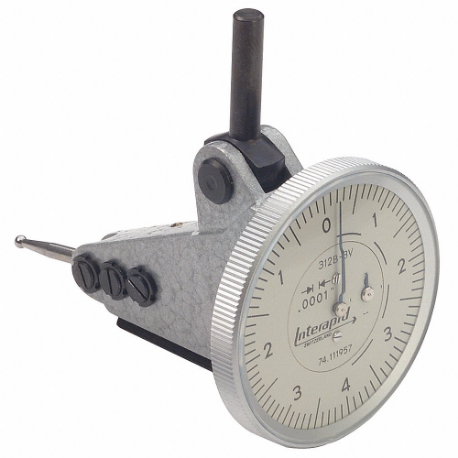

P	74.111957	0" to 0.016"	White	-	-	1/2"	-	-	M1.7	€700.43

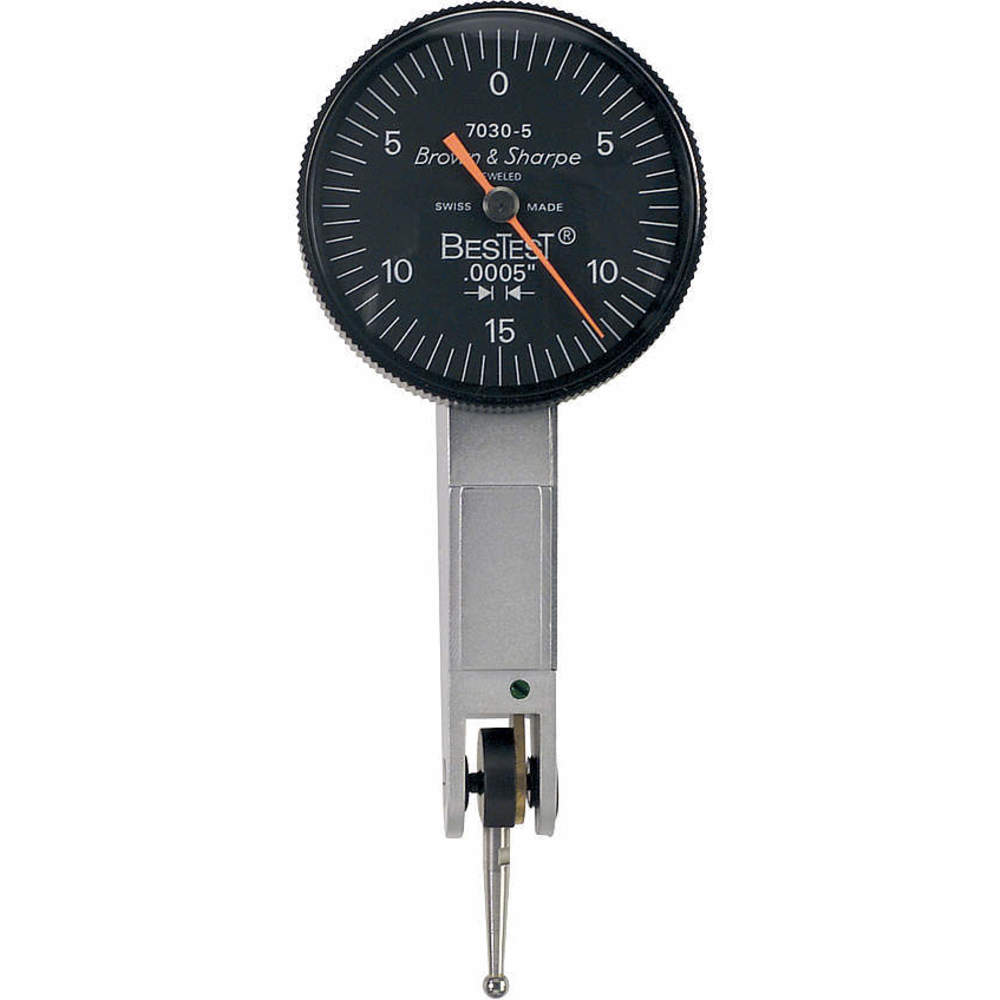

Q	599-7035-5	0" to 0.02"	Black	Plain	0.001"	-	-	2/25"	-	€386.39
R	599-7022-3	0" to 0.03"	White	Jeweled	0.008"	0.5"	0-4-0	2/25"	M1.4	€578.86
S	599-7030-5	0" to 0.03"	Black	Jeweled	0.03"	0.5"	0-15-0	2/25"	M1.4	€324.72

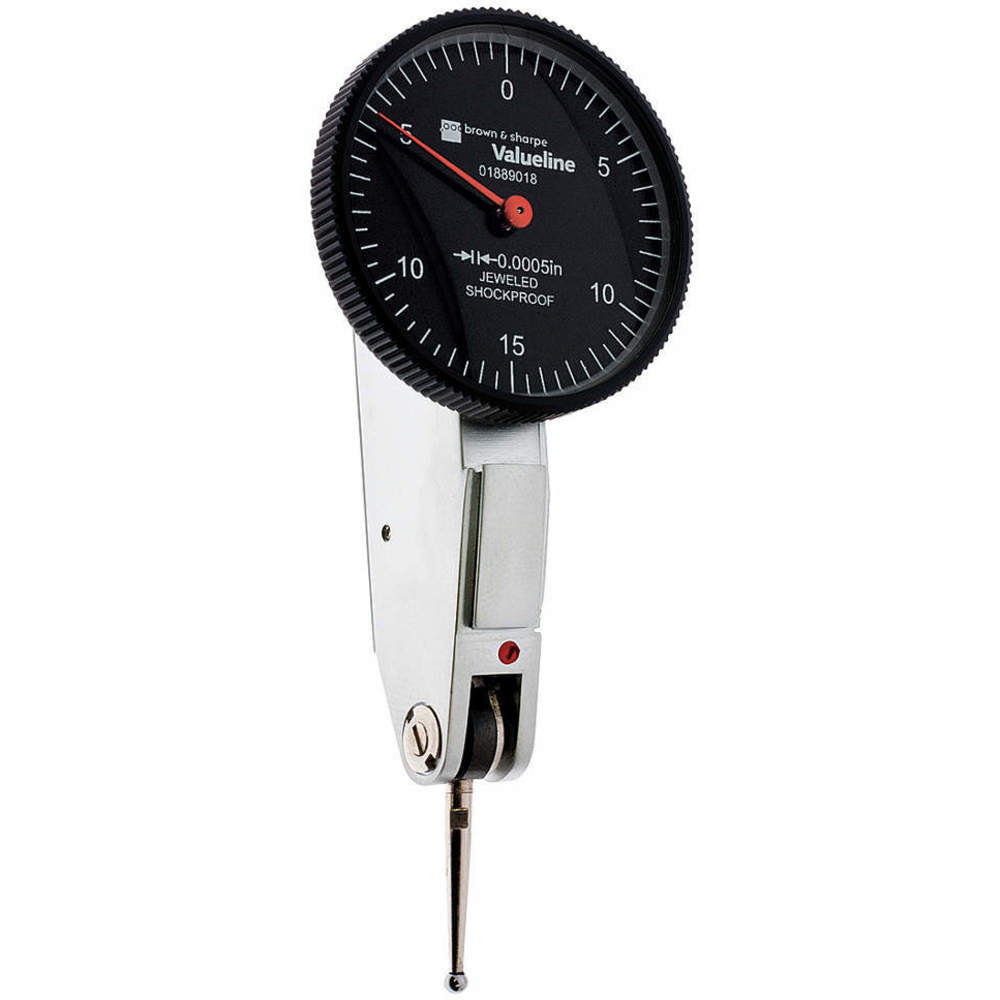

T	01889018	0" to 0.03"	White	Jeweled	0.03"	0.5"	0-15-0	-	-	€157.62
U	599-7031-5	0" to 0.03"	Black	Jeweled	0.03"	0.5"	0-15-0	2/25"	M1.4	€328.48
V	599-7029-5	0" to 0.03"	Black	Jeweled	0.03"	0.5"	0-15-0	2/25"	M1.4	€285.26

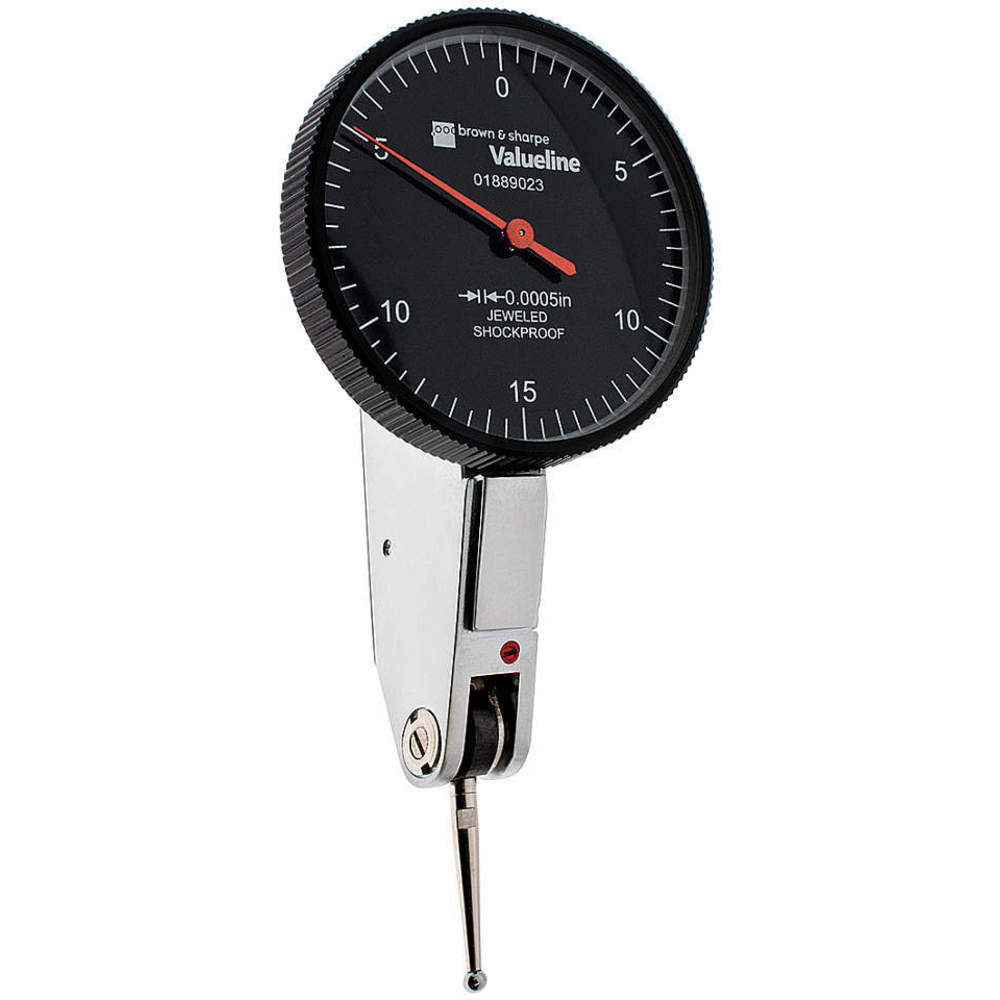

W	01889023	0" to 0.03"	White	Jeweled	-	0.5"	0-15-0	-	-	€179.29
M	599-7031-6	0" to 0.03"	White	Plain	0.001"	-	-	-	-	€391.16

201 Series Dial Snap Gauges Without Indicator

Style	Model	Range	Inch-metric	Parallelism	Measuring Force	Measuring Face	Repeatability	Flatness	Anvil Retracting Stroke	Price
A	201-153	-	-	-	-	-	-	-	-	€808.11
B	201-101	0 mm to 25 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€586.91
B	201-151	0" to 1"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€569.94
C	201-156	5" to 6"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€615.00
D	201-159	8" to 9"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€945.10	RFQ
B	201-160	9" to 10"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€902.87
B	201-161	10" to 11"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€1,048.06
E	201-162	11" to 12"	Inch	0.0002"	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€790.00
B	201-102	25 mm to 50 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€615.20
B	201-103	50 mm to 75 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€650.56
B	201-104	75 mm to 100 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€623.69
F	201-105	100 mm to 125 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€583.00
B	201-106	125 mm to 150 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€786.70
B	201-107	150 mm to 175 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€821.03
B	201-108	175 mm to 200 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€794.62
G	201-109	200 mm to 225 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€702.00
H	201-110	225 mm to 250 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€733.00
I	201-111	250 mm to 275 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€761.00
B	201-112	275 mm to 300 mm	Metric	5 µm	12N to 18N	Carbide Tipped, Micro Lap Finish (13.5X12 Mm)	2 µm	1 µm	2 mm	€1,065.23

STARRETT -

Style	Model	Range	Dial Reading	Dial Color	Dial Size	Bearing Type	Range Per Revolution	Contact Point Dia.	Stem Thread Size	Price
A	196B1 W/SLC	-	-	-	-	-	-	-	-	€417.03
B	80-144J WFB	0" to 0.1"	0-20-0	White	1 1/4"	Jeweled	1/25"	1/8"	#0-80	€589.38

Style	Model	MPN	Price
A	T003	T003	€53.46	RFQ
B	T003G	T003G	€42.88	RFQ
C	T007	T007	€53.46	RFQ
D	T007G	T007G	€46.48	RFQ

Style	Model	Dial Size	Price
A	A020	-	€105.44	RFQ
B	C002/42	42 mm	€25.16	RFQ
C	C002	60 mm	€40.43	RFQ
D	C023	60 mm	€13.58	RFQ
E	C048	60 mm	€51.15	RFQ
F	C023G	60 mm	€15.73	RFQ

Style	Model	Range	Dial Size	Bearing Type	Operation Type	Graduations	Reading	Dial Color	Dial Reading	Price
A	6XU91	0" to 0.02"	1"	Jeweled	Lever Style	0.0005"	Balanced	White	-	-	RFQ
B	4KU81	0" to 1"	2.38"	Plain	Mechanical	0.001"	Continuous	White	0-100	€131.74

Style	Model	Range	Dial Reading	Dial Color	Dial Size	Range Per Revolution	Contact Point Dia.	Accuracy	Indicator Style	Price

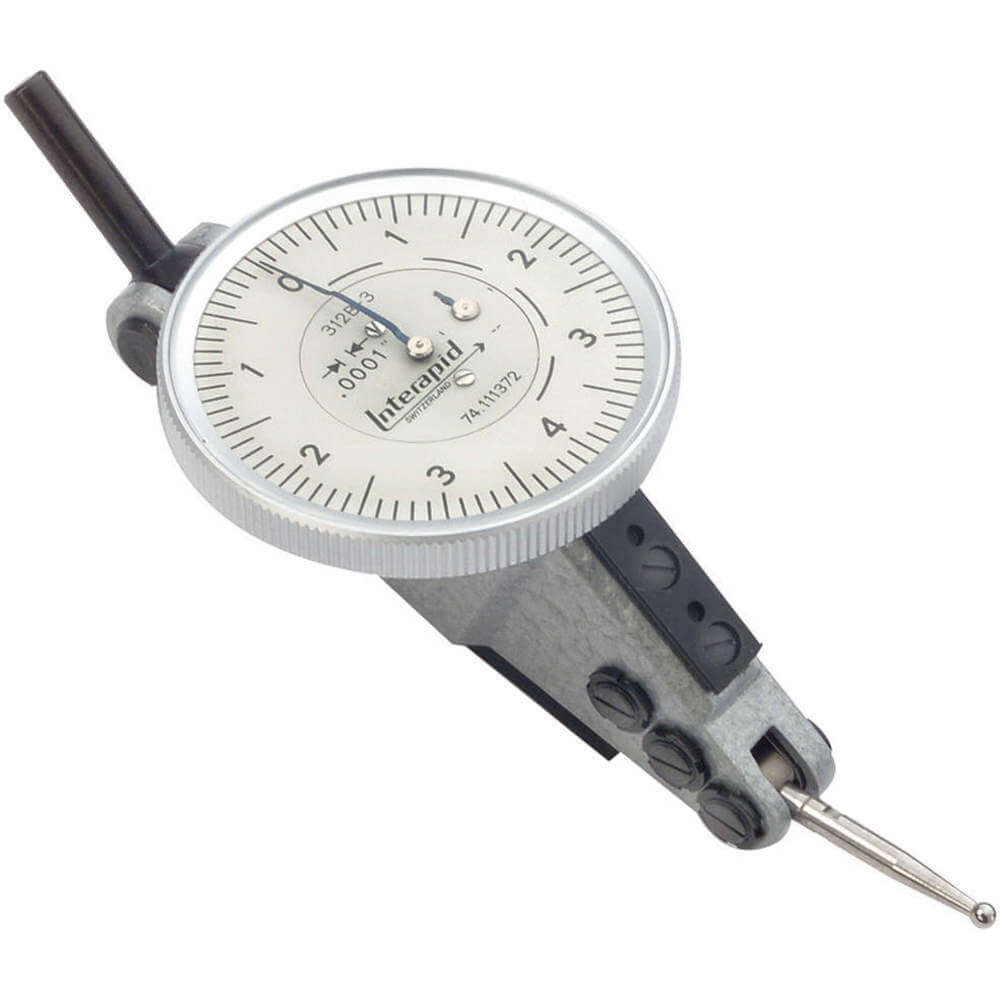

A	312B-3	0" to 0.016"	0-4-0	White	1 1/2"	0.016"	2/25"	-0.0001" to +0.0001"	Horizontal	€625.68

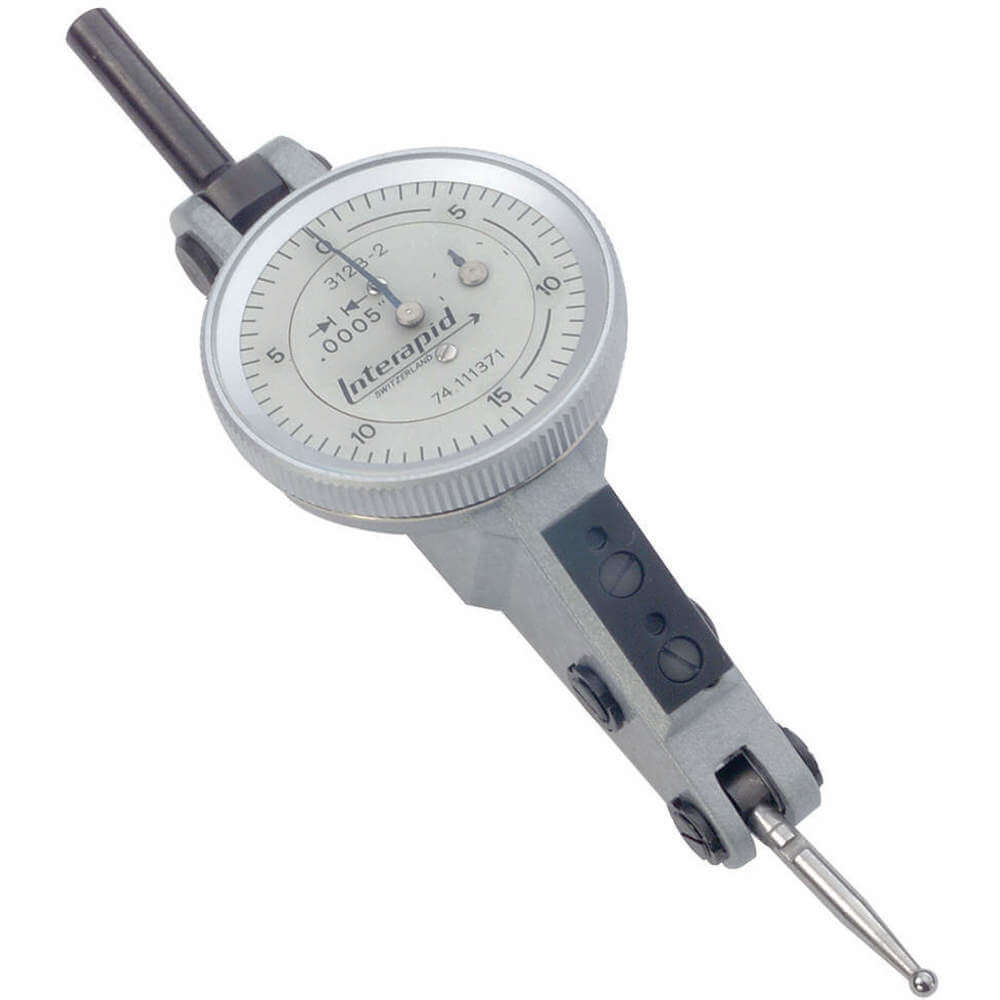

B	312B-2	0" to 0.06"	0-15-0	White	1 1/4"	0.06"	2/25"	-0.0005" to +0.0005"	Horizontal	€507.34

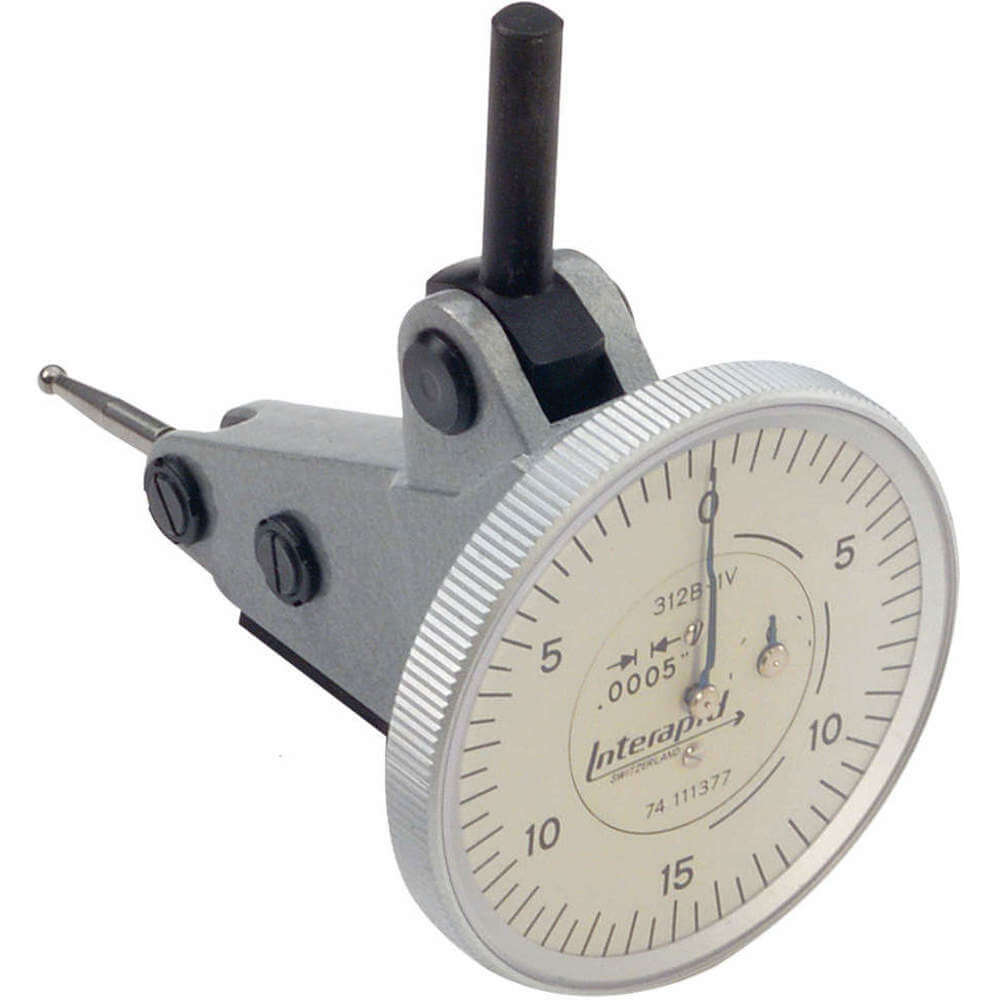

C	312B-1V	0" to 0.06"	0-15-0	Black	1 1/2"	0.06"	2 mm	-0.0005" to +0.0005"	Vertical	€543.50

Dial Test Indicator High Resolution

Style	Model	Dial Size	Stem Thread Size	Accuracy	Graduations	Hysteresis	Range	Dial Reading	Dial Color	Price
A	4308985	1 1/2"	M11	-0.0004" to +0.0004"	0.00005"	3.048 µm	0" to 0.008"	4-0-4	Green	€281.66
B	4308970	1 1/2"	M10	-0.00012" to +0.00012"	0.0005"	2.032 µm	0" to 0.008"	4-0-4	Green	€270.37
C	4308960	1.09"	M9	-0.00012" to +0.00012"	0.0005"	2.032 µm	0" to 0.008"	4-0-4	Green	€273.56

STARRETT -

650 Back Plunger Dial Indicators

Style	Model	Operation Type	Range	Dial Reading	Dial Color	Dial Size	Bearing Type	Range Per Revolution	Contact Point Dia.	Price
A	650A1Z	Back Plunger	0.1"	0-100	White	1.69"	Jeweled	0.1"	0.375"	€931.08
B	650A5Z	Lever Style	-	-	-	-	-	-	-	€968.98

MITUTOYO -

4 Series Dial Gauges For Dial Indicators

Style	Model	Range	Type	Range Per Rev.	Inch-metric	Graduation	H Mpe(hysteresis)	R Mpe(repeatability)	Measuring Force	Price
A	4887AB-19	3"	ANSI, AGD Standard	0.1"	Inch	0.001"	0.00033"	-0.0002" to +0.0002"	0.4N to 3N	€532.00
B	4046AB	10 mm	EN ISO Standard	1 mm	Metric	0.01 mm	3 µm	3 µm	0.4N to 1.4N	€229.00
B	4046A	10 mm	EN ISO Standard	1 mm	Metric	0.01 mm	3 µm	3 µm	0.4N to 1.4N	€234.00

TESA BROWN SHARPE -

Style	Model	Dial Color	Bearing Type	Range Per Revolution	Accuracy	Operation Type	Contact Point Shape	Back Type	Case Type	Price
A	01489023	Black	Plain	-	-0.001" to +0.001"	Plunger	Ball	Flat	Box	€105.96
B	14.82023	Black	Jeweled	0.1"	-0.002" to +0.002"	Back Plunger	Radius	Back Lug	Case	€181.89
C	14.82022	White	Plain	0.1"	-0.002" to +0.002"	Plunger	Radius	Back Lug	Case	€195.36
D	01489022	White	Plain	1"	-0.001" to +0.001"	Plunger	Ball	Flat	Box	€103.20

Style	Model	Dial Color	Range	Type	Bezel Dia	Graduations	Measuring Force	Repeatability Limit	Price
A	513-503	-	-	-	-	-	-	-	€221.75	RFQ
B	513-503T	Silver	0.2 mm	Pocket Type	29.2 mm	0.002 mm	0.4n Or Less	1 mm	€260.21
B	513-503E	Silver	-	-	-	-	-	-	€253.14

Style	Model	Magnet Type	Magnetic Base	Included Base Manufacturer Model No	Included Indicator And Base	Range	Dial Color	Dial Size	Accuracy	Price
A	S898Z-1	Non Magnetic	No	06804-0	25-441J (06804-0)	0" to 1"	White	2 1/2"	-0.001" to +0.001"	€702.98
B	S898Z-2	Permanent	Yes	657P	25-441J (657P)	0" to 1"	White	2 1/2"	-0.001" to +0.001"	€827.25

Dial Indicators

Dial indicators are used to align workpieces in lathe & milling machines, EDM and surface grinders. Raptor Supplies offers a wide range of reliable dial test indicators from brands like Mitutoyo, Starrett, Westwardand Mahr-Federal Inc. These dial indicators are also used for checking the runout of the spindle in a machine. Starrettdial indicators are designed for translating short linear distances into rotational movement. These indicators feature adjustable bezels for ensuring a positive grip and provide balanced dial up to 4 inches. They come equipped with plain / jeweled bearings for low friction & high accuracy, and are coated with satin chrome finish to ensure easy cleaning, as well as corrosion resistance. Dial indicators from Mahr-Federalfeature jeweled bearings providing high accuracy and excellent thermal stability. These dial indicators provide dial range up to 1 inch and graduations up to 0.0001 inches. Some models have lug backs to facilitate smooth mounting and curved crystal lenses for resistance against shattering. Choose from a wide range of dial indicators, available in jeweled, non jeweled, plain and standard bearings on Raptor Supplies.

Popular Search Queries

Keyed Shaft

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Dial Indicators

523 Series Digimatic/Mechanical Micrometers

Lugs

3808/3809/3908/3909 Dial Test Indicators

25 Series Dial Indicators With Jewel Bearings

3670 Series Dial Indicator Stands

1101-24 Series Dial Indicator Diameter Gages

2 Series Dial Indicators, Metric

2 Series Dial Indicators, Inch

Dial Test Indicators

201 Series Dial Snap Gauges Without Indicator

Indicators

Dial Test Indicator

Dial Indicator

Test Indicator

Dial Test Indicator White

Dial Test Indicator High Resolution

650 Back Plunger Dial Indicators

4 Series Dial Gauges For Dial Indicators

Dial Indicator

Test Indicators

Indicator Inspection Kit

Dial Indicators

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Dial Indicators

Dial Indicators

Popular Search Queries

Explore More
