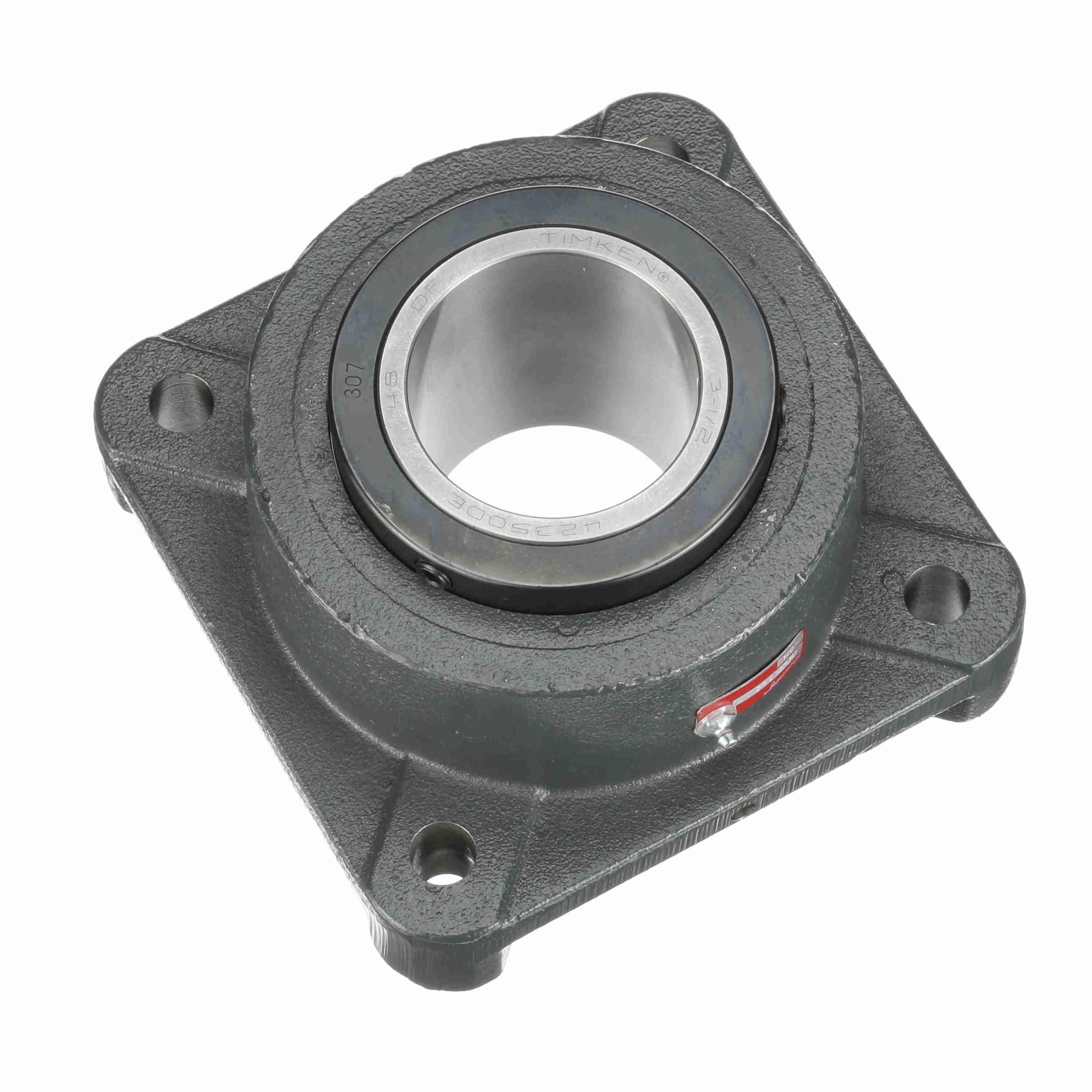

BROWNING 730035 FBE920X 3 1/2 Four Bolt Flange Tapered Roller Bearing, Double Collar Mount Lock, Mounted, Cast Iron
3 1/2"
Get it by Wednesday, Dec 24
€1,640.49 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Bearing |
| Bolt Center To Center Length | 7" |
| Bolt Circle Dia. | 9 29/32" |
| Bolt Spacing | 7" |
| Bore Dia. | 3 1/2" |
| Dynamic Load Capacity | 15320 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Uncoated |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Inside Dia. | 3 1/2" |
| Length Through Bore | 5" |
| Locking Device | Double Set Screw Collar |
| Material | Cast Iron |
| Max. Speed | 1000 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/4" |
| Mounting Method | Concentric Collar |
| No. Of Mounting Holes | 4 |
| Nominal Bolt Circle Dia | 9.9" |
| Number Of Rows | 2 |
| Other Features | Has Flinger |
| Overall Depth | 5 1/4" |
| Overall Dia. | 9 1/4" |
| Overall Height | 9 1/4" |
| Overall Length | 9 1/4" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Tapered Roller Bearing |
| Seal Material | Rubber |
| Seal Type | Contact |
| Series | FBE920 Series |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
| Weight | 20.412 Kg |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 23.83 |
| Ship width (cm) | 23.5 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Max. Speed | Bolt Circle Dia. | Locking Device | Bolt Center To Center Length | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
730032 | 3" | 7 3/4" | 7 3/4" | 1500 RPM | 8 31/64" | Double Set Screw Collar | 6" | Cast Iron | €894.03 | |
 |

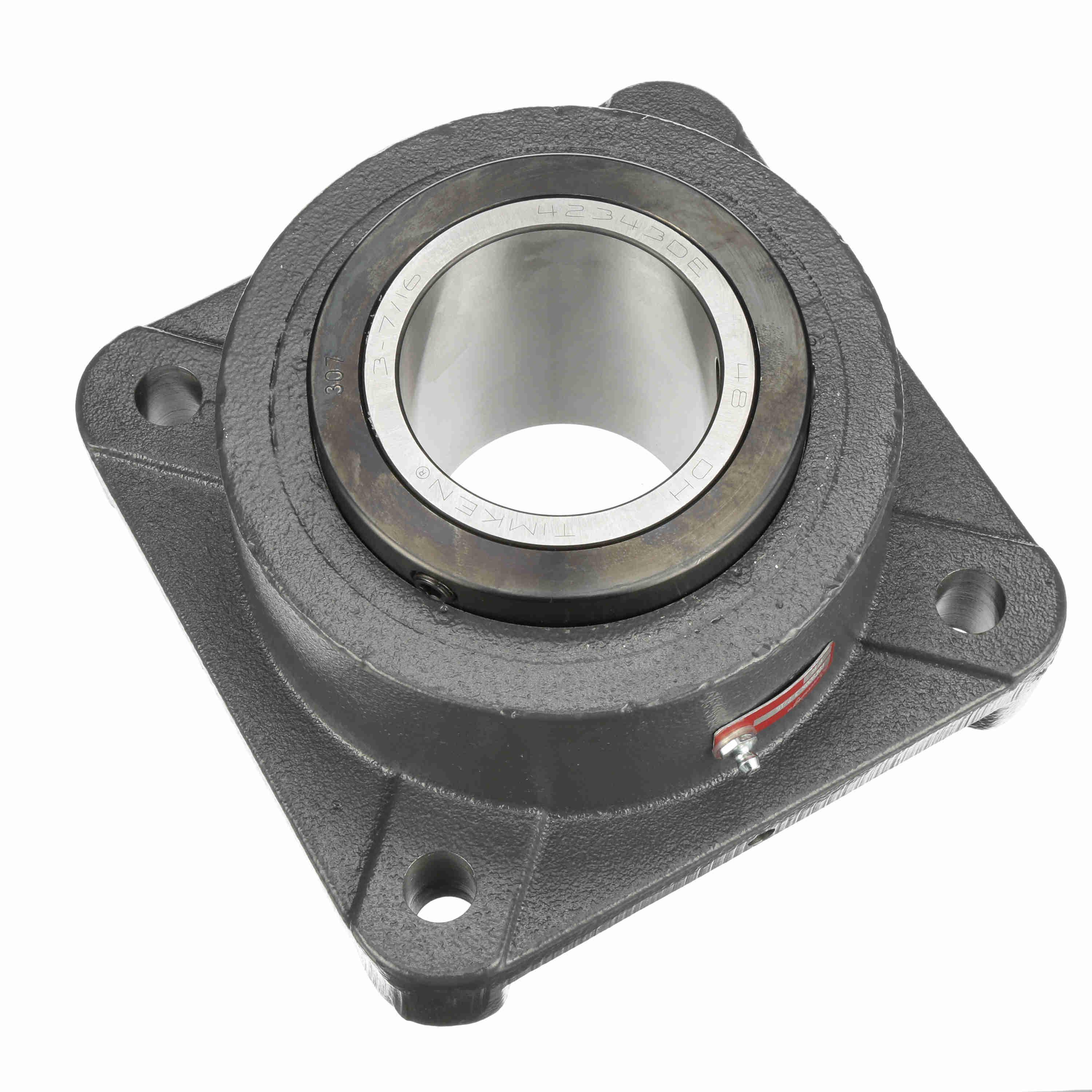

730034 | 3 7/16" | 9 1/4" | 9 1/4" | 1000 RPM | 9 29/32" | Double Set Screw Collar | 7" | Cast Iron | €1,380.00 | |
 |

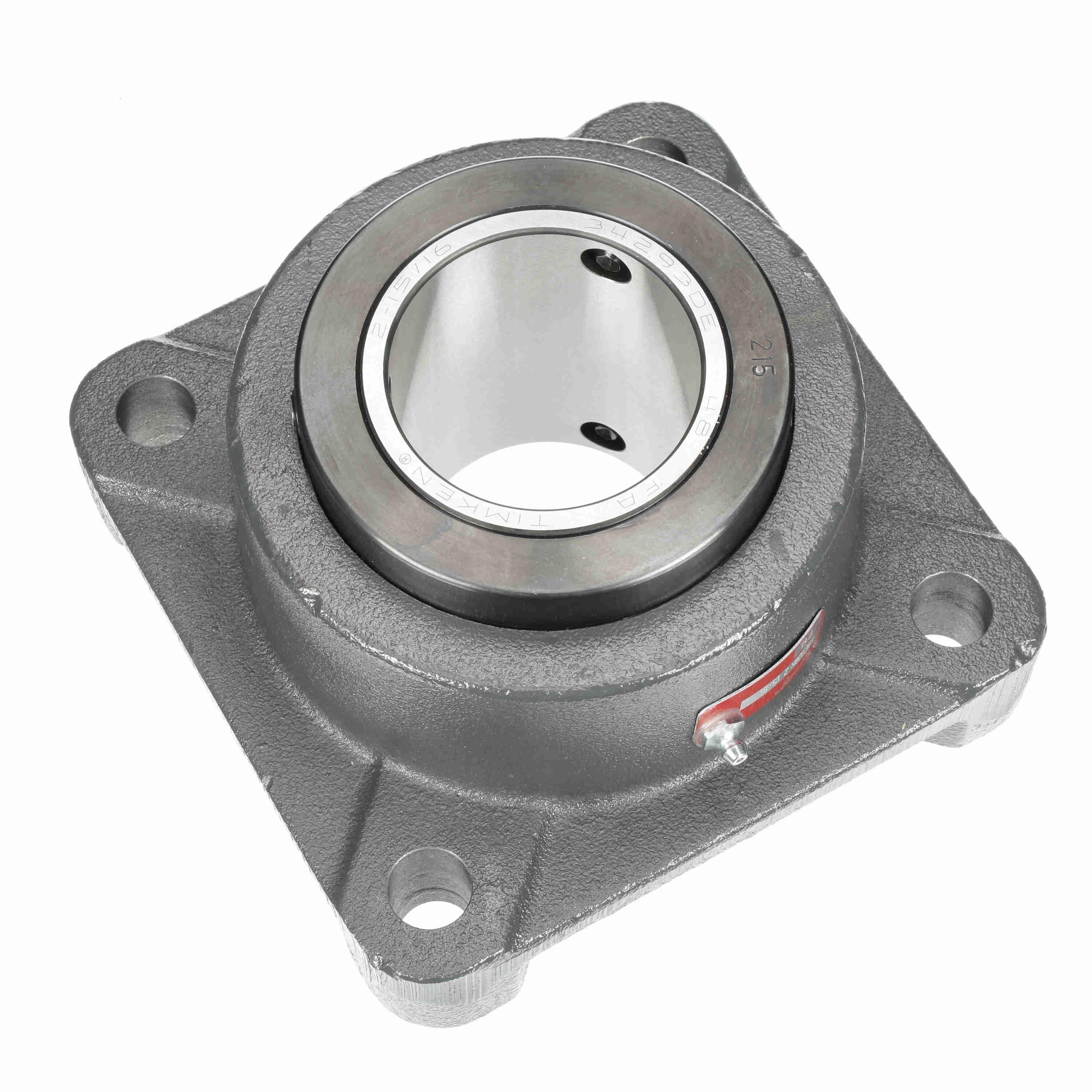

730031 | 2 15/16" | 7 3/4" | 7 3/4" | 1500 RPM | 8 31/64" | Double Set Screw Collar | 6" | Cast Iron | €836.76 | |
 |

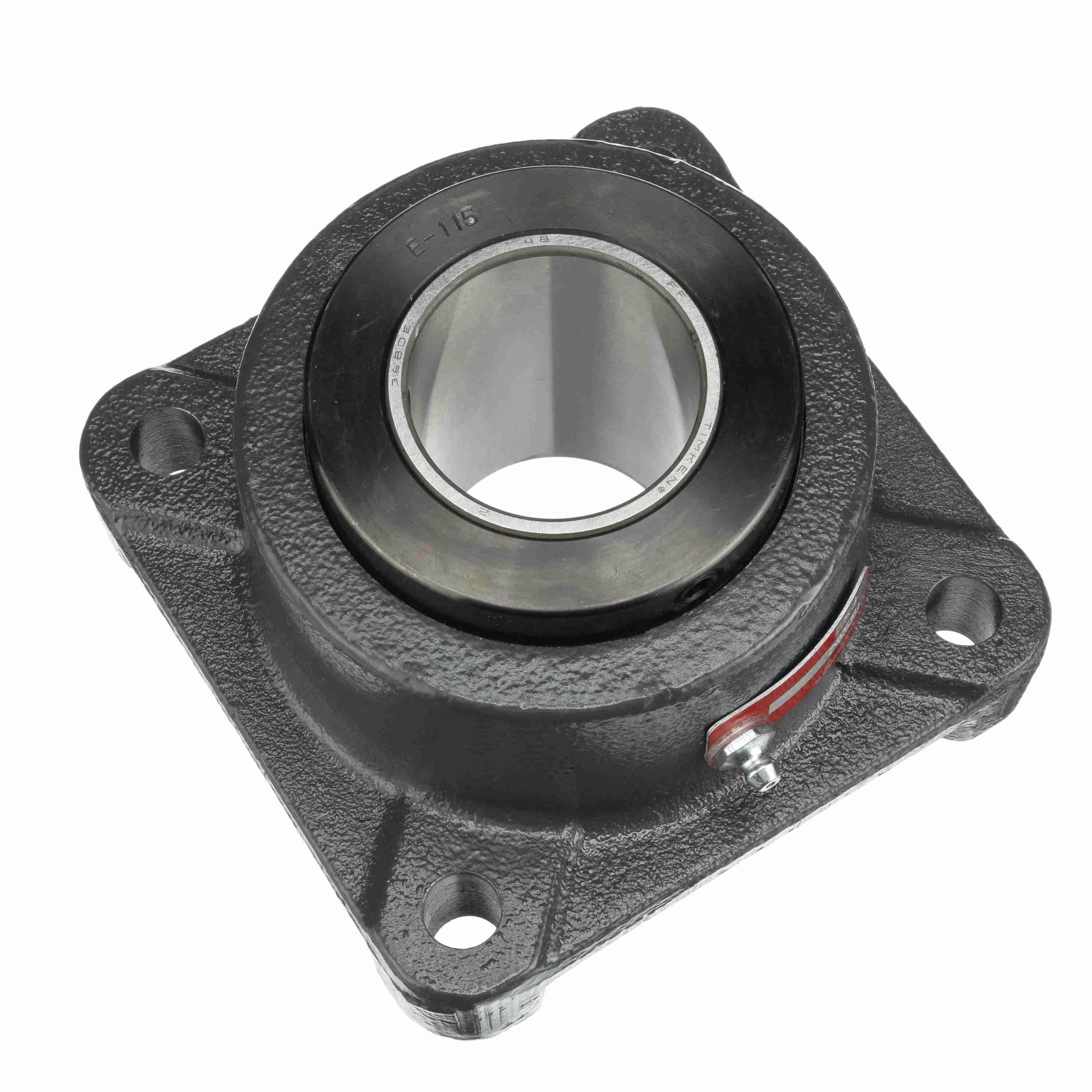

730026 | 2" | 5 5/8" | 5 5/8" | 2000 RPM | 6 3/16" | Double Set Screw Collar | 4 3/8" | Cast Iron | €529.26 | |
 |
730025 | 1 15/16" | 5 5/8" | 5 5/8" | 2000 RPM | 6 3/16" | Double Set Screw Collar | 4 3/8" | Cast Iron | €548.63 | |
 |

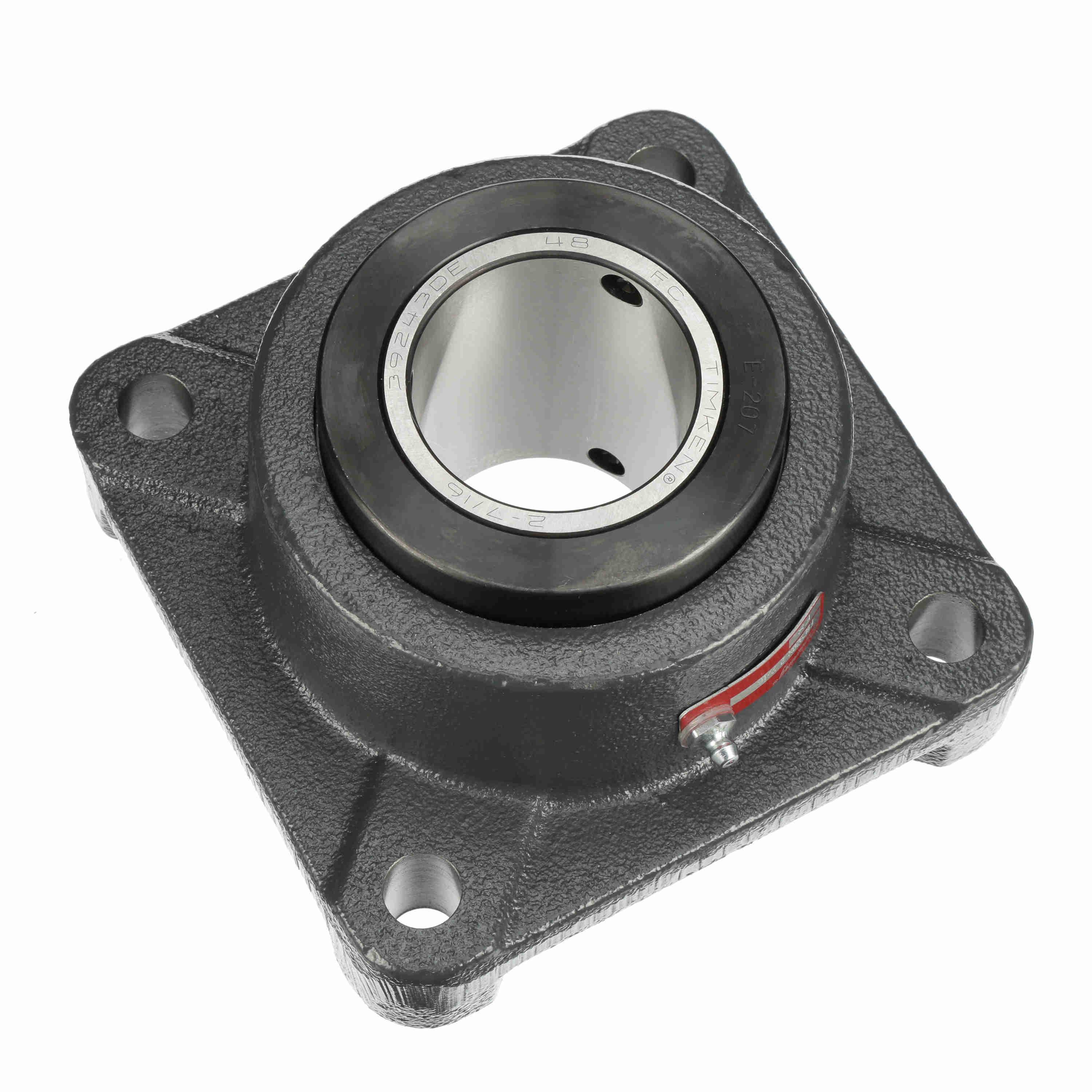

730028 | 2 7/16" | 6 7/8" | 6 7/8" | 1750 RPM | 7 39/64" | Double Set Screw Collar | 5 3/8" | Cast Iron | €574.14 | |
 |

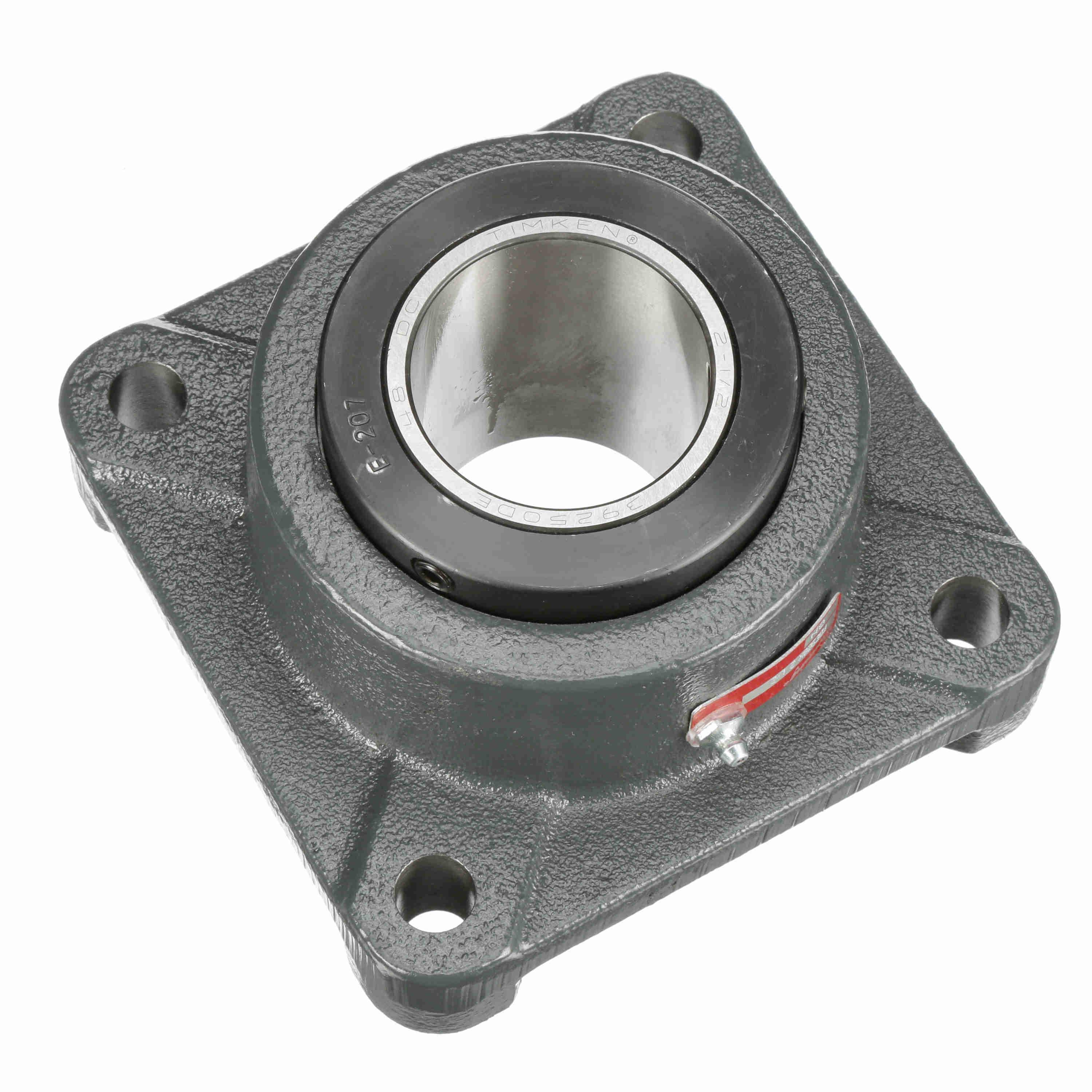

730029 | 2 1/2" | 6 7/8" | 6 7/8" | 1750 RPM | 7 39/64" | Double Set Screw | 5 3/8" | Steel | €630.26 |
