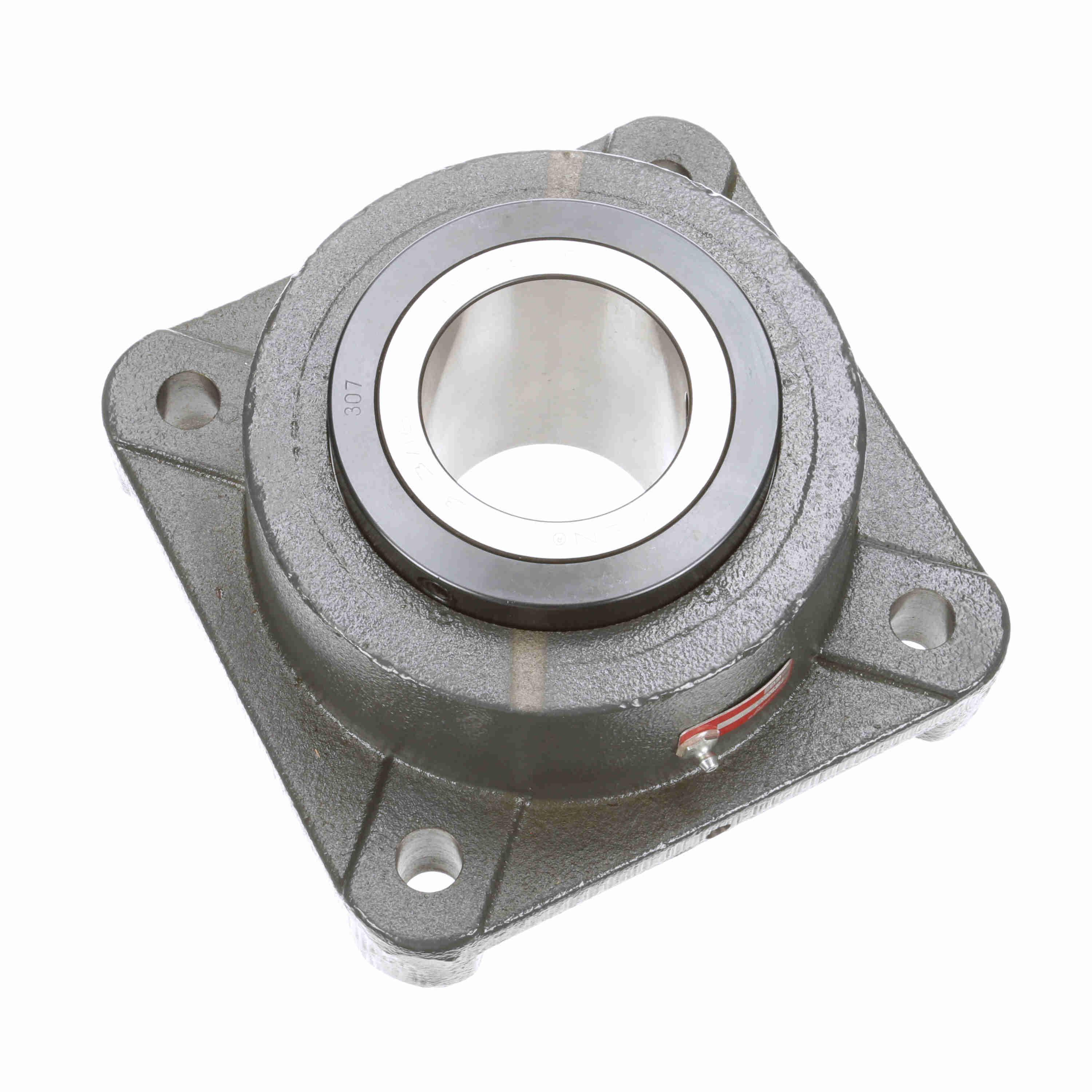

BROWNING 730033 FBE920X 3 3/16 Four Bolt Flange Tapered Roller Bearing, Double Collar Mount Lock, Mounted, Cast Iron
3 3/16"
Get it by Friday, Feb 13
€2,591.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Roller Bearing |
| Bolt Center To Center Length | 7" |
| Bolt Circle Dia. | 9 29/32" |
| Bolt Spacing | 7" |
| Bore Dia. | 3 3/16" |
| Dynamic Load Capacity | 15320 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Uncoated |
| Flange Mounting Type | 4 Bolt |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Inside Dia. | 3 3/16" |
| Length Through Bore | 5" |
| Locking Device | Double Set Screw Collar |
| Material | Cast Iron |
| Max. Speed | 1000 RPM |
| Mounting | Yes |
| Mounting Bolts | 3/4" |
| Mounting Method | Concentric Collar |
| No. Of Mounting Holes | 4 |
| Number Of Rows | 2 |
| Other Features | Has Flinger |
| Overall Depth | 5 1/4" |
| Overall Dia. | 9 1/4" |
| Overall Height | 9 1/4" |
| Pilot Configuration | No Pilot |
| Product Type | Non-Expansion Round/Straight Bore |
| Relubricatable | Yes |
| Rolling Element | Tapered Roller Bearing |
| Seal Material | Rubber |
| Seal Type | Contact |
| Series | FBE920 Series |
| System Of Measurement | Imperial |
| Temp. Range | -20°F to +200°F |
| Temp. Rating | -20°F to +200°F |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 23.83 |
| Ship width (cm) | 23.5 |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Overall Length | Max. Speed | Bolt Circle Dia. | Locking Device | Bolt Center To Center Length | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
730022 | 1 1/2" | 5 3/8" | 5 3/8" | 2500 RPM | 5 53/64" | Double Set Screw Collar | 4 1/8" | Cast Iron | €460.62 | |
 |
730025 | 1 15/16" | 5 5/8" | 5 5/8" | 2000 RPM | 6 3/16" | Double Set Screw Collar | 4 3/8" | Cast Iron | €548.63 | |
 |
730019 | 1 3/16" | 3 3/4" | 3 3/4" | 3500 RPM | 4 1/16" | Double Set Screw Collar | 2 7/8" | Cast Iron | €742.07 | |
 |
731123 | 1 3/8" | 4 5/8" | 4 5/8" | 3000 RPM | 4 61/64" | Double Set Screw Collar | 3 1/2" | Cast Iron | €999.45 | |
 |
730021 | 1 7/16" | 4 5/8" | 4 5/8" | 3000 RPM | 4 61/64" | Double Set Screw Collar | 3 1/2" | Cast Iron | €496.17 | |
 |
730029 | 2 1/2" | 6 7/8" | 6 7/8" | 1750 RPM | 7 39/64" | Double Set Screw | 5 3/8" | Steel | €630.26 | |
 |
731162 | 2 1/4" | 6 7/8" | 6 7/8" | 1750 RPM | 7 39/64" | Double Set Screw Collar | 5 3/8" | Cast Iron | €1,708.27 |
