BROWNING 3694528 4B5V62 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron, 6.48 in OD, 1/2 to 1-15/16 in Bore Dia, 6.3 in 5V/6 in A/6-1/2 in Pitch Dia
6 12/25"
Get it by Friday, Aug 14
€280.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 1 15/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 3 5/32" |
| Hub Projection | 3/32" |
| Material | Cast Iron |
| No. Of Grooves | 4 |
| Outside Dia. | 6 12/25" |
| Overall Length | 3 17/64" |
| Pitch Dia. | 6" |
| Pitch Dia. (5v) | 6.3" |
| Pitch Dia. (b) | 6 1/2" |
| Product Datasheet | browning-1097849.pdf |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| Type | Type 3/15 |
Shipping Info:
| Ship weight (kg) | 5.18 |
| Ship height (cm) | 16.46 |
| Ship length (cm) | 8.31 |
| Ship width (cm) | 16.46 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Pitch Dia. (5v) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3694460 | 4 4/5" | 1/2" to 1 15/16" | Type 5 | 5.1" | 4 3/5" | 5.3" | 5.1" | B | €354.93 | |
 |
3694478 | 5" | 1/2" to 1 15/16" | Type 5 | 5.3" | 4 4/5" | 5 1/2" | 5.3" | B | €362.93 | |
 |
3694601 | 8 4/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 9.1" | 8 3/5" | 9.3" | 9.1" | B | €406.13 | |
 |
3694627 | 10 4/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 11.1" | 10 3/5" | 11.3" | 11.1" | B | €442.59 | |
 |

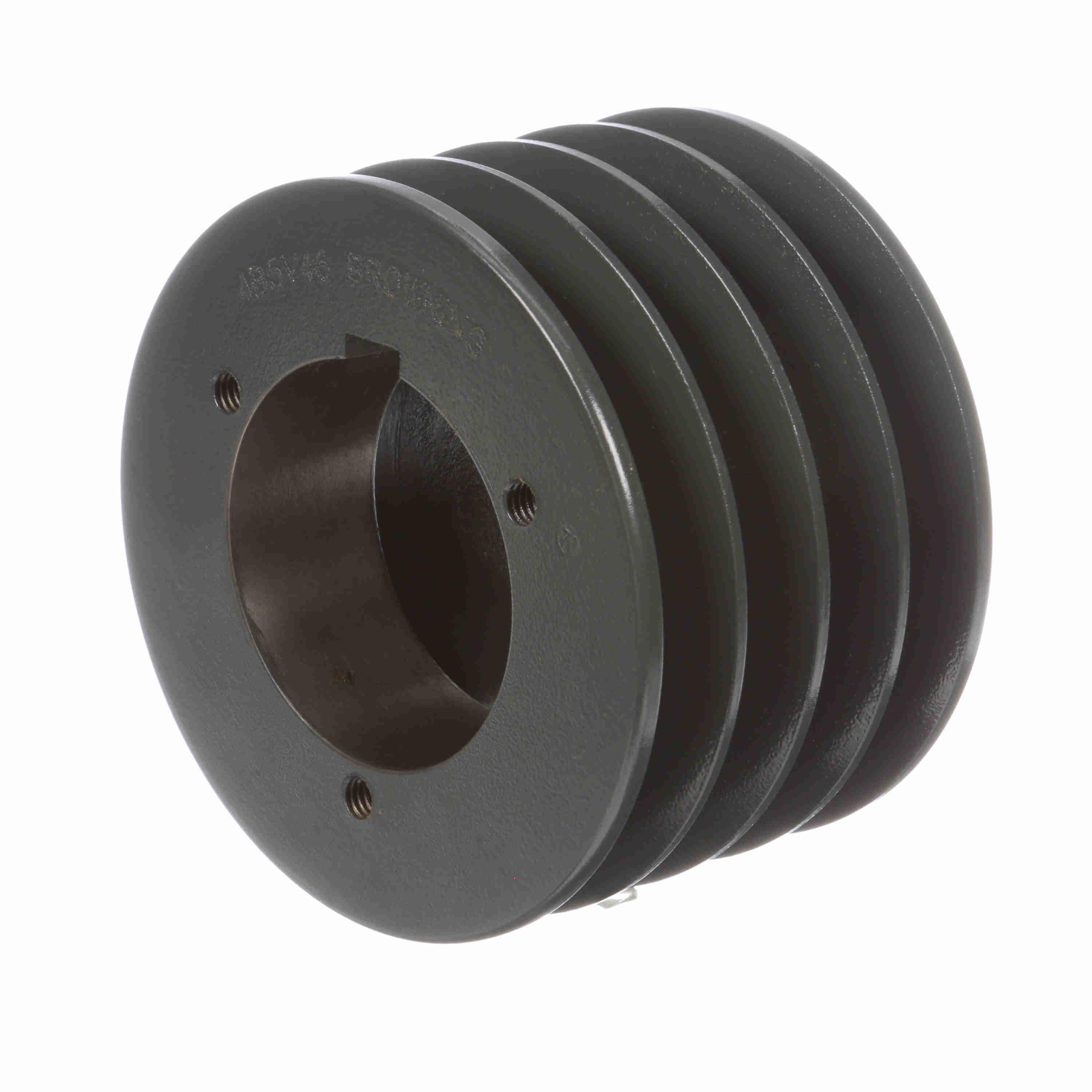

3694445 | 4 2/5" | 1/2" to 1 15/16" | Type 5 | 4.7" | 4 1/5" | 4.9" | 4.7" | B | €338.90 | |
 |
3694619 | 9 1/5" | 1/2" to 1 15/16" | Arm Type 15/4 | - | - | 9.7" | 9 1/2" | B | €425.64 | |
 |
3694494 | 5 2/5" | 1/2" to 1 15/16" | Type 3/15 | 5.7" | 5 1/5" | 5.9" | 5.7" | B | €379.04 |
