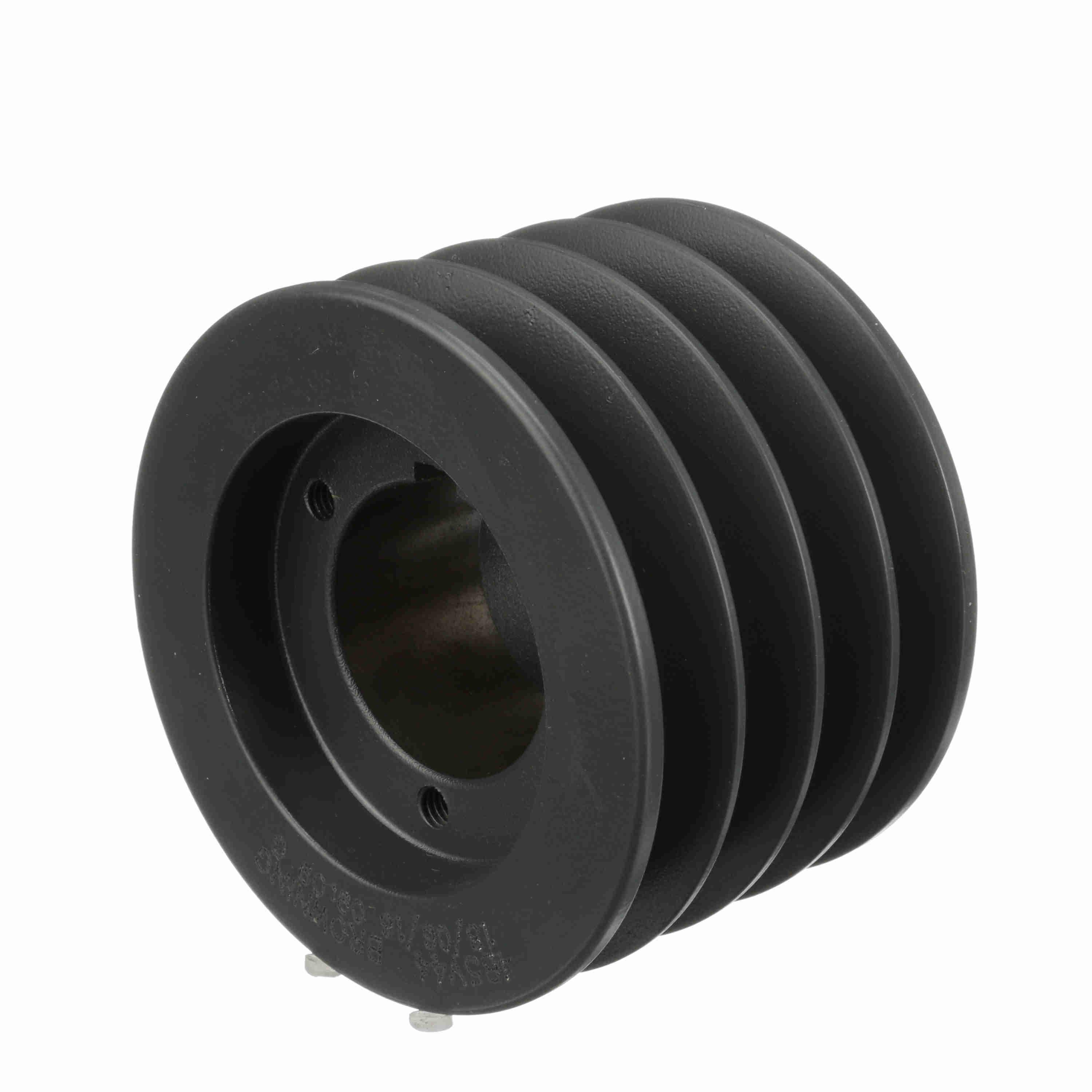

BROWNING 3695244 4B5V44 V-Belt Sheave, Multiple, Bushed Bore, 4 Groove, Cast Iron
Item: BA2DNJModel: 3695244Cross Ref: 4B5V44
7 In Stock
4 17/25"
Ships within 2 days via
€335.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 3 5/32" |
| Hub Projection | 3/64" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 1/2" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 4 17/25" |
| Overall Length | 3 13/32" |
| Pitch Dia. (5v) | 4 1/2" |
| Pitch Dia. (a) | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
| Type | Type 3 |
| Weight | 2.86 Kg |
Shipping Info:
| Ship weight (kg) | 2.83 |
| Ship height (cm) | 11.89 |
| Ship length (cm) | 8.66 |
| Ship width (cm) | 11.89 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3694460 | 5 7/25" | 1/2" to 1 15/16" | 4 7/32" | Type 5 | Split Taper | Cast Iron | 3 5/32" | €354.93 | |
 |
3694478 | 5 12/25" | 1/2" to 1 15/16" | 4 7/32" | Type 5 | Split Taper | Cast Iron | 3 5/32" | €362.93 | |
 |
3694601 | 9 7/25" | 1/2" to 1 15/16" | 3 17/64" | Arm Type 15/4 | Split Taper | Cast Iron | 3 5/32" | €406.13 | |
 |
3694627 | 11 7/25" | 1/2" to 1 15/16" | 3 17/64" | Arm Type 15/4 | Split Taper | Cast Iron | 3 5/32" | €442.59 | |
 |
3694445 | 4 22/25" | 1/2" to 1 15/16" | 4 7/32" | Type 5 | Split Taper | Cast Iron | 3 5/32" | €338.90 | |
 |
3694619 | 9 17/25" | 1/2" to 1 15/16" | 3 17/64" | Arm Type 15/4 | Split Taper | Cast Iron | 3 5/32" | €425.64 | |
 |
3694494 | 5 22/25" | 1/2" to 1 15/16" | 3 17/64" | Type 3/15 | Split Taper | Cast Iron | 3 5/32" | €379.04 |
