BROWNING B5V Series Gripbelt Sheaves With Split Taper Bushings, 4 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1| Style | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Pitch Dia. (5v) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3695244 | 4 1/5" | 1/2" to 1 3/4" | Type 3 | 4 1/2" | 4" | 4.7" | 4 1/2" | P1 | €335.68 | |
| B | 3694445 | 4 2/5" | 1/2" to 1 15/16" | Type 5 | 4.7" | 4 1/5" | 4.9" | 4.7" | B | €338.90 | |
| C | 3694452 | 4 3/5" | 1/2" to 1 15/16" | Type 5 | 4.9" | 4 2/5" | 5.1" | 4.9" | B | €346.90 | |
| D | 3694460 | 4 4/5" | 1/2" to 1 15/16" | Type 5 | 5.1" | 4 3/5" | 5.3" | 5.1" | B | €354.93 | |
| E | 3695202 | 4" | 1/2" to 1 3/4" | Type 5 | 4.3" | 3 4/5" | 4 1/2" | 4.3" | P1 | €327.56 | |
| F | 3694486 | 5 1/5" | 1/2" to 1 15/16" | Type 3/15 | 5 1/2" | 5" | 5.7" | 5 1/2" | B | €371.00 | |
| G | 3694494 | 5 2/5" | 1/2" to 1 15/16" | Type 3/15 | 5.7" | 5 1/5" | 5.9" | 5.7" | B | €379.04 | |
| H | 3694502 | 5 3/5" | 1/2" to 1 15/16" | Type 3/15 | 5.9" | 5 2/5" | 6.1" | 5.9" | B | €333.36 | |
| I | 3694510 | 5 4/5" | 1/2" to 1 15/16" | Type 3/15 | 6.1" | 5 3/5" | 6.3" | 6.1" | B | €344.77 | |
| J | 3694478 | 5" | 1/2" to 1 15/16" | Type 5 | 5.3" | 4 4/5" | 5 1/2" | 5.3" | B | €362.93 | |
| K | 3694536 | 6 1/5" | 1/2" to 1 15/16" | Type 3/15 | 6 1/2" | 6" | 6.7" | 6 1/2" | B | €309.46 | |

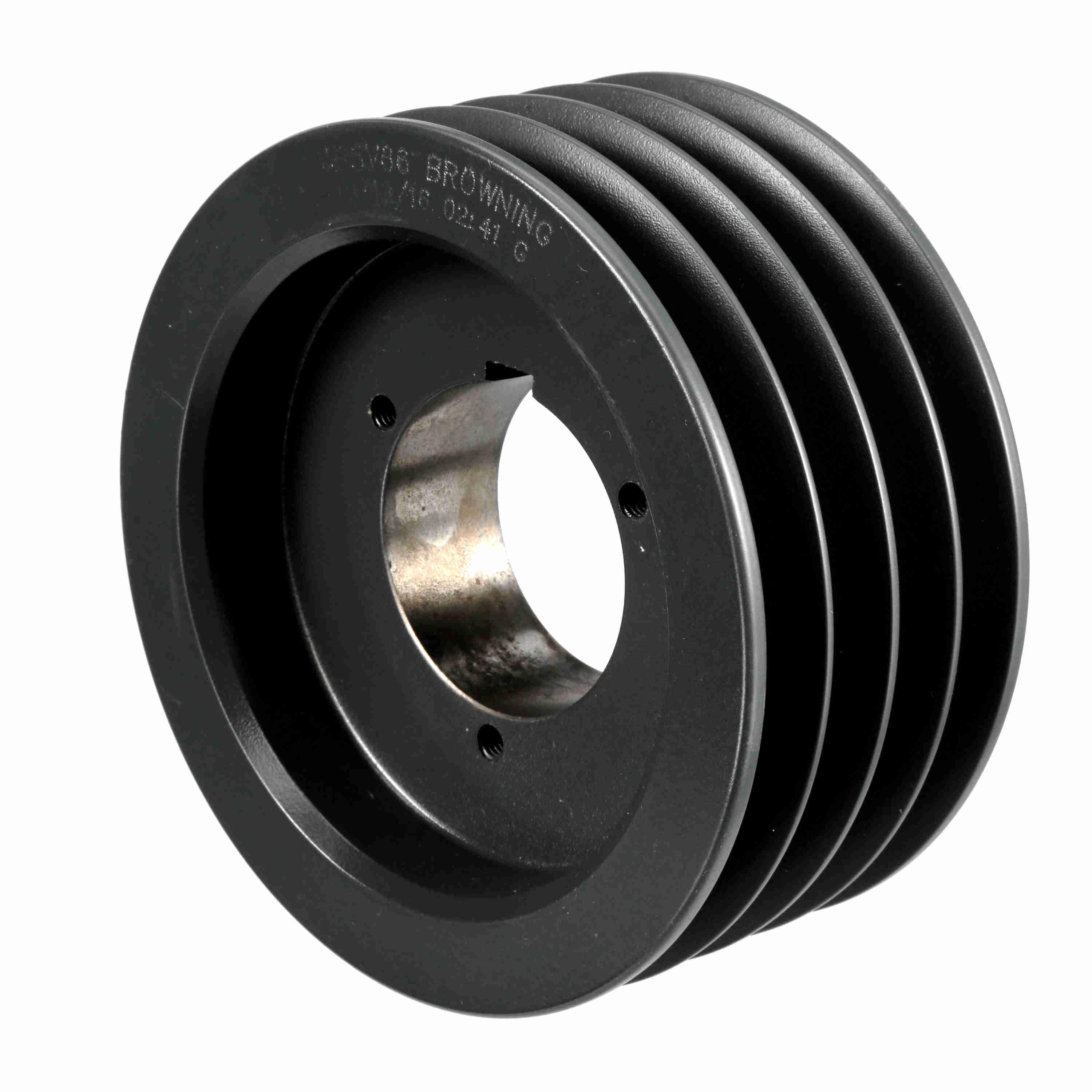

| L | 3694544 | 6 2/5" | 1/2" to 1 15/16" | Type 3/15 | 6.7" | 6 1/5" | 6.9" | 6.7" | B | €325.52 | |
| M | 3694551 | 6 3/5" | 1/2" to 1 15/16" | Type 3/15 | 6.9" | 6 2/5" | 7.1" | 6.9" | B | €321.51 | |
| N | 3694569 | 6 4/5" | 1/2" to 1 15/16" | Type 15 Arm/Web | 7.1" | 6 3/5" | 7.3" | 7.1" | B | €341.92 | |
| O | 3694528 | 6" | 1/2" to 1 15/16" | Type 3/15 | - | - | 6 1/2" | 6.3" | B | €280.13 | |

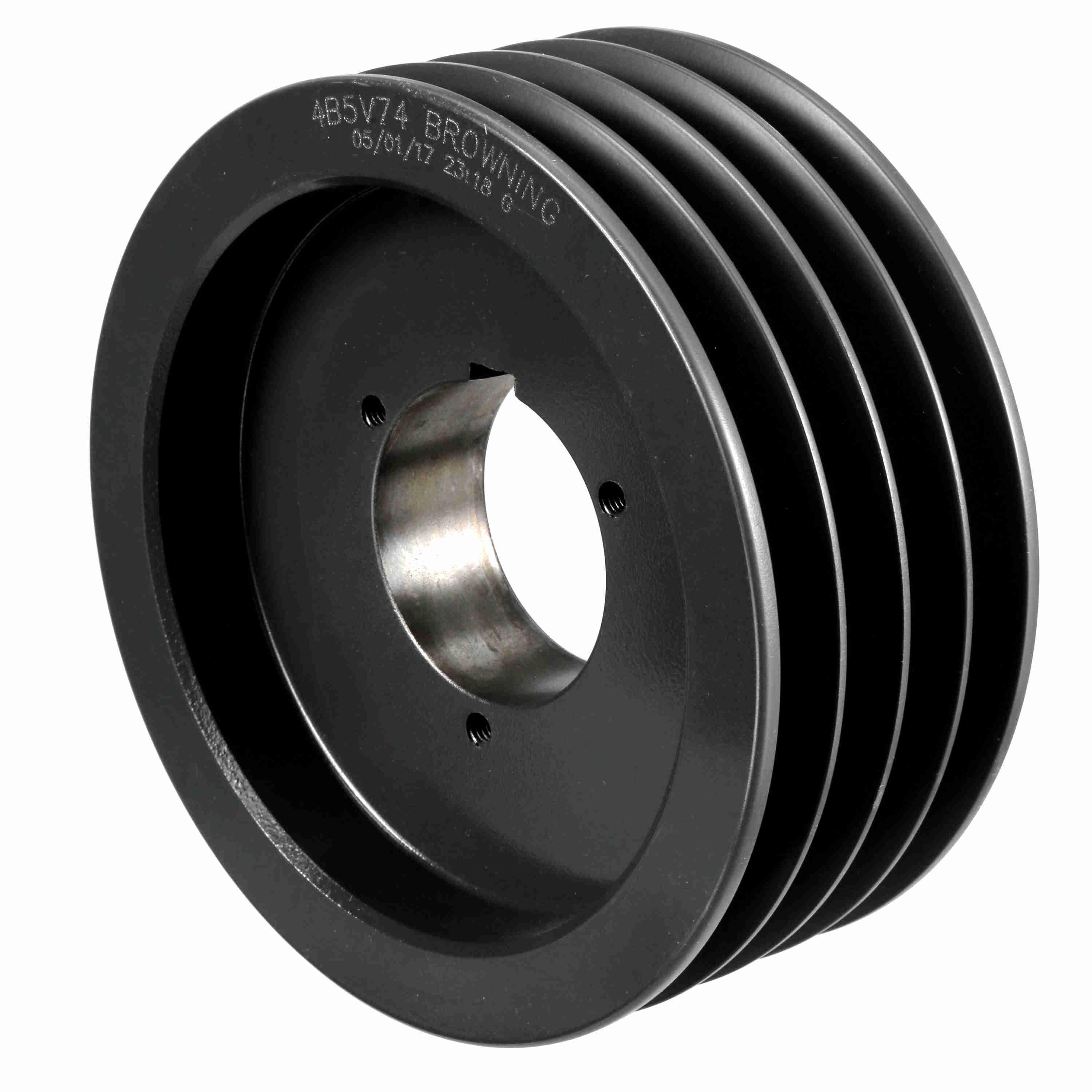

| P | 3694577 | 7 1/5" | 1/2" to 1 15/16" | Type 15 Arm/Web | 7 1/2" | 7" | 7.7" | 7 1/2" | B | €353.07 | |
| Q | 3694585 | 7 4/5" | 1/2" to 1 15/16" | Type 15 Arm/Web | - | - | 8.3" | 8.1" | B | €364.28 | |

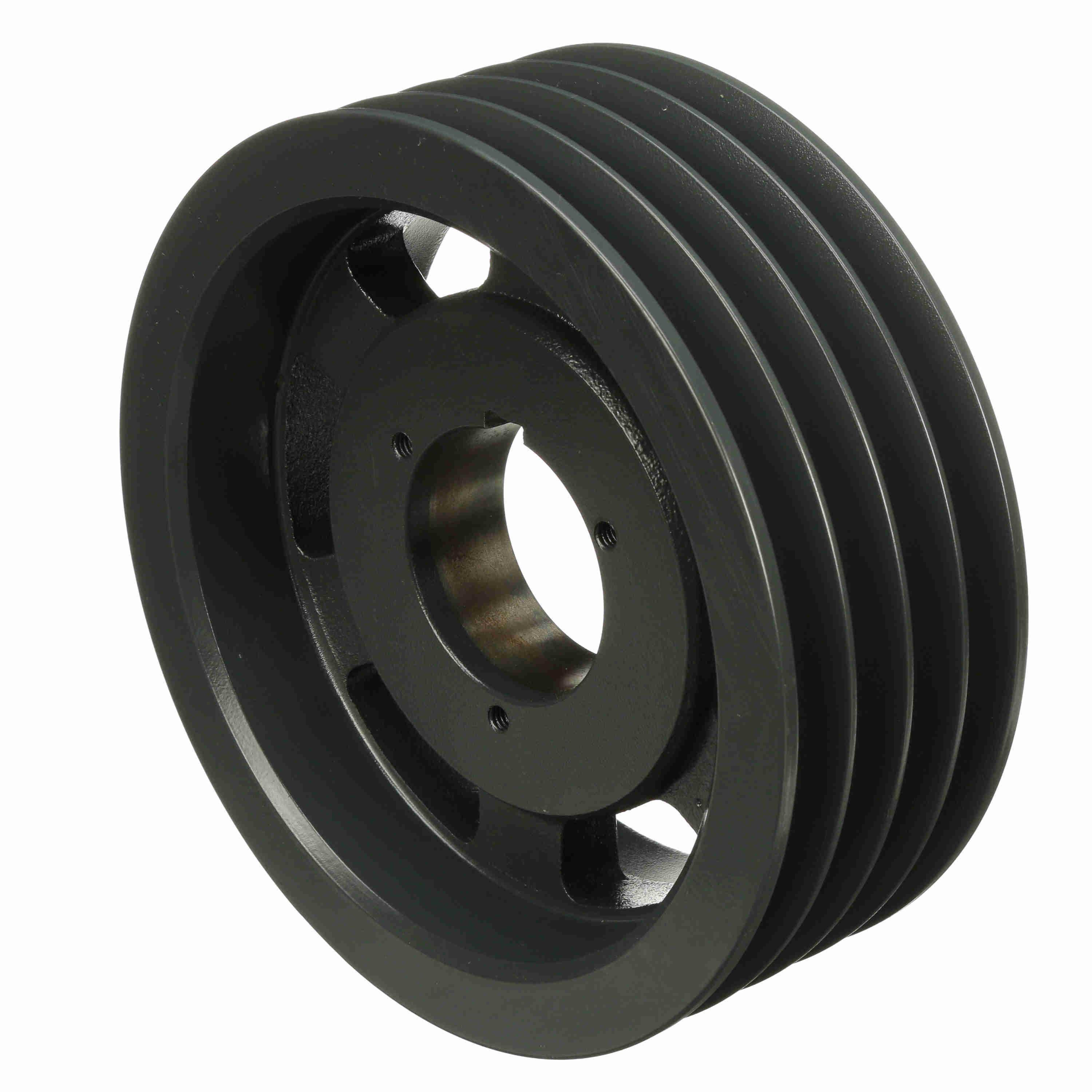

| R | 3694593 | 8 2/5" | 1/2" to 1 15/16" | Type 15 Arm/Web | 8.7" | 8 1/5" | 8.9" | 8.7" | B | €386.59 | |
| S | 3694601 | 8 4/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 9.1" | 8 3/5" | 9.3" | 9.1" | B | €406.13 | |
| T | 3694619 | 9 1/5" | 1/2" to 1 15/16" | Arm Type 15/4 | - | - | 9.7" | 9 1/2" | B | €425.64 | |
| U | 3694627 | 10 4/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 11.1" | 10 3/5" | 11.3" | 11.1" | B | €442.59 | |
| V | 3694635 | 12 1/5" | 1/2" to 1 15/16" | Arm Type 15/4 | - | - | 12.7" | 12 1/2" | B | €490.42 | |
| W | 3694643 | 13 2/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 13.7" | 13 1/5" | 13.9" | 13.7" | B | €580.76 | |
| X | 3694650 | 15 1/5" | 1/2" to 2 7/16" | Type 4 Arm | 15 1/2" | 15" | 15.7" | 15 1/2" | B | €691.36 | |
| Y | 3694676 | 18 1/5" | 1/2" to 1 15/16" | Arm Type 15/4 | 18 1/2" | 18" | 18.7" | 18 1/2" | B | €746.46 | |
| Z | 3694684 | 19 4/5" | 1/2" to 2 7/16" | Type 4 Arm | 20.1" | 19 1/2" | 20.3" | 20.1" | B | €1,169.45 | |
| A1 | 3694692 | 23.1" | 1/2" to 2 7/16" | Type 4 Arm | 23 1/2" | 22.9" | 23.7" | 23 1/2" | B | €1,398.51 | |
| B1 | 3694700 | 24 4/5" | 1/2" to 2 7/16" | Type 4 Arm | 25.1" | 24 1/2" | 25.3" | 25.1" | B | €1,429.62 | |
| C1 | 3694718 | 27 1/2" | 1/2" to 2 7/16" | Type 4 Arm | 27.9" | 27.3" | 28.1" | 27.9" | B | €1,528.49 |
