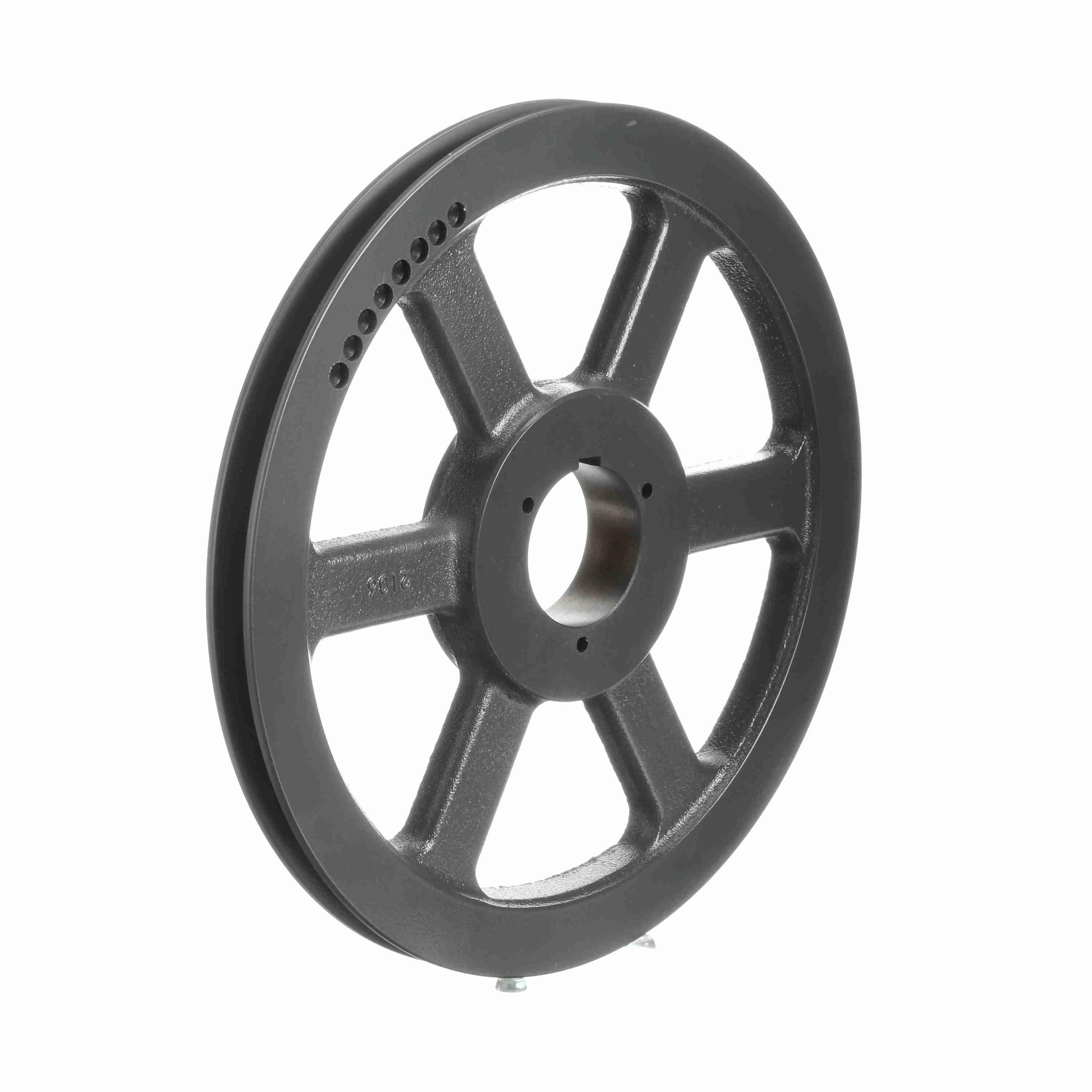

BROWNING 3693876 1B5V278 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
28 2/25"
Get it by Tuesday, Dec 23
€2,053.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 2 7/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 1" |
| Hub Dia. | 3 11/16" |
| Hub Projection | 63/64" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 27.9" |
| Min. Pitch Dia. | 27.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 28 2/25" |
| Overall Length | 2 5/16" |
| Pitch Dia. (a) | 27 1/2" |
| Pitch Dia. (b) | 28.1" |
| Pitch Dia. (bv) | 27.9" |
| Series | B5V Series |
| Suitable For Use With | 4L/A, 5L/B And 5V Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Arm Type 2 |
| Weight | 17.327 Kg |
Shipping Info:
| Ship weight (kg) | 17.19 |
| Ship height (cm) | 71.32 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 71.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
3693629 | 5 7/25" | 1/2" to 2 7/16" | 2 9/64" | Solid Type 1 | Split Taper | Cast Iron | 1" | €150.63 | |
 |
3693678 | 6 7/25" | 1/2" to 2 7/16" | 2 9/64" | Solid Type 1 | Split Taper | Cast Iron | 1" | €171.35 | |
 |
3693751 | 8 22/25" | - | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €207.16 | |
 |
3693843 | 20 7/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €921.75 | |
 |
3693850 | 23 17/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €875.94 | |
 |
3693868 | 25 7/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €1,482.32 | |
 |
3695210 | 4 17/25" | 1/2" to 1 3/4" | 2 9/64" | - | Split Taper | Cast Iron | 1" | €129.36 |
