Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 2 7/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 1" |
| Hub Dia. | 3 11/16" |
| Hub Projection | 63/64" |
| Material | Cast Iron |
| Outside Dia. | 9 7/25" |
| Overall Length | 2 5/16" |
| Pitch Dia. (a) | 8 4/5" |
| Pitch Dia. (b) | 9.3" |
| Pitch Dia. (bv) | 9.1" |
| Series | B5V Series |
| Suitable For Use With | 4L/A, 5L/B And 5V Cross Section Belt |
| Type | Arm Type 2 |
Shipping Info:
| Ship weight (kg) | 4.14 |
| Ship height (cm) | 23.57 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 23.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Overall Length | Type | Bore Type | Material | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
3693629 | 5 7/25" | 1/2" to 2 7/16" | 2 9/64" | Solid Type 1 | Split Taper | Cast Iron | 1" | €150.63 | |
![]() |
3693678 | 6 7/25" | 1/2" to 2 7/16" | 2 9/64" | Solid Type 1 | Split Taper | Cast Iron | 1" | €171.35 | |
![]() |
3693751 | 8 22/25" | - | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €207.16 | |
![]() |
3693843 | 20 7/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €921.75 | |
![]() |
3693850 | 23 17/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €875.94 | |
![]() |
3693868 | 25 7/25" | 1/2" to 2 7/16" | 2 5/16" | Arm Type 2 | Split Taper | Cast Iron | 1" | €1,482.32 | |
![]() |
3695210 | 4 17/25" | 1/2" to 1 3/4" | 2 9/64" | - | Split Taper | Cast Iron | 1" | €129.36 |
Explore Products
- APPROVED VENDOR U38883.018.0625 O-ring Dash 362 Silicone 0.21 Inch
- SOLBERG FS-275P-DN125 Filter Silencer for Blowers and Compressors
- EATON E65-SMPP050-HL Cylindrical Photoelectric Sensor, 10 to 30 VDC/PNP, 2m Cable, Diffuse, Light On, Cycoloy
- ASSOCIATED SPRING RAYMOND 304936D Compression Spring, 491 lbs/In Stiffness Rate, 1770.5 lbf Load Capacity, Chrome Silicone
- FUJI ELECTRIC AR22F0L-10L3WZA Pushbutton, 22mm, Momentary, LED Illuminated, 1 N.O. Contact, Plastic Base, Metal Bezel
- MERSEN FERRAZ GSA-V3/16 Time Delay Fuse, 250V, 0.187A, 6 x 32mm Size
- GEARENCH HXSR375
- VERMONT GAGE 141267240 Plug Gage, Class X, NoGo, Steel, 0.6724 Inch Size
Explore More
- KEYSHAFT
- STRAUB
- LOCOLOC
- TORBAL
- NUVO LIGHTING
- Engraving Pens
- PAPR
- Router Bits
- Round Slings
- Air Winches
- NEWSTRIPE Roller And Disc Kits For Parking Lot Striping Machines
- DESTACO 2002 Series Vertical Hold Down Clamps, U-Bar
- ANVIL AS210KO Series Channel With Knock Outs
- ANVIL AS865 Series Wide Throat Heavy Duty Beam Clamps
- AUTOQUIP Torklift T2 Series Scissor Lift Table
- SPEARS VALVES PVC White Regular Insert Adapters, Insert x I.P.S. Spigot
- DEXTER Exit Device Trims
- TRICO Sight Fitting Assemblies
- T&S Pot And Kettle Filler Faucets
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

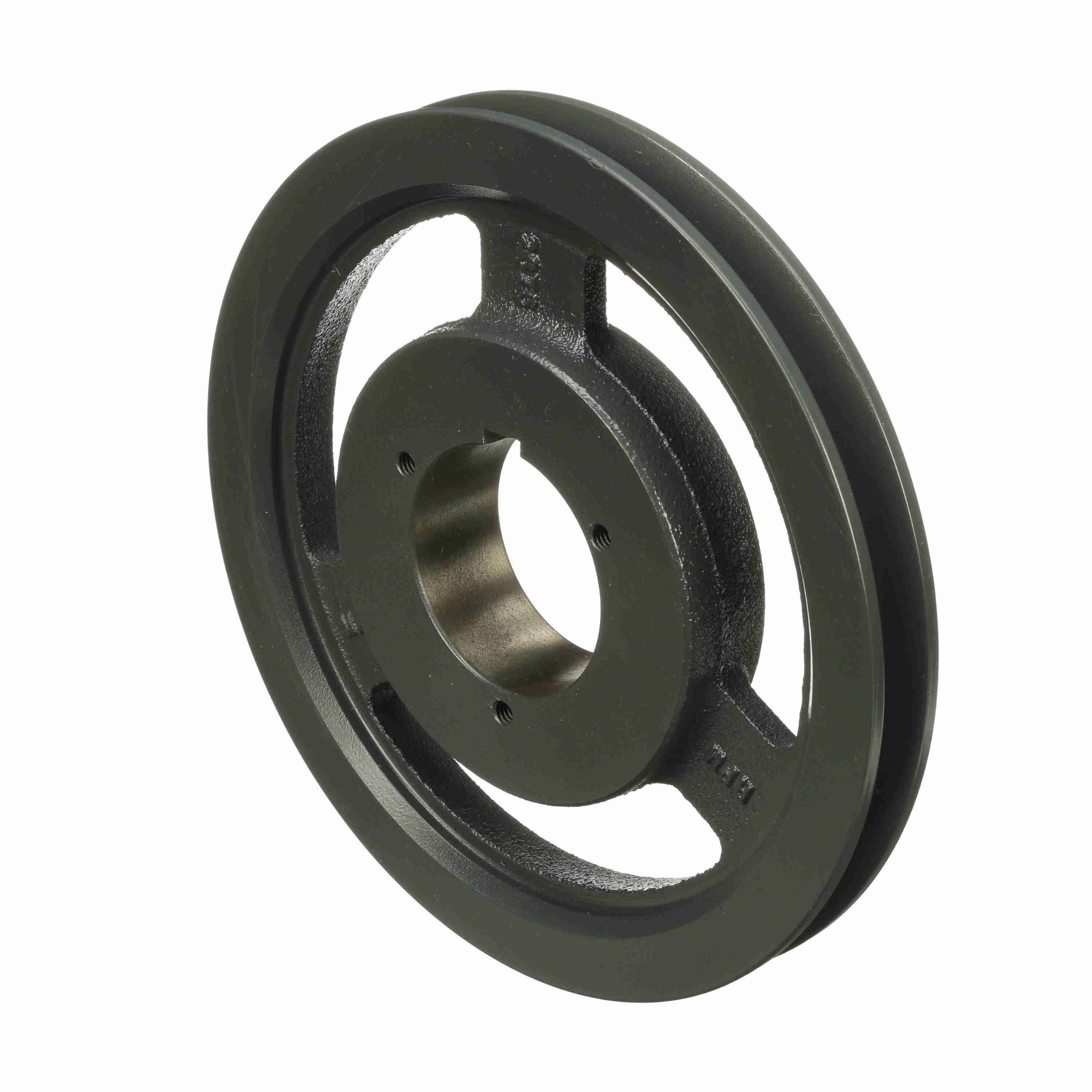

BROWNING 3693769 1B5V90 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
