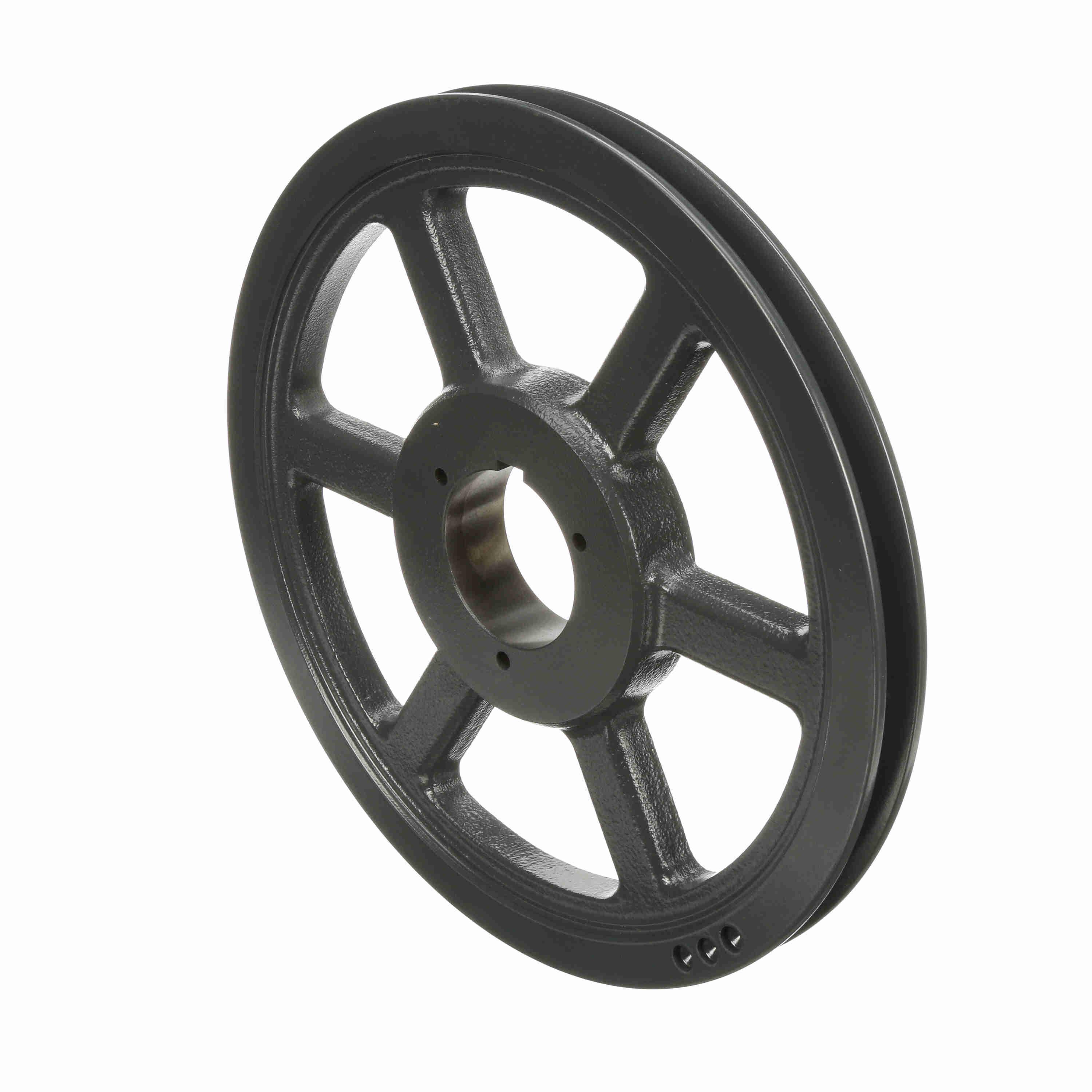

BROWNING 3693793 1B5V124 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, 12.68 in OD, 1/2 to 2-7/16 in Bore Dia, 12.2 in A/12.7 in B/12-1/2 in BV Pitch Dia, B Bushing Type
12 17/25"
Get it by Monday, Aug 17
€251.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 2 7/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 1" |
| Hub Dia. | 3 11/16" |
| Hub Projection | 63/64" |
| Material | Cast Iron |
| Outside Dia. | 12 17/25" |
| Overall Length | 2 5/16" |
| Pitch Dia. | 12 1/5" |
| Pitch Dia. (b) | 12.7" |
| Pitch Dia. (bv) | 12 1/2" |
| Product Datasheet | browning-1097849.pdf |
| Series | B5V Series |
| Suitable For Use With | 4L/A, 5L/B And 5V Cross Section Belt |
| Type | Arm Type 2 |
Shipping Info:
| Ship weight (kg) | 6.89 |
| Ship height (cm) | 32.21 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 32.21 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Hub Dia. | Pitch Dia. (bv) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3693629 | 4 4/5" | 1/2" to 2 7/16" | Solid Type 1 | 5.1" | 4 3/5" | 5.3" | 3 11/16" | 5.1" | €150.63 | |
 |
3693678 | 5 4/5" | 1/2" to 2 7/16" | Solid Type 1 | 6.1" | 5 3/5" | 6.3" | 3 11/16" | 6.1" | €171.35 | |
 |
3693751 | 8 2/5" | - | Arm Type 2 | - | - | 8.9" | 3 11/16" | 8.7" | €207.16 | |
 |
3693843 | 19 4/5" | 1/2" to 2 7/16" | Arm Type 2 | 20.1" | 19 1/2" | 20.3" | 3 11/16" | 20.1" | €921.75 | |
 |
3693868 | 24 4/5" | 1/2" to 2 7/16" | Arm Type 2 | 25.1" | 24 1/2" | 25.3" | 3 11/16" | 25.1" | €1,482.32 | |
 |
3695210 | 4 1/5" | 1/2" to 1 3/4" | - | 4 1/2" | 4" | 4.7" | 3" | 4 1/2" | €129.36 | |
 |
3695178 | 4" | 1/2" to 1 3/4" | - | 4.3" | 3 4/5" | 4 1/2" | 3" | 4.3" | €123.77 |
