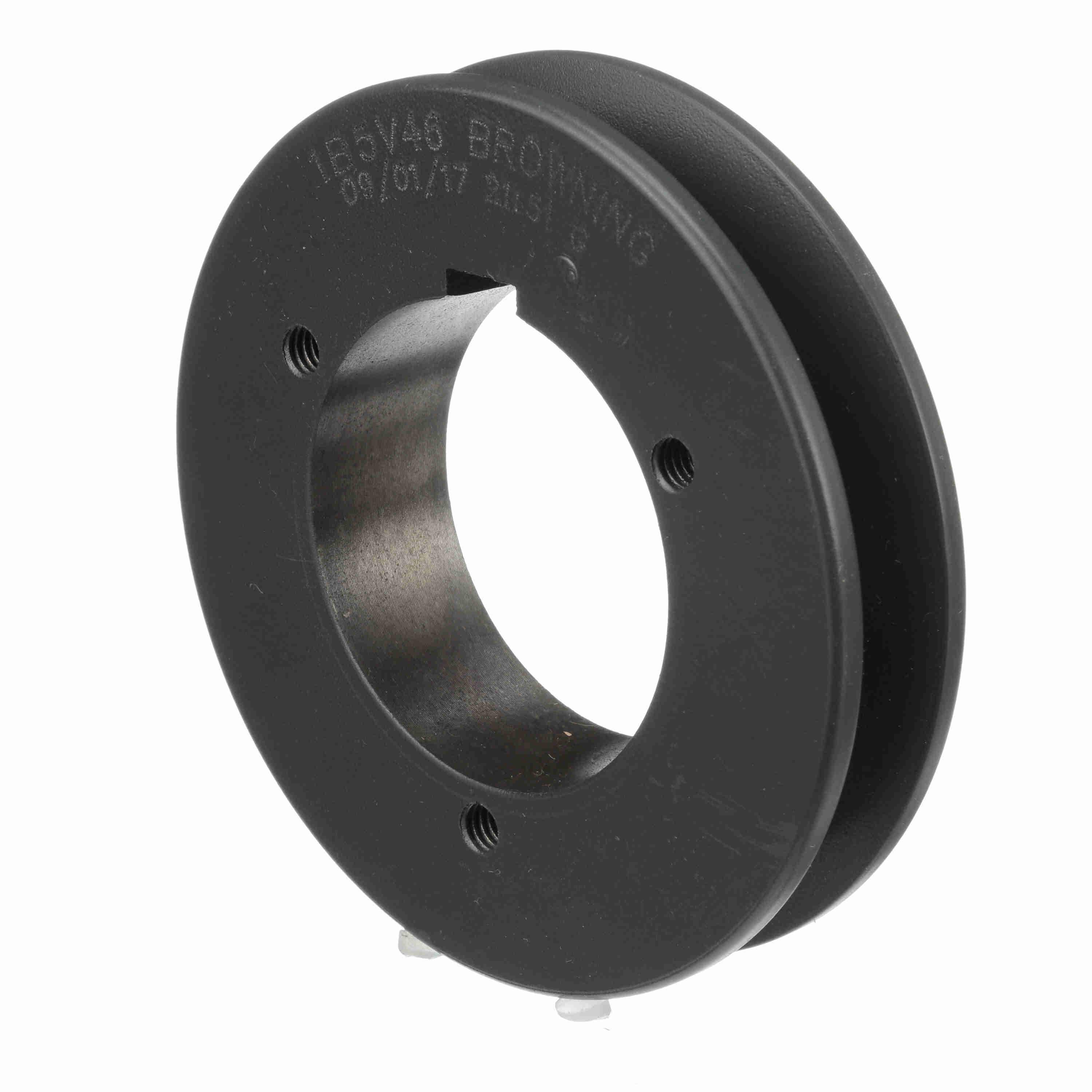

BROWNING 3693603 1B5V46 V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, 4.88 in OD, 1/2 to 2-7/16 in Bore Dia, 4.4 in A/4.9 in B/4.7 in BV Pitch Dia, B Bushing Type
Item: BA4NMPModel: 3693603Cross Ref: 1B5V46
7 In Stock
4 22/25"
Ships within 2 days via
€140.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 2 7/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 1" |
| Hub Dia. | 3 11/16" |
| Hub Projection | 55/64" |
| Material | Cast Iron |
| Outside Dia. | 4 22/25" |
| Overall Length | 2 9/64" |
| Pitch Dia. | 4 2/5" |
| Pitch Dia. (b) | 4.9" |
| Pitch Dia. (bv) | 4.7" |
| Series | B5V Series |
| Suitable For Use With | 4L/A, 5L/B And 5V Cross Section Belt |
| Type | Solid Type 1 |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 12.4 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. (b) | Hub Dia. | Pitch Dia. (bv) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3693629 | 4 4/5" | 1/2" to 2 7/16" | Solid Type 1 | 5.1" | 4 3/5" | 5.3" | 3 11/16" | 5.1" | €150.63 | |
 |
3693678 | 5 4/5" | 1/2" to 2 7/16" | Solid Type 1 | 6.1" | 5 3/5" | 6.3" | 3 11/16" | 6.1" | €171.35 | |
 |
3693751 | 8 2/5" | - | Arm Type 2 | - | - | 8.9" | 3 11/16" | 8.7" | €207.16 | |
 |
3693843 | 19 4/5" | 1/2" to 2 7/16" | Arm Type 2 | 20.1" | 19 1/2" | 20.3" | 3 11/16" | 20.1" | €921.75 | |
 |
3693868 | 24 4/5" | 1/2" to 2 7/16" | Arm Type 2 | 25.1" | 24 1/2" | 25.3" | 3 11/16" | 25.1" | €1,482.32 | |
 |
3695210 | 4 1/5" | 1/2" to 1 3/4" | - | 4 1/2" | 4" | 4.7" | 3" | 4 1/2" | €129.36 | |
 |
3695178 | 4" | 1/2" to 1 3/4" | - | 4.3" | 3 4/5" | 4 1/2" | 3" | 4.3" | €123.77 |
