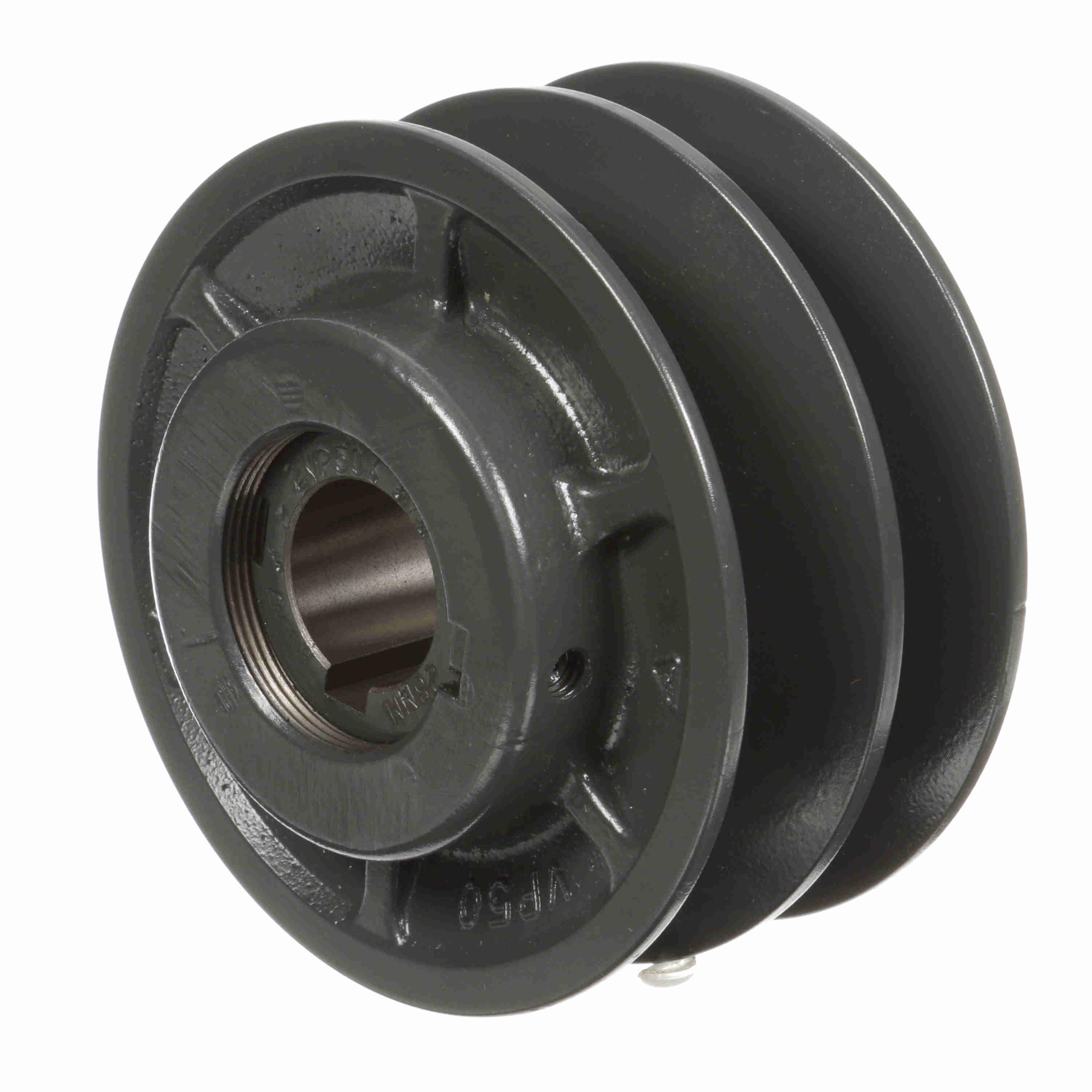

BROWNING 2749901 2VP50X28MM V-Belt Sheave, Variable Pitch, Finish Bore, 2 Groove, Cast Iron, 4 3/4 in OD, 28 mm Bore Dia
Item: CE7NBKModel: 2749901Cross Ref: 2VP50X28MM
7 In Stock
4 3/4"
28 mm
Ships within 2 days via
€717.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 28 mm |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/8" to 2 1/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 1/8" |
| Max. Pitch Dia. | 4 4/5" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 1 3/8" |
| Min. Pitch Dia. | 3.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 3/4" |
| Overall Length | 3" |
| Pitch Dia. (3l) | 3.3" to 4.1" |
| Pitch Dia. (4l/a) | 3 3/5" to 4 3/5" |
| Pitch Dia. (5l/b) | 3 4/5" to 4 4/5" |
| Product Datasheet | browning-1046317.pdf |
| Series | VP Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Metric |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045822 | Finished | 3.35" | 3/4" | 1 3/8" to 2" | 3" | Type 4 | Cast Iron | €458.22 | |
 |
1045905 | Finished | 4 3/4" | 5/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €357.17 | |
 |
1046176 | Finished | 6.55" | 1 1/4" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €956.49 | |
 |
2777647 | Finished | 8 1/2" | 1 7/8" | 1 5/8" to 2 3/8" | 3.3" | - | Cast Iron | €773.97 | |
 |
1046036 | Finished | 6" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €353.99 | |
 |
1046135 | Finished | 6 1/2" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €325.48 | |
 |
1045947 | Finished | 4 3/4" | 1 1/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €235.49 |
