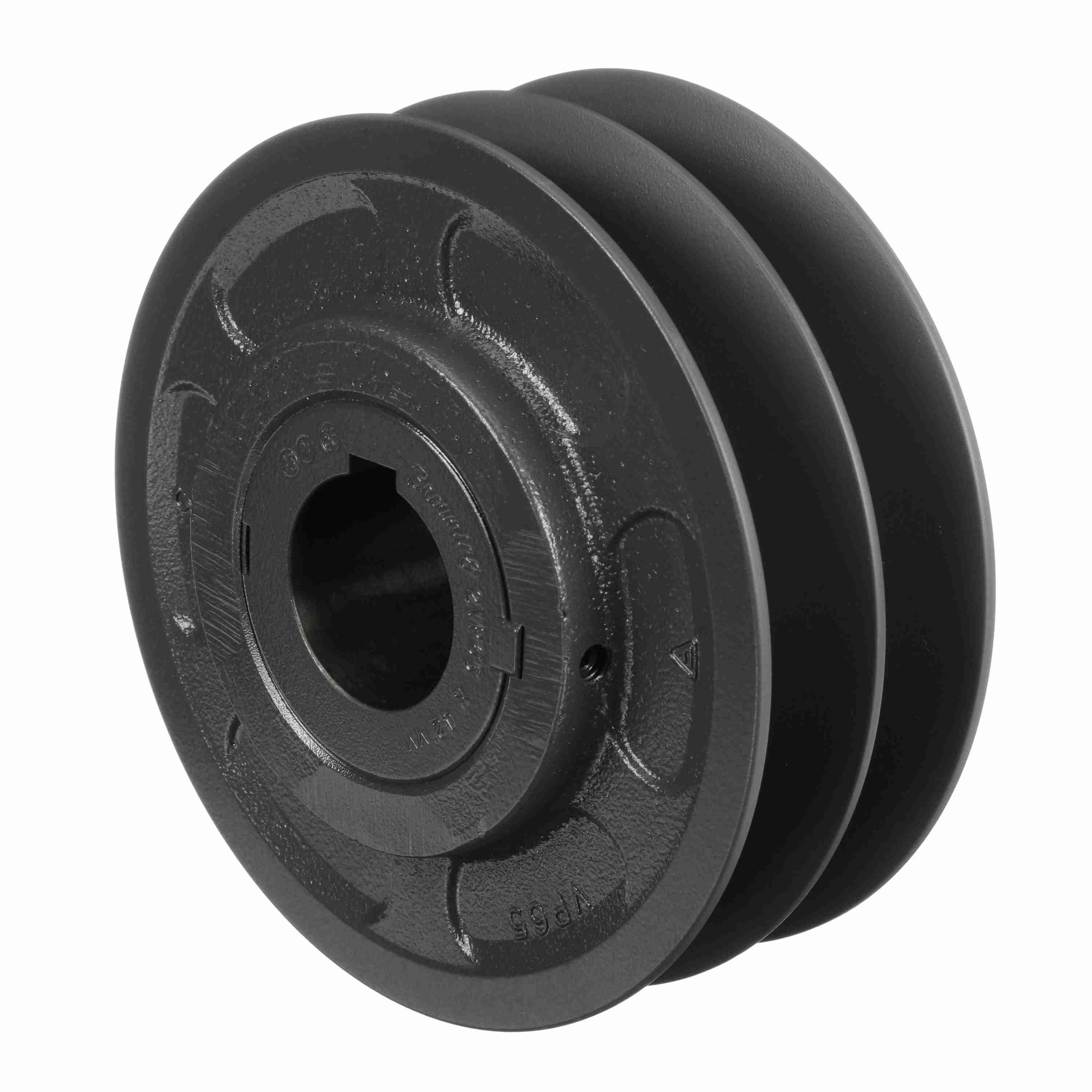

BROWNING 2749646 2VP65X42MM V-Belt Sheave, Variable Pitch, Finish Bore, 2 Groove, Cast Iron, 165.1 mm OD, 42 mm Bore Dia
165.1 mm
42 mm
Get it by Monday, May 18
€503.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 42 mm |
| Bore Size | 1.654" |
| Bore Type | Finished Bore |
| Bushing Size | No Bushing |
| Face Width | 1 5/8" to 2 3/8" |
| Keyway Included | Yes |
| Keyword String | Transmission |
| Long Description | Variable Speed Pulley, 42 mm Bore, 2 Grooves, 165.1 mm Outside Diameter, Finished Bore, No Bushing, 12.7 mm Belt Width Min, 12.7 mm Belt Width Max, 4L, A, 5L, B, 5V Belt Series, 16.662 mm Pitch Dia Min, 124.46 mm Pitch Dia Max, 162.56 mm Face Wid Min, 41.275 mm Face Wid Max, Keyway, Manual Turn Adjustment |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 3/8" |
| Max. Pitch Dia. | 6 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 1 5/8" |
| Min. Pitch Dia. | 4.9" |
| Minimum Plain Bore | No |
| Mounting Method | Finished |
| No. Of Grooves | 2 |
| Outside Dia. | 165.1 mm |
| Overall Length | 3 1/4" |
| Pitch Dia. | 4.9" to 5.9", 5.2" to 6.4" |
| Product Datasheet | browning-1046317.pdf |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Metric |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 5.94 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bore Type | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045822 | Finished | 3.35" | 3/4" | 1 3/8" to 2" | 3" | Type 4 | Cast Iron | €458.22 | |
 |
1045905 | Finished | 4 3/4" | 5/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €357.17 | |
 |
1046176 | Finished | 6.55" | 1 1/4" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €956.49 | |
 |
2777647 | Finished | 8 1/2" | 1 7/8" | 1 5/8" to 2 3/8" | 3.3" | - | Cast Iron | €773.97 | |
 |
1046036 | Finished | 6" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €353.99 | |
 |
1046135 | Finished | 6 1/2" | 1 3/8" | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €325.48 | |
 |
1045947 | Finished | 4 3/4" | 1 1/8" | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €235.49 |
