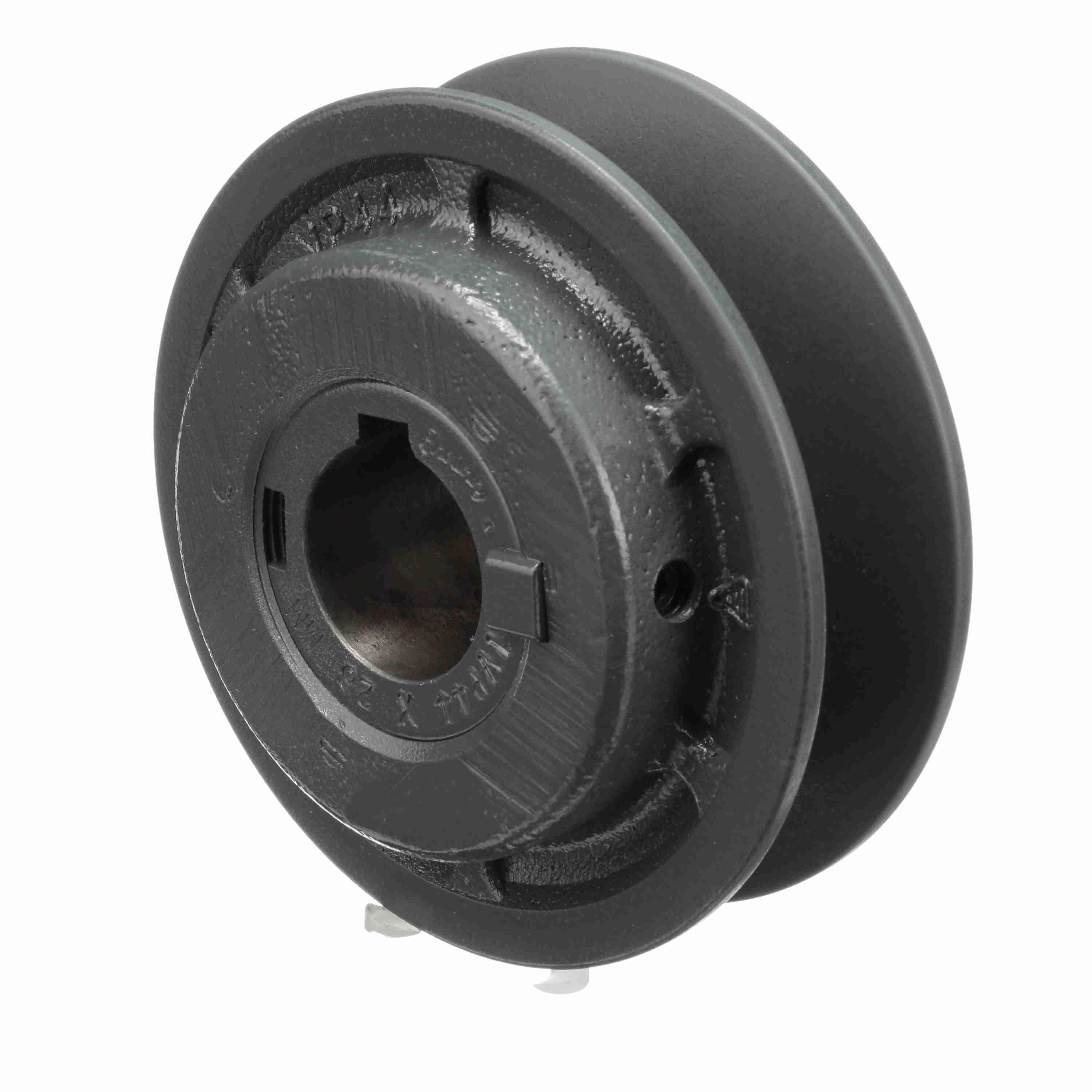

BROWNING 1045947 2VP50X 1 1/8 V-Belt Sheave, Finish Bore, 2 Groove, Cast Iron, 4-3/4 in OD, 1-1/8 in Bore Dia, 3.3 to 4.1 in 3L/3.6 to 4.6 in 4L/A/3.8 to 4.8 in 5L/B Pitch Dia
Item: AZ8ZQKModel: 1045947Cross Ref: 2VP50X 1 1/8
7 In Stock
Ships within 2 days via
€235.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| 4l/a Pitch Dia. | 3 3/5" to 4 3/5" |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 1 1/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 3/8" to 2 1/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 1/8" |
| Max. Pitch Dia. | 4.7" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 1 3/8" |
| Min. Pitch Dia. | 3.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 3/4" |
| Overall Length | 3" |
| Pitch Dia. (5l/b) | 3 4/5" to 4 4/5" |
| Pitch Dia. 3l | 3.3" to 4.1" |
| Product Datasheet | browning-1046317.pdf |
| Series | VP Series |
| Suitable For Use With | Gripbelt 3L, 4L/A And 5L/B Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Type | Type 5 |
Shipping Info:
| Ship weight (kg) | 2.48 |
| Ship height (cm) | 12.07 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 12.07 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Face Width | Bore Dia. | Type | Belt Series | Max. Pitch Dia. | Min. Pitch Dia. | Pitch Dia. | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1045822 | 1 3/8" to 2" | 3/4" | Type 4 | 3L, 4L, A, 5L, B Series | 3.3" | 1.9" | - | Finished | €458.22 | |
 |
1045905 | 1 3/8" to 2 1/8" | 5/8" | Type 5 | 3L, 4L, A, 5L, B Series | 4.7" | 3.3" | 3 3/5" to 4 3/5" | Finished | €357.17 | |
 |
1046176 | 1 5/8" to 2 3/8" | 1 1/4" | Type 5 | 3L, 4L, A, 5L, B, 5V Series | 6.9" | 5.1" | 4.9" to 5.9" | Finished | €956.49 | |
 |
2777647 | 1 5/8" to 2 3/8" | 1 7/8" | - | 4L, A, 5L, B, 5V Series | 8 2/5" | 6.7" | 6.9" to 7.9" | Finished | €773.97 | |
 |
1046036 | 1 5/8" to 2 3/8" | 1 3/8" | Type 5 | 4L, A, 5L, B Series | 5 1/2" | 4 1/5" | - | Finished | €353.99 | |
 |
1046135 | 1 5/8" to 2 3/8" | 1 3/8" | Type 5 | 4L, A, 5L, B, 5V Series | 6 2/5" | 4.7" | - | Finished | €325.48 | |
 |
1702893 | 1 5/8" to 2 3/8" | 1 5/8" | Type 5 | - | - | - | - | Finished | €353.99 |
