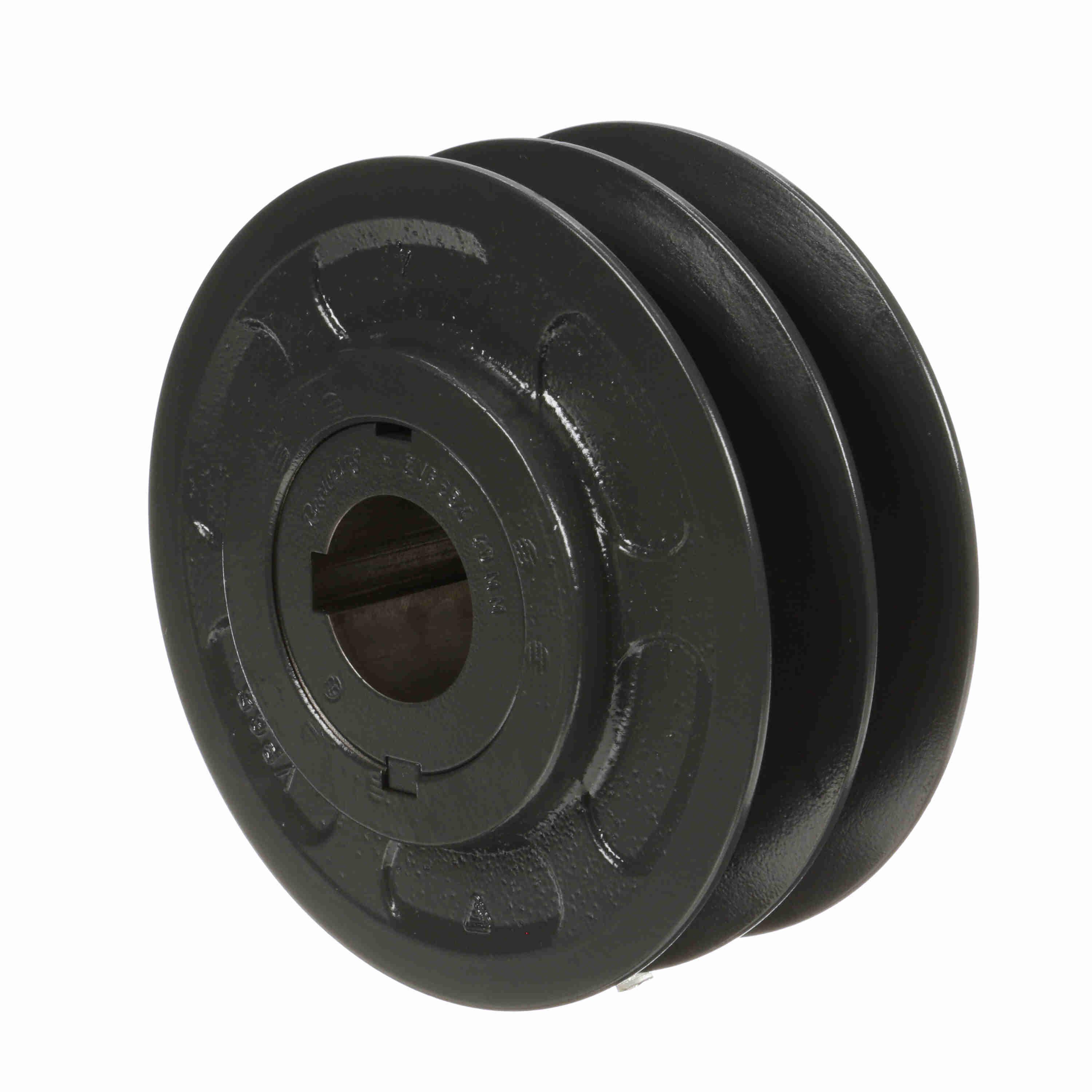

BROWNING 2749638 2VP65X40MM V-Belt Sheave, Variable Pitch, Finish Bore, 2 Groove, Cast Iron
6 1/2"
40 mm
Get it by Tuesday, Dec 23
€615.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 40 mm |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 5/8" to 2 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 3/8" |
| Max. Pitch Dia. | 6 2/5" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 1 5/8" |
| Min. Pitch Dia. | 4.9" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 6 1/2" |
| Overall Length | 3 1/4" |
| Pitch Dia. (4l/a) | 4.9" to 5.9" |
| Pitch Dia. (5l/b/5v) | 5 1/5" to 6 2/5" |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Metric |
| Type | Type 5 |
| Weight | 13.2 lbs. |
Shipping Info:
| Ship weight (kg) | 5.94 |
| Ship height (cm) | 8.33 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Bore Type | Face Width | Overall Length | Type | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045822 | 3.35" | 3/4" | Finished | 1 3/8" to 2" | 3" | Type 4 | Cast Iron | €458.22 | |
 |
1045863 | 3.95" | 3/4" | Finished | 1 3/8" to 2 1/8" | 3" | Type 4 | Cast Iron | €271.67 | |
 |
1045905 | 4 3/4" | 5/8" | Finished | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €357.17 | |
 |
1045954 | 5.35" | 5/8" | - | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €279.58 | RFQ
|
 |
1045962 | 5.35" | 3/4" | Finished | 1 3/8" to 2 1/8" | 3" | Type 5 | Cast Iron | €293.00 | RFQ
|
 |
1046002 | 6" | 3/4" | Finished | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €364.01 | |
 |
1046044 | 5.95" | 3/4" | Finished | 1 5/8" to 2 3/8" | 3 1/4" | Type 5 | Cast Iron | €444.46 |
