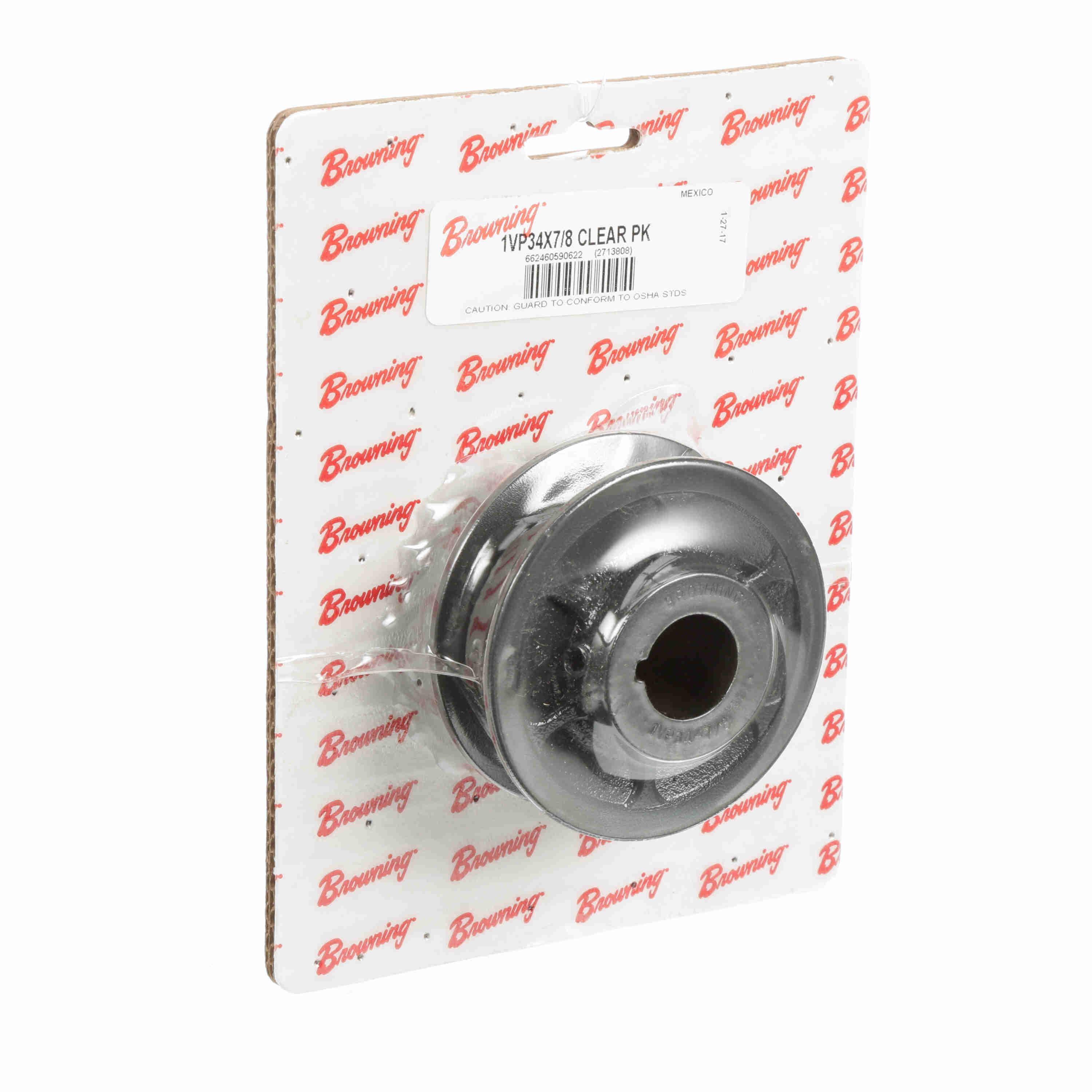

BROWNING 2713808 1VP34X7/8 CLEAR PK V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron, Clear Pack
Item: BA3CHPModel: 2713808Cross Ref: 1VP34X7/8 CLEAR PK
7 In Stock
3.15"
7/8"
Ships within 2 days via
€94.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 3L, 4L, A, 5L, B Series |
| Bore Dia. | 7/8" |
| Bushing Type | No Bushing |
| Keyway | Yes |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1" |
| Max. Pitch Dia. | 3 1/5" |
| Min. Belt Width | 3/8" |
| Min. Face Width | 0.688" |
| Min. Pitch Dia. | 1.7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 3.15" |
| Suitable For Use With | 1VP34 7/8 In Finished Bore Single Groove Variable Pitch Sheave |
| System Of Measurement | Imperial |
| Weight | 0.601 Kg |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 8 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 8 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045236 | 2.87" | 1/2" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €86.28 | |
 |
1045251 | 2.87" | 3/4" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €90.02 | |
 |
1045426 | 4 3/4" | 3/4" | 11/16" to 1 1/16" | 1 15/16" | Type 1 | Cast Iron | Finished | €144.71 | |
 |
1045707 | 7.1" | 3/4" | 7/8" to 1 1/4" | 2 7/32" | Type 2 | Cast Iron | Finished | €339.86 | |
 |
1045293 | 3.15" | 7/8" | 21/32" to 1" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.07 | |
 |
2713915 | 4 3/4" | - | - | - | - | Cast Iron | - | €119.79 | |
 |
2713923 | 4 3/4" | 7/8" | - | - | - | - | - | €136.57 |
