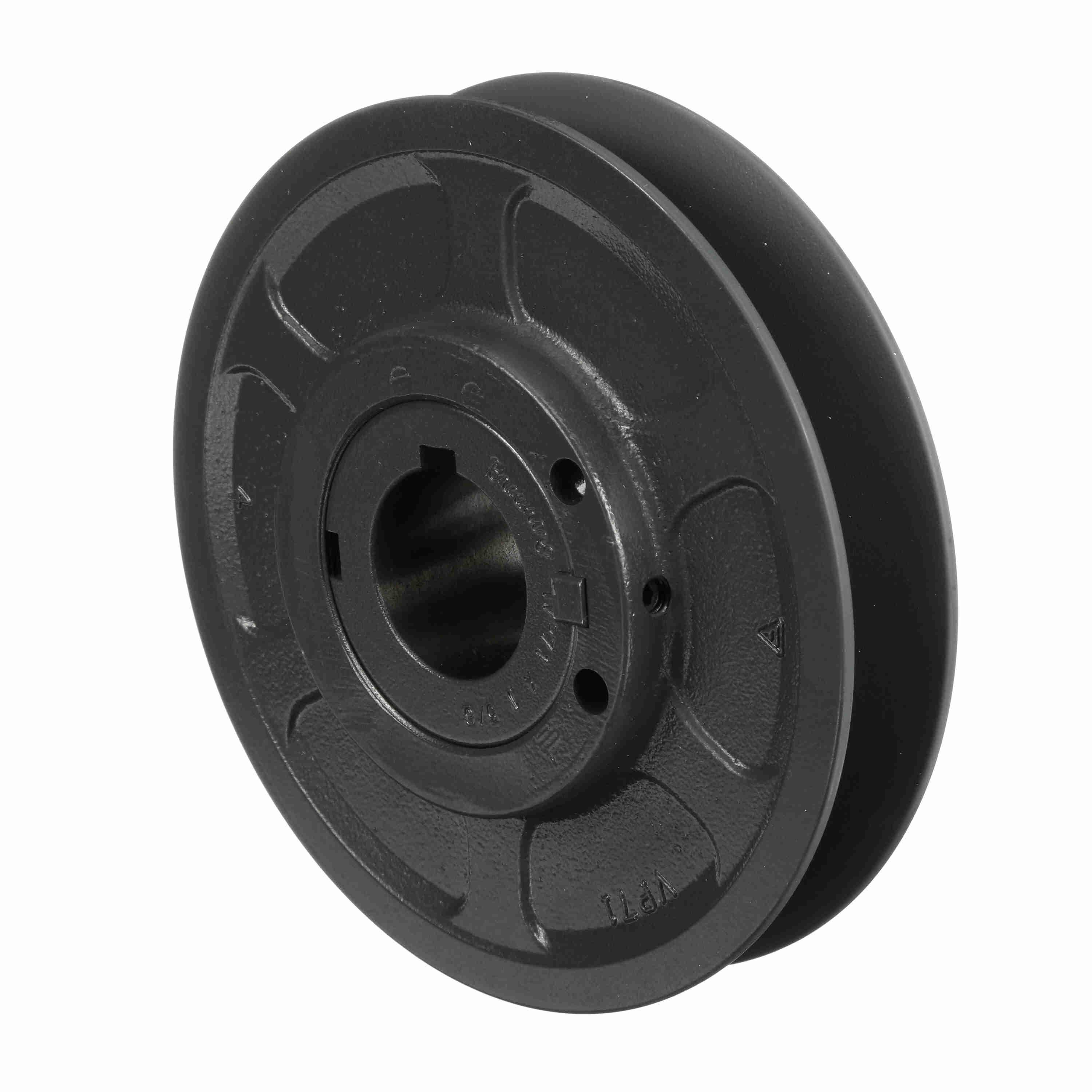

BROWNING 1702877 1VP71X 1 5/8 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron
Item: BA2WLNModel: 1702877Cross Ref: 1VP71X 1 5/8
7 In Stock
7.1"
1 5/8"
Ships within 2 days via
€377.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 1 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 7/8" to 1 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1 1/4" |
| Max. Pitch Dia. | 7" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 7/8" |
| Min. Pitch Dia. | 5.3" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 7.1" |
| Overall Length | 2 7/32" |
| Pitch Dia. (4l/a) | 5 1/2" to 6 1/2" |
| Pitch Dia. (5l/b/5v) | 5 4/5" to 7" |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Type | Type 2 |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 18.03 |
| Ship length (cm) | 5.64 |
| Ship width (cm) | 18.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045228 | 2 1/2" | 1/2" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €83.75 | |
 |
1045236 | 2.87" | 1/2" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €86.28 | |
 |
1045277 | 3.15" | 5/8" | 21/32" to 1" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.07 | |
 |
1045269 | 3.15" | 1/2" | 21/32" to 1" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.07 | |
 |
1045293 | 3.15" | 7/8" | 21/32" to 1" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.07 | |
 |
1045319 | 3 3/4" | 5/8" | 21/32" to 1 1/32" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.99 | |
 |
1045335 | 3 3/4" | 7/8" | 21/32" to 1 1/32" | 1 7/8" | Type 1 | Cast Iron | Finished | €68.53 |
