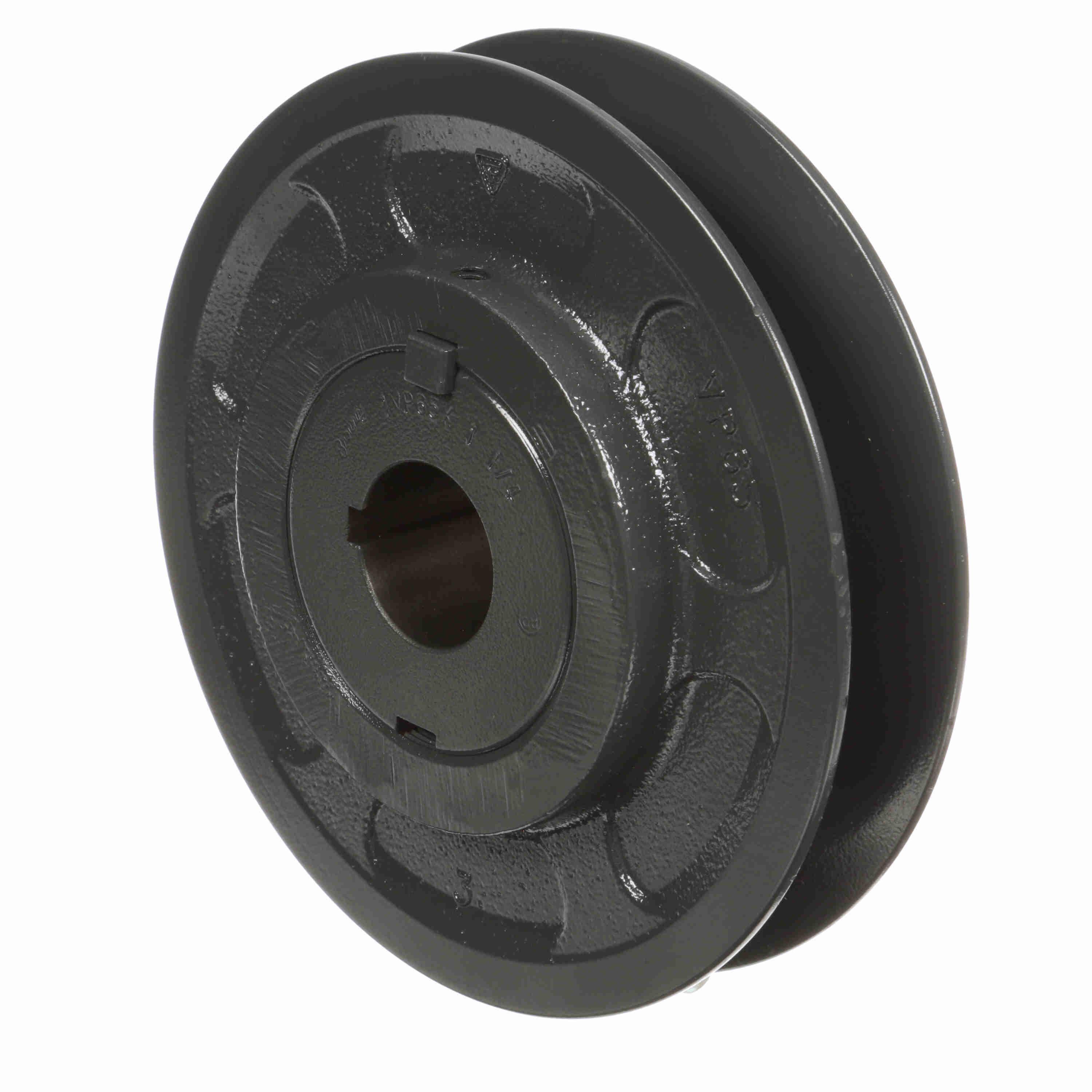

BROWNING 2679793 1VP65X 1 1/4 V-Belt Sheave, Variable Pitch, Finish Bore, 1 Groove, Cast Iron
Item: BA3NDQModel: 2679793Cross Ref: 1VP65X 1 1/4
7 In Stock
6 1/2"
1 1/4"
Ships within 2 days via
€616.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 1 1/4" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 7/8" to 1 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 1 1/4" |
| Max. Pitch Dia. | 5.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 7/8" |
| Min. Pitch Dia. | 4 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 6 1/2" |
| Overall Length | 2 7/32" |
| Pitch Dia. (4l/a) | 4.9" |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Imperial |
| Type | Type 2 |
| Weight | 3.133 Kg |
Shipping Info:
| Ship weight (kg) | 3.11 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 17.27 |
| Ship width (cm) | 17.02 |
| Country of Origin | US |
Product Variants
| Product | Model | Outside Dia. | Bore Dia. | Face Width | Overall Length | Type | Material | Bore Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1045236 | 2.87" | 1/2" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €86.28 | |
 |
1045251 | 2.87" | 3/4" | 17/32" to 25/32" | 1 11/16" | Type 1 | Cast Iron | Finished | €90.02 | |
 |
1045426 | 4 3/4" | 3/4" | 11/16" to 1 1/16" | 1 15/16" | Type 1 | Cast Iron | Finished | €144.71 | |
 |
1045707 | 7.1" | 3/4" | 7/8" to 1 1/4" | 2 7/32" | Type 2 | Cast Iron | Finished | €339.86 | |
 |
1045293 | 3.15" | 7/8" | 21/32" to 1" | 1 7/8" | Type 1 | Cast Iron | Finished | €74.07 | |
 |
2713915 | 4 3/4" | - | - | - | - | Cast Iron | - | €119.79 | |
 |
2713923 | 4 3/4" | 7/8" | - | - | - | - | - | €136.57 |
