BROWNING 1183557 D100S45 Roller Chain Sprocket, Steel, Double Strand Type 15, 1-11/16 to 4-1/4 in Bore Dia, 18.626 in OD, 100 Chain Size, 45 Teeth, 17.919 in Pitch Dia
45
Get it by Friday, Aug 14
€5,952.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 11/16" to 4 1/4" |
| Bushing Size | S1 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 6.365" |
| Hub Type | C Hub Both Sides |
| Keyway | Yes |
| Length Through Bore | 4.7574" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 45 |
| Outside Dia. | 18.626" |
| Pitch Dia. | 17 23/25" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 15 |
Shipping Info:
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 47.32 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 47.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Length Through Bore | No. Of Teeth | Pitch Dia. | Hub Dia. | Bushing Size | Chain Size | Hardened Teeth | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

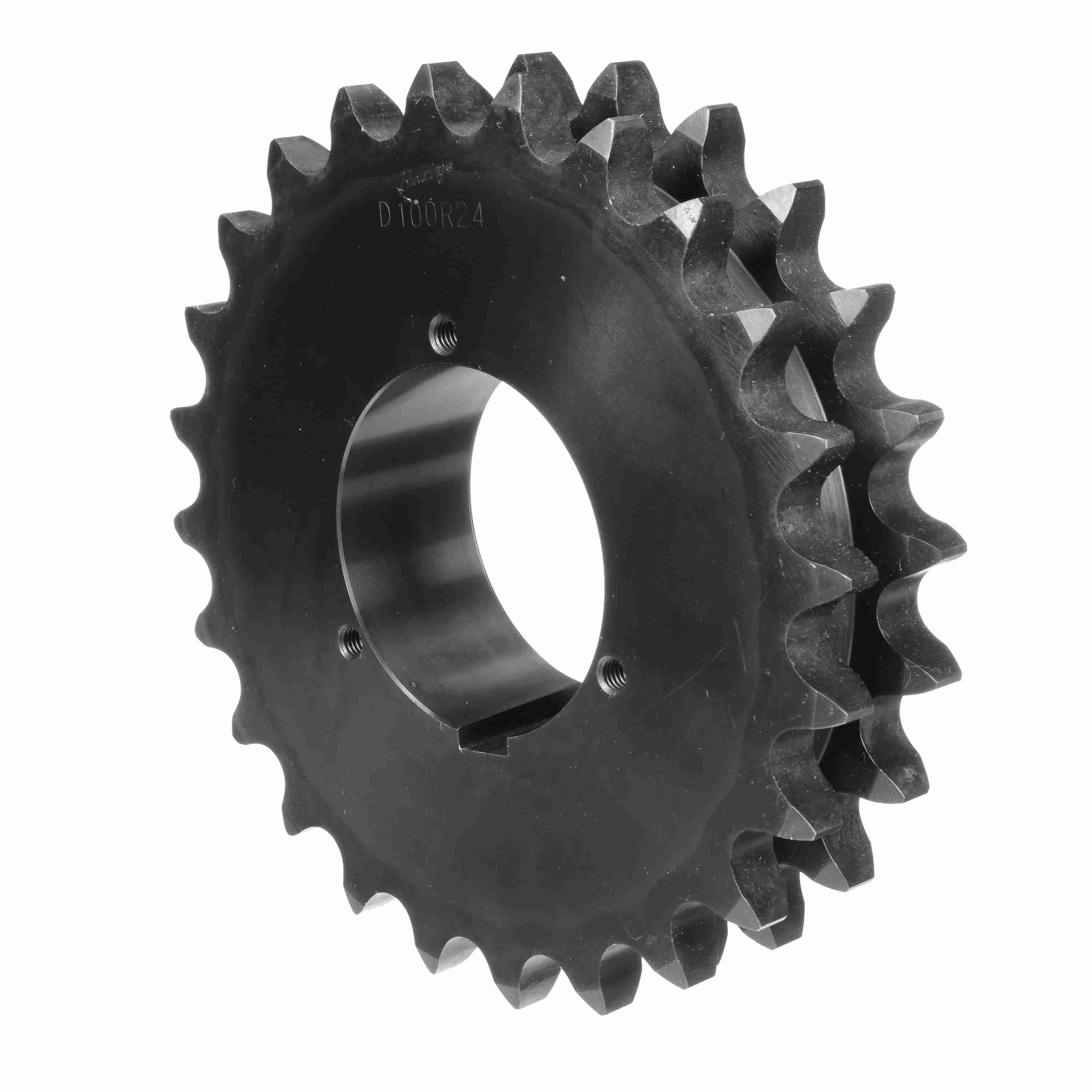

1175231 | 3.2114" | 24 | 9.576" | 5 3/8" | R1 | 100-2 | No | Double Strand Type 14 | €2,742.64 | |
 |
D100R35 | 2 7/8" | 35 | 13.945" | 5 3/8" | - | - | - | - | €4,897.70 | |
 |

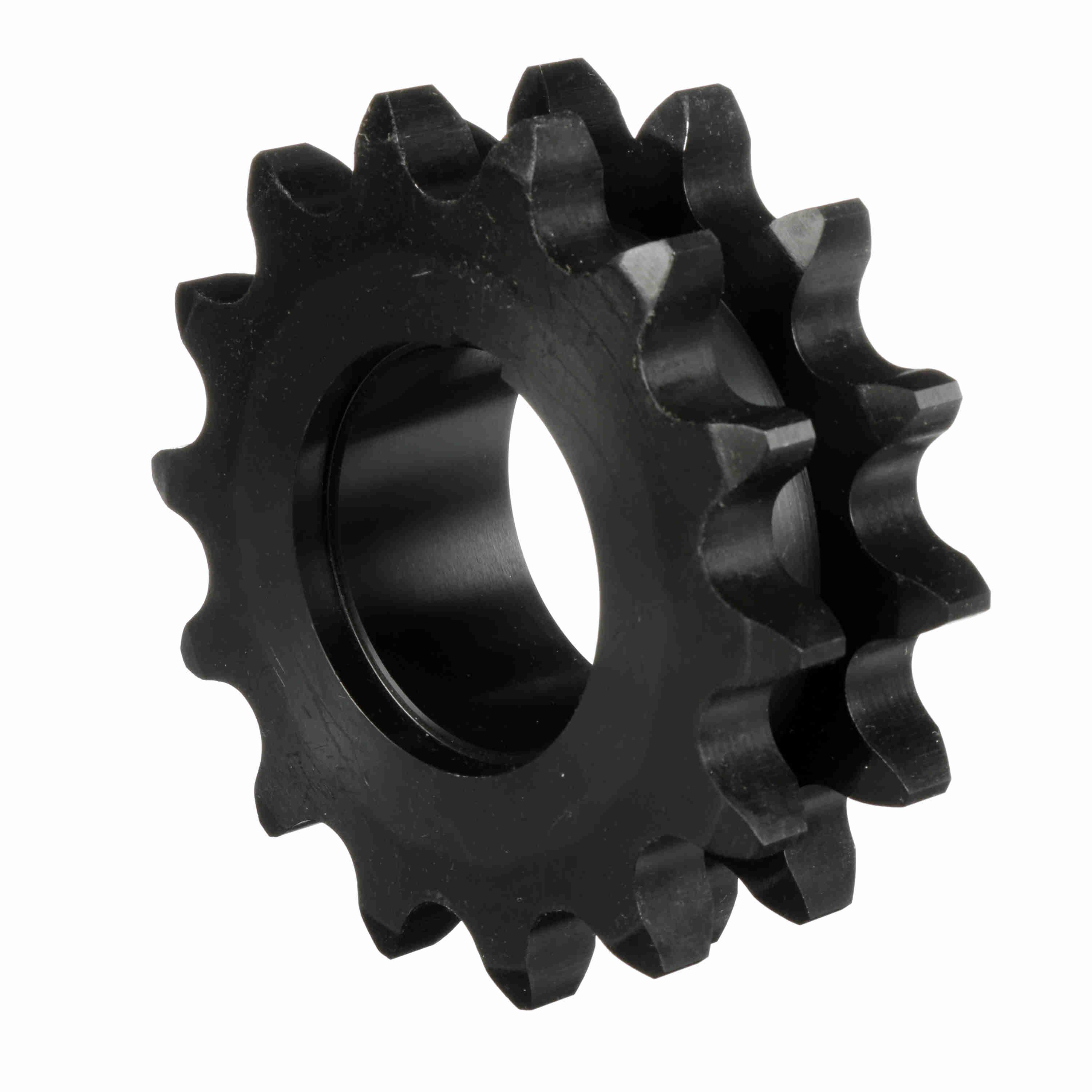

1175140 | 3.1563" | 14 | 5.618" | 4 1/8" | Q1 | 100-2 | No | Double Strand Type 14 | €1,253.17 | |
 |

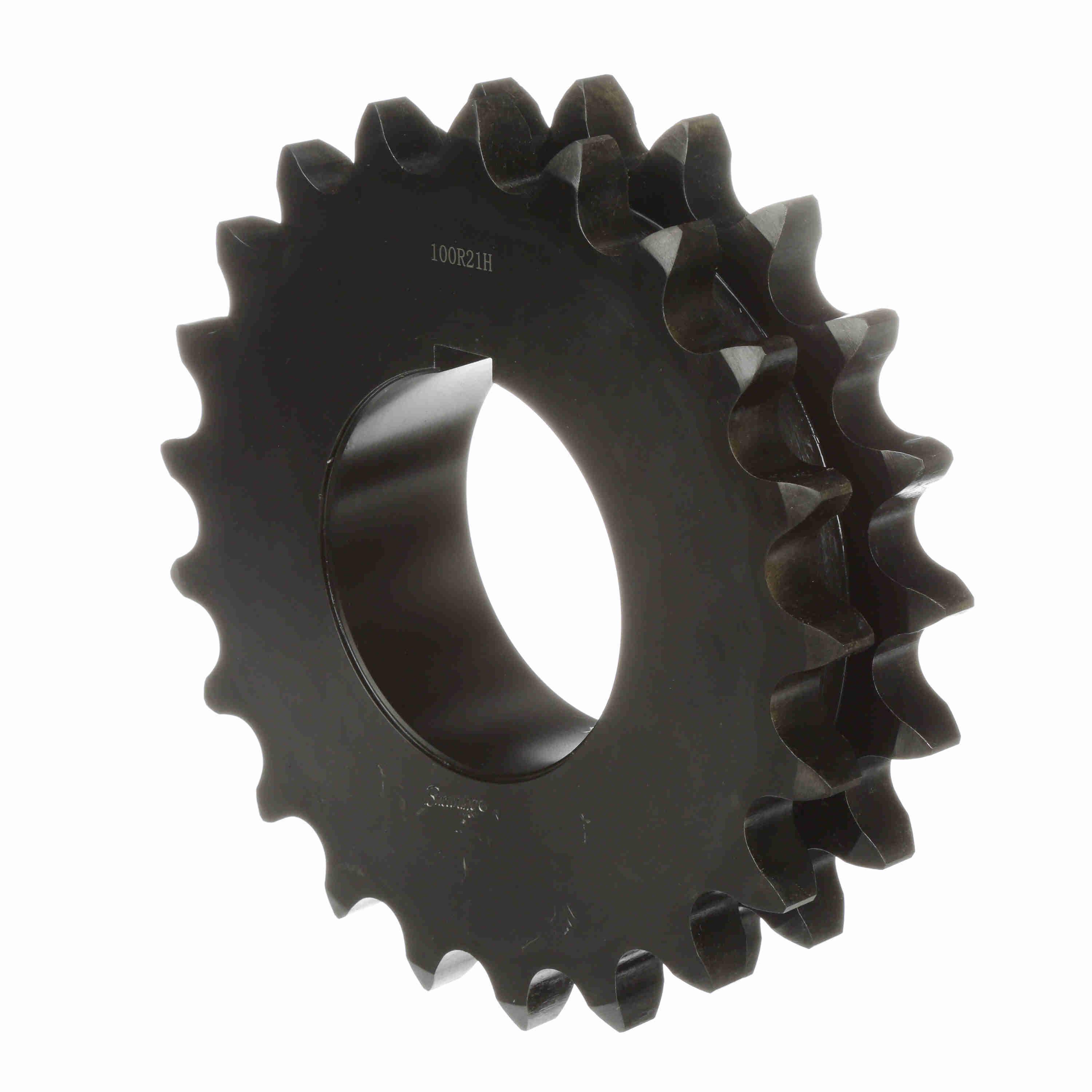

1175215 | 3 7/32" | 21 | 8.388" | - | R1 | 100-2 | No | Double Strand Type 14 | €2,016.13 | |
 |

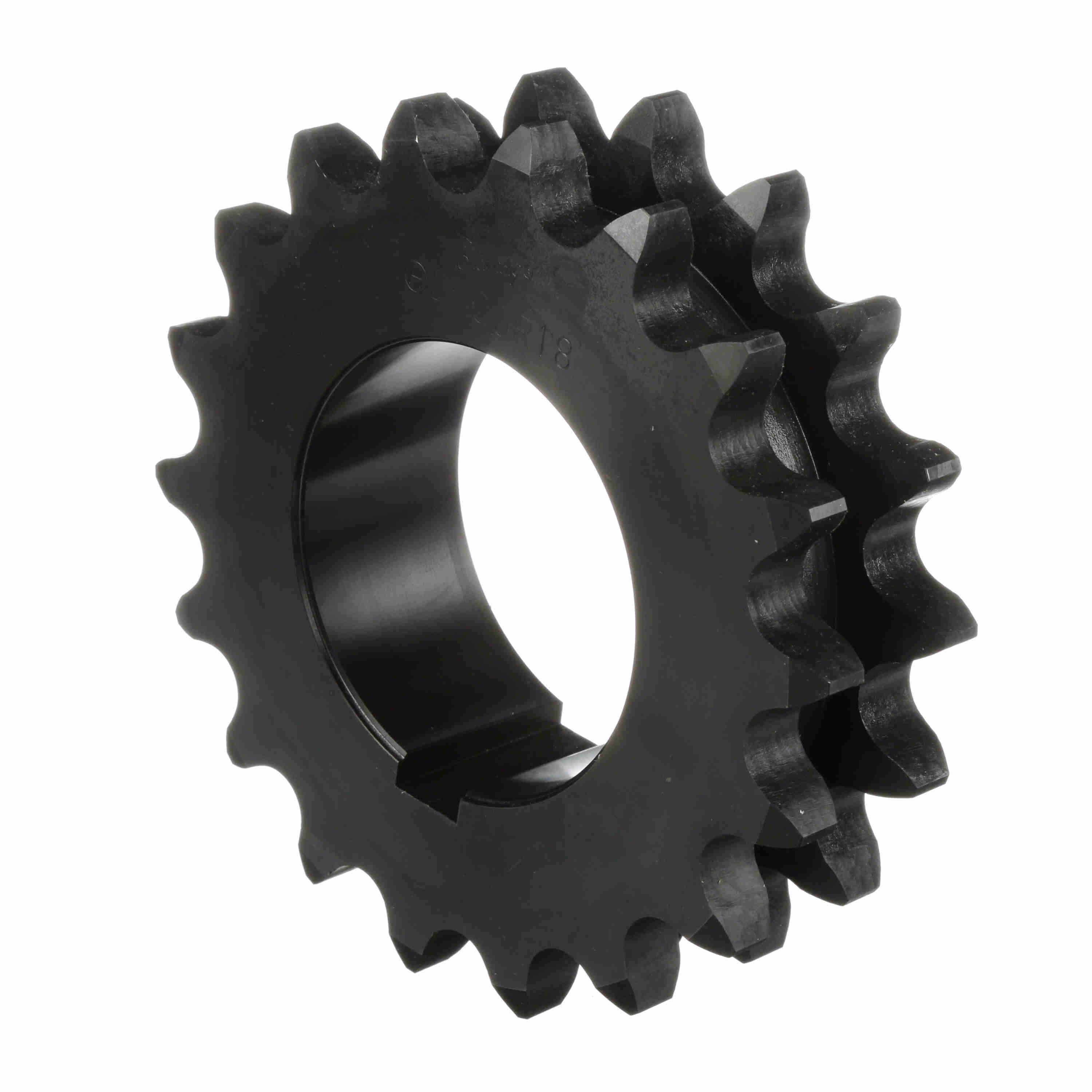

1175181 | 3.2114" | 18 | 7.199" | 5 3/8" | R1 | 100-2 | No | Double Strand Type 14 | €1,538.33 | |
|
D100P11 | 1.938" | 11 | - | 3" | P1 | - | Hardened Teeth | - | €1,222.03 | |
 |

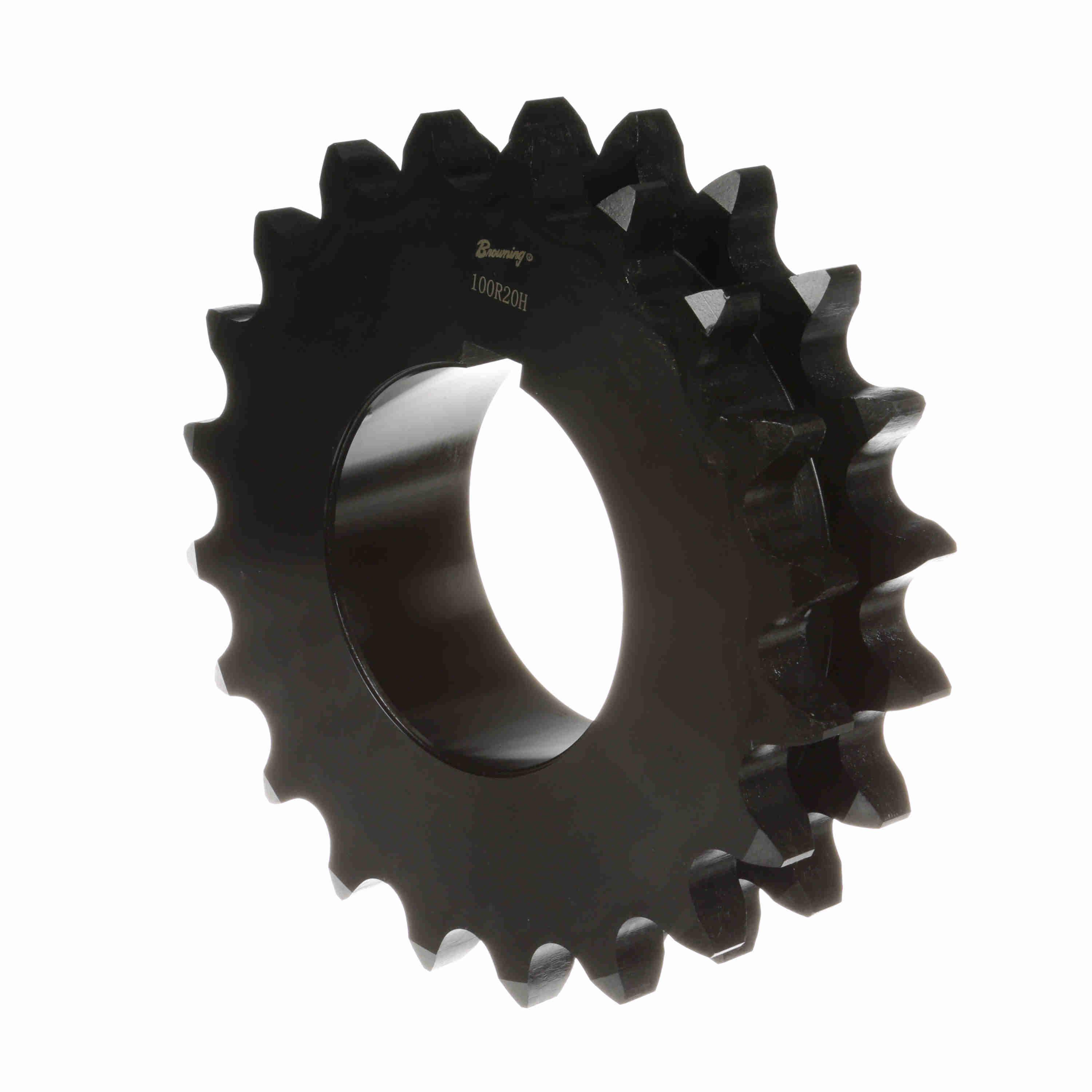

1175207 | 3.2114" | 20 | 7.99" | 5 3/8" | R1 | 100-2 | No | Double Strand Type 14 | €1,867.90 |
