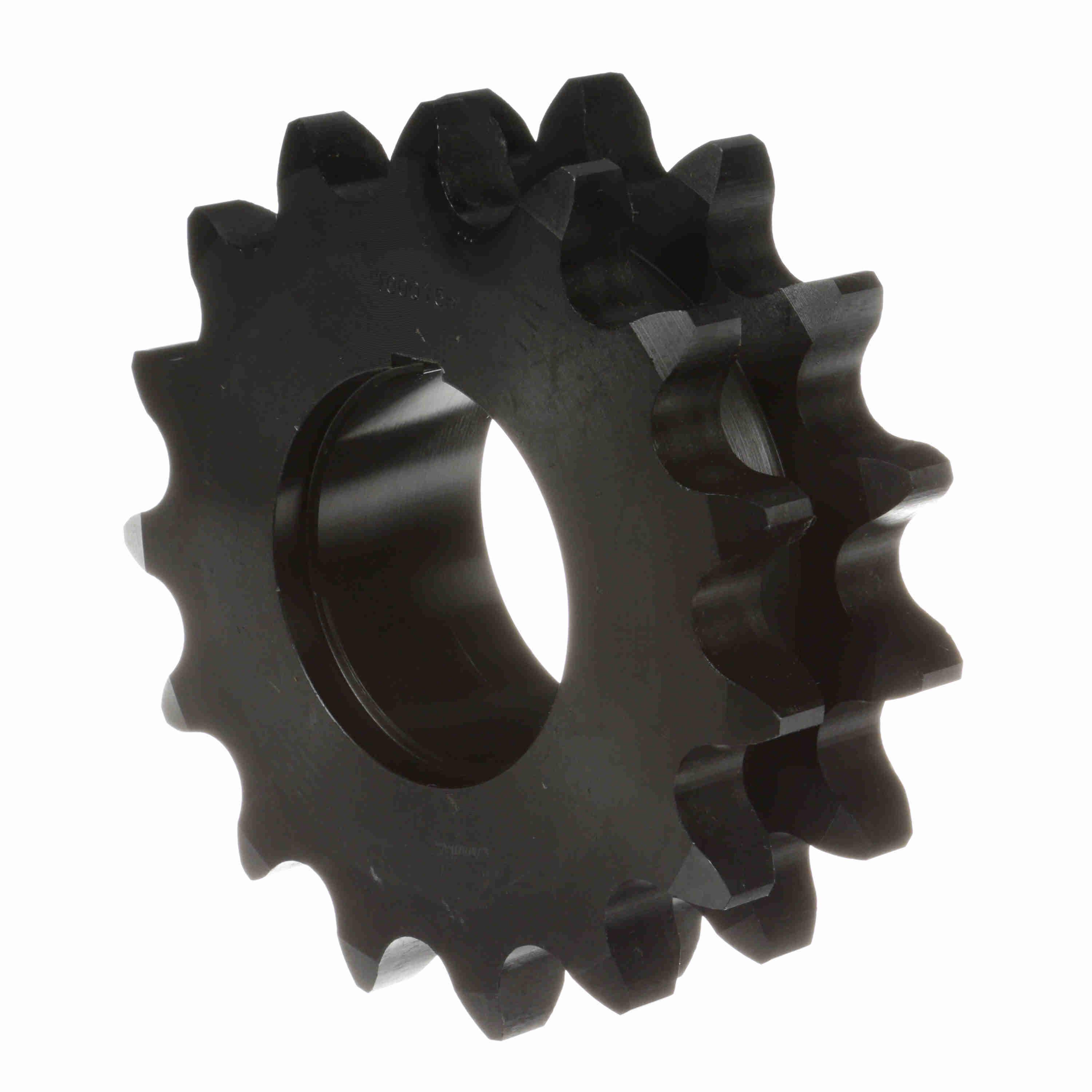

BROWNING 1175157 D100Q15 Roller Chain Sprocket, Bushed Bore, Steel
Item: CE4UGNModel: 1175157Cross Ref: D100Q15
7 In Stock
15
Ships within 2 days via
€1,956.73 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1563" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 15 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 6.63" |
| Pitch Dia. | 6.013" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 14 |
Shipping Info:
| Ship weight (kg) | 4.08 |
| Ship height (cm) | 16.84 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 16.84 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Length Through Bore | Hub Dia. | Type | Hub Type | Bore Dia. | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1175132 | 4.83" | 5.415" | 4.2656" | 4 1/8" | - | - | 1" to 2 5/8" | - | €1,309.12 | |
 |
1175165 | 6.408" | 7.034" | 3.1563" | 4 1/8" | Double Strand Type 14 | B Hub One Side | - | Yes | €1,730.83 | |
 |
1175223 | 8.784" | 9.444" | 3.2114" | 5 3/8" | Double Strand Type 14 | B Hub One Side | - | Yes | €2,392.57 | |
 |
1175215 | 8.388" | 9.044" | 3 7/32" | - | Double Strand Type 14 | B Hub One Side | - | Yes | €2,016.13 | |
 |
1183557 | 17 23/25" | 18.626" | 4.7574" | 6.365" | Double Strand Type 15 | C Hub Both Sides | - | Yes | €5,952.43 | |
 |
1175173 | 6.803" | 7.436" | 3.2114" | 5 3/8" | Double Strand Type 14 | B Hub One Side | - | Yes | €1,611.54 | |
 |
1175207 | 7.99" | 8.643" | 3.2114" | 5 3/8" | Double Strand Type 14 | B Hub One Side | - | Yes | €1,867.90 |
