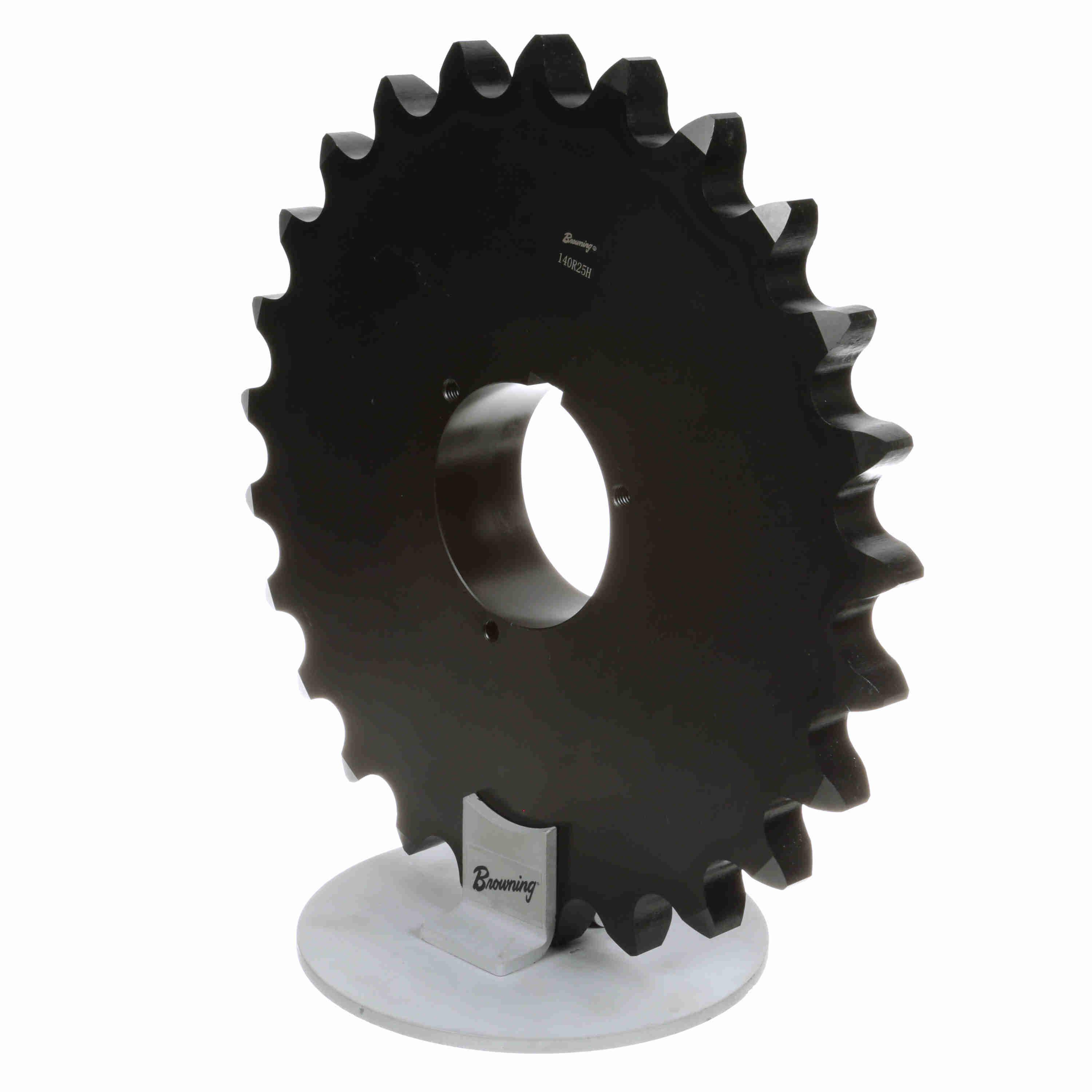

BROWNING 1178987 H140R25 Roller Chain Sprocket, Bushed Bore, Steel
25
Get it by Tuesday, Dec 23
€3,018.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 1 3/4" |
| Chain Size | 140 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 5 3/8" |
| Hub Type | C Hub Both Sides |
| Keyway | Yes |
| Length Through Bore | 3.2194" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 25 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 14.903" |
| Pitch Dia. | 13.963" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 5 |
| Weight | 38 lbs. |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 37.85 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 37.85 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3358397 | 16.742" | 17.7" | 1 3/8" to 3 5/8" | 5 3/8" | 5.2194" | Single Strand Type 6 | - | - | €3,288.28 | |
 |
1178870 | 7.864" | 8.717" | 1 1/8" to 3 3/4" | 5 3/8" | 3.2194" | Single Strand Type 4 | - | - | €1,547.06 | |
 |
1178888 | 8.417" | 9.283" | 1 1/8" to 3 3/4" | 5 3/8" | 3.2194" | Single Strand Type 4 | - | - | €1,329.86 | |
 |
1178896 | 8.97" | 9.848" | 1 1/8" to 3 3/4" | 5 3/8" | 3.2194" | Single Strand Type 4 | - | - | €1,416.98 | |
 |
1178904 | 9.524" | 10.412" | 1 1/8" to 3 3/4" | 5 3/8" | 3.2194" | Single Strand Type 4 | - | - | €1,483.03 | |
 |
1178912 | 10.078" | 10.974" | - | 5 3/8" | 3.2194" | Single Strand Type 4 | B Hub One Side | Yes | €1,788.15 | |
 |
1178920 | 10.633" | 11.538" | - | 5 3/8" | 3.2194" | Single Strand Type 4 | B Hub One Side | Yes | €1,632.71 |
