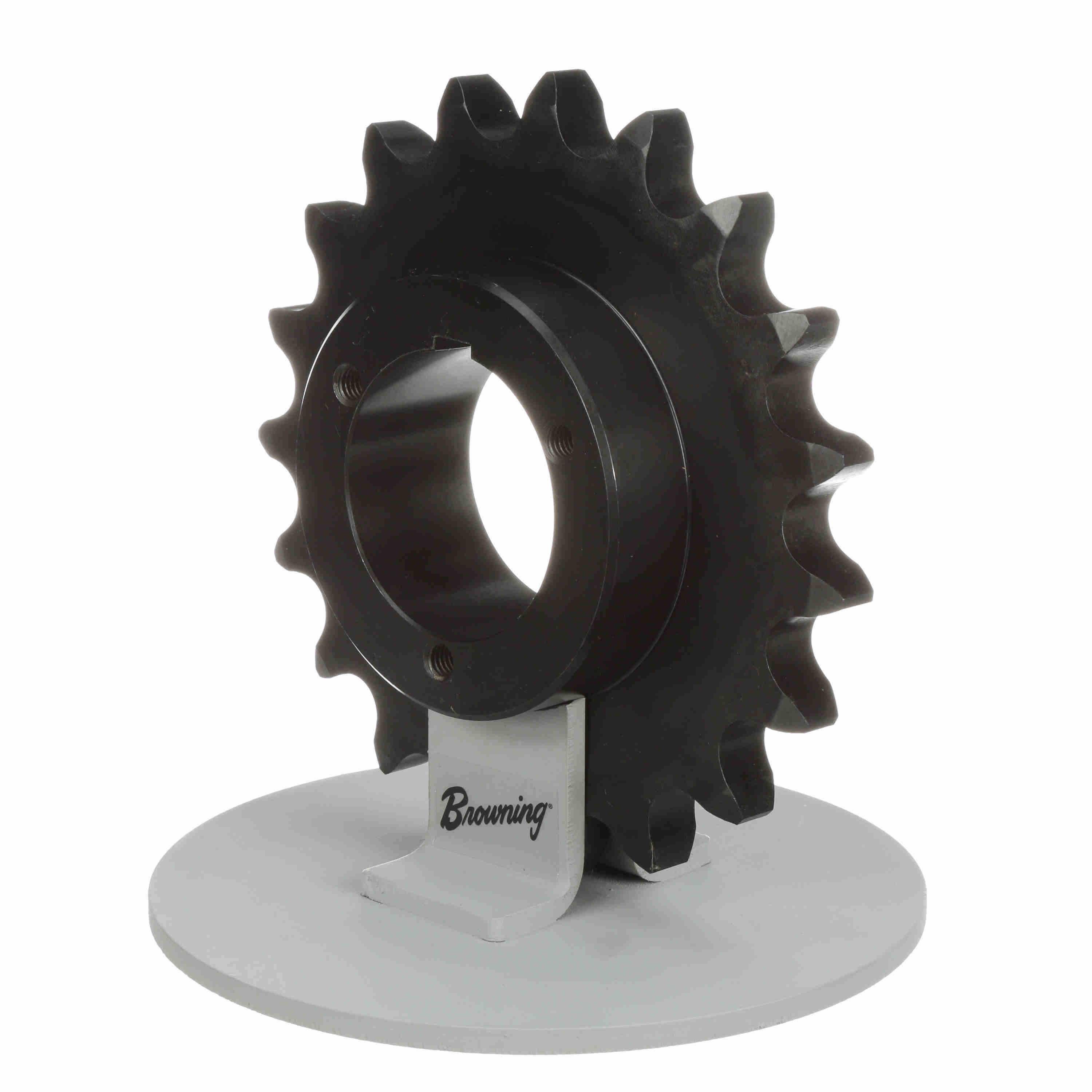

BROWNING 1178540 H100Q19 Roller Chain Sprocket, Bushed Bore, Steel
Item: AJ9GJGModel: 1178540Cross Ref: H100Q19
7 In Stock
19
2.8281"
Ships within 2 days via
€1,073.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 19 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 8.241" |
| Pitch Dia. | 7.595" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 9.08 lbs. |
Shipping Info:
| Ship weight (kg) | 4.09 |
| Ship height (cm) | 20.93 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 20.93 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Length Through Bore | Type | Hub Dia. | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1178466 | 4.438" | 5.008" | - | 2.2212" | Single Strand Type 4 | 3" | B Hub One Side | Yes | €525.26 | |
 |
1178474 | 4.83" | 5.415" | - | 2.8281" | Single Strand Type 4 | 4 1/8" | B Hub One Side | Yes | €400.38 | |
 |
1178482 | 5.224" | 5.821" | 3/4" | 2 1/2" | Single Strand | 4 1/8" | B Hub One Side | Yes | €487.58 | |
 |
1178490 | 5.618" | 6.226" | - | 2.8281" | Single Strand Type 4 | 4 1/8" | B Hub One Side | Yes | €715.21 | |
 |
1178508 | 6.013" | 6.63" | - | 2.8281" | Single Strand Type 4 | 4 1/8" | B Hub One Side | Yes | €807.84 | |
 |
1178516 | 6.408" | 7.034" | - | 2.8281" | Single Strand Type 4 | 4 1/8" | B Hub One Side | Yes | €771.70 | |
 |
1178524 | 6.803" | 7.437" | 3/4" to 2 11/16" | 2.8281" | Single Strand Type 4 | 4 1/8" | - | - | €794.35 |
