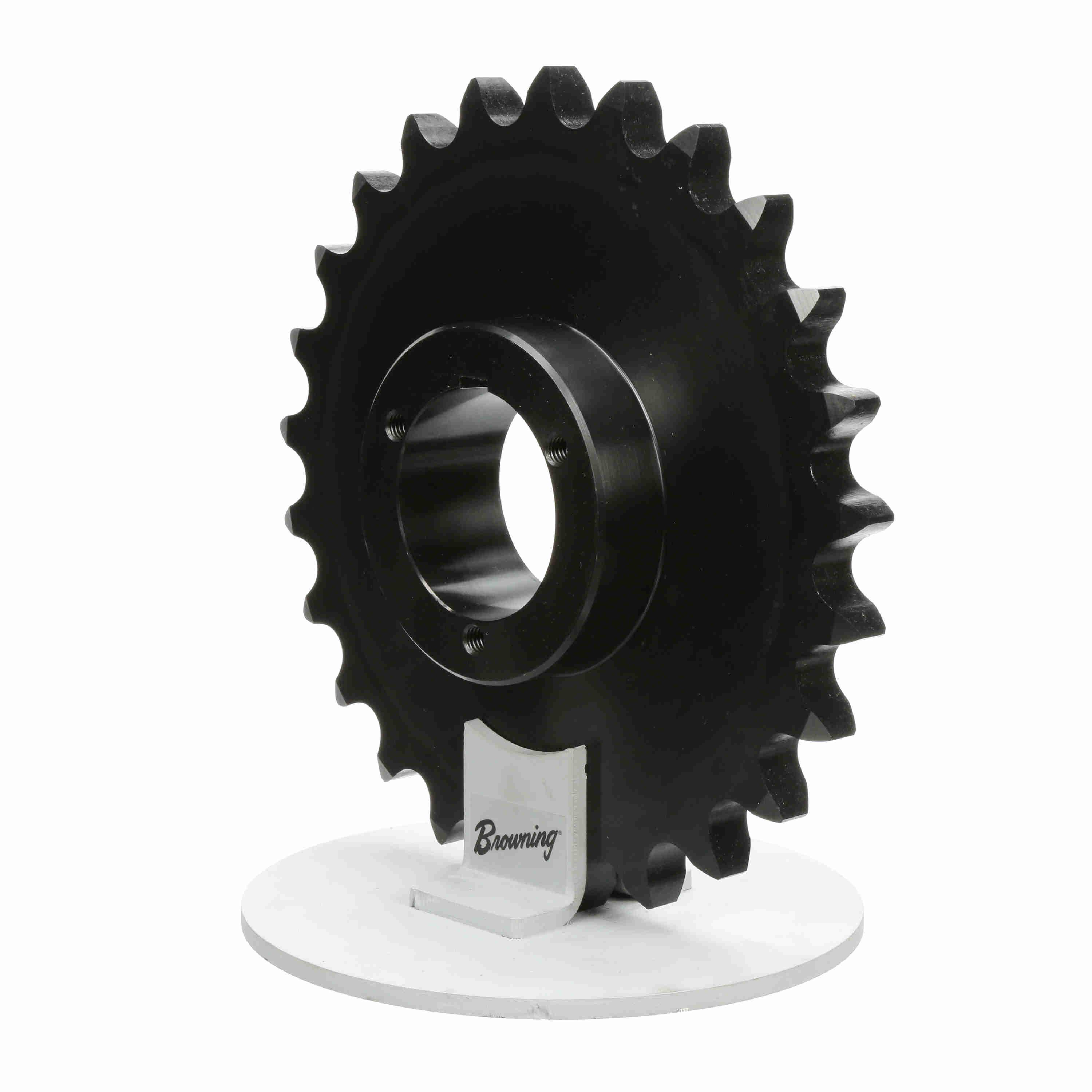

BROWNING 1178615 H100Q25 Roller Chain Sprocket, Steel, Single Strand Type 4, 3/4 to 2-11/16 in Bore Dia, 10.645 in OD, 100 Chain Size, 25 Teeth, 9.973 in Pitch Dia
25
2.8281"
Get it by Monday, Aug 17
€1,271.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Chain Pitch | 1 1/4" |
| Chain Size | 100 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.8281" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 25 |
| Outside Dia. | 10.645" |
| Pitch Dia. | 9.974" |
| Product Datasheet | browning-1172519.pdf |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
Shipping Info:
| Ship weight (kg) | 6.7 |
| Ship height (cm) | 27.05 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 27.05 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Type | Hub Dia. | Bushing Size | Bushing Bore Range | Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1178466 | 4.438" | 11 | 2.2212" | Single Strand Type 4 | 3" | P1 | 1/2" to 1 3/4" | - | €525.26 | |
 |
1178474 | 4.83" | 12 | 2.8281" | Single Strand Type 4 | 4 1/8" | Q1 | 3/4" to 2 11/16" | - | €400.38 | |
 |
1178482 | 5.224" | 13 | 2 1/2" | Single Strand | 4 1/8" | Q1 | 3/4" to 2 11/16" | 3/4" | €487.58 | |
 |
1178490 | 5.618" | 14 | 2.8281" | Single Strand Type 4 | 4 1/8" | Q1 | 3/4" to 2 11/16" | - | €715.21 | |
 |
1178508 | 6.013" | 15 | 2.8281" | Single Strand Type 4 | 4 1/8" | Q1 | 3/4" to 2 11/16" | - | €807.84 | |
 |
1178516 | 6.408" | 16 | 2.8281" | Single Strand Type 4 | 4 1/8" | Q1 | 3/4" to 2 11/16" | - | €771.70 | |
 |
1178524 | 6.803" | 17 | 2.8281" | Single Strand Type 4 | 4 1/8" | - | - | 3/4" to 2 11/16" | €794.35 |
