Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.4688" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 15 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 3.978" |
| Pitch Dia. | 3.608" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
| Weight | 1.34 lbs. |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 10.11 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 10.11 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1177781 | 2.663" | 3.005" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €232.01 | |
![]() |
1177799 | 2.898" | 3.249" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €219.31 | |
![]() |
1177773 | 2.427" | 2.759" | 3/8" | 2.015" | 1.026" | Single Strand | Type 3 Split Taper | B Hub One Side | €276.33 | |
![]() |
1177906 | 4.319" | 4.703" | 3/8" to 1 1/2" | 2.494" | 1.4688" | Single Strand Type 3 | - | - | €504.82 | |
![]() |
H60H22 | 5.27" | 5.666" | 3/8" | 2.494" | 1.4688" | Single Strand Split Taper Bushed Type 3 | Split Taper Bushing | - | €581.46 | |
![]() |
1177948 | 4.794" | 5.186" | - | 2.494" | 1.4688" | Single Strand Type 3 | - | B Hub One Side | €467.63 | |
![]() |
H60H24 | - | - | - | - | - | - | - | - | €616.97 |
Explore Products
- MASTERDRIVES J2.11/16 Quick Disconnect Bushing, 2 11/16 Inch Size
- HARVEL CLEAR H417025LS Elbow 45 Degree 2 1/2 Inch Solvent Pvc Clear
- FABORY M01010.140.0065 Hex Head Cap Screw, M14x2 Thread Size, Steel, 65 mm Lg., 8.8 mm Head Ht., Coarse
- SOUTHWIRE COMPANY 58018504 Building Wire, 12 AWG, 1 Conductors, Brown, 1000 ft Length, Stranded, Nylon
- SCOTT SAFETY 805775-81 Full Face Respirator, EPDM Rubber, 5 pt with Rubber Headnet, Bayonet, S Mask Size, Rubber
- LINN GEAR 100b28h Sprocket, 100 Chain, 11.164 Inch Pitch Diameter, 1.25 Inch Stock Bore, Hardened Teeth
- UNIWELD FL3536 Flint Lighter, Triple Type
- EATON NGH308039B20M Molded Case Circuit Breaker, 3-Pole, 800A, 480 Vac, Line/Load, High Load Alarm
Explore More
- 80/20
- FACOM
- KEYSHAFT
- OPTIMUM
- VIPER
- Air Sanders
- Pneumatic Casters
- Antistatic Systems
- Air Velocity Monitor Accessories
- LED Drivers
- DESTACO 8021, 8071 Series Pneumatic Toggle Clamps
- AKRO-MILS 33105 Akro Grid Dividable Plastic Storage Boxes
- VIBCO 10 Series Pneumatic Piston Vibrators
- ASSOCIATED SPRING RAYMOND CU740 Gas Springs
- ASSOCIATED SPRING RAYMOND R12 Gas Springs
- APPROVED VENDOR Cleanout Plug
- HUBBELL WIRING DEVICE-KELLEMS Pin & Sleeve Receptacles, Non-NEMA Certified, 3 Pole
- HOFFMAN Type 4X Free Stand Dual Access Quarter Turn Latch Enclosures
- ALTRONIX R2432220 Series AC CCTV Rack Power Supplies
- TRICO Sight Guards
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

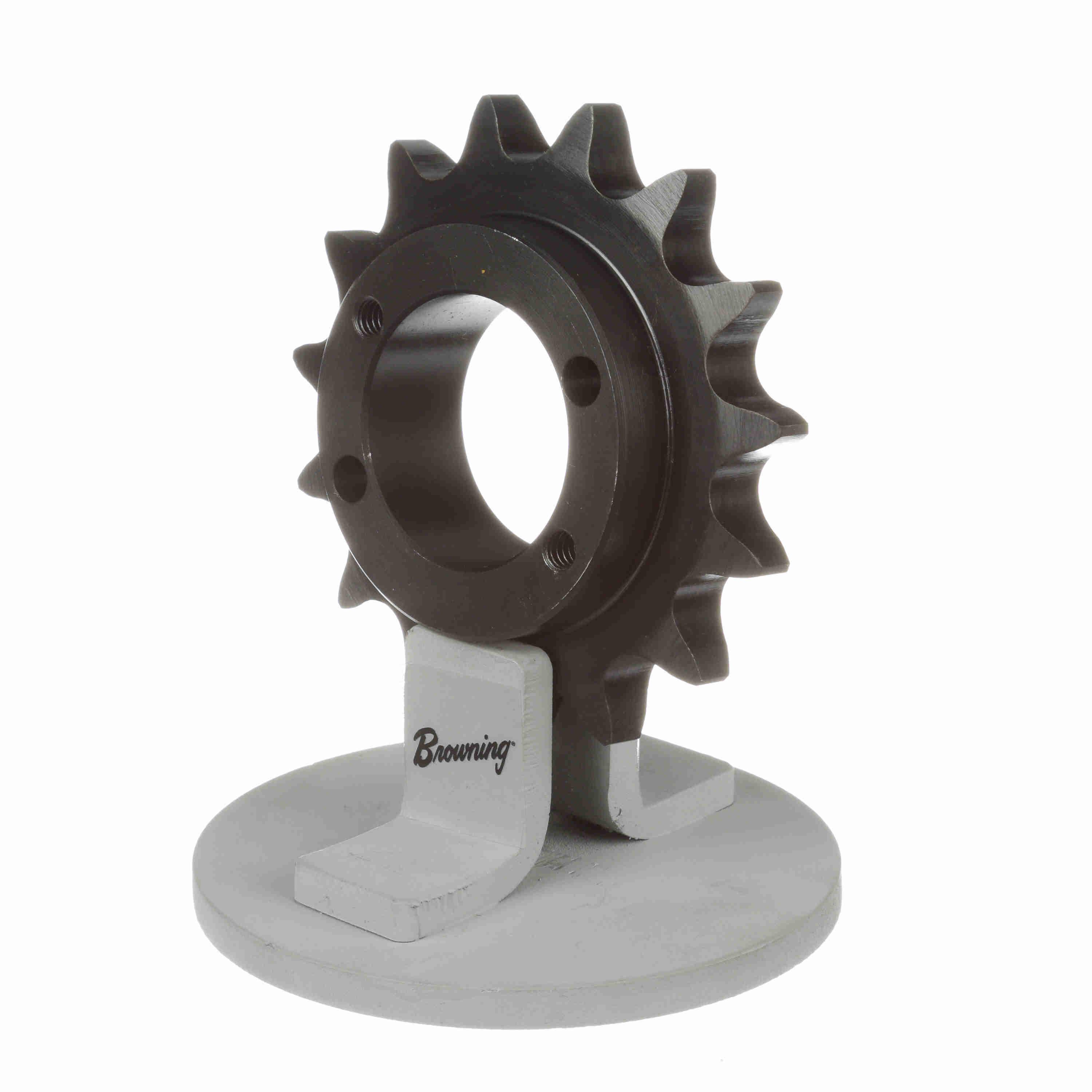

BROWNING 1177849 H60H15 Roller Chain Sprocket, Bushed Bore, Steel
