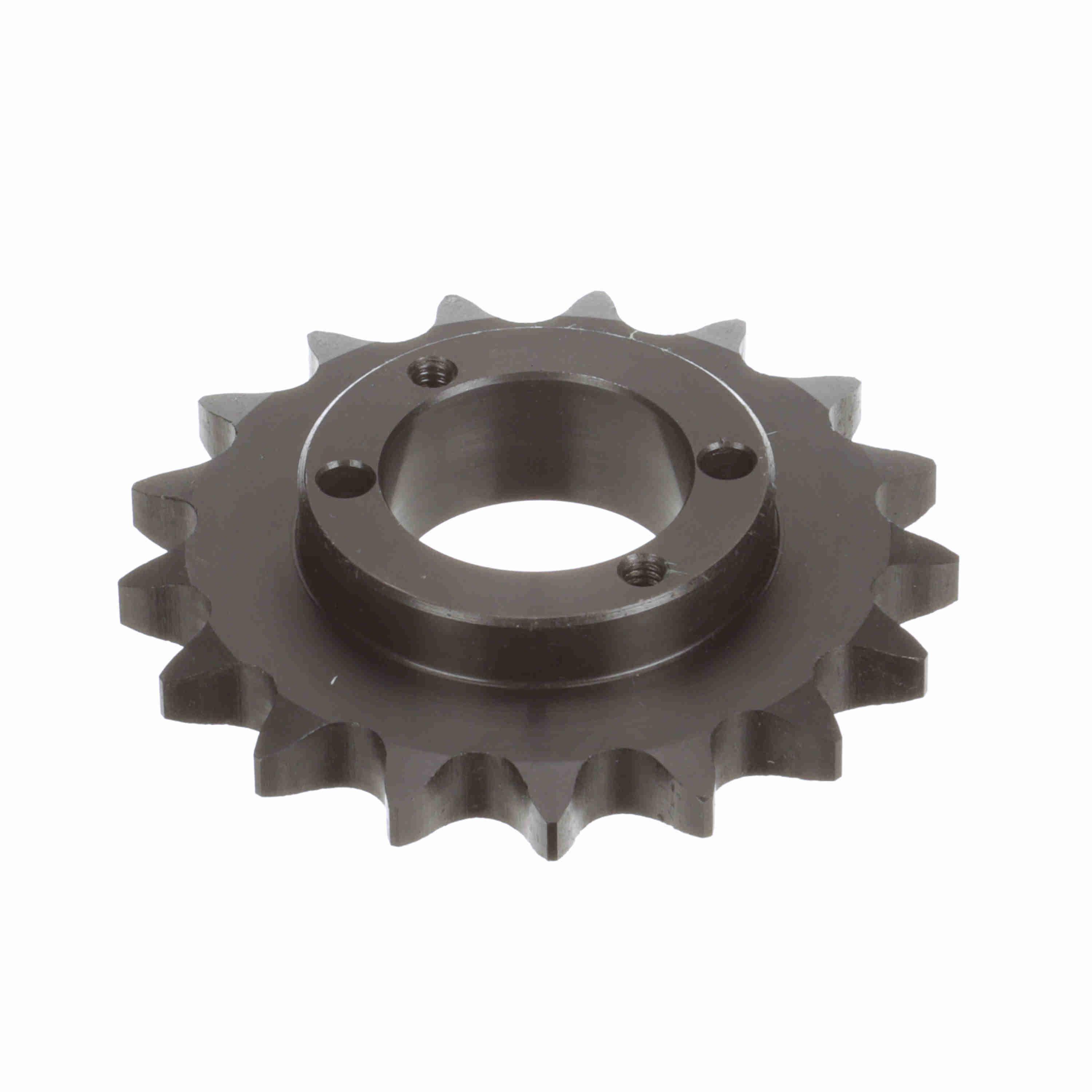

BROWNING 1177880 H60H17 Roller Chain Sprocket, Bushed Bore, Steel
Item: BA6TQNModel: 1177880Cross Ref: H60H17
7 In Stock
Ships within 2 days via
€484.93 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 3/8" to 1 1/2" |
| Bushing Size | H |
| Chain Pitch | 3/4" |
| Chain Size | 60 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | Yes |
| Hub Dia. | 2.494" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 1.4688" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 17 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 4.462" |
| Pitch Dia. | 4.082" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 3 |
| Weight | 1.7 lbs. |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 11.33 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 11.33 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Bushing Type | Hub Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1177781 | 2.663" | 3.005" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €232.01 | |
 |
1177799 | 2.898" | 3.249" | 3/8" | 2.494" | 1.276" | Single Strand | Type 3 Split Taper | B Hub One Side | €219.31 | |
 |

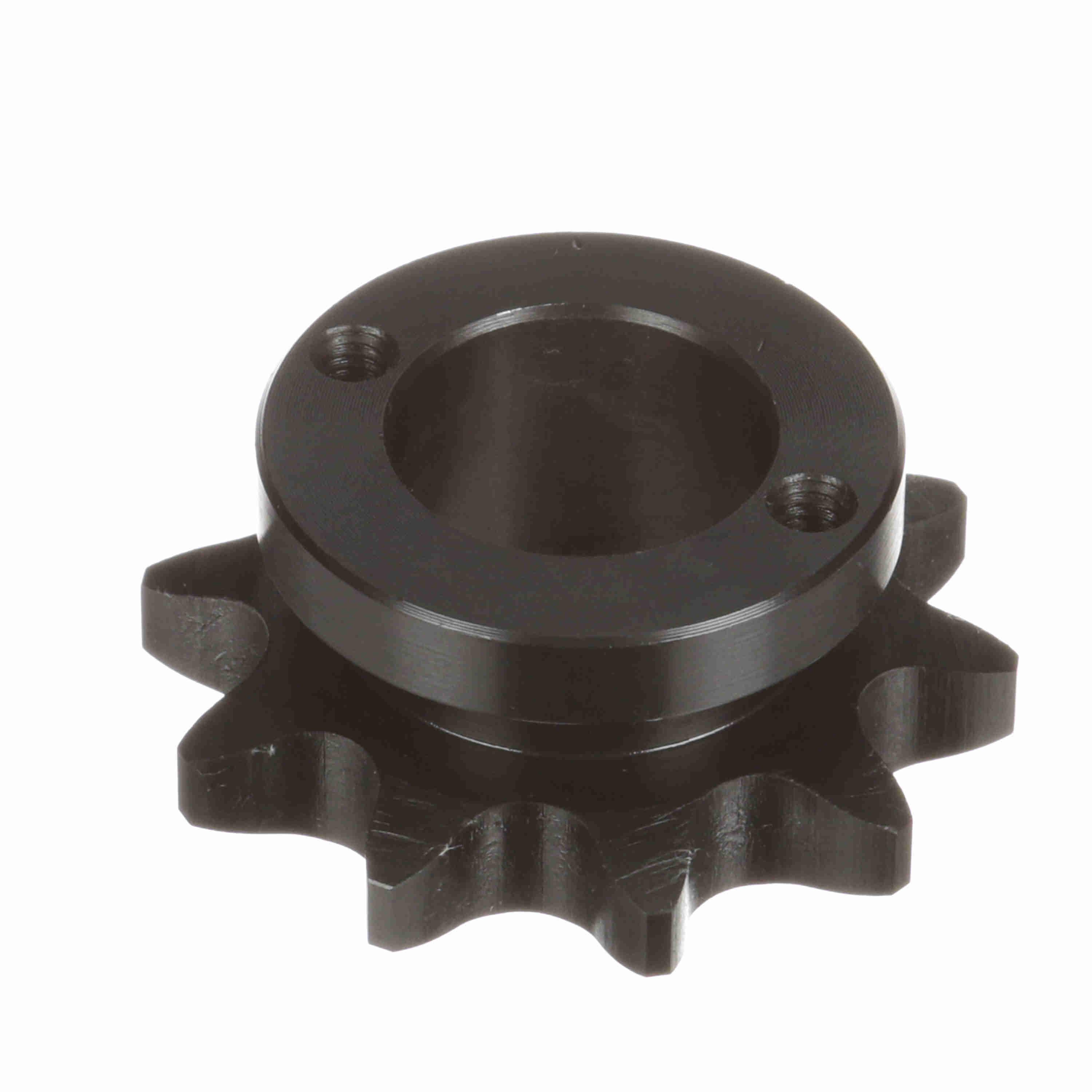

1177773 | 2.427" | 2.759" | 3/8" | 2.015" | 1.026" | Single Strand | Type 3 Split Taper | B Hub One Side | €276.33 | |
 |
1177906 | 4.319" | 4.703" | 3/8" to 1 1/2" | 2.494" | 1.4688" | Single Strand Type 3 | - | - | €504.82 | |
 |
H60H22 | 5.27" | 5.666" | 3/8" | 2.494" | 1.4688" | Single Strand Split Taper Bushed Type 3 | Split Taper Bushing | - | €581.46 | |
 |

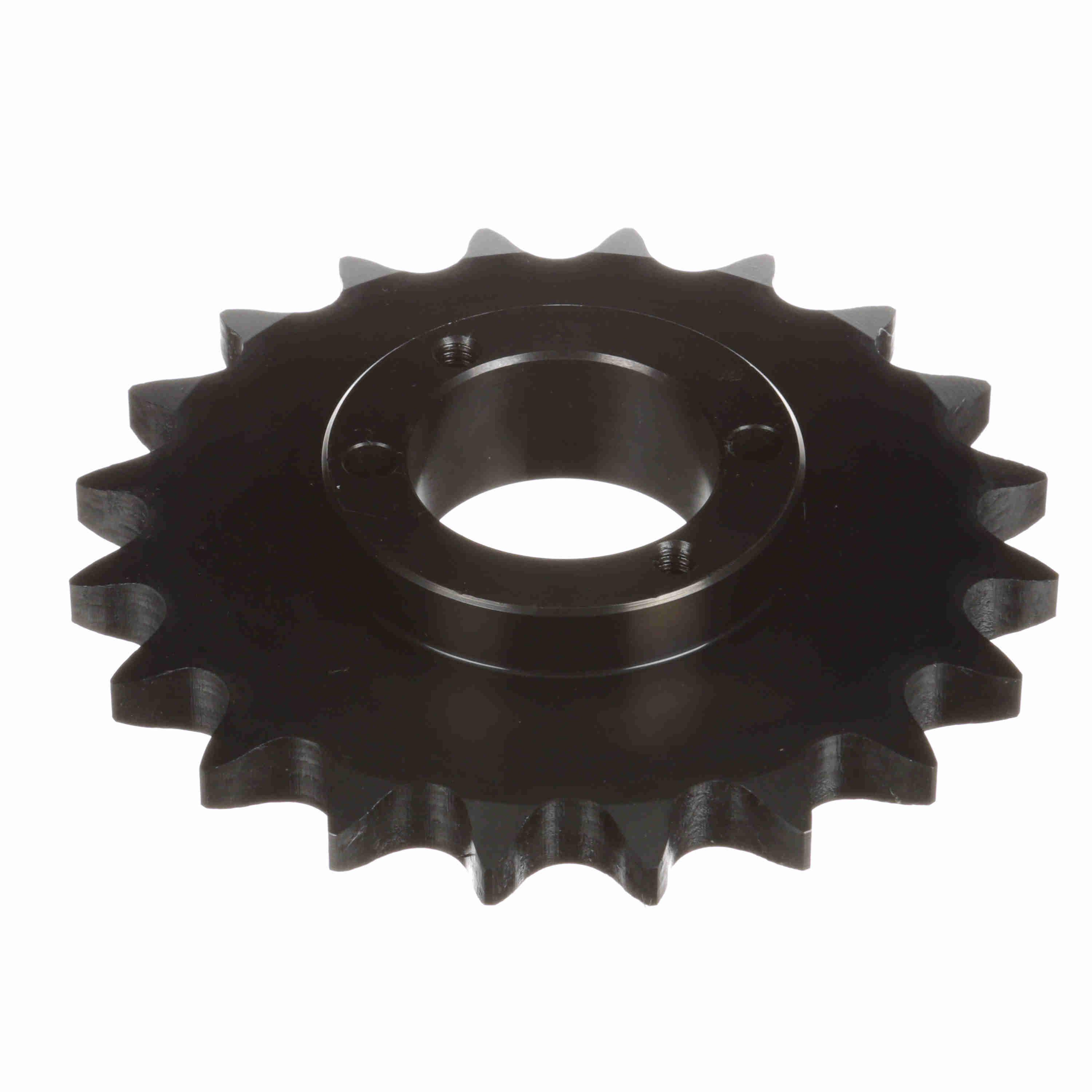

1177948 | 4.794" | 5.186" | - | 2.494" | 1.4688" | Single Strand Type 3 | - | B Hub One Side | €467.63 | |
|
H60H24 | - | - | - | - | - | - | - | - | €616.97 |
