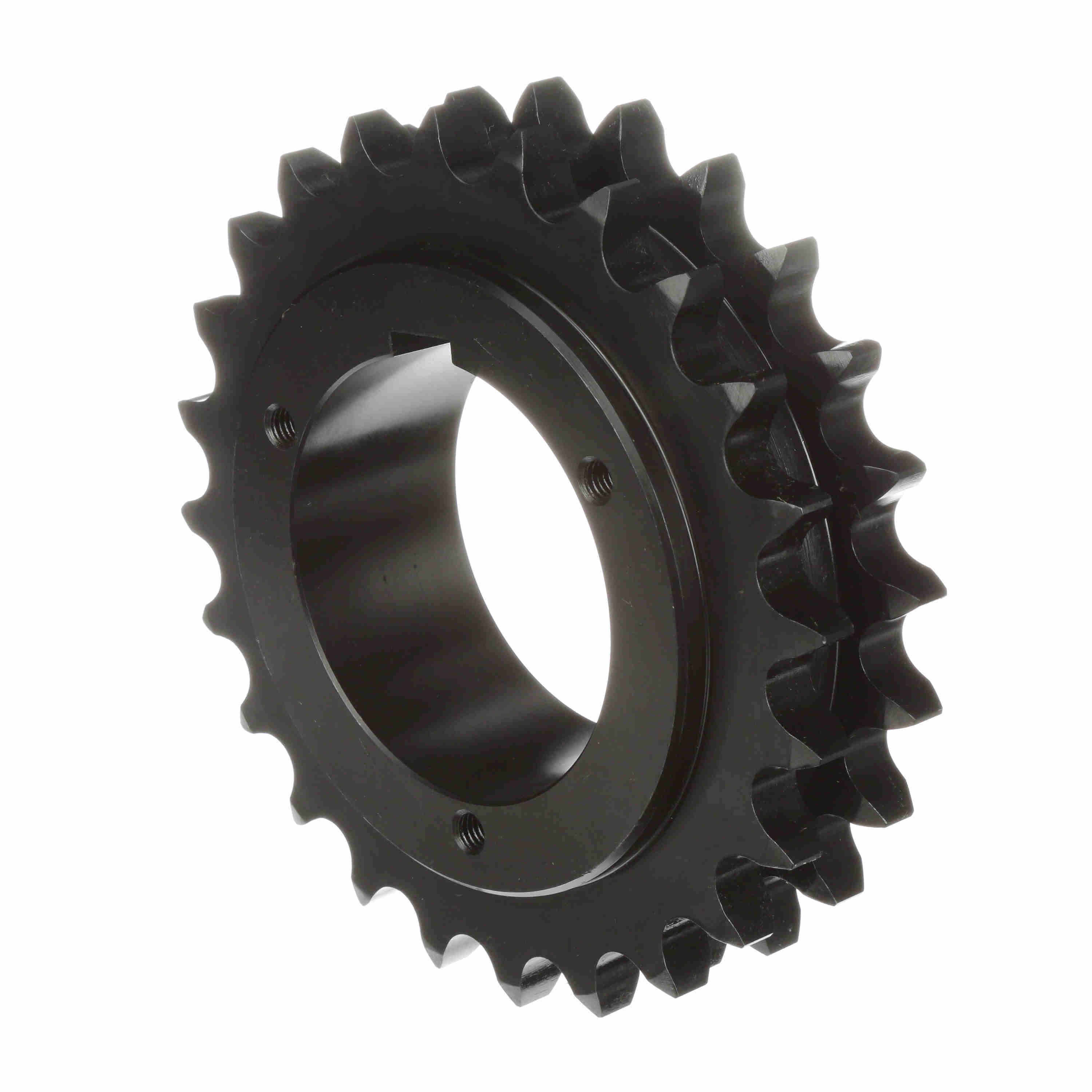

BROWNING 1174994 D80R24 Roller Chain Sprocket, Bushed Bore, Steel
24
Get it by Tuesday, Dec 23
€1,056.56 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 1" |
| Chain Size | 80-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 5 3/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1414" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 24 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 8.196" |
| Pitch Dia. | 7.661" |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
| Weight | 14.12 lbs. |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 20.83 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 20.83 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174895 | 4.494" | 4.981" | - | 4 1/8" | 4.7031" | Double Strand Type 12 | C Hub Both Sides | Yes | €727.90 | |
 |
1174903 | 4.81" | 5.304" | - | 4 1/8" | 3.8281" | Double Strand Type 12 | B Hub One Side | Yes | €817.59 | |
 |
1174911 | 5.126" | 5.627" | - | 4 1/8" | 2.7813" | Double Strand Type 13 | B Hub One Side | Yes | €834.63 | |
 |
1174929 | 5.442" | 5.949" | - | 4 1/8" | 2.7813" | Double Strand Type 13 | B Hub One Side | Yes | €996.76 | |
 |
1174937 | 5.759" | 6.271" | 3/4" to 2 11/16" | 4 1/8" | 2.7813" | Double Strand Type 13 | - | - | €908.36 | |
 |
1174945 | 6.076" | 6.593" | - | 4 1/8" | 2.7813" | Double Strand Type 13 | B Hub One Side | Yes | €642.39 | RFQ
|
 |
1174952 | 6.392" | 6.914" | - | 5 3/8" | 3.1414" | Double Strand Type 12 | B Hub One Side | Yes | €829.45 |
