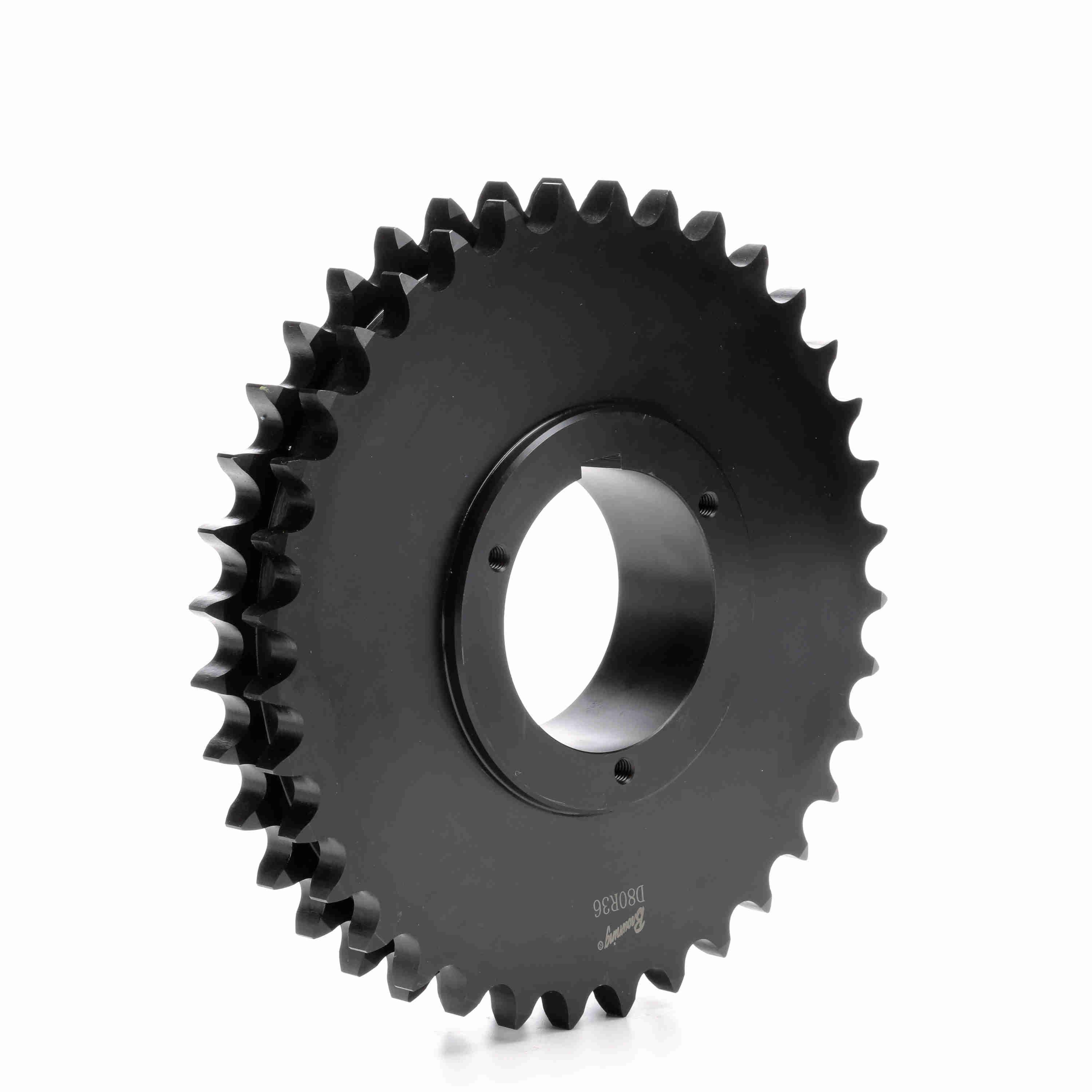

BROWNING 1175058 D80R36 Roller Chain Sprocket, Steel, Double Strand Type 12, 1-1/8 to 3-3/4 in Bore Dia, 12.03 in OD, 80 Chain Size, 36 Teeth, 11.474 in Pitch Dia
36
Get it by Tuesday, Aug 18
€1,467.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 1" |
| Chain Size | 80-2 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 5 3/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1414" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 2 |
| No. Of Teeth | 36 |
| Outside Dia. | 12.03" |
| Pitch Dia. | 11.471" |
| Product Datasheet | browning-1175058.pdf |
| System Of Measurement | Imperial |
| Type | Double Strand Type 12 |
Shipping Info:
| Ship weight (kg) | 18.2 |
| Ship height (cm) | 30.56 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 30.56 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Length Through Bore | Hub Dia. | Type | Chain Size | Bushing Size | Bushing Bore Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1174895 | 4.494" | 14 | 4.7031" | 4 1/8" | Double Strand Type 12 | 80-2 | Q2 | 1" to 2 5/8" | €727.90 | |
 |
1174903 | 4.81" | 15 | 3.8281" | 4 1/8" | Double Strand Type 12 | 80-2 | Q2 | 1" to 2 5/8" | €817.59 | |
 |
1174911 | 5.126" | 16 | 2.7813" | 4 1/8" | Double Strand Type 13 | 80-2 | Q1 | 3/4" to 2 11/16" | €834.63 | |
 |
1174929 | 5.442" | 17 | 2.7813" | 4 1/8" | Double Strand Type 13 | 80-2 | Q1 | 3/4" to 2 11/16" | €996.76 | |
 |
1174937 | 5.759" | 18 | 2.7813" | 4 1/8" | Double Strand Type 13 | 80 | - | - | €908.36 | |
 |
1174945 | 6.076" | 19 | 2.7813" | 4 1/8" | Double Strand Type 13 | 80-2 | Q1 | 3/4" to 2 11/16" | €642.39 | |
 |
1174952 | 6.392" | 20 | 3.1414" | 5 3/8" | Double Strand Type 12 | 80-2 | R1 | 1 1/8" to 3 3/4" | €829.45 |
