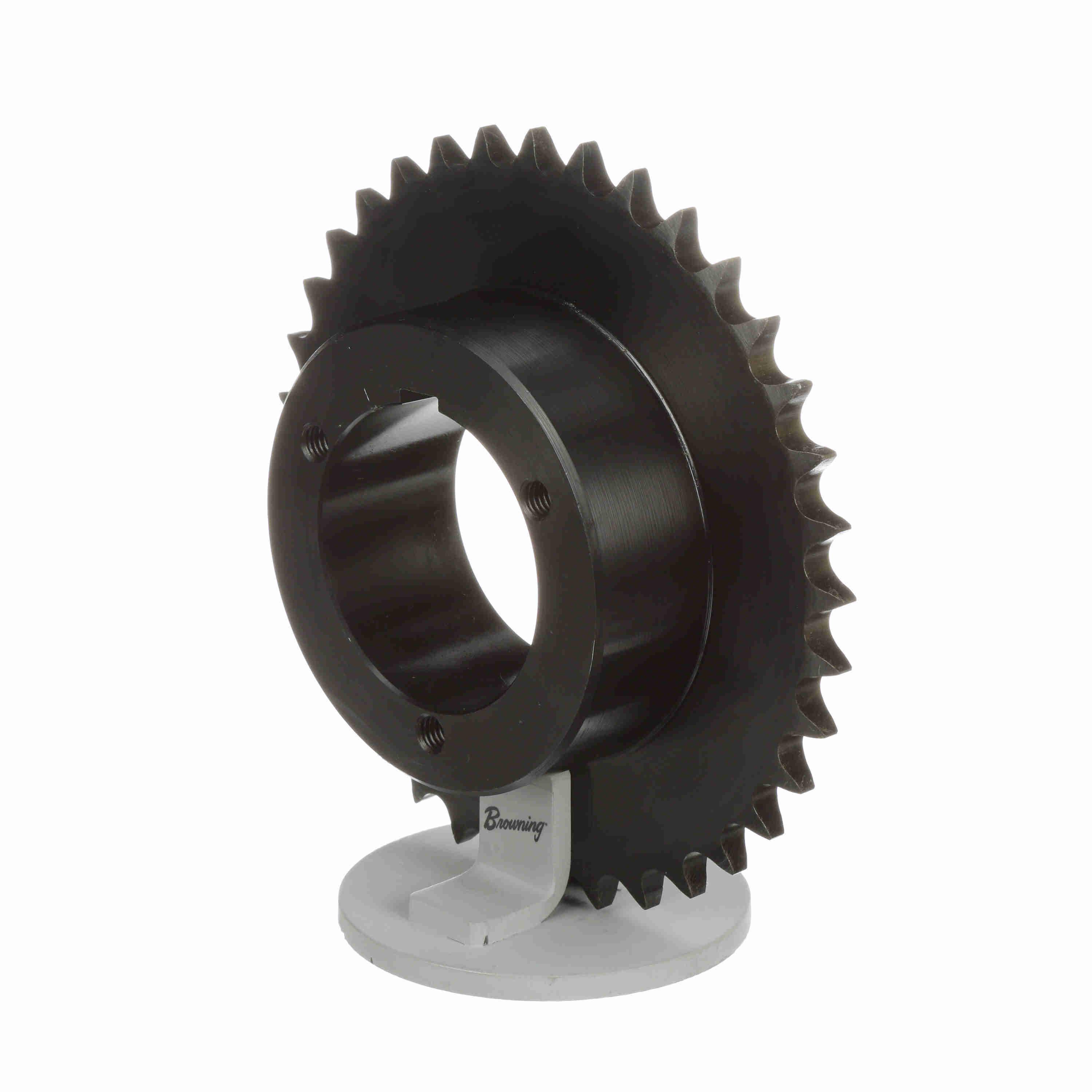

BROWNING 1170752 50Q36 Roller Chain Sprocket, Steel, Split Taper Bushed, 3/4 to 2-11/16 in Bore Dia, 7.519 in OD, #50 Chain Size, 36 Teeth, 7.171 in Pitch Dia
Item: CE4UFYModel: 1170752Cross Ref: 50Q36
7 In Stock
36
4 1/8"
Ships within 2 days via
€563.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bore Dia. | 3/4" |
| Bushing Bore Range | 3/4" to 2 11/16" |
| Bushing Size | Q1 |
| Bushing Type | Type 4 Split Taper |
| Chain Pitch | 5/8" |
| Chain Size | 50 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 4 1/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2 1/2" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 36 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 7.519" |
| Pitch Dia. | 7.171" |
| Pitch Size | 5/8" |
| Product Datasheet | browning-1170703.pdf |
| System Of Measurement | Imperial |
| Type | Single Strand |
Shipping Info:
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 19.1 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 19.1 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Length Through Bore | Hub Dia. | Type | Hub Type | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1170836 | 9.313" | 8 24/25" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | B Hub One Side | Type 4 Split Taper | €526.56 | |
 |
1170901 | 14.292" | 13.931" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €644.70 | |
 |
1170893 | 12.301" | 11.942" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €498.38 | |
 |
1170919 | 14.69" | 14.329" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €681.16 | |
 |
1170745 | 7.519" | 7.171" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €489.09 | |
 |
1170828 | 9.114" | 8.761" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | - | Type 4 Split Taper | €707.40 | |
 |
1170935 | 17.079" | 16.715" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €398.46 |
