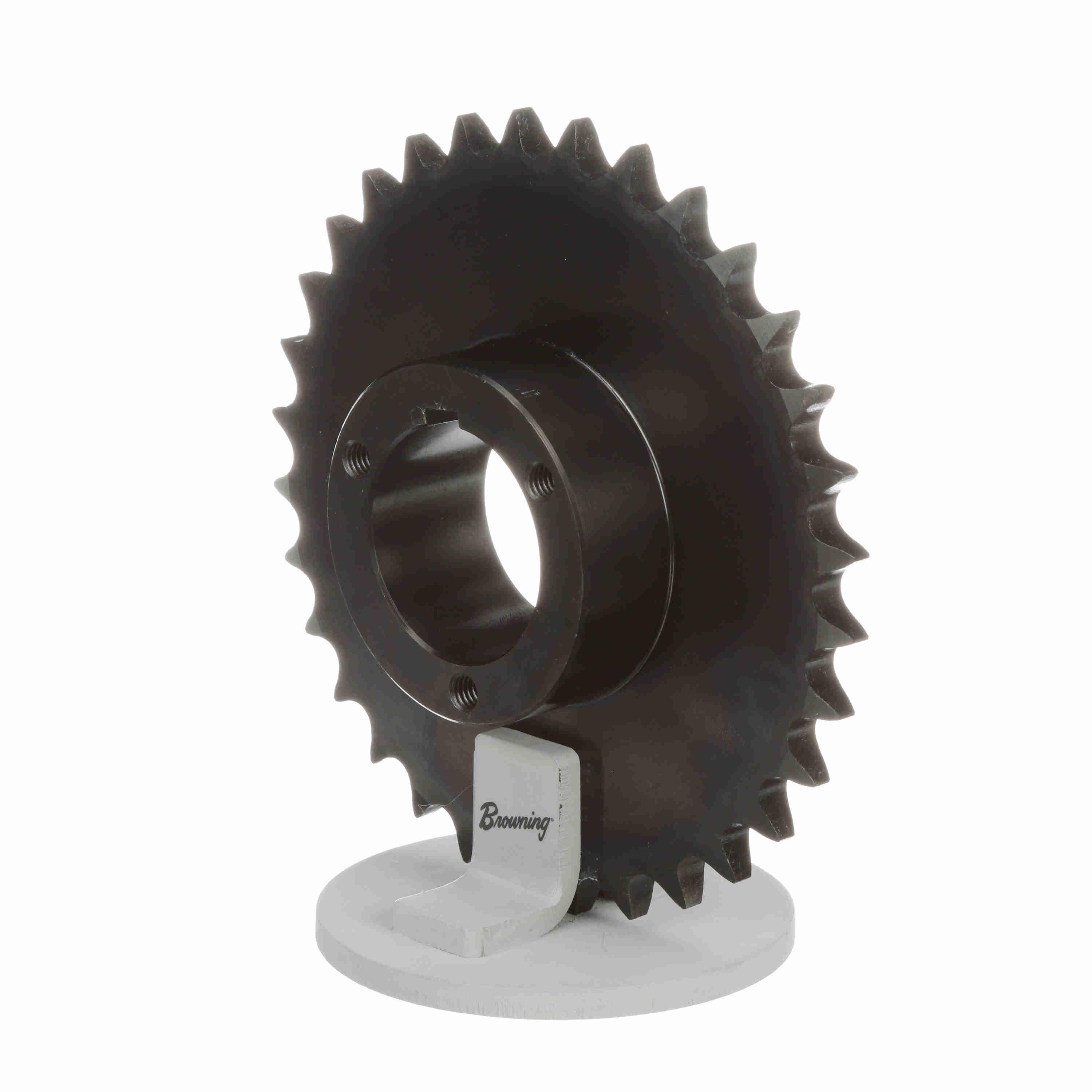

BROWNING 1170687 50P32 Roller Chain Sprocket, Bushed Bore, Steel
Item: BA6JEZModel: 1170687Cross Ref: 50P32
7 In Stock
32
3"
Ships within 2 days via
€525.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1/2" to 1 3/4" |
| Bushing Size | P1 |
| Chain Pitch | 5/8" |
| Chain Size | 50 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 3" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 2.2212" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 32 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 6.721" |
| Pitch Dia. | 6.376" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 3.9 lbs. |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 17.07 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 17.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Bore Dia. | Hub Dia. | Length Through Bore | Type | Hub Type | Keyway | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1170836 | 8 24/25" | 9.313" | 3/4" | 4 1/8" | 2 1/2" | Single Strand | B Hub One Side | Yes | €526.56 | |
 |
1170901 | 13.931" | 14.292" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €644.70 | |
 |
1170893 | 11.942" | 12.301" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €498.38 | |
 |
1170919 | 14.329" | 14.69" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €681.16 | |
 |
1170745 | 7.171" | 7.519" | - | 3" | 2.2212" | Single Strand Type 4 | B Hub One Side | Yes | €489.09 | |
 |
1170828 | 8.761" | 9.114" | 3/4" | 4 1/8" | 2 1/2" | Single Strand | - | - | €707.40 | |
 |
1170935 | 16.715" | 17.079" | - | 4 1/8" | 2.8281" | Single Strand Type 4 | B Hub One Side | Yes | €398.46 |
