BROWNING Steel Single Sprockets With Split Taper Bushings For No. 50 Chain
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z| Style | Model | Outside Dia. | Pitch Dia. | Bore Dia. | Length Through Bore | Hub Dia. | Type | Hub Type | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5032X1 | - | - | - | - | - | - | - | - | €99.25 | |
| A | 50Q112 | - | - | - | - | - | - | - | Split Taper Bushing | €528.43 | |
| A | 5041X 1 15/16 | - | - | - | - | - | - | - | - | €99.48 | |
| A | 5032X 1 1/8 | - | - | - | - | - | - | - | - | €86.63 | |
| A | 5048X 1 1/2 | - | - | 1 1/2" | 1 1/4" | - | - | - | - | €115.50 | |
| A | 5032X3/4 | - | - | - | - | - | - | - | - | €92.68 | |
| A | 5060X1 | - | - | - | 1 1/4" | - | - | - | - | €140.41 | |
| A | 5032X 1 11/16 | - | - | - | - | - | - | - | - | €92.68 | |
| A | 5042X 1 1/4 | - | - | - | - | - | - | - | - | €100.68 | |
| A | 5033X1 | - | - | - | 1 1/4" | - | - | B | - | €88.29 | |
| A | 5048X 1 1/4 | - | - | - | - | - | - | - | - | €115.50 | |
| A | 5032X 1 1/4 | - | - | - | - | - | - | - | - | €92.68 | |
| A | 5045X 1 1/2 | - | - | 1 1/2" | 1 1/4" | - | - | - | - | €111.30 | |
| B | 1170679 | 6.521" | 6.178" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €634.31 | |
| C | 1170687 | 6.721" | 6.376" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €525.87 | |
| D | 1170695 | 6.721" | 6.376" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €559.33 | |
| E | 1170703 | 6.921" | 6.575" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €621.34 | |
| F | 1170711 | 7 3/25" | 6.774" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €621.10 | |
| A | 5035X3/4 | 7 8/25" | - | - | 1 1/4" | - | - | - | - | €107.05 | |
| A | 5036X 1 7/16 | 7 13/25" | - | 1 7/16" | 1 1/4" | - | - | - | - | €109.89 | |
| A | 1138338 | 7 13/25" | 7.171" | 1 1/2" | 1 1/4" | 3.516" | Finished Bore Single Strand Type 1 | - | - | €92.57 | |
| G | 1170729 | 7.319" | 6.972" | 1/2" | 1.938" | 3" | Single Strand | - | Type 4 Split Taper | €652.38 | |
| H | 1170737 | 7.319" | 6.972" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | - | Type 4 Split Taper | €611.69 | |
| I | 1170752 | 7.519" | 7.171" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | B Hub One Side | Type 4 Split Taper | €563.08 | |
| A | 3924461 | 7.519" | 7.171" | 3/4" | 1.078" | 3.516" | Finished Bore Single Strand Type 1 | B Hub One Side | - | €92.57 | |
| A | 1138353 | 7.519" | 7.171" | 1 3/4" | 1 1/4" | 3.516" | Finished Bore Single Strand Type 1 | B Hub One Side | - | €92.57 | |
| J | 1170745 | 7.519" | 7.171" | - | 2.2212" | 3" | Single Strand Type 4 | B Hub One Side | - | €489.09 | |
| K | 1170778 | 7.918" | 7.568" | 3/4" to 2 11/16" | 2.8281" | 4 1/8" | Single Strand Type 4 | - | - | €560.69 | |
| A | 5040X 1 7/16 | 8 8/25" | - | 1 7/16" | 1 1/4" | - | - | - | - | €105.14 | |
| L | 1170786 | 8.117" | 7.768" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €632.63 | |
| M | 1170794 | 8.316" | 7.966" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €578.16 | |

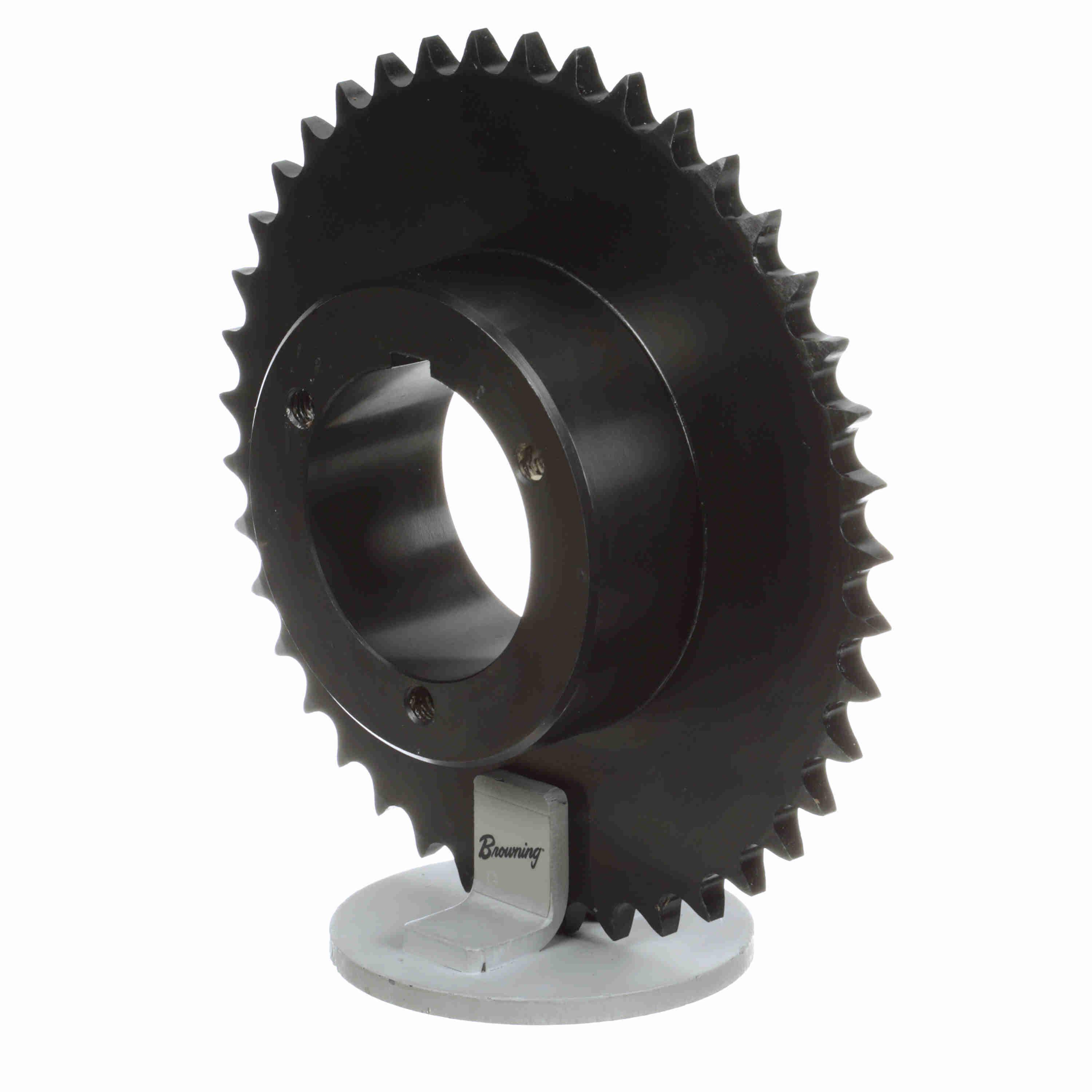

| N | 1170802 | 8.516" | 8.165" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €717.87 | |
| O | 1170810 | 8.715" | 8.364" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | B Hub One Side | Type 4 Split Taper | €588.18 | |
| A | 3963626 | 9.31" | 8 24/25" | 1 15/16" | 1.078" | 3.766" | Finished Bore Single Strand Type 1 | - | - | €103.18 | |
| A | 5048X1 | 9.91" | 9.556" | 1" | 1 1/4" | 3.766" | Single Strand Finished Bore Type 1 | - | - | €115.50 | |
| P | 1170828 | 9.114" | 8.761" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | - | Type 4 Split Taper | €707.40 | |
| Q | 1170836 | 9.313" | 8 24/25" | 3/4" | 2 1/2" | 4 1/8" | Single Strand | B Hub One Side | Type 4 Split Taper | €526.56 | |

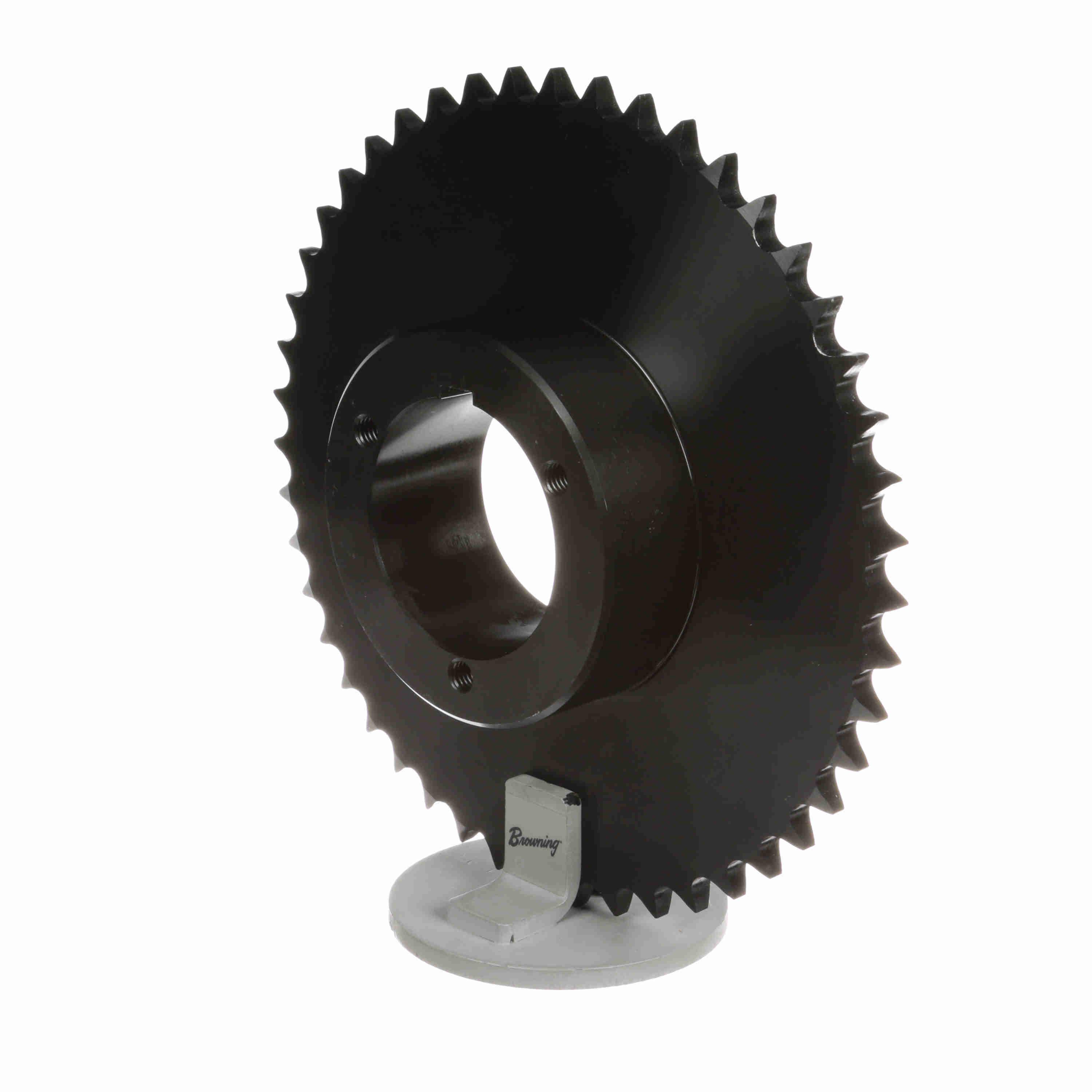

| R | 1170844 | 9.711" | 9.357" | 3/4" to 2 11/16" | 2.8281" | 4 1/8" | Single Strand Type 4 | - | - | €738.81 | |
| S | 1170851 | 9.911" | 9.556" | 3/4" to 2 11/16" | 2.8281" | 4 1/8" | Single Strand Type 4 | - | - | €594.57 | |
| A | 5050X1 | 10.31" | - | - | 1 1/4" | - | - | - | - | €149.22 | |

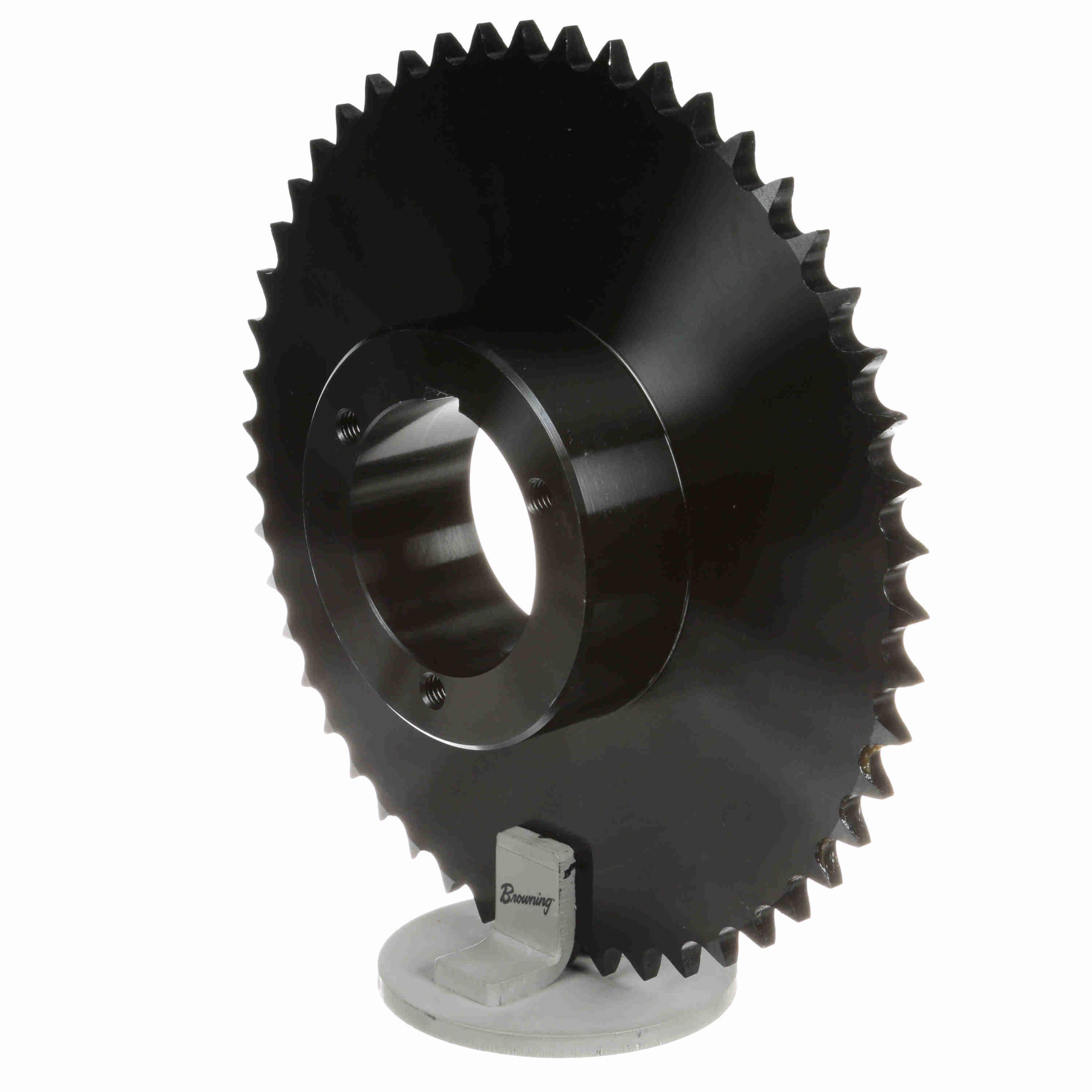

| T | 1170869 | 10.309" | 9.954" | 3/4" to 2 11/16" | 2.8281" | 4 1/8" | Single Strand Type 4 | - | - | €712.16 | |

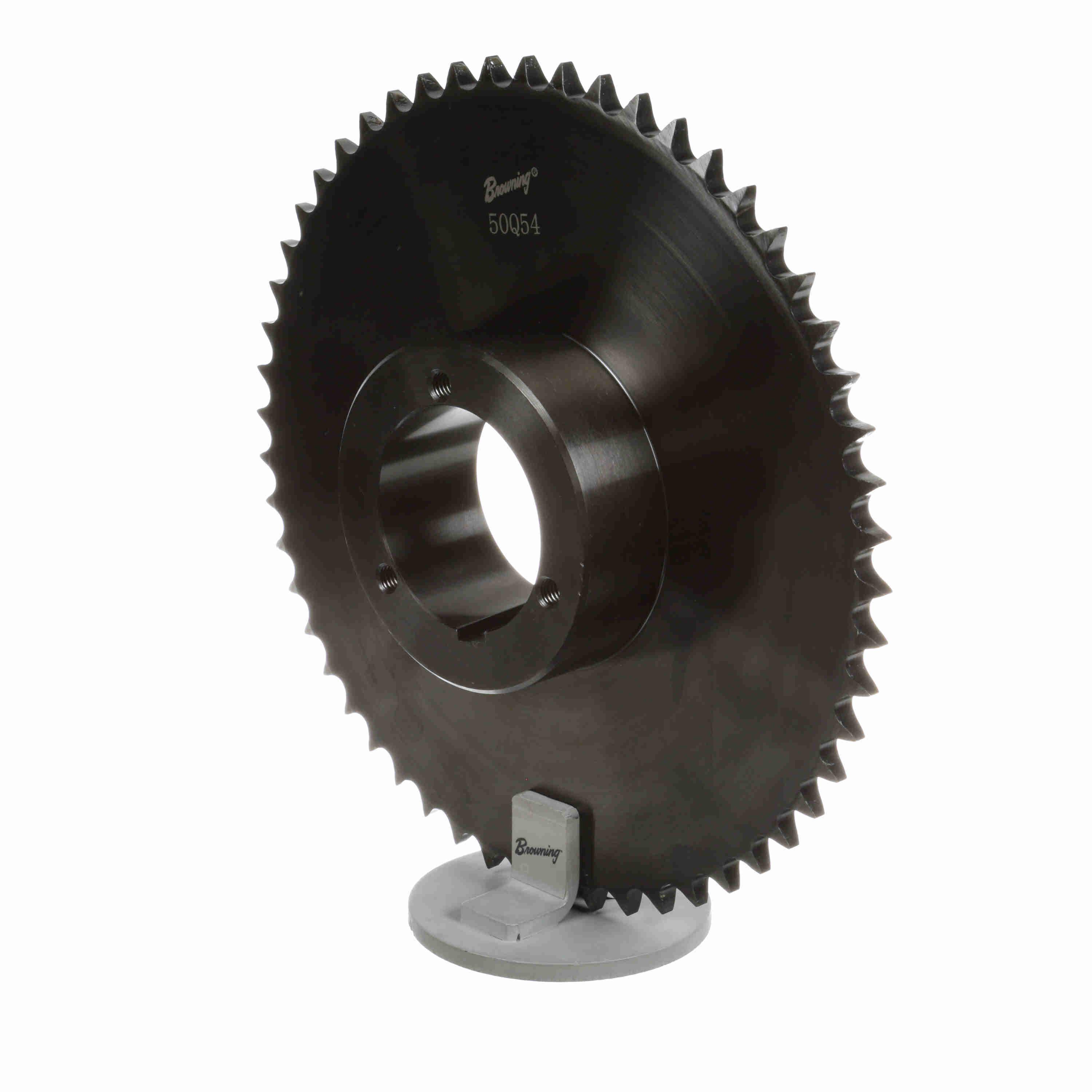

| U | 1170877 | 11.106" | 10.749" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €679.95 | |
| V | 1170885 | 11.504" | 11.147" | 3/4" to 2 11/16" | 2.8281" | 4 1/8" | Single Strand Type 4 | - | - | €627.21 | |
| W | 1170893 | 12.301" | 11.942" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €498.38 | |
| X | 1170919 | 14.69" | 14.329" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €681.16 | |
| Y | 1170901 | 14.292" | 13.931" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €644.70 | |
| Z | 1170927 | 16.283" | 15.919" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €830.84 | |
| A | 1170935 | 17.079" | 16.715" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €398.46 | |
| A | 1170943 | 19.467" | 19.102" | - | 2.8281" | 4 1/8" | Single Strand Type 4 | B Hub One Side | - | €526.17 |
