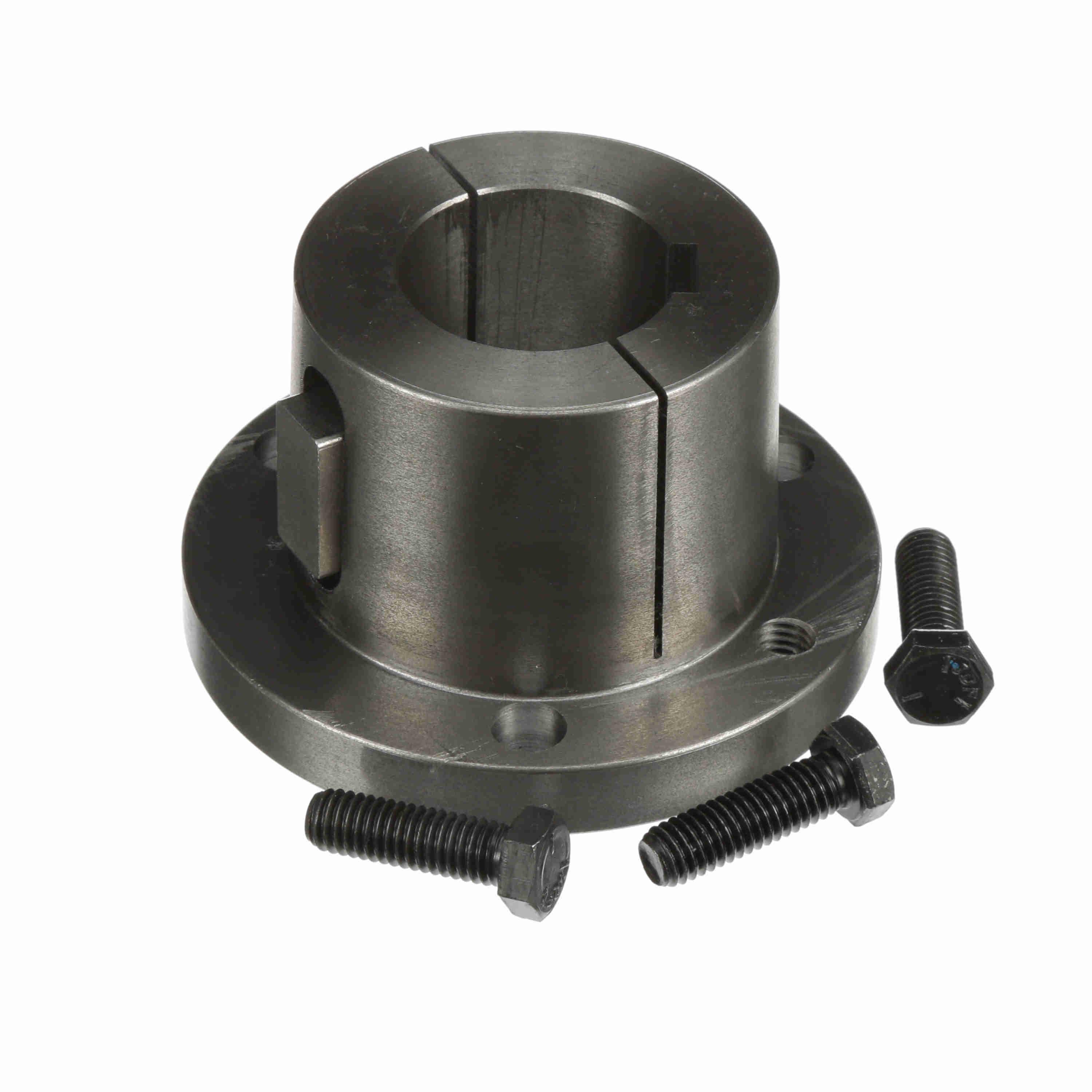

BROWNING 1079763 Q1 40 MM Split Taper Bushing, 40 mm Bore Size, 4.125 Inch Outer Dia., Q1 Split Taper Bushing, Sintered Steel/ Ductile Iron
Item: AJ9XFAModel: 1079763Cross Ref: Q1 40 MM
7 In Stock
40 mm
Ships within 2 days via
€115.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 2.7657", 2.875" |
| Bolt Circle Dia. | 3 3/8" |
| Bore Size | 40 mm |
| Bushing Series | Q1 Series |
| Bushing Style | Split Taper |
| Flange Dia. | 4 1/8" |
| Flange Thickness | 17/32" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway | Yes |
| Length Thru Bore | 2 1/2" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2 7/8" |
| Overall Length | 63.5 mm |
| Screw Size | 3/8" x 1 1/4" |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 7.32 |
| Country of Origin | MX |
Product Variants
| Product | Model | Material | Screw Size | Flange Thickness | Bore Size | Key Way Size | Bolt Circle Dia. | Type | No. Of Bolt Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1079664 | Sintered Steel | 3/8" x 1 1/4" | 17/32" | 20 mm | - | 3 3/8" | - | 3 | €201.93 | |
 |
1079672 | Sintered Steel | 3/8" x 1 1/4" | 17/32" | 22 mm | - | 3 3/8" | - | 3 | €80.77 | RFQ
|
 |
1079680 | Sintered Steel | 3/8" x 1 1/4" | 0.531" | 24 mm | - | 3 3/8" | Type Q1 | 3 | €90.60 | |
 |
1079698 | Sintered Steel | 3/8" x 1 1/4" | 17/32" | 25 mm | - | 3 3/8" | - | 3 | €93.20 | |
 |
1079706 | Sintered Steel | 3/8" x 1 1/4" | 0.531" | 28 mm | - | 3 3/8" | Type Q1 | 3 | €118.06 | |
 |
1079714 | Sintered Steel | 3/8" x 1 1/4" | 0.531" | 30 mm | - | 3 3/8" | Type Q1 | 3 | €115.83 | |
 |
1079722 | Sintered Steel | 3/8" x 1 1/4" | 0.531" | 32 mm | - | 3 3/8" | Type Q1 | 3 | €93.20 |
