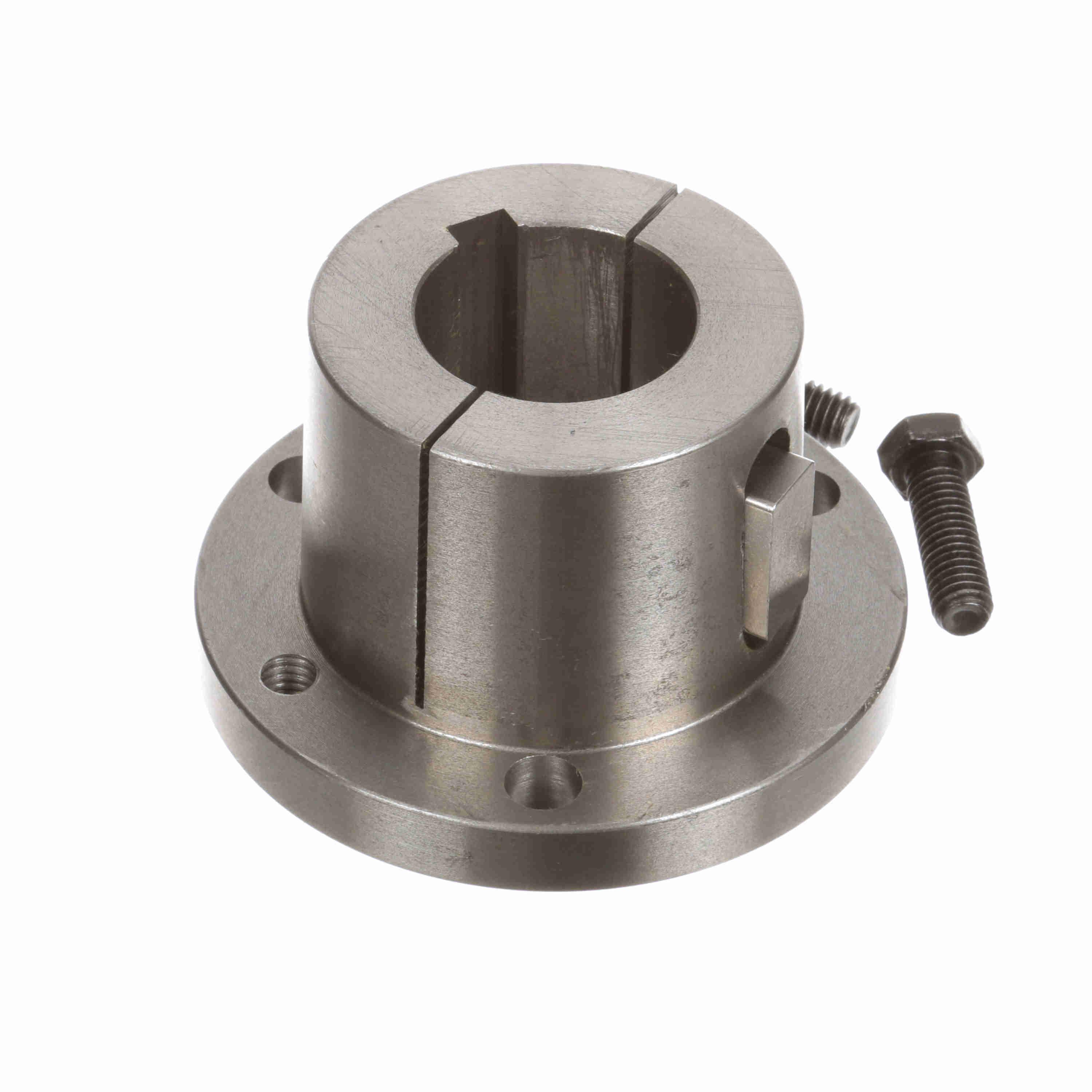

BROWNING 1078963 Q1 1 9/16 Split Taper Bushing, 1.5625 Inch Bore Size, 4.125 Inch Outer Dia., Q1 Split Taper Bushing, Sintered Steel/ Ductile Iron
€76.43 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Split Taper Bushing |
| Barrel Dia. | 2.7657", 2.875" |
| Bolt Circle Dia. | 3 3/8" |
| Bore Size | 1 9/16" |
| Flange Dia. | 4 1/8" |
| Flange Thickness | 17/32" |
| For Use With | Browning Multiple Groove Sheave |
| Keyway Size | 3/4" x 3/16" |
| Material | Sintered Steel |
| No. Of Bolt Holes | 3 |
| Overall Length | 2 1/2" |
| Screw Size | 3/8" x 1 1/4" |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Outside Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
1079094 | 2 1/2" | 17/32" | 2 3/8" | 5/8" x 5/16" | 3 3/8" | 2 7/8" | - | €87.15 | |
 |
1079813 | 2 1/2" | 0.531" | 55 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €115.83 | |
 |
1079755 | 2 1/2" | 0.531" | - | - | 3 3/8" | 2 7/8" | Type Q1 | €114.18 | |
 |
1079680 | 2 1/2" | 0.531" | 24 mm | - | 3 3/8" | 2 7/8" | Type Q1 | €78.53 | RFQ
|
 |
1079102 | 2 1/2" | 17/32" | 2 7/16" | 5/8" x 5/16" | 3 3/8" | 2 7/8" | - | €87.15 | |
 |
1079110 | 2 1/2" | 17/32" | 2 1/2" | 5/8" x 5/16" | 3 3/8" | 2 7/8" | - | €92.59 | |
 |
1079037 | 2 1/2" | 17/32" | 2" | 1/2" x 1/4" | 3 3/8" | 2 7/8" | - | €87.15 |
