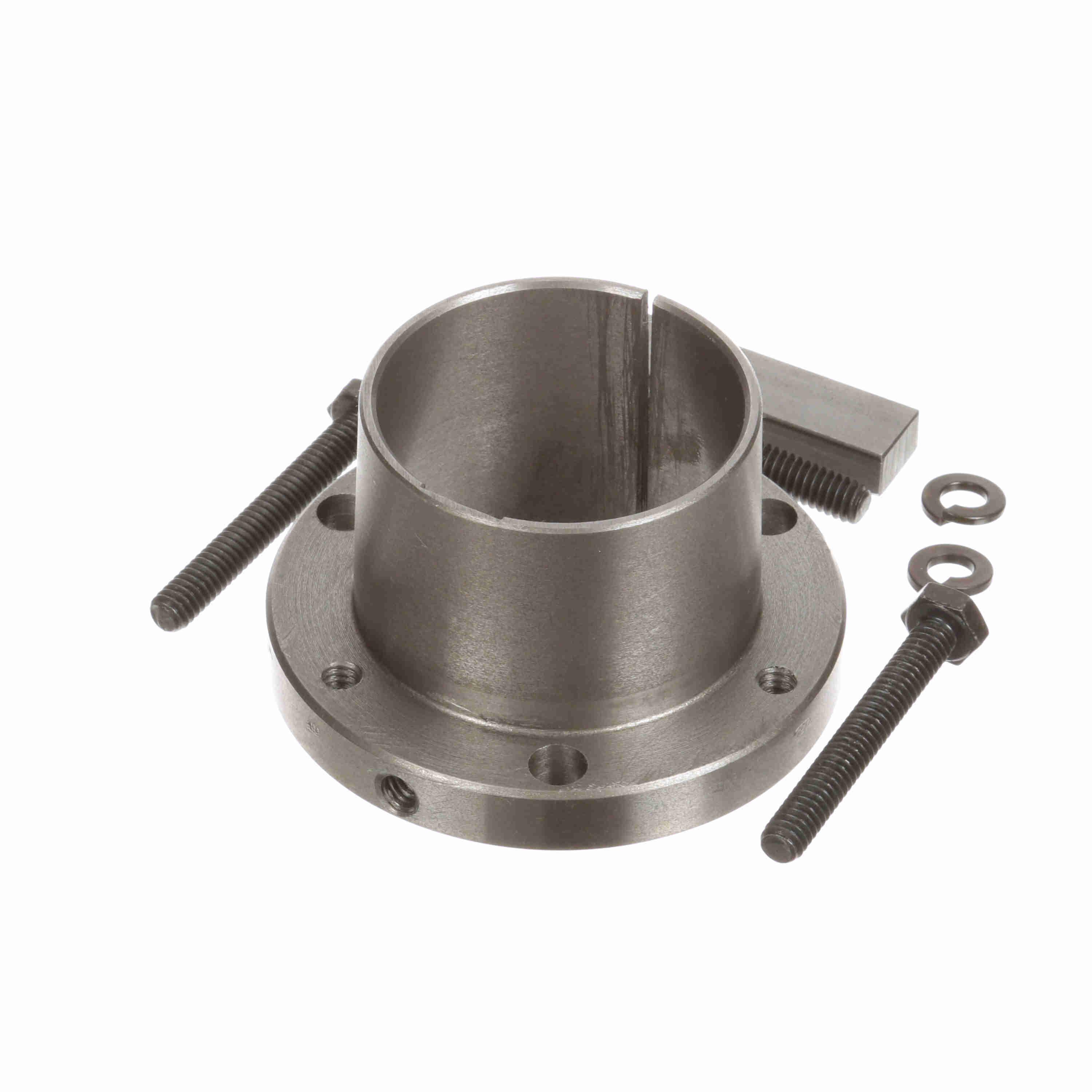

BROWNING 1076819 SD 1 15/16 Q-D Bushing, 1.9375 Inch Bore Size, 3.125 Inch Outer Diameter, SD Bushing, Ductile Iron
Item: AJ9QGXModel: 1076819Cross Ref: SD 1 15/16
7 In Stock
1 15/16"
7/16"
Ships within 2 days via
€108.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Barrel Dia. | 2 3/16" |
| Bolt Circle Dia. | 2 11/16" |
| Bore Size | 1 15/16" |
| Flange Dia. | 3 1/8" |
| Flange Thickness | 7/16" |
| For Use With | Browning Sheaves, Sprockets And Pulleys |
| Keyway Size | 1/2" x 1/4" |
| Material | Ductile Iron |
| No. Of Bolt Holes | 3 |
| Overall Length | 1.83" |
| Rated Torque | 5000 lbs.-in. |
| Screw Size | 1/4"-20 |
| Screw Thread Length | 1 7/8" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 4.65 |
| Ship width (cm) | 7.95 |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1076561 | 1.83" | 7/16" | 1/2" | 1/8" x 1/16" | 2 11/16" | 2.187" | - | - | €51.68 | RFQ
|
 |
1076587 | 1.83" | 7/16" | 5/8" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €129.18 | |
 |
1076603 | 1.83" | 7/16" | 3/4" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €51.68 | RFQ
|
 |
1076645 | 1.83" | 7/16" | 1" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €108.67 | |
 |
1076660 | 1.83" | 7/16" | 1 1/8" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €68.78 | |
 |
1076678 | 1.83" | 7/16" | 1 3/16" | 1/4" x 1/8" | 2 11/16" | - | 5000 lbs.-in. | - | €51.68 | RFQ
|
 |
1076686 | 1.83" | 7/16" | 1 1/4" | 1/4" x 1/8" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €50.25 | RFQ
|
