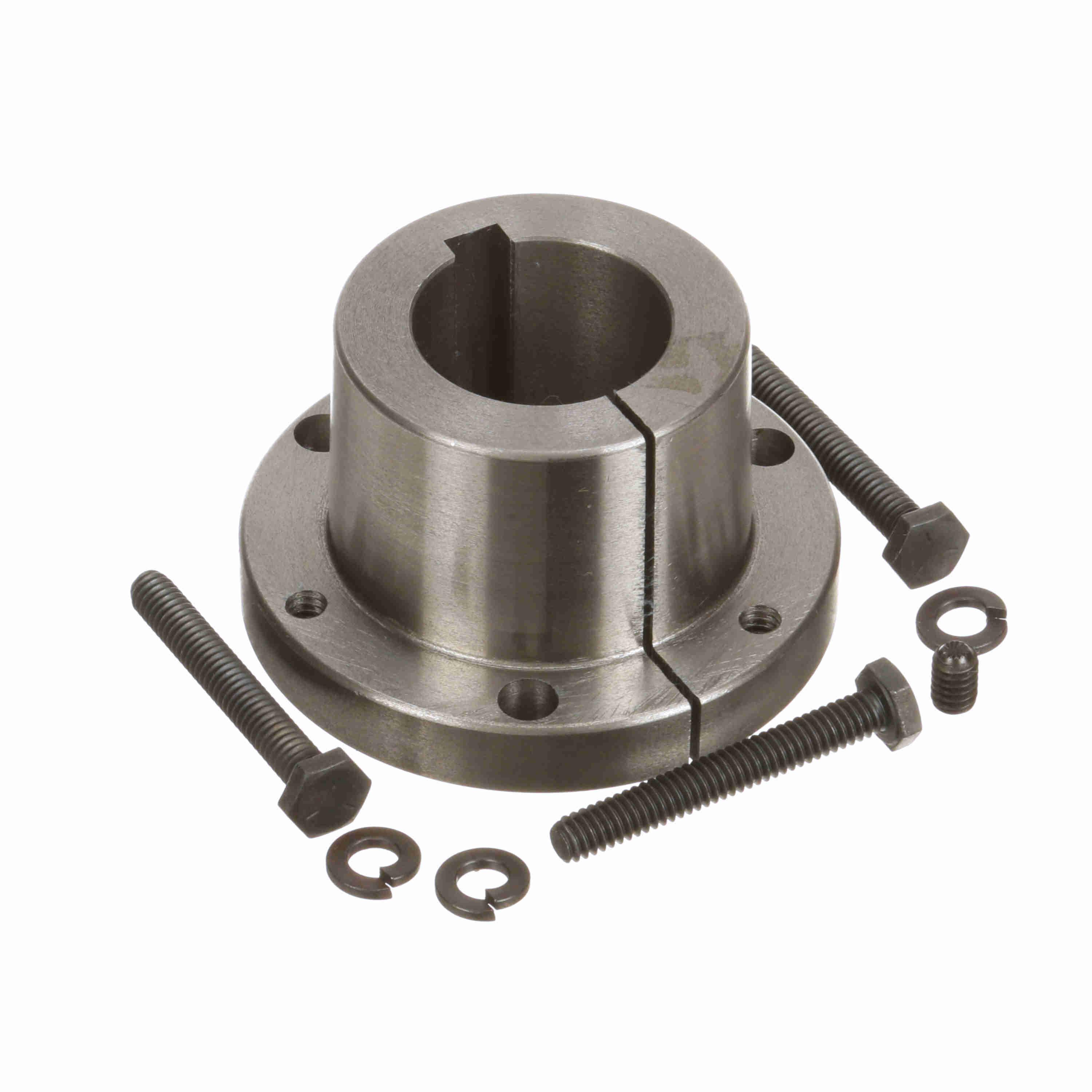

BROWNING 1076694 SD 1 5/16 5/16 Q-D Bushing, Bore Type
Item: BA3VEZModel: 1076694Cross Ref: SD 1 5/16 5/16
7 In Stock
1 5/16"
0.45"
Ships within 2 days via
€129.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Quick Detachable Bushing |
| Bolt Circle Dia. | 2 11/16" |
| Bore Size | 1 5/16" |
| Bushing Series | SD Series |
| Bushing Style | QD |
| Flange Dia. | 3 1/8" |
| Flange Thickness | 0.45" |
| For Use With | Gearbelt Sheaves, Sprockets And Pulleys |
| Keyway | Yes |
| Keyway Size | 5/16" x 5/32" |
| Length Thru Bore | 1.813" |
| Material | Cast Iron |
| No. Of Bolt Holes | 3 |
| Outside Dia. | 2.187" |
| Overall Length | 1.83" |
| Rated Torque | 5000 lbs.-in. |
| Screw Size | 1/4"-20 |
| Screw Thread Length | 1 7/8" |
| System Of Measurement | Imperial |
| Type | Type SD |
| Weight | 1.58 lbs. |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 10.67 |
Product Variants
| Product | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1076561 | 1.83" | 7/16" | 1/2" | 1/8" x 1/16" | 2 11/16" | 2.187" | - | - | €51.68 | RFQ
|
 |
1076587 | 1.83" | 7/16" | 5/8" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €129.18 | |
 |
1076603 | 1.83" | 7/16" | 3/4" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €51.68 | RFQ
|
 |
1076645 | 1.83" | 7/16" | 1" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €108.67 | |
 |
1076660 | 1.83" | 7/16" | 1 1/8" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €68.78 | |
 |
1076678 | 1.83" | 7/16" | 1 3/16" | 1/4" x 1/8" | 2 11/16" | - | 5000 lbs.-in. | - | €51.68 | RFQ
|
 |
1076686 | 1.83" | 7/16" | 1 1/4" | 1/4" x 1/8" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €50.25 | RFQ
|
