BROWNING SD Type, Quick Disconnect Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Overall Length | Flange Thickness | Bore Size | Keyway Size | Bolt Circle Dia. | Outside Dia. | Rated Torque | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1076561 | 1.83" | 7/16" | 1/2" | 1/8" x 1/16" | 2 11/16" | 2.187" | - | - | €51.68 | RFQ
|

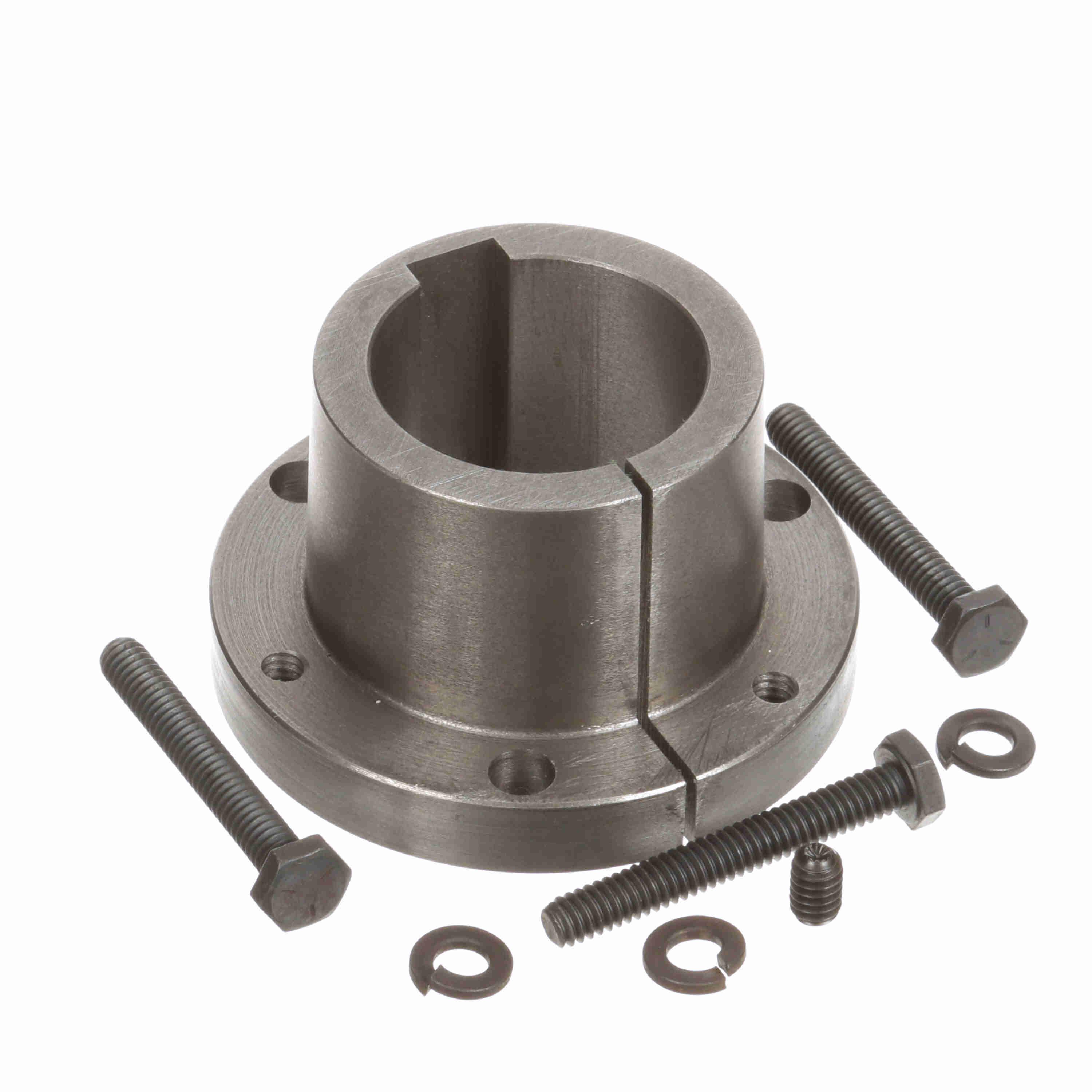

| B | 3208196 | 1.83" | 0.45" | 40 mm | 10 mm x 4 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €68.65 | |
| C | 1076595 | 1.83" | 7/16" | 11/16" | 3/16" x 3/32" | 2 11/16" | 2.187" | - | - | €118.52 | |

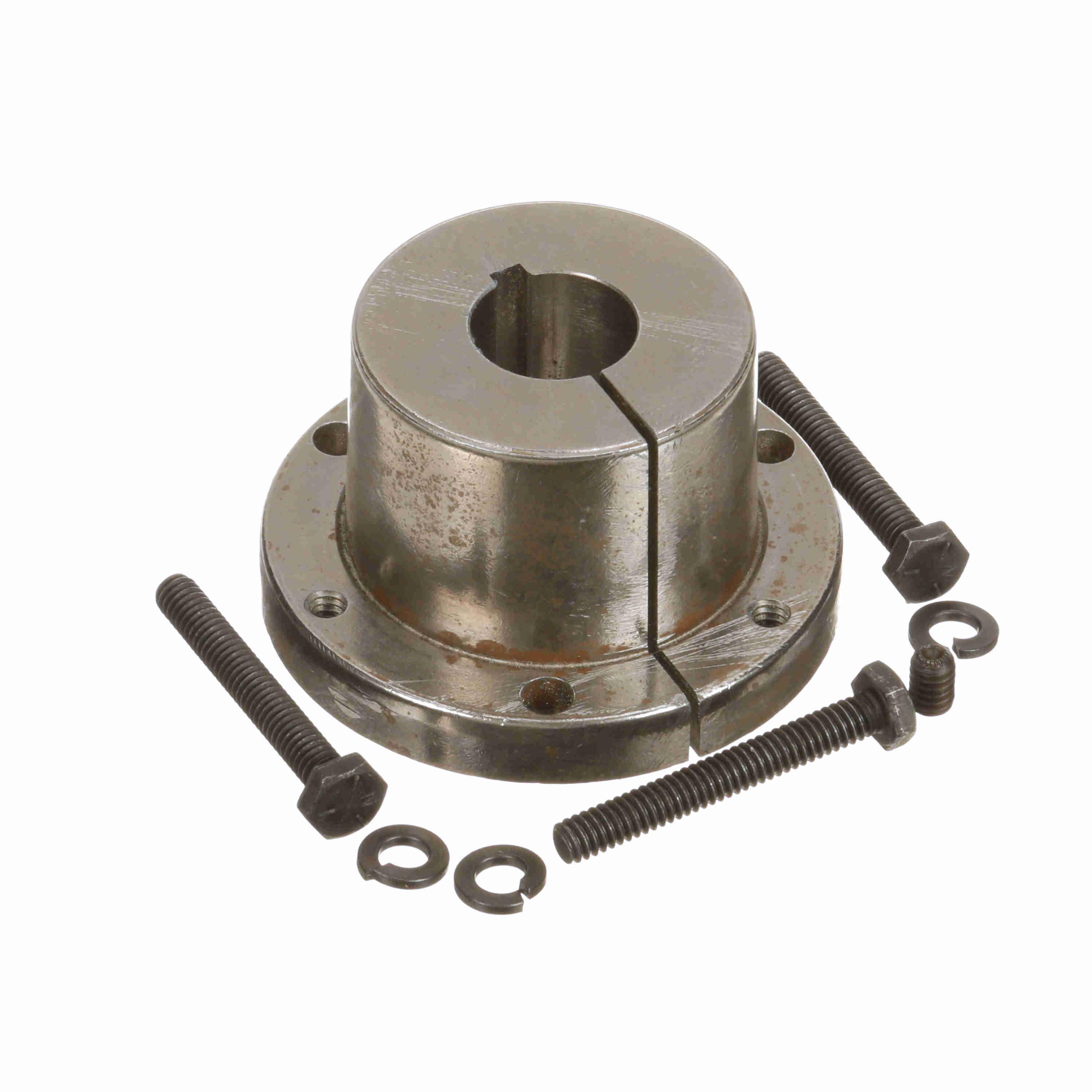

| D | 1076629 | 1.83" | 7/16" | 7/8" | 3/16" x 3/32" | 2 11/16" | 2.187" | - | - | €66.83 | |

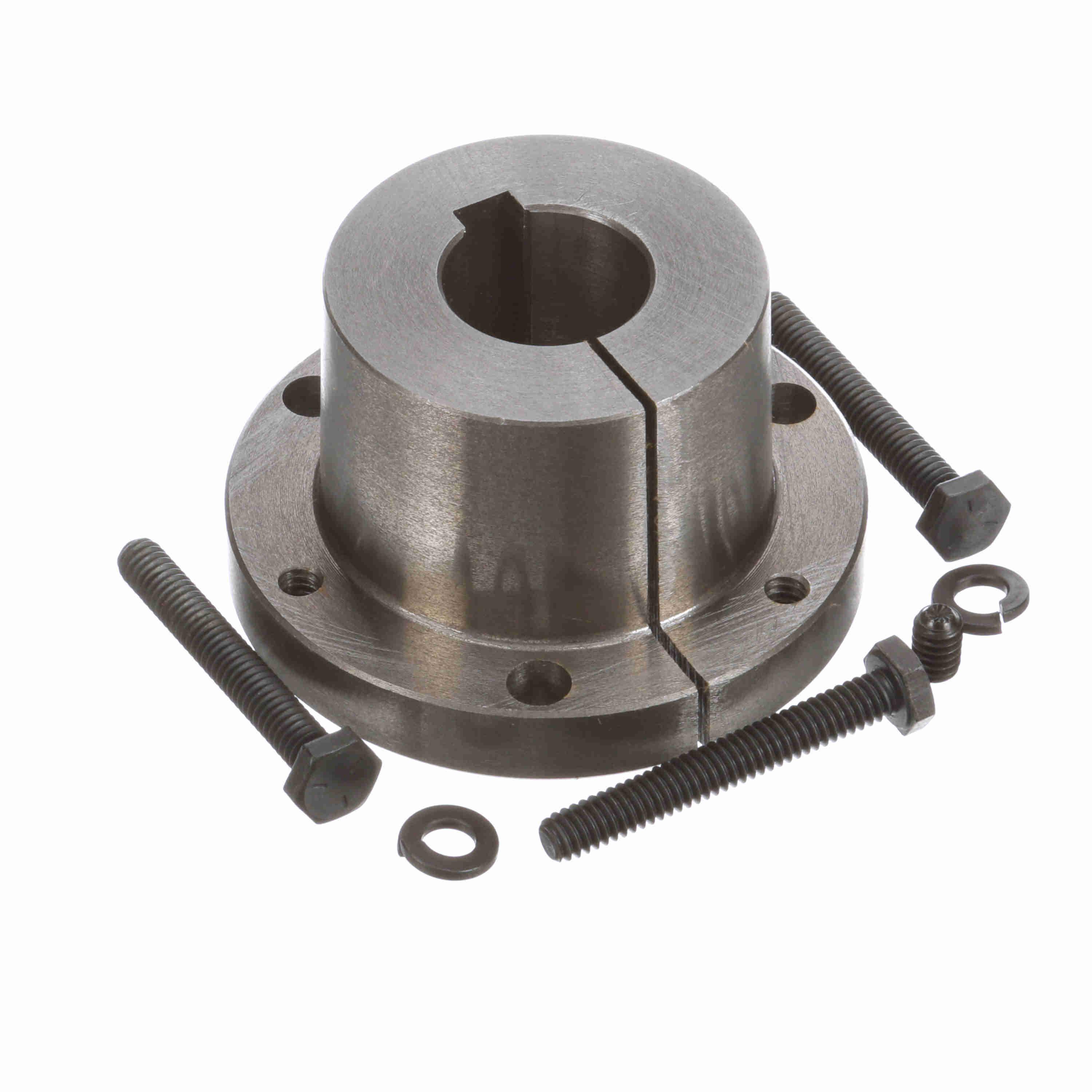

| E | 3208139 | 1.83" | 0.45" | 25 mm | 8 mm x 3.5 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €68.65 | |

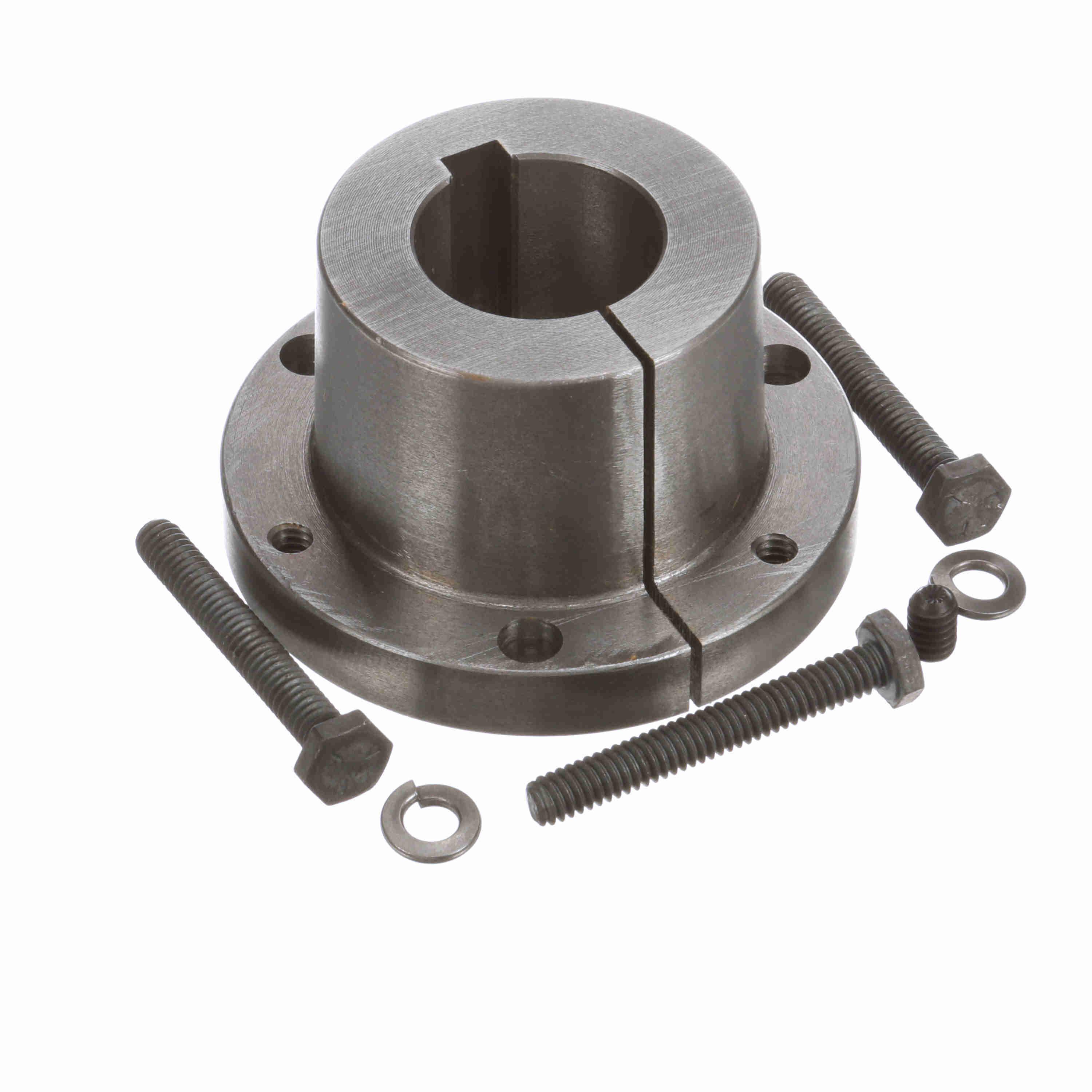

| F | 3208154 | 1.83" | 0.45" | 30 mm | 8 mm x 3.5 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €68.65 | |
| G | 1076579 | 1.83" | 0.45" | 9/16" | 1/8" x 1/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €112.86 | |
| G | 1076751 | 1.83" | 7/16" | 1 9/16" | 3/4" x 3/16" | 2 11/16" | 2.187" | - | - | €66.83 | |
| H | 1076694 | 1.83" | 0.45" | 1 5/16" | 5/16" x 5/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €129.18 | |
| I | 1076710 | 1.83" | 7/16" | 1 3/8" | 5/16" x 5/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €68.78 | |
| J | 1076744 | 1.83" | 7/16" | 1 1/2" | 3/4" x 3/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €73.04 | |
| K | 3208121 | 1.83" | 0.45" | 24 mm | 8 mm x 3.5 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €132.74 | |
| G | 1076611 | 1.83" | 0.45" | 13/16" | 3/16" x 3/32" | 2 11/16" | - | 5000 lbs.-in. | Type SD | €112.86 | |
| G | 1076793 | 1.83" | 7/16" | 1 13/16" | 1/2" x 1/4" | 2 11/16" | 2.187" | - | - | €61.29 | |

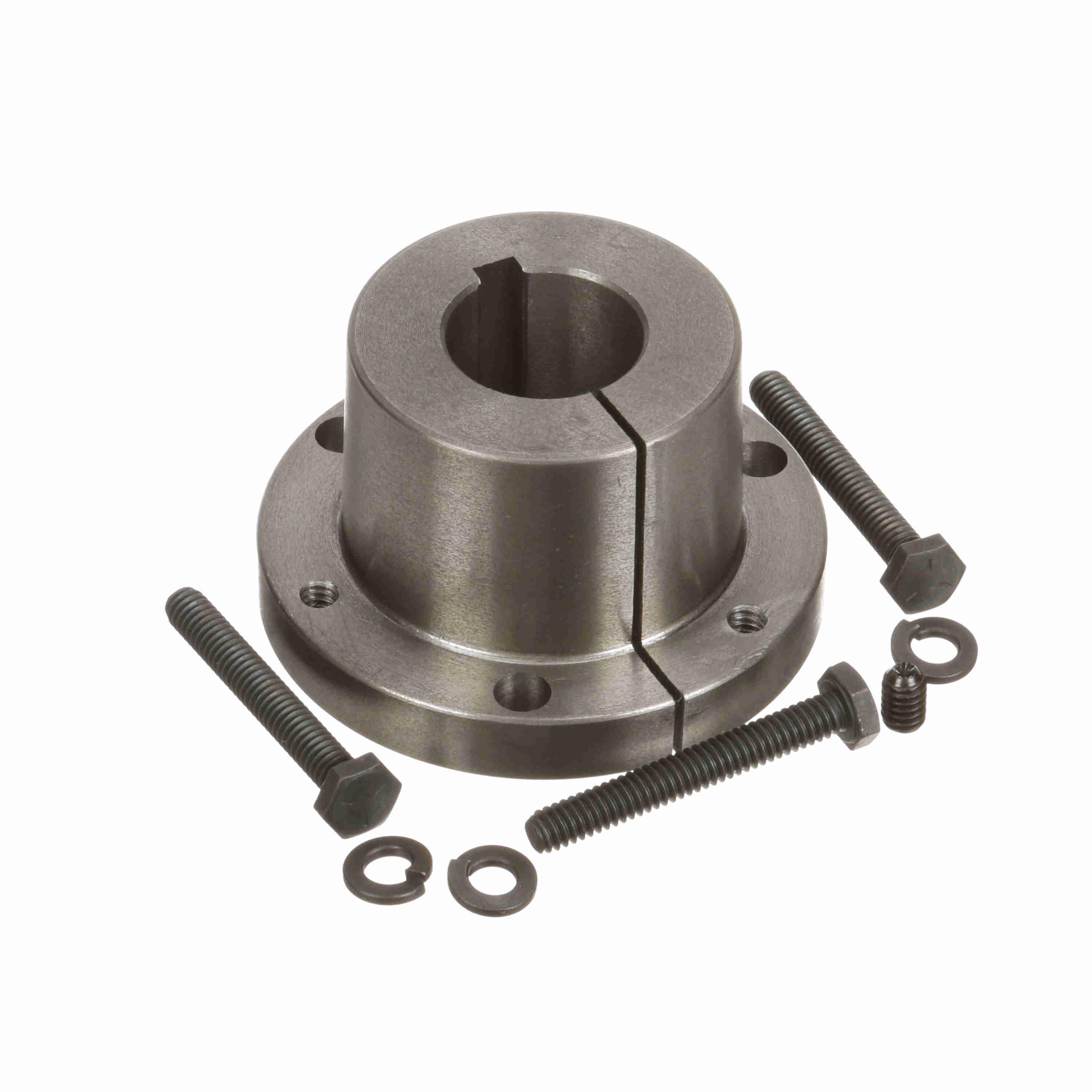

| L | 1076652 | 1.83" | 7/16" | 1 1/16" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €61.29 | |

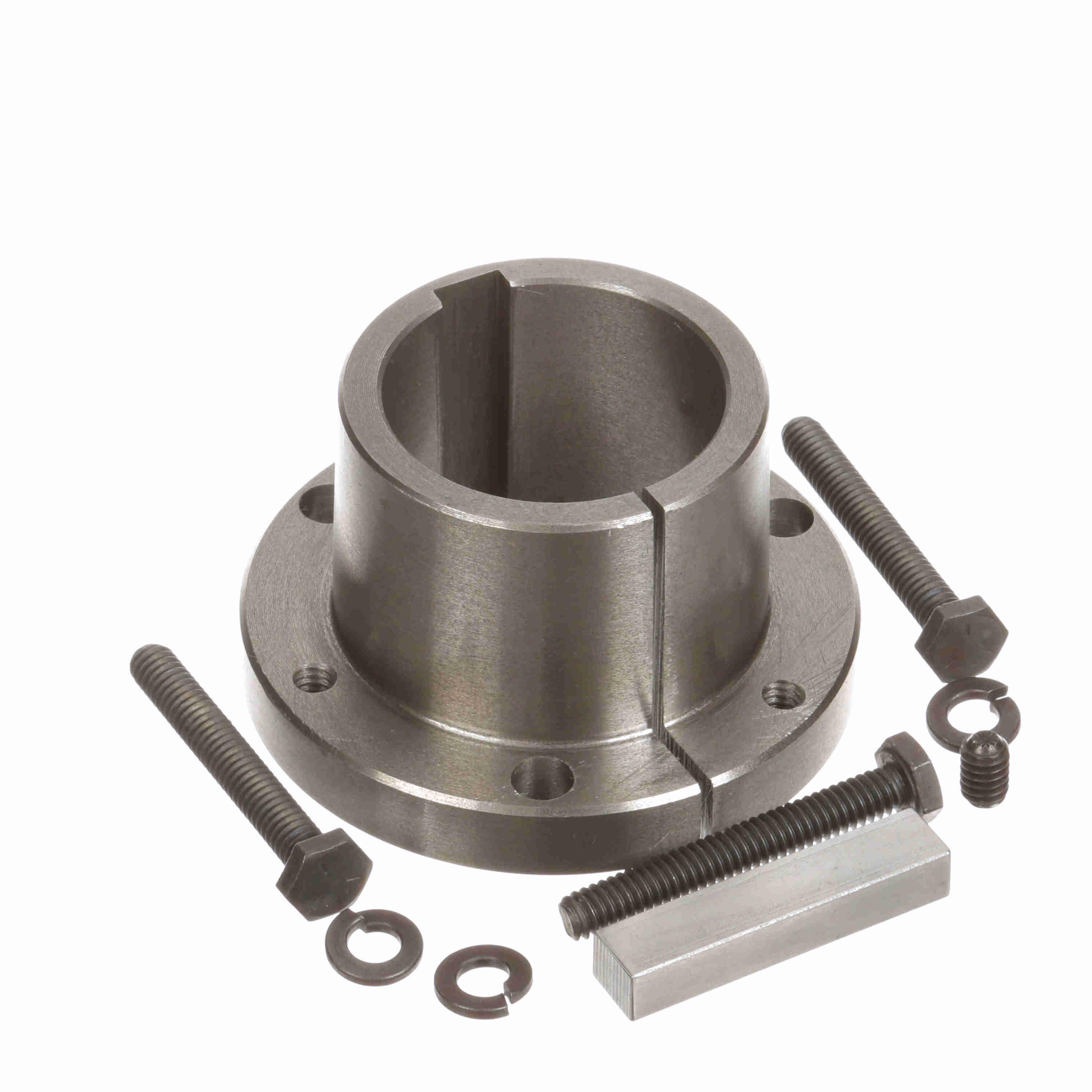

| M | 1076777 | 1.83" | 7/16" | 1 11/16" | 3/4" x 3/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €66.83 | |
| N | 3208204 | 1.83" | 0.45" | 42 mm | 10 mm x 4 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €66.81 | |
| O | 3208147 | 1.83" | 0.45" | 28 mm | 8 mm x 3.5 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €132.74 | |
| G | 1076587 | 1.83" | 7/16" | 5/8" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €129.18 | |
| P | 1076736 | 1.83" | 7/16" | 1 7/16" | 3/4" x 3/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €108.67 | |

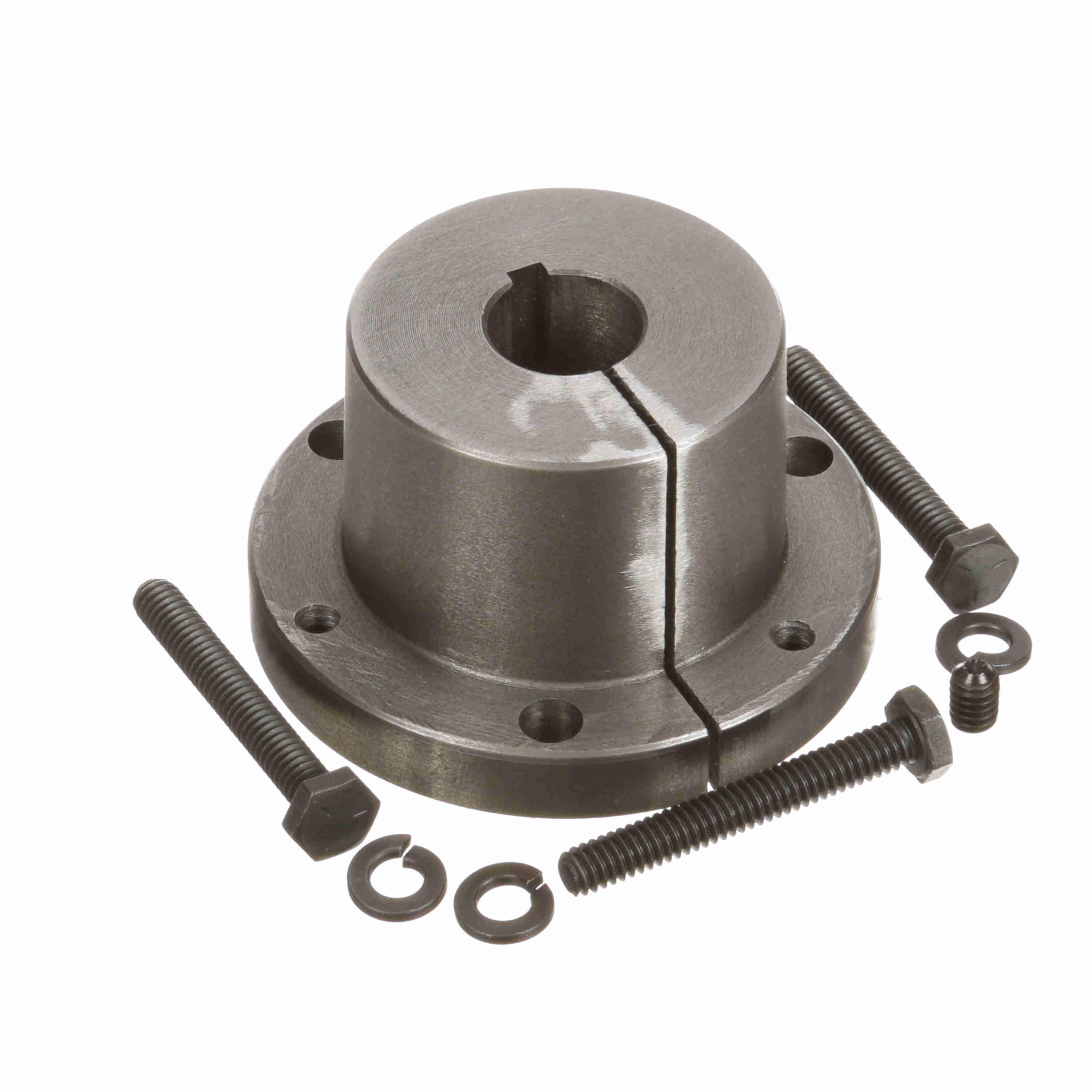

| Q | 1076603 | 1.83" | 7/16" | 3/4" | 3/16" x 3/32" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €51.68 | RFQ
|

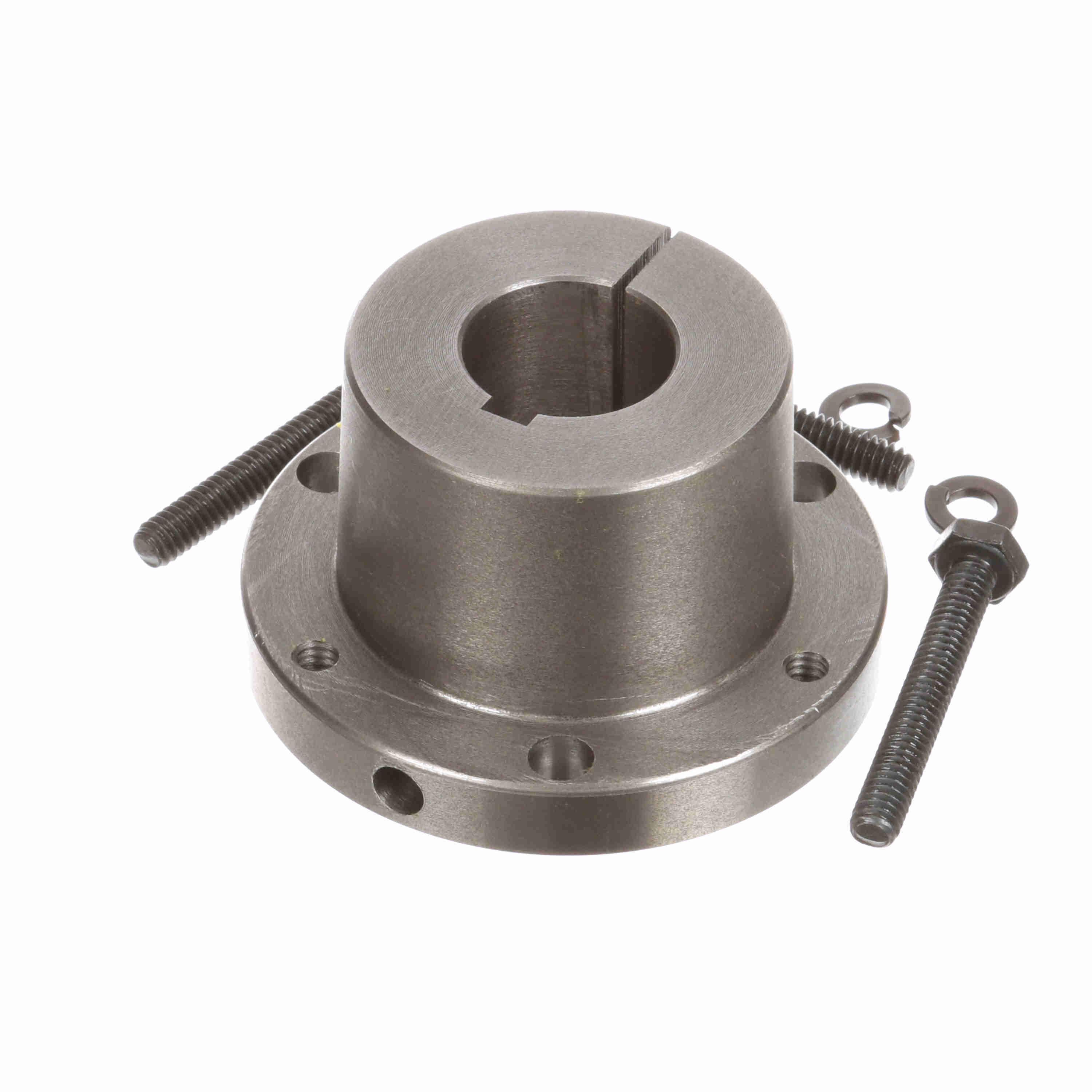

| R | 1076645 | 1.83" | 7/16" | 1" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €108.67 | |

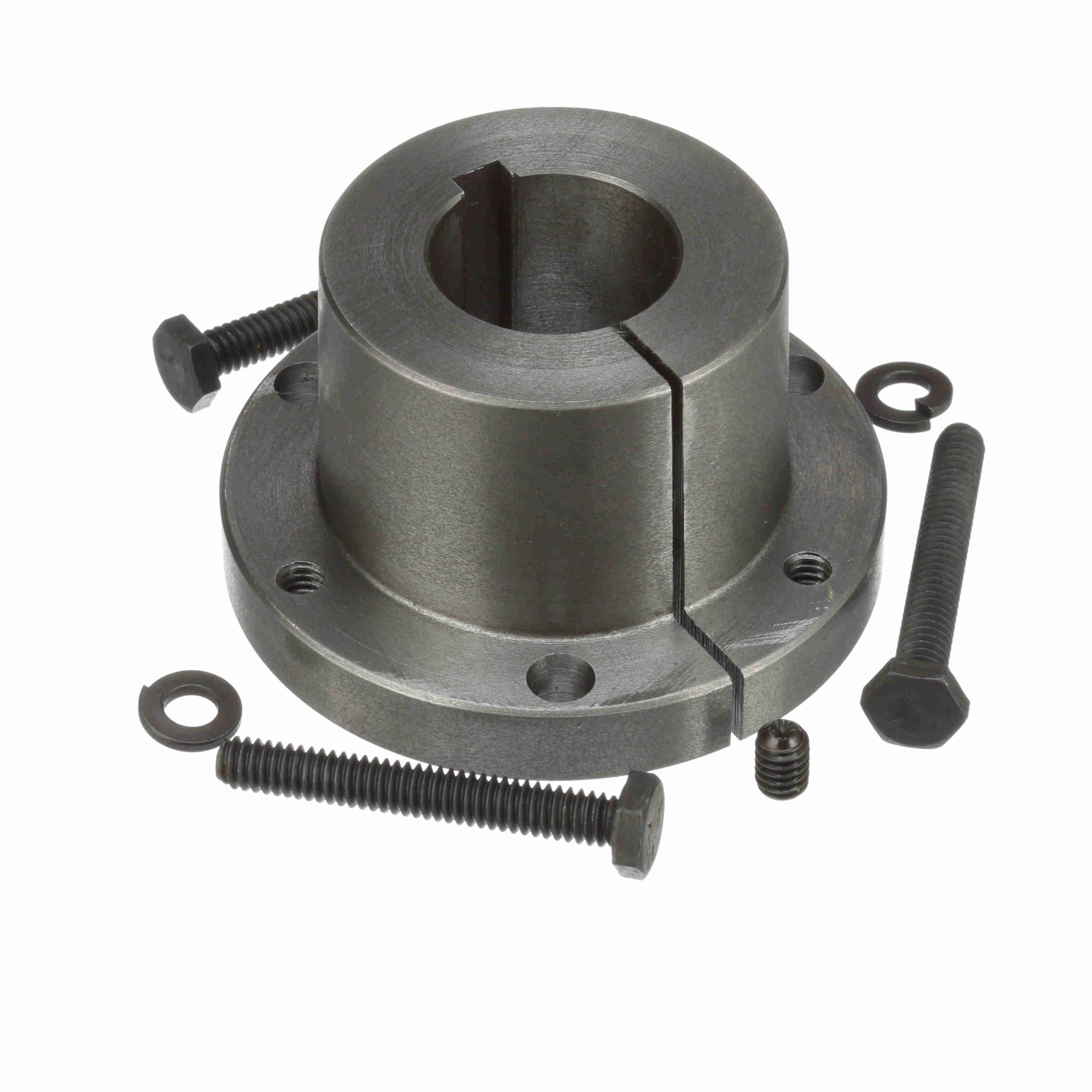

| S | 1076660 | 1.83" | 7/16" | 1 1/8" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €68.78 | |

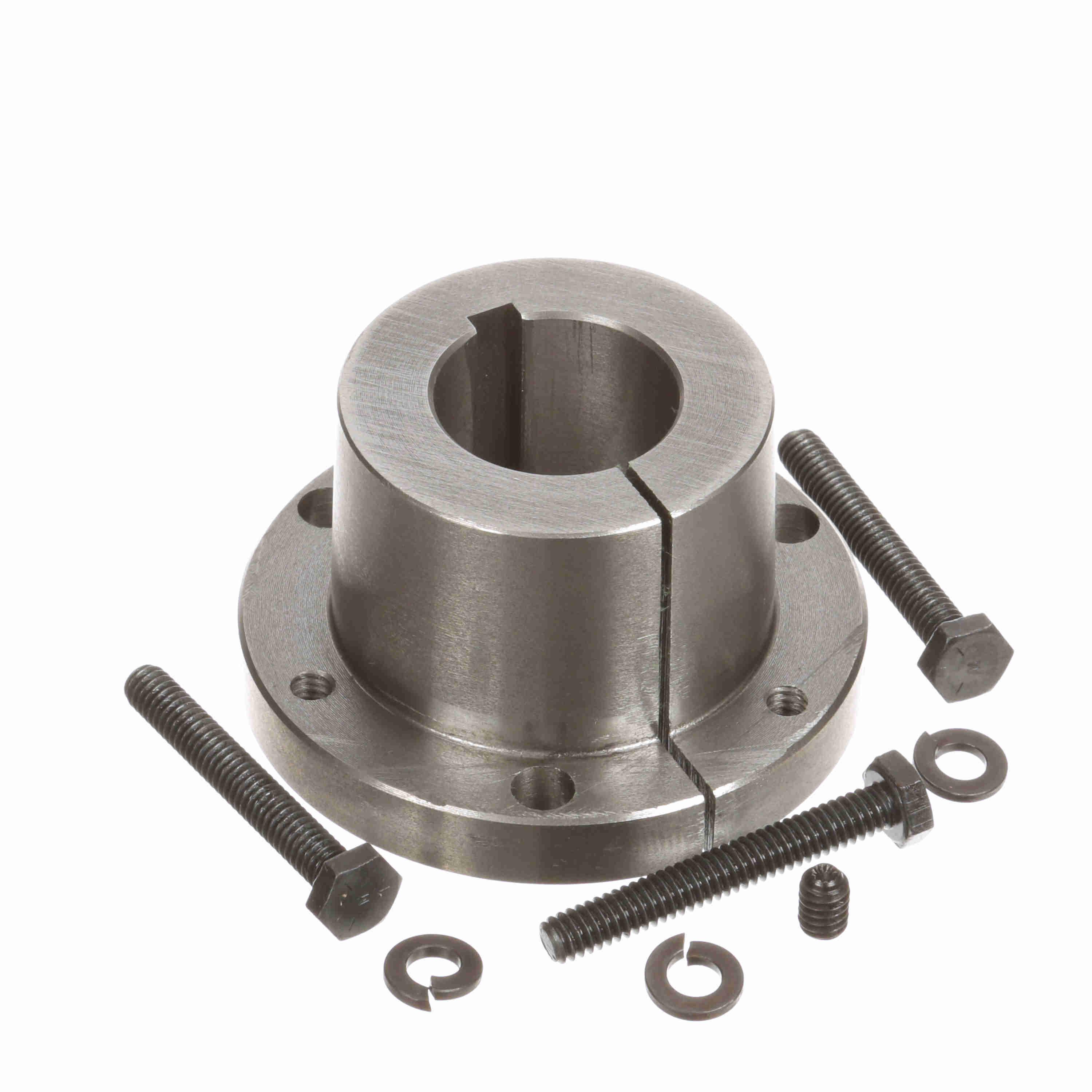

| T | 1076678 | 1.83" | 7/16" | 1 3/16" | 1/4" x 1/8" | 2 11/16" | - | 5000 lbs.-in. | - | €51.68 | RFQ
|
| U | 1076686 | 1.83" | 7/16" | 1 1/4" | 1/4" x 1/8" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €50.25 | RFQ
|
| V | 1076728 | 1.83" | 0.45" | 1 3/8" | 3/4" x 3/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €64.98 | |
| W | 1076769 | 1.83" | 7/16" | 1 5/8" | 3/4" x 3/16" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €68.78 | |
| G | 3208188 | 1.83" | 0.45" | 38 mm | 10 mm x 4 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €53.09 | RFQ
|
| X | 1076785 | 1.83" | 7/16" | 1 3/4" | 3/4" x 3/16" | 2 11/16" | - | - | - | €111.72 | |
| Y | 1076801 | 1.83" | 7/16" | 1 7/8" | 1/2" x 1/4" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €74.12 | |
| Z | 1076819 | 1.83" | 7/16" | 1 15/16" | 1/2" x 1/4" | 2 11/16" | - | 5000 lbs.-in. | - | €108.67 | |

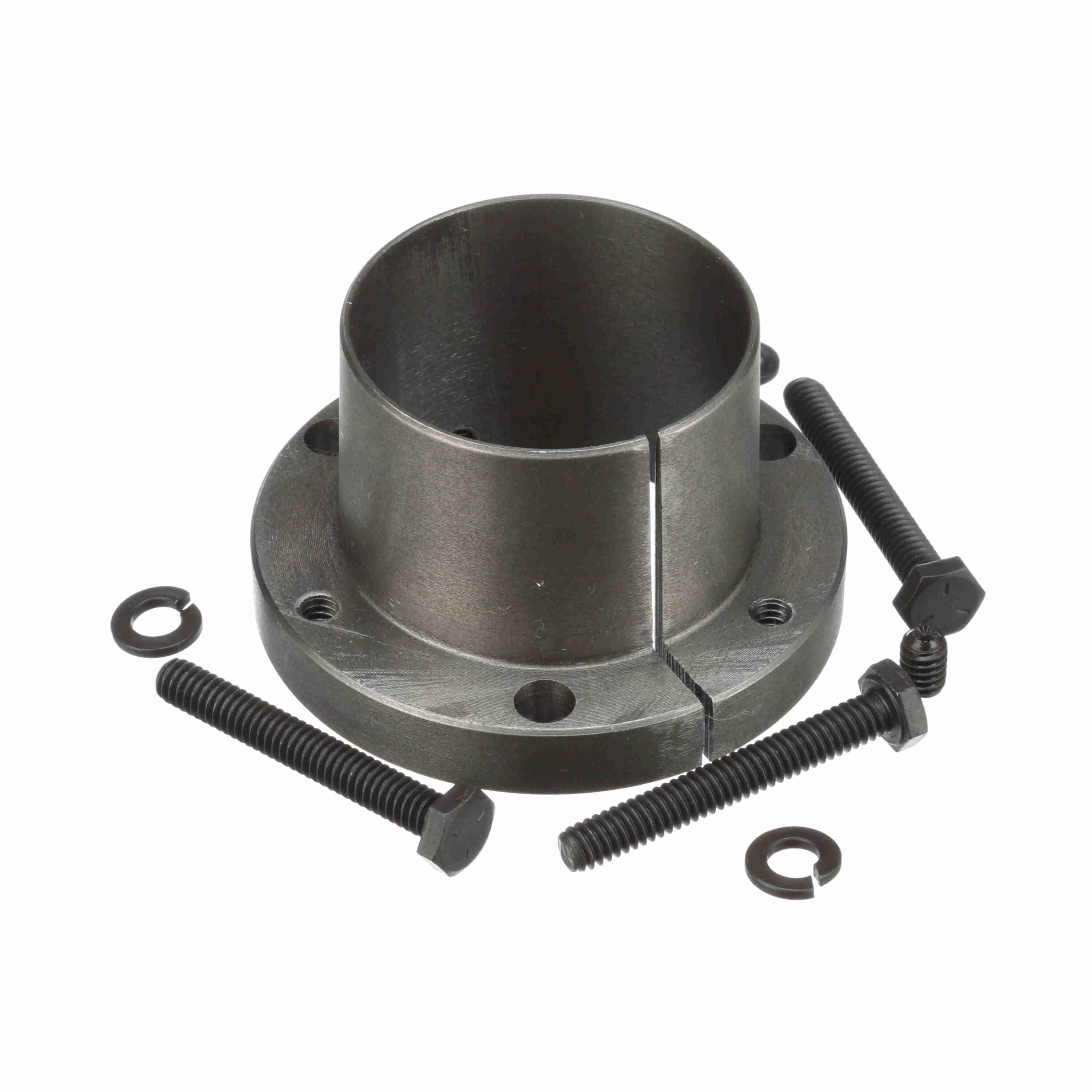

| A1 | 1076827 | 1.83" | 7/16" | 2" | 1/2" x 1/4" | 2 11/16" | 2.187" | 5000 lbs.-in. | - | €49.30 | RFQ
|

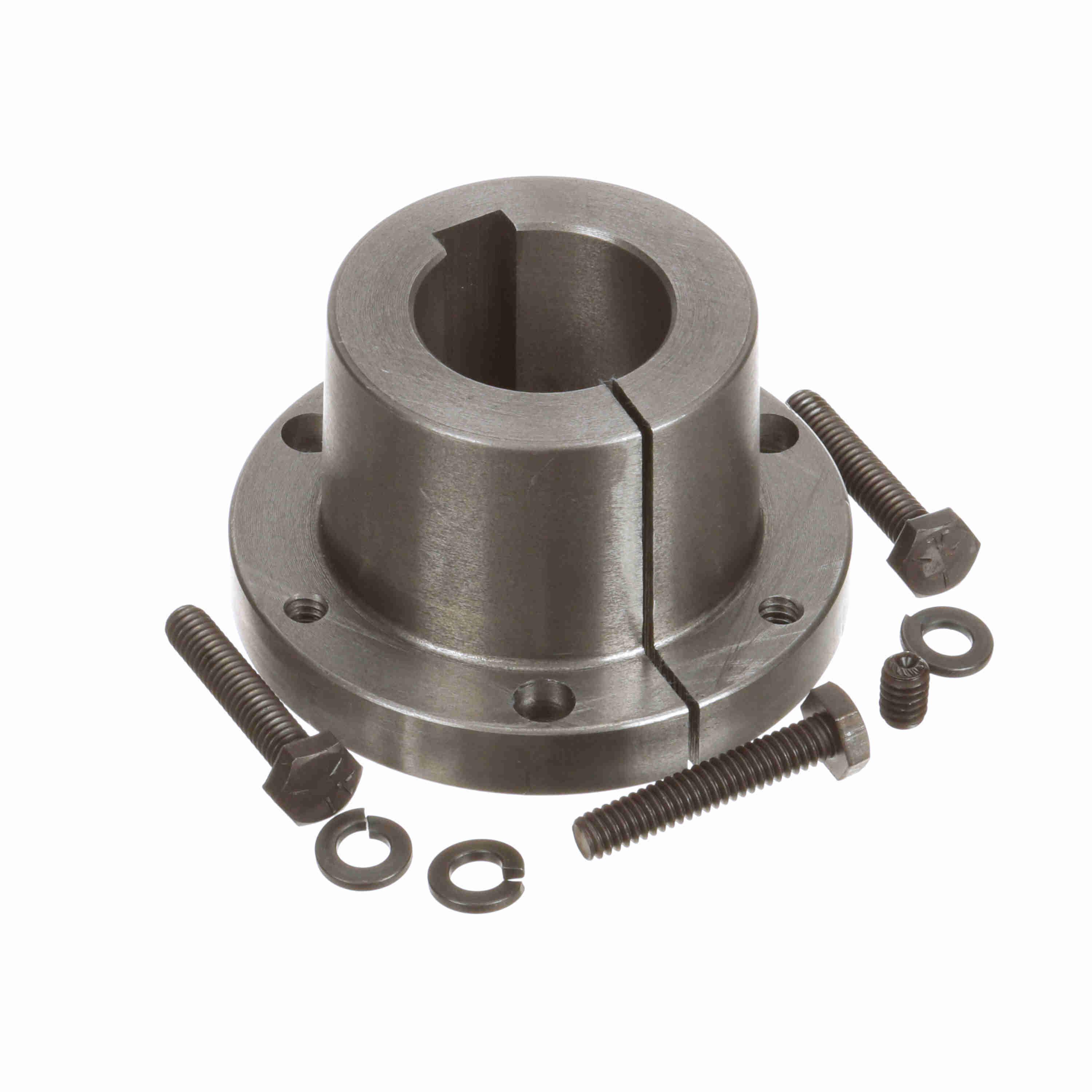

| B1 | 3208162 | 1.83" | 0.45" | 32 mm | 10 mm x 4 mm | 2 11/16" | 2.187" | 5000 lbs.-in. | Type SD | €53.09 | RFQ
|
| C1 | 1076637 | 1.83" | 7/16" | 15/16" | 1/4" x 1/8" | 2 11/16" | 2.187" | - | - | €66.83 | |

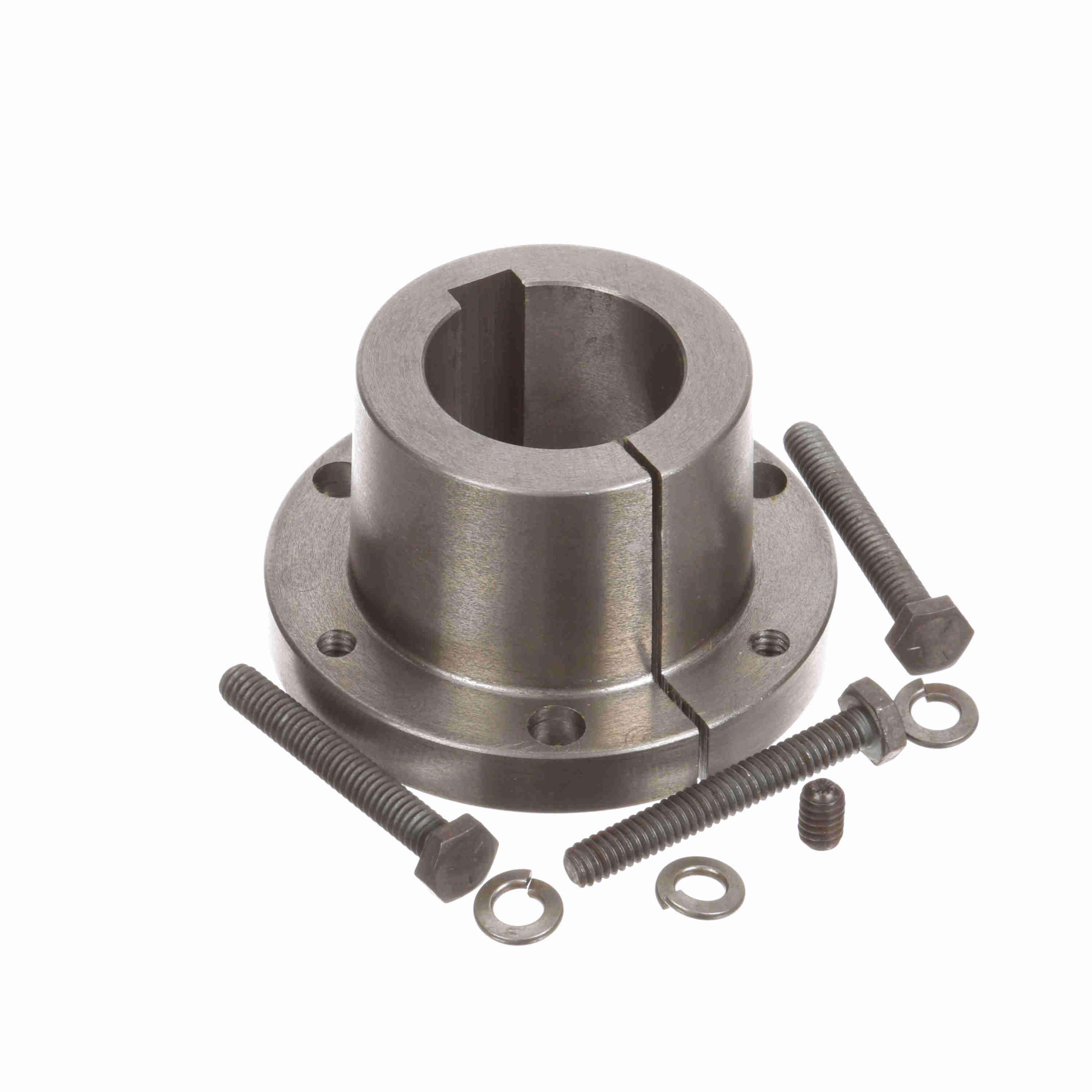

| D1 | 3208170 | 46.482 mm | 7/16" | 35 mm | 10 mm x 4 mm | 2 11/16" | 2.187" | - | - | €68.65 |
