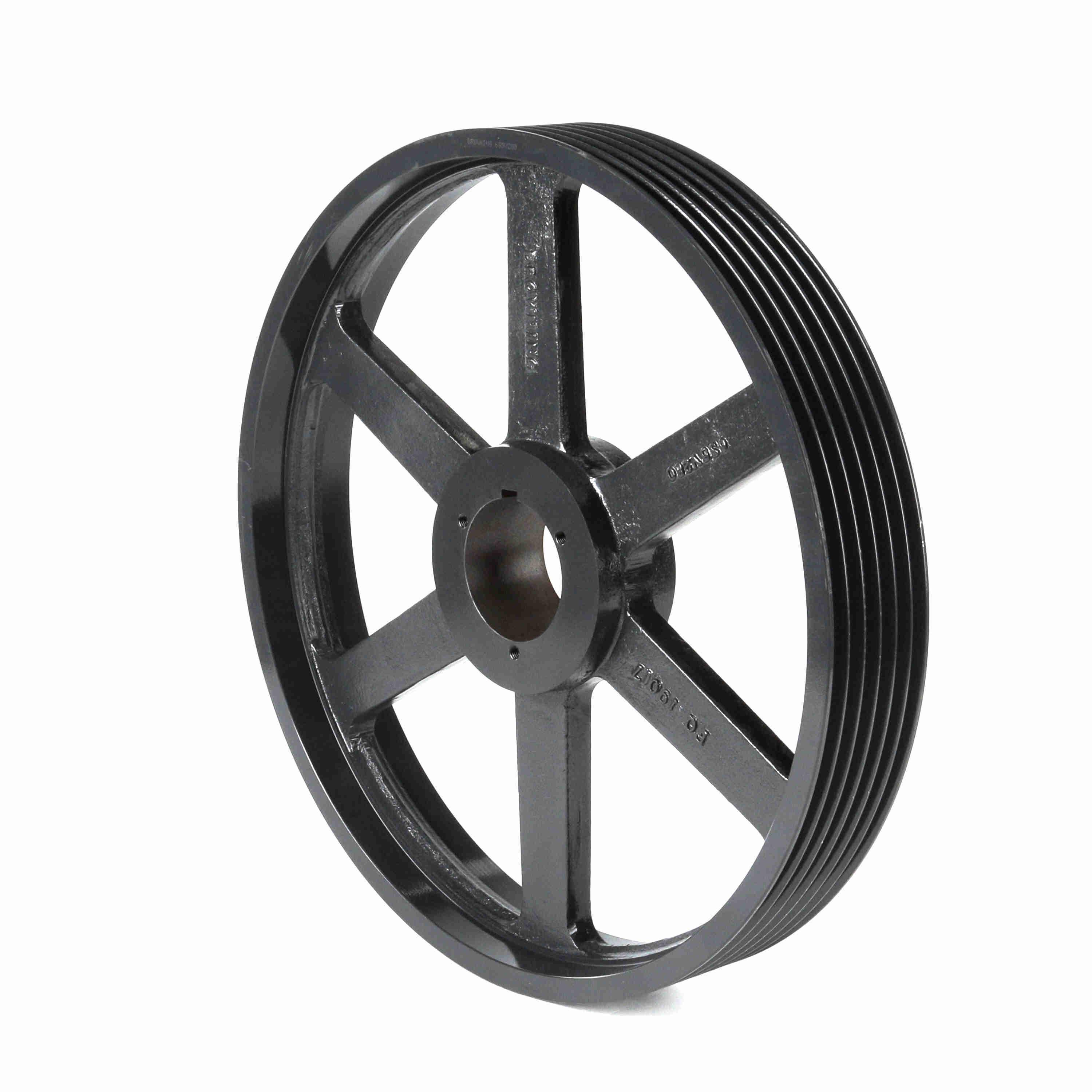

BROWNING 1062686 6S5V280 V-Belt Sheave, Multiple, Bushed Bore, 6 Groove, Cast Iron, 28 in OD, 1.69 to 4.25 in Bore Dia, 27.9 in Pitch Dia, S1 Bushing Type
Get it by Monday, Aug 17
€2,062.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1.69" to 4.25" |
| Bore Type | Split Taper |
| Bushing Bore Range | 1 11/16" to 4 1/4" |
| Bushing Type | S1 |
| Face Width | 4 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Min. Plain Bore | No |
| No. Of Grooves | 6 |
| Outside Dia. | 28" |
| Overall Length | 5 5/16" |
| Pitch Dia. | 27.9" |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
Shipping Info:
| Ship weight (kg) | 57.6 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 71.12 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | Bore Dia. | Type | Max. Pitch Dia. | Min. Pitch Dia. | Bushing Type | Bushing Bore Range | Hub Projection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1061936 | 9.65" | 1.13" to 3.75" | Type 15 Web | - | - | R1 | 1 1/8" to 3 3/4" | - | €836.96 | |
 |
1061654 | 7.9" | 1.13" to 3.75" | Type 15 Web | - | - | R1 | 1 1/8" to 3 3/4" | - | €693.41 | |
 |
1062611 | 24.9" | 1.69" to 4.25" | Type 13 Arm | - | - | S1 | 1 11/16" to 4 1/4" | - | €2,244.50 | |
 |
1062298 | 13.1" | 1.69" to 4.25" | Type 13 Arm | - | - | S1 | - | - | €1,157.94 | |
 |
1062009 | 10 1/5" | 1.13" to 3.75" | Type 15 Web | 10 1/5" | 10 1/5" | R1 | 1 1/8" to 3 3/4" | - | €723.46 | |
 |
1061795 | 8.9" | 1.13" to 3.75" | Type 15 Web | - | - | R1 | 1 1/8" to 3 3/4" | - | €809.66 | |
 |
1062074 | 10 4/5" | 1.13" to 3.75" | Type 15 Web | 10 4/5" | 10 4/5" | R1 | 1 1/8" to 3 3/4" | - | €756.32 |
